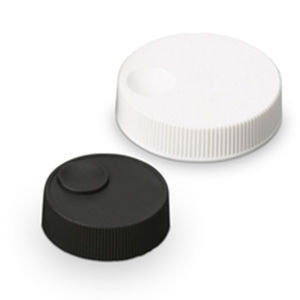

Mechanical control knobs are handy adjustment units with an integrated measurement system for variable mounting situatuions. A reduction gear enables a extremely fineresolution tracking and precise absolute depiction of adjustment values directly at the measuring point.
|
|
|
Knobs, buttons and T-handles for throttle, choke, valve, shut down, vent control and more in a variety of applications from construction to aviation.
|
|
|
|
|
|
Pushbutton transmitter Mercury 8/10
The Mercury pushbutton transmitter line is developed for indoor and outdoor use. Protective rubber bumpers make them extra shock resistant. Their IP 65 classification guarantees that water and dust can’t get in. The transmitter has 8/10 large, clearly visible, rugged buttons. The buttons are shaped for easy maneuverability when operators wear gloves. LEDs on each button indicate selected function. A separate LED indicates storage battery status and operation. The Mercury 8/10 has 8/10, two-stage buttons that enable double functions for each pushbutton.
Pushbutton Mercury 9RS
A robust transmitter with the same features as Mercury 10. The main difference is that Mercury 9RS has 9, two-stage buttons and a rotary switch that you can program for up to 18 functions/ command in 4 positions.
Pushbutton Mercury 12
Mercury 12 has more buttons and of an other design than the other Mercury pushbutton transmitters. The Mercury 12 is developed for applications, such as those on vehicles, which require another fast-stop function and several direct functions. The Mercury 12 has 12, two-stage buttons that enable double function for each button.
Åkerströms’ Remotus Mercury line contains customized products for remote control of cranes and overhead cranes and for other machine control, for example, in manufacturing, steel works, mines, and the processing industry. These products have a modular design and are easily adapted to your operation’s specific requirements. Functions, frequencies, design, and layout are easily tailor made.
|
|
The Light series pushbutton handsets are distinguished by their low weight (420g including battery) and their small dimensions (185x80x43mm.). Much emphasis has been placed on the operator comfort in high-usage applications - the transmitter's weight distribution, key and clip systems are all ergonomically designed. The system uses light weight Ni-Mh rechargeable batteries, which power the transmitter for up to 12 continuous hours and recharge in 4 hours in an intelligent charger. Each system is supplied complete with 2 batteries and a charger. The system is fail-safe to Category 3 of EN 954-1 for Stop.
|
|
Pushbutton Handsets with 10 or 12 main pushbuttons (MK 10-22, MK 12-22); 10 to 28 controls are easily configurable by means of various optional actuators: Pushbuttons, Toggle switches, and Key-operated switches.
MK 10DF, featuring Data Feedback, can receive and display data from the controlled machine on a backlit 2-line Liquid Crystal Display or LED lamps. Dedicated pushbuttons control the display's backlighting and data scrolling.
|
|
|
a portable TRANSMITTING UNIT which communicates to the receiving unit, the sequence of digital data that is necessary for carrying out the command selected by the operator using the command devices (pushbuttons, selectors, joysticks).
|
|
|
The system consists of transmitter, receiver and battery charger and also includes the Listen Before Transmit feature allowing the Mito to automatically scan, find, and lock onto a clear and available frequency upon pressing of start button.
|
|
I-syon, smaller, lighter and more versatile: these characteristics sum up the I-syon range, which completes and reinforces Ikusi’s catalogue of remote-control units. The company can now offer a full range of remote controls capable of meeting the needs of the many different markets in which it operates currently and
plans to operate in the future.
The I-syon range which Ikusi is now launching on the market is the result of an intense process of development that has led to major innovations in software, hardware and mechanical design.
|
|
|
The pushbutton radio type M550 WAVE S range is available with 4, 6 or 8 double-step pushbuttons for the movement commands. In addition, and always present is a Start/Klaxon button and a STOP mushroom-head button. The radio remote also has space for one optional command which can be a multi-position rotary switch, a single-step button or an analogue potentiometer. IMET have paid special attention to the ergonomic design of the WAVE transmitter bearing in mind the practical aspects of compact overall size, large pushbuttons suitable for operations with gloves, easy access and protected STOP button. This make the WAVE S an ideal tool for the control of hoists, overhead cranes and small tower cranes. The possibility of customisation extends the possible uses of this type of transmitter to a large variety of machines equipped with on/off control boxes whether AC or DC powered.
|
|
|
|
|
|
POCKET Series Radio Controls
POCKET Overview
Kar-Tech's POCKET series radio remote controls offer the OEM or end-user an affordable way to quickly and easily control many on/off and proportional outputs from a distance of up to 1000' feet or more. This remote is built to withstand hell, encased in a solid plastic protective boot, with a sealed enclosure and all sealed components used. It's big enough to fit solidly in an operator's hands, and the typically used pushbuttons provide great tactile and audible feedback for the operator. Full two-way communications are used so that error codes and signal and battery indication is displayed on the transmitter, similar to all other Kar-Tech products.
At A Glance:
- Long-range operation: 33mW of output power combined with a super-sensitive receiver provides up to 1000 feet of range
- Spread Spectrum: Interference is virtually eliminated
- Built To Last: Epoxy-potted receiver, and silicon coated electronics
Basic Technical Info:
The POCKET series operates between a range of +9 to 35VDC, and is protected for voltage spikes and reverse battery. It can provide many outputs capable of supplying 5 amps per. The transmitter runs on 9v batteries or a rechargeable battery pack with a nominal lifespan of several months.
Typical Applications:
- Telehandlers
- Small Concrete Pumps
- Feed Trailers
- Bale Wrappers
- Spraying Equipment
The POCKET has been used successfully in wide-ranging market sectors.
Available Options
- Different color protective boots
- Belt clip
- Custom decals/product branding
|
|
|
|
|
|
IKUSI provides global services and solutions for the remote control, maintenance and monitoring of machines. It therefore researches, innovates and develops solutions for safe and remote handling of cranes and lifting machinery.
Ikusi launches its new range of ATEX-approved TM70 remote controls
Ikusi continues to expand its range of TM70 remote controls. At this time it has incorporated two new pushbutton remote controls, type I and II, which have the characteristic of having obtained ATEX approval, which refers to the use of this type of equipment in potentially explosive environments or atmospheres.
Consequently, type I and II pushbuttons of the TM70 range can now be installed in potentially explosive environments, presenting powder or gases. The only limitation of the certification grade in environments with gases refers to Acetylene and Hydrogen.
The ATEX Directive (94/9/CE) entered into effect on 1st July, 2003, and from June 2006 any equipment, either used or new, which does not comply with this standard should be replaced.
|
|
|
|
|
|
IKUSI provides global services and solutions for the remote control, maintenance and monitoring of machines. It therefore researches, innovates and develops solutions for safe and remote handling of cranes and lifting machinery.
IKUSI TM70 1/2: Radio Remote Control Systems with Handheld pushbutton Transmitters
Main characteristics:
High sensitivity two step push buttons
Available bands: 433/870/915/419/447/918 MHz
External and extractable SIM module to configure easily of a spare transmitter providing easy maintenance.
NiMH rechargeable batteries
Fast and intelligent CB70 battery charger
1-0-1 position selector switches with maintained position or forced return to 0 position (optional)
Easy working frequency channel change by software and/or automatic working channel selection -LBT: Listen before talking-
CAN bus receiver with serial port RS-232 available
Fully compatible with other field buses: IQAN, J1939 and Profibus
LCD70 display option for feedback information
LA70 range limiter option
|
|
The pushbutton radio M550 WAVE L range is available with either 10 or 12 double-step pushbuttons for the movement commands in addition to the standard Start/Klaxon button and STOP mushroom-head button. The model M550D WAVE L10 can be equipped with a 8+8 digit LCD screen for the displaying of machine status information (using data feedback option).
As with the WAVE S, the transmitter has space for an optional command which can be a multi-position rotary switch, a single-step button or an analogue potentiometer. This makes the WAVE L a natural choice for the control of overhead cranes equipped with additional functions such as auxiliary hoist, grabs, magnets, etc. and medium size tower cranes. The possibility of customisation again extends the possible uses of this type of transmitter to a large variety of machines equipped with on/off control boxes whether AC or DC powered.
|
|
The UR and UD series offer a wide range of enhanced-safety radio remote controls with buttons, with the following features :
- Permanent radio link
- 64 frequencies in 433-434 MHz, programmable by the user
- Safety stop function cat. 3 as defined by EN954-1
- Reinforced safety characteristics to comply with European standards and
directives
- Electronic key ensuring that the equipement is only used by a trained
operator
- Optional infra-red start-up function to ensure safe start-up of the
controlled equipment.
- ATEX option
UR series : ultra compact transmitters, 2 or 4 function buttons + start +
stop. Fixed accumulator.
UD series : compact transmitters, 6 to 10 function buttons + start + stop.
Plug-in accumulator pack.
Main applications :
- Industrial lifting (travelling cranes, gantry cranes, hoists, monorail jibs)
- Person elevators (elevating platforms)
- Building industry equipment (tower cranes)
- Industrial equipment
- Industrial vehicles
|
|
|
The LJ is a lightweight transmitter that will communicate with our MDR-8400 and Advantage Series receivers. Its completely sealed plastic injection molded case and low profile, stainless steel switches offers the flexibility to customize the switch options to fit your needs.
|
|
|
|
|
|
HD and WP stations of heavy duty steel or aluminum may be pendant or surface mounted. They are shipped fully assembled and ready for customer connections.
PBC, WPBC, and XPBC are cam operated stations assembled in a variety of enclosure types. These stations are available with special circuit configuration and can be from one to five speeds, stepped or stepless operation. Many options are available for this type of station, including duplex construction with conduit boxes selector switches and many other special features.
CPB pendant stations are our most compact, ergonomic pendants. Available in single or two speed operation with NEMA 4X construction and CSA & UL Approval.
PBP pendant stations are weatherproof, heavy duty rubber stations with plug in pushbutton inserts, from one to five speeds. Components are readily available from our stock.
PBM pendant stations are lightweight and ergonomic and use 22mm operators. One through five speed buttons are available. Enclosures are NEMA 4X construction with CSA & UL Approval.
|
|
|
Control Chief has established a new standard in the wireless industrial control market. This radio is an outstanding value, featuring a compact, 8-button transmitter and a full compliment of safety features. The pre-wired receiver makes installation and setup simple.
|
|
We are manufacturer of radio modules and wireless remote controls. Our custom-made solutions fit perfectly for many applications in house and industry.
Our products feature a very high operating distance and a simple but powerful and very flexible concept for the control of up to 32 channels.
We can also deal with your special requests in order to solve your unique problem.
|
|
|
|
|
|
Push button transmitter RC12 / RCIR12 / TIM12
REMOTE CONTROL FOR HANDLING MACHINES, TRAVELLING CRANES, HOISTS...
Light, compact and ultra-tough case.
Ø 20 mm push button, 1, 2 or 3 step.
Up to 18 ON/OFF channels.
Plug-in Lithium battery (long lasting, 4h charge).
Electronic key can be changed by the maintenance dept.
GENERAL CHARACTERISTICS:
→ Elastomer-filled polyamide case, measuring: 282 x 68 x 73mm, Weight: 0,75 Kg.
→ Transmitter: up to 9 positions available on front panel, personalised layout and engraving available according to client specifications.
→ Push button 1, 2 or 3 step.
→ Crane selection by side push button (maintained or non maintained positions).
→ Change of frequencies, channel indicated by Leds.
COMMUNICATIONS:
→ RC12: Manual Radio remote control
- Frequencies: 433 MHz
- Up to 64 channels available
→ RCIR12: Manual Radio remote control with infrared option
- Similar characteristics to RC12
- Infrared option : start, zone limitation or dynamic pairing (see "Infrared Modules")
→ TIM12: Manual Infrared Remote control
- 3 channels available: 31, 46 and 78 KHz
|
|
