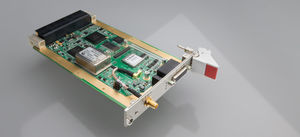

3U VME Boards
Complete line of 3U VME chassis & CPU boards along with a diverse line of plug in boards such as industrial I/O and communications, PCMCIA, VME ModPack & PMC carriers, ModPack and fieldbus.
For chassis, please follow the link systems.
|
|

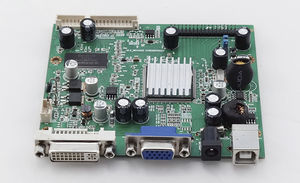

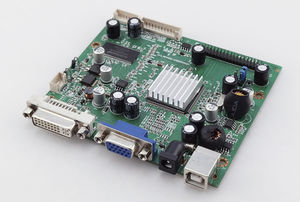

Flatpanel Controller
The CRTtoLCD-Flatpanel Controllers of the aFLAT-series offer you the following options for easy PLUG & DISPLAY integration of a flatpanel into your application.
Click here to access the Flatpanel Configurator.
|
|
xRSUNI & xRSUNI-LP series
Cost-effective solution to add 2, 4 or 8 high performance serial ports, universal bus, standard & low profile for PCI & PCI-X computers
Serial multiport communication board with 2, 4 or 8 asynchronous serial ports
Supports all PCI form factors & environments : SP, LP MD1, PCI 3.3V, PCI 5V, PCI-X.
High performance :
RS232 1 Mbps or RS422/RS485 1.8 Mbps, 1 Mbps for the isolated RS422/485 model
128 bytes receive and transmit FIFOs
PCI "Plug & Play" board
RS232, RS422 or RS485 line interface with & without isolation depending to models
Very high reliability, M.T.B.F. > 10e6 P.O.H.
Automatic line turn-around for the RS422/RS485 model
|
|
|
Dedicated PAL/NTSC input controller supports dual Composite ports, plus S-Video input ports on panel resolutions up to 1280 x 1024. Supports Digital View serial port protocol.
|
|

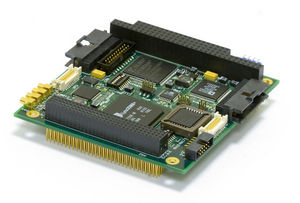

The Wildcat gives OEM designers optional Ethernet connectivity in a low-cost, high-performance single-board computer. These compact boards are rich with the digital I/O, A/D, and D/A designers need for embedded control and monitoring applications, and the Wildcat's compact board allows for easy integration.
Ethernet models are ideal for remotely monitoring and supervising another programmable system or web-enabling new or existing products.
|
|

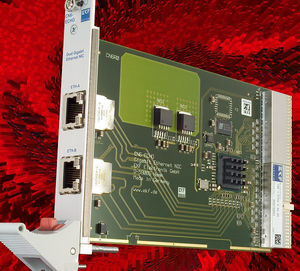

PMC Gigabit Ethernet Controller
32/64-bit, 33/66 MHz PCI and/or 66/133 MHz PCI-X operation PMC Module
1 or 2 independent Gigabit Ethernet channels
Copper and/or optical transmissions supported
Auto detect of 10 Base-T,100 Base-TX or 1000 Base-T in copper network configurations
|
|
|
|
|
|
Model ROBO-N201G
One-port Gigabit Ethernet extension module with Portwell OmniPCI connection interface
Intel® 82540EM
Compact sized
Proprietary PCI connector for piggy back (board to board) connection
Fully PCI Bus spec. V2.1 compliant
One accessory card for extension Ethernet port(s), Link, and Speed indicators (Two LED indicators; one shows green when linked and blinks when transmitting or receiving data, the one shows green when linked at 100 Mbps and yellow when linked at 1000 Mbps)
One Ethernet RJ-45 daughter board and one daughter card
Support IEEE 802.3
Auto-negotiation algorithm of full-duplex and half-fuplex operation for 10 Mb/s and 100Mb/s (NWAY)
Dimension : 77(L) x 52(W) mm
Model ROBO-N100P
Fast Ethernet extension module with Portwell OmniPCI connection interface (P4 solution)
For Intel® Pentium® 4 processor based SBC
Intel 82559
Compact sized
Proprietary PCI connector for piggy back (board to board) connection
Fully PCI Bus spec. V2.1 compliant
One Ethernet RJ-45 daughter board and one daughter card
Support IEEE 802.3
Auto-negotiation algorithm of full-duplex and half-fuplex operation for 10 Mb/s and 100Mb/s (NWAY)
Dimension : 77(L) x 52(W) mm
|
|
The Epson fieldbus systems are the ideal connection of an Epson robot with an industrial fieldbus system. No matter if Devicenet or Profibus, the connection of fieldbusses to an Epson controller is completely integrated into the Epson developer surface Epson RC+.
So it is possible to use the high performant fieldbusses.
|
|
NETcore® X APCI fieldbus cards
NETcore® X APCI are the fieldbus communication cards based on Hilscher NetX chip. They can be installed and can work on ASEM systems OT/PB800, OT/PB1000, OT/PB1200 and OT/PB1300 equipped with expansion slot. APCI (ASEM PCI) is a PCI bus customised by ASEM.
NETcore® X APCI is available for Profibus/MPI master and slave, CANopen master and slave, Industrial Ethernet master and slave for the protocols EtherCAT, Ethernet/IP, Powerlink, Profinet RT, Sercos III.
Thanks to this wide choice, to the user-friendly configuration tool and to the possibility of combinations with ASEM Premium HMI and CODESYS*, fieldbus connection is fast, functional and allows the development of complete and efficient systems dedicated to plant control and supervision.
|
|
PMC253
Advanced Profibus PMC Controller for Fieldbus Applications
Highly integrated EC-1 ASIC with ASPC-2 technology
Profibus DP V1 master (class 1/2) and slave
Up to 12 MBaud transfer rate
Optoisolated RS485 PROFIBUS interface
|
|
UGM-M72 High End Graphic Module based on ATI M72 with up to 256MB VideoRAM
First modular high performance graphic module for COM concept
High performance
Low Profile
Longterm availability
|
|
Model ROBO-U160
SCSI extension module with Portwell OmniPCI connection interface
Adaptec AIC7892 SCSI Ultra 160/m controller
Compact sized
Proprietary PCI connector for piggy back (board to board) connection
Fully PCI Bus spec. V2.1 compliant
68-pin SCSI connector located at PCBA component side
Support SCSI Ultra 160/m
Single channel
With 68-pin LVDS SCSI cable
Dimension: 77(L) x 54(W) mm
Model ROBO-U160
SCSI extension module with Portwell OmniPCI connection interface
Adaptec AIC7892 SCSI Ultra 160/m controller
Compact sized
Proprietary PCI connector for piggy back (board to board) connection
Fully PCI Bus spec. V2.1 compliant
68-pin SCSI connector located at PCBA component side
Support SCSI Ultra 160/m
Single channel
With 68-pin LVDS SCSI cable
Dimension: 77(L) x 54(W) mm
|
|
|
Cambridge Technologys EC1000 is the next generation in galvo-steered laser control systems. This compact, fully integrated dual system-on-a-chip (SoC) control system is ideal for deployment into modern factory environments with distributed automation. In this environment, a single host computer can supervise a factory of networked laser marking appliances. The EC1000 is designed to be completely embedded into a scanning head and does not require a nearby physical host computer for operation. Remote Access, Remote Control, and Remote Monitoring are fully supported for tetherless operation in a distributed laser marking environment. Factory reliability and EMI immunity are ensured through the use of optically isolated digital control ports.
|
|
CANnes
Description
CAN-Bus PCI-Card with open source Linux driver
The CANnes card is a PCI card which provides a simple, easy to use CAN interface. It is equipped with a male and a female 9 pin Sub-D connector with standard CAN pin assignments. CAN bit rates between 10 and 1000 kBit/s (1MBit/s) are possible. The industry standard CAN controller SJA1000 is used together with the CAN bus driver 82C250 and optical isolation between the CAN controller and the CAN bus driver. A 120 ohms termination resistor is also provided. This resistor can be switched on and off either by a software controlled relay. Device drivers and function libraries are provided for the Windows (98/ME/2000 and NT4) operating systems and also for the Linux operating system. The CANnes cards is CE-approved and also meets FCC specifications. It can be used with every PC which is equipped with PCI slots fulfilling at least the PCI 2.1 standard.
|
|

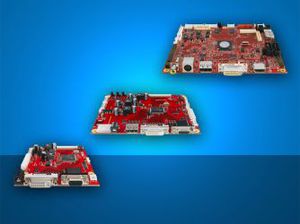

SMART designs and manufactures high-quality, cost effective custom and standard displays and controller boards. Through a winning combination of worldwide logistical capabilities, wide-reaching technical support, and renowned technical expertise, SMART offers unique advantages to OEMs developing products for Kiosk, Digital Signage, ATM, Gaming, Embedded Display, and Embedded Controller applications.
Principally focused on providing unparalleled customer service and high-quality products, SMART is solidly positioned to service OEM standard and custom display and controller board needs. By capitalizing on a tradition of longstanding partnerships with key suppliers and customers as well as a broad global manufacturing footprint, SMART can reliably provide OEMs with high-quality solutions that fit their budget.
|
|
| ... products without technical information |
| |
Features:
Modules drive up to 16 SmartSwitches.
Reduces design time.
Saves on development cost.
Fully programmable using NKK software.
Single switch logic board
Supports single & bicolor LEDs
Compatible with C1601 controller
|
|
|
For Game System, Factory Automation Systems, Measuring Instruments, POS Systems, Medical Instruments
|
|
|
|
