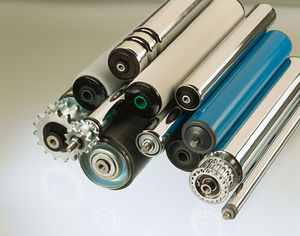

Conveyor Roller
Driven and non-driven Conveyor Roller Accumulation- and Positive Drive.
Available in Steel, Stainless Steel, Aluminium und Plastics.
Steel Conveyor Rollergalvanized, epoxy resin coated, surface hardened, coated with PVC, PU or Rubber.
Abridgement of the Range:

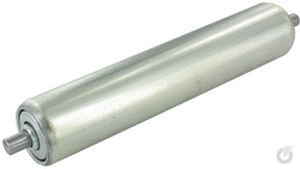

Gravity Roller

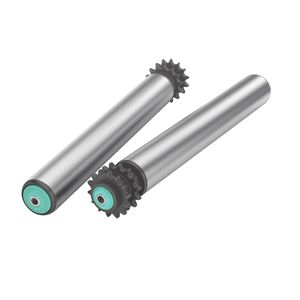

Driven Roller
Conical Roller
Drum Motors
Conveyor Belt Drums
Belt Station Roller
Brake Roller and Brake Conveyor Roller

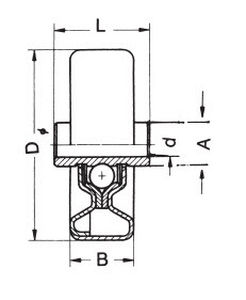

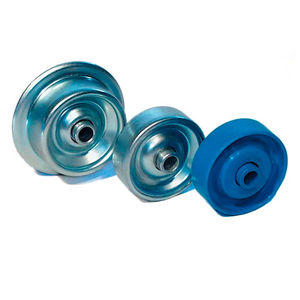

Skate Wheels
Universal Wheels
Pallet Rails
Chain Slide Bar
Zero Pressure Systems
Tooth Belts
and a lot more
|
|
We supply conveyor rollers in diameters from 16 mm to 190 mm and lengths from 70 mm to 3500 mm. Made of high quality materials, with roller bearings, housings and seals specially designed by Interroll. High quality performance for modern materials handling...
Typical Applications include:
- Postal and document handling
- Food-processing industry
- Assembly lines in the electronics industry
- Machine linking in automation
- Production plant in all industries
- Dispatch lines in all industries
- Packaging lines for all products
- Order-picking systems for pharmaceuticals wholesalers
- Pallet transport in beverage distribution
- Luggage handling
- Cargo handling
- Supermarket check-outs
Etc.
|
|
Conveyor components

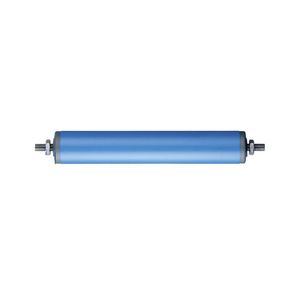

Plastic-Carrying rollers LINE TKL
Tube : PVC-hard, shock resistant according to DIN 77 48
Colour blue, similar RAL 5015
Bearing: Plastic bearing cover with one row of ball. Also available with stainless steel balls
Brightly pulled steel made of ST 37 K
Also available with spring axle, internal thread or external thread as well as width flat
|
|
Modular conveyor rollers
- Driven on both sides
- Running surface D=125 mm made from TPU also available with electrical conductivity
- Rapid availability and many variations
|
|

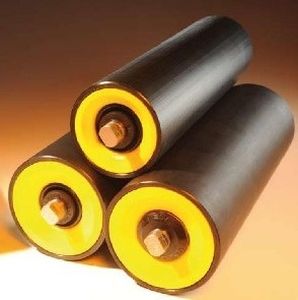

Heavy Duty Conveyor Roller Series 1450
Ideal for heavy goods, such as pallets, containers etc. Rounded roller end caps for easy side transfer of conveyed goods. Protected bearing seating. Quiet running by utilizing plastic end caps and sealings. Lip seals in front of bearing as protection against dust and water. Load capacity: up to 5000 N.
Max. Speed
2,0 m/s
Load capacity
Up to 5,000 N
Dimensions Tube
Zinc plated steel to DIN 2394 with an outside diameter of of 80 or of 89 mm
Stainless steel to DIN 2463 with an outside diameter of 80 or 89 mm
Spindle
Bright steel, zinc plated or stainless steel
Spindle with milled flats, diameter 20 or 25 mm
Male threaded spindle, diameter 20 mm
Female threaded spindle (M10 x 20 or M12 x 20), diameter of20 or 25 mm
Bearing
Bearing housing made of polyamide (black)
Bearing seal made of polyamide (yellow)
Types of bearing:- Precision ball bearings 6205 , 6205 2RS
Options
Flanges
Elastic PVC sleeve (only for tube outside diameters of 80 mm)
|
|

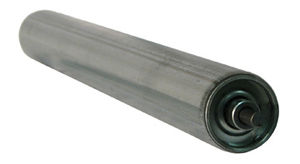

rollers of handling for conveyers with gravitating rollers where mechanized
diameter 16mm with 108mm, PVC, zinc coated steel, STAINLESS

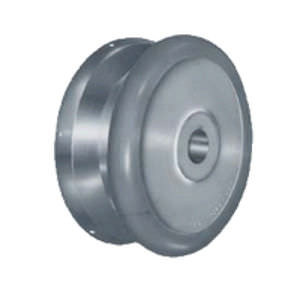

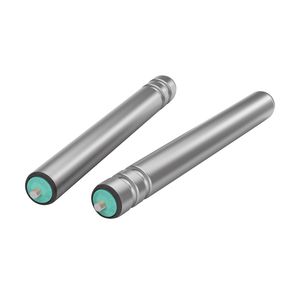

In photograph: roller with throat for conveyer with rollers ordered by countershaft and round belts
|
|

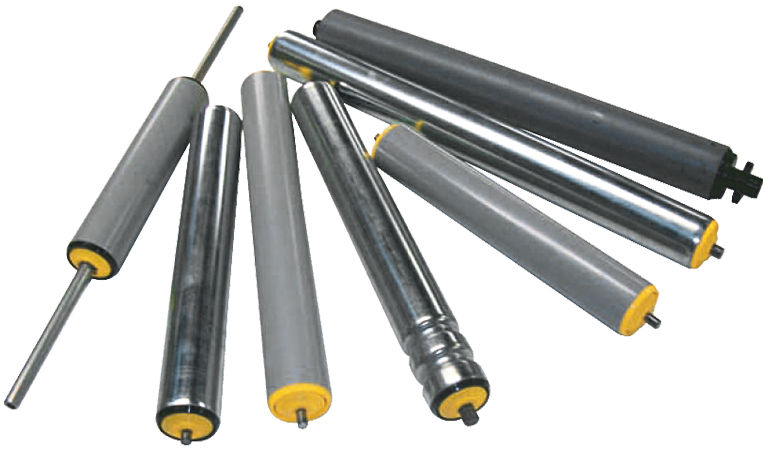

- High Quality Assemblies
- ABEC 1 & Basic Metal Stamped Bearings
- Plain, Galvanized & Stainless Steel Rollers
Utilizing a long history of ball bearing knowledge and expertise, Frantz® Manufacturing has expanded into manufacturing gravity flow conveyor rollers. The following general information will familiarize your organization with our current conveyor roller manufacturing capabilities. If there is a specific need not listed, please contact customer service at Frantz, we will be expanding into additional sizes.
|
|

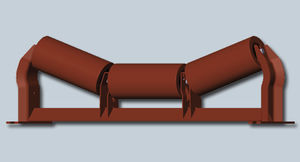

The Tru-Trainer employs a unique and highly effective tracking action, which is non-damaging to the belt and reacts immediately if the belt begins to drift off center.
Because it does not rely on contact with the belt edge in order to guide the belt, belt edge damage, which occurs frequently with other tracking systems, is avoided. The center pivot is unique and simple, consisting of a stainless steel pin within a solid steel center shaft. Advantages include:
- Simple to Install
- Maintenance Free
- Operates In All Conditions
- Increases Conveyor Belt Life
- Reduces Spillage and Waste
- Minimum Working Parts
- Lower Motor Power Consumption
- Operates on Reversible Belts
- Rubber Covered for Better Traction
|
|
|
|
|
|
Application:
•Decentralized motorization of loads < 500kg (cardboard boxes, trays, totes…) for conveying systems where there is no risk of accumulation
•Regulation for speed in gravity roller conveyors, access gate, bridging between conveyors, 90° transfers, powered roller bends…
•Applicable to all industries (automotive, electronics, mail …) for assembly lines and transfers
Benefits:
•Safety (no exposed transmissions)
•Comfort/Ecological (without oil bath)
•Modular & flexible conveyor zones
•Space saving
•Quick and simple installation removing the need for maintenance (no exposed transmissions)
Concept and characteristics:
•The AC asynchronous motor and the life lubricated planetary gears and bearings are integrated inside the roller tube to drive the loads directly
•Internal shock absorber protects the gearbox
•Continuous or intermittent duty cycle (720 start-stop/hour)
•Speed from 4 to 50 m/min
•IP54, 55 and 65, clean room
•1phase or 3 phase, 50 or 60Hz, from 100 to 440V
•option : accumilation motor or brake motor
AC 1phase & 3 phase range:
•Ø 50 standard: series K
•Ø 57 standard: series A
•Ø 60.5 standard: series B
|
|
Concept and characteristics:
• The brushless 24V DC motor 1 and the life lubricated planetary gears and bearings 2 are integrated inside the roller tube 3.
• A circuit board drives the motor offering different control options (see “circuit board” section)
• Suitable for a host of environments: industrial, humid, dusty, wet, oily and clean rooms (IP54, 55 & 65)
• Continuous or intermittent duty cycles (1800 start-stop/hour)
• Speed range from 4 to 65 m/min
• Speed variation: see “circuit board” section
• Available with dynamic break and mechanical brake
|
|
Dura-Sleeve return idlers are a patented abrasion resistant urethane sleeve that is easily clamped on any existing or new rubber or urethane disc return idler shaft.
* Patented Design - of our idler sleeve clamping system utilizes you to replace worn out rubber or other urethane disc return idlers.
* Abrasion Resistant Urethane - compounds provide wear ability that exceeds 5 times the wear life of standard rubber disc return idlers.
* Meets all CEMA Standards - and available in any belt width and inside and outside roller diameter.
|
|
|
|
|
|

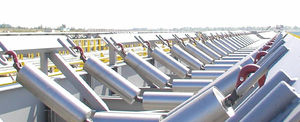

MARTIN® TRAC-MOUNT™ Idler
MARTIN® TRAC-MOUNT™ Idler uses sliding frames to fit into tight spaces between cradles, ensuring proper rolling support for the belt.
Simple Service
Individual rollers slide in and lock in place from outside the belt. No more laying idler sets on their side.
Proper Conveyor Belt Support In Tight Spaces
Slide-in frames need only 8 inches (203 mm) of width for 6-inch (152 mm) rollers.
Meets CEMA Standards
Available for any belt width or troughing angle, with any brand of rollers.
MARTIN® Transfer Points are custom-engineered by Martin Engineering to eliminate blockages, reduce impact, centralize loading and guarantee the material flow rate.
Martin Engineering makes bulk materials handling cleaner, safer and more productive, with engineered systems including conveyor belt cleaners, conveyor load zone/transfer point chutes, impact cradles and slider beds, skirtboard sealing systems, air-supported belt conveyors, air cannons, pneumatic (air) and electric industrial/bin/railcar/truck vibrators, belt training/alignment devices, dust suppression/collection/control systems, and specialized contract services including installation/maintenance and silo/bin/bunker cleaning.
|
|
|
Conveying and friction accumulating via radial friction clutch between drive unit and slide bush (one-sided friction). The driving force of the roller is load-depending, it sets itself automatically. Friction roller series 3800 and fixed driven rollers series 3500 have the same dimensions. They can thus be combined easily with each other and also be retro-fitted with the other drive types (friction/fixed drive). Rollers series 3800 are based on the universal roller series 1700, e.g. roller housings of the roller series 1700 are to be found on the non-driven side. The drive elements are optionally available in plastic (Sprockets - Polyamid 6.6, Toothed pinion - POM) or steel. Sprockets made of plastic are non-abrasive, tough elastic and noise damping. Sprockets made of steel are precision turned with precise teeth. The maximum load capacity of the roller is directly dependent with the amount of accumulation during the whole operational time.
|
|

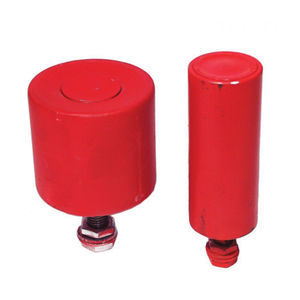

Tracker Rollers from HOSCH ensure conveyor belt alignment.
- Maintenance free
- No wearing parts
- Durable rubber surface
- Suitable for all environmental conditions
- Minimum space required, compact dimensions
- Ease of installation
- Minimum of installation
- Also suitable for reversing operation, ideal for retrofitting
|
|
|

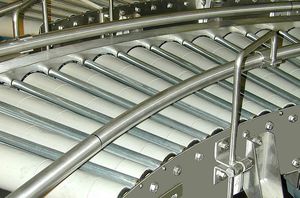

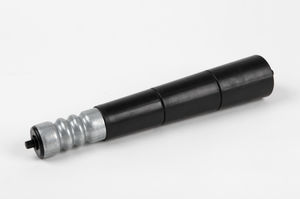

Only tapered conveyor rollers can ensure that the items are conveyed round curves reliably. The different conveying speeds around the circumference of the tapered tubes allow perfect handling. Side guides are not absolutely necessary. Compared with straight sections, curved sections require greater installation lengths (assuming item dimensions are identical). For reliable handling, the actual clear width of the conveyor should be approx. 50 mm larger than the calculated width. EL and RL should be selected accord-ingly.
|
|
Mink round brushes - Highly efficient tools with countless applications
Mink round brushes can be applied to solve problems in a wide range of areas, and our engineers have the ideas to exploit this potential. When it comes to flexibility, no industrial tool can match these brushes. We offer a huge selection of models: roller brushes (with stub shafts), round brushes (with hollow centre spindle, no shaft), the Mink HP-System (two half segments, without shaft) and the Mink Zick-Zack-System (modules, with or without shaft). Finally, there are Mink web spreader brush rolls for modern processing of plastic film, textiles and many other kinds of web.
Advantages:
• Suitable for goods of all kinds
• Versatile and economical
• Maximum cleaning power combined with optimum surface care
• Form and stiffness according to individual requirements
• Less need for cleaning agents thanks to the mechanical action of the bristles – economic and ecological benefits
|
|
Mink roller brushes (BW) - Individually configured roller brushes with shafts
Mink roller brushes differ from other Mink round brushes by virtue of their integrated shafts. Owing to the wide-ranging demands made on these brushes, especially in terms of shaft dimensions, there is no advantage in maintaining a stock range. Nevertheless, with our extensive experience in this area we are able to configure special brushes for you very quickly. On account of its extraordinary versatility the Mink Zick-Zack-System can frequently serve as the basis for a reliable solution.
Your advantage:
• Individual configurations for special purposes
|
|
|
The modular principle underlying our one-way system of trapezoidal toothed roller brushes provides for fast, low cost changes of brushes. They can be installed and similarly removed by a simple hand operation. The teeth lock securely (and in a non-twist manner); as a result, a gap-free bristle surface is assured. Precise true running is guaranteed at all times. The DT system consists of brush segments which are mounted to the brush core with two locking collars. Due to the special modular principle on which they are based, worn individual segments on a roller brush can be replaced
|
|
Both the shape of the modules and that of the sprockets are very important in the design of the different series.
The perfect coupling of the modules to the sprockets assures a direct drive free of slips and lateral displacements, typical of the conventional traction systems.
|
|
