Countersinks Type 100, cylindrical shank
Countersinks type 100T
HSS Tol.x9 60°
Range 8,0 - 40,0
Part No. eg. 10,0: 100T6-10,0
HSS Tol.x9 80°
Range 6,5 - 40,0
Part No. eg. 15,0: 100T8-15,0
HSS Tol.x9 90°
Range 4,3 - 40,0
Part No. eg. 6,3: 100T9-6,3
HSS Tol.x9 120°
Ø10,0 - 30,0
|
|

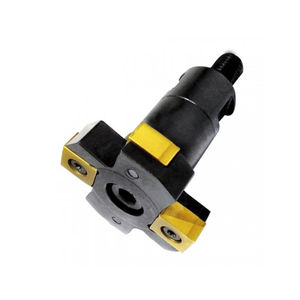

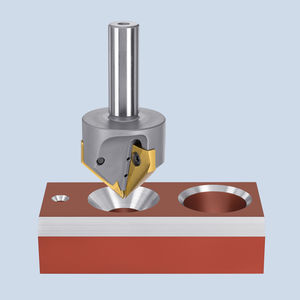

The GH-K tool is a precision inserted countersink tool with three effective cutting edges and large countersink range. The blades are precision ground as a matched set to achieved unmatched countersink finishes.
Inserts are easily reground to original accuracy.
High shear cutting action eliminates secondary burrs.
Used in manual and CNC applications with a 3-45mm countersink range.
|
|
PCD Countersinks:
Designed with Fixed or interchangeable pilots with corner radius. Recommended for advanced carbon Fiber or pitch based materials. One, two and three Fute confgurations with 100¢ª and 130¢ª angles. Threaded and straight shank versions available.
|
|
Series 47N, 48N Chamfer and Countersink (Non-Center Cutting)
47N-5005T8RA45 New!
48N20007TSRA45 New!
Order Wrenches Separately:
T08
T12
|
|
Weldon high-speed steel countersinks and deburring tools are known for their high quality, unique designs and outstanding performance. No matter what material you're cutting, or what angle you're cutting it at, our tools will give you the chatterless finishes you're looking for.
With Weldon, you always get real value in the cutting tools you buy. Superior-quality countersinks and deburring tools at very competitive prices. Choose from our large selection of styles and sizes.
- Chatterless finish
- Single cutting edge for fast removal of stock
- Free-cutting
- Easily sharpened
- Designed for 60°, 82°, 90° and 100° cutting
- Specials also available
Tools of this type are easily sharpened either by the use of a small mounted grinding wheel inserted into the hole or on the Weldon Axial Relief Sharpening Fixture (Part #96-169).
|
|
3043V - 90° conical cross-hole HSS countersink
3042V - 90° and 3 flute conical HSS countersink
BOX :
4pc conical HSS cross-hole countersinks kit - plastic
4pc conical HSS 3-flute countersinks kit - plastic
4pc conical cross-hole HSS countersinks kit - metal
6pc conical HSS 3-flute countersinks kit - metal
|
|
|
We supply DIN 334C DIN335 DIN335D etc HSS countersink with bright, tin-coated, black oxide etc finish in metric and inch sizes, packing in single plastic box, metal box or wooden case etc, all top quality and competitive prices for you.
|
|
Counterboring System Size 01
Insert drills, Pilots. Counterbores,
Countersinks and Toolholders
Insert drill type 01B
HSS Tol.h8 Flute L.=12 mm
Range: 2,5 - 3,7 mm
Part No. eg. 3,2: 01B-3,2
Insert drill type 01LB
HSS Tol.h8 Flute L. =17 mm
Range: 2,5-3,7 mm
Part No. eg. 3,2: 01LB-03,2
|
|
- Soft to Medium Hardness Materials
- High Speed Steel
- 20° Right Hand Helix, Right Hand Cut
- Cutting Diameter Tolerance is +.001/-.000
- Pilot Diameter Tolerance is +.000/-.001
|
|
|
Designed for "1960 Series" socket head cap screws, Weldon Tu-lip Counterbores are extremely free cutting. With only two lips to regrind, tool room grinding costs are greatly reduced. Generous chip room in the flutes minimizes breakage caused by clogging. Solid pilots without grooves will not ream or mar holes.
|
|
in High Speed Steel and Carbide
Countersinks, counterbores and spot facers
Short counterbores, back spot facers
De-burring tools
|
|
