J0451 API Coupler
* Industry standard for over 30 years
* Maintenance friendly
* Lightweight design
* In-situ nose seal replacement
* Lowest leakage on disconnect in class
* Better load distribution
* Superior sealing technology, with three seal variants
* Bevelled lip for ease of operation
* Ergonomic design
* Wide range of spare kits available
|
|

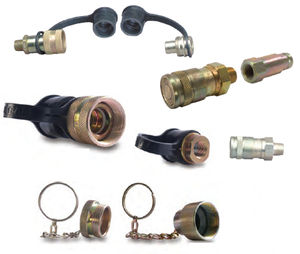

Couplers and Multi-couplers
The GU line is made up of Couplings and Inserts. They allow for a quick, safe connection and disconnection of two parts within a pneumatic installation without cutting off the air supply.
They are indeed provided with a poppet valve system that stops the air flow during the disconnection phase.
Couplings are mainly used to rapidly connect the air tubes with pneumatic tools and for this purpose a female coupling with a poppet is assembled on the pressurised part and the male insert on the tools to be disconnected.
|
|
|
Couplers water, system 1/2 ", 3/4 ", 1 " Automatic connections high pressure (180 bar/150 °C) Couplers of safety hot water (remains engaged under the effect of the pressure) Couplers out of stainless steel
|
|
Nitto Kohki couplers provide quick and easy connection/disconnection of fluid lines such as water, oil, gas, and air. They completely eliminate the inconvenience of connecting/disconnecting conventional thread type couplings or flanges, fluid leakage, and hose kinking, while providing quick, convenient control and maintenance of fluid line connections.
Please get informed about our wide range of couplings for almost any case.
We als produce couplings for customers special demands.
|
|
A solution for each of your applications !
Designed for applications in all industrial sectors and research and development for the connection of your circuits of : gases (hydrogen, argon, nitrogen, helium, etc), steam, solvants and acids, liquids, high pressures, vacuum%u2026
The RBE ALL FLUID RANGE offers you a product range which is: :
- A modular design.
- Reliable.
- Quick and automatic.
- Efficient.
- Safe.
- Leak tight.
|
|
Non spill design
Flush faced and non-spill, HCB ensures no air inclusion into the system when connecting as well as spillage when disconnecting.
Easy to use
Compact and user friendly, the HCB connector is easy to operate. In connected position, plug and socket dust caps can be mated together. Stainless steel dust caps available on request.
Applications
All fluids
* gas
* steam
* vacuum
* aggressive fluids
for all industrial sectors.
|
|
A solution for each of your applications !
Designed for applications in all industrial sectors and research and development for the connection of your circuits of : gases (hydrogen, argon, nitrogen, helium, etc), steam, solvants and acids, liquids, high pressures, vacuum...
The RBE ALL FLUID RANGE offers you a product range which is:
- A modular design.
- Reliable.
- Quick and automatic.
- Efficient.
- Safe.
- Leak tight.
|
|
Series 9000
Series with ball bearings and bellows sealing assembly
Available in stainless steel
CD-Cartridge-Design
Recommended medium Heat transfer oil, Air, Steam, Water, Non-toxic industrial gases, Lyes (on request)
Available sizes 1/4" - 4"
Max. speed 1500 RPM (depending on size)
Max. temperature 190 °C
Max. pressure:
Water 17,0 bar
Steam 10,2 bar
Heat transfer oil 6,8 bar
Air 6,8 bar
|
|
Series 9000 G
Series with graphite bearings or ball bearings with solid lubrication and bellow sealing assembly
Maintenance-free
Available in stainless steel
CD-Cartridge-Design
Recommended medium Heat transfer oil, Steam, Water, Air
Available sizes 1/4" - 4"
Max. speed 700 RPM (depending on size)
Max. temperature 315 °C
Max. pressure
Water 17,0 bar
Steam 10,2 bar
Heat transfer oil 6,8 bar
Air 6,8 bar
|
|
|
Air and vacuum plumbing for all EOAT and automation projects. Also includes vacuum generators sized for single cups to entire tools.
|
|
|
Our complete line of thermoplastic fittings and valves include push-to-connect TrueSeal™, compression style Fast & Tite®, Par-Barb hose barbs and Polypropylene Ball Valves. The fittings come in a variety of materials. All fittings and valves are FDA compliant and NSF 51 listed.
|
|
The Rotary Joint device allows electrical and pneumatic lines from the robot to feed through to the tool — keeping air and electrical lines on the robot from twisting. The Rotary Joint has two components: fixed and rotating. The rotating component consists of the robot adaptor, tool adaptor, and a central connecting core. The fixed component is a central ring which is held stationary by a torque rod attached to a fixed part of the robot arm.
Lines are attached between the fixed component and your robot controller. As the robot moves, the fixed lines do not twist. Advanced slip ring technology is
used to pass fixed lines to the rotating component and then to your tool— so as your robot moves, electrical signals and pneumatic pressure pass from the robot to the tool preventing the lines from twisting. With many different sizes, this device can be easily integrated onto almost any robot.
|
|
Series 7100
Brass housing
N-model Carbon graphite to tungsten carbide seal
D-model Tungsten carbide to tungsten carbide seal (for applications with poor filtration water, or abrasive fluids)
Recommended medium: water, heat transfer oil, steam
Available sizes: 1/4" - 2"
Max. pressure
water
sizes 1/4" - 1 1/2" 50,0 bar
size 2" 40,0 bar
steam 8,0 bar
heat transfer oil 6,5 bar
Max. temperature
heat transfer oil 200 °C
steam 170 °C
water 175 °C
Max. speed
sizes 1/4" - 3/4" 3500 RPM
size 1" 3000 RPM
sizes 1 1/4" - 1 1/2" 2500 RPM
size 2" 750 RPM
|
|
Flared Tube Fitting:
• the EXMAR flared tube fitting, consisting of four components, enables the connection of 37° flared tube ends and standardized fitting bodies according to DIN 2353 an DIN EN 8434-1
• fitting can be dismantled and reassembled as often as necessary
• high degree of fine sealing efficiency by elastomeric sealing at both sectioning points
• no risk of disconnection when tightened
• pressure ranges from 250 to 630 bar
• fittings made of stainless steel AISI316Ti
|
|
Stainless steel construction
N-Modell Carbon graphite to tungsten carbide seal
D-Modell Tungsten carbide to tungsten carbide seal (for applications with poor filtration water, or abrasive fluids)
Recommended medium water, heat transfer oil, steam
Available sizes 1/4" - 2"
Max. pressure
water
sizes 1/4" - 1 1/2" 50,0 bar
size 2" 40,0 bar
steam 8,0 bar
heat transfer oil 6,5 bar
Max. temperature
heat transfer oil 200 °C
steam 170 °C
water 175 °C
Max. speed
sizes 1/4" - 3/4" 3500 RPM
size 1" 3000 RPM
sizes 1 1/4" - 1 1/2" 2500 RPM
size 2" 750 RPM
|
|
Ganymed-Swivel Joints
Applications: Articulated tongs, Loading stations (chemical, petrochemical industry, etc.) waste water purification techique (ventilation systems, rotating scraper bridges, sludge cleaning, etc.)
Connections: Threads, welding, flanges, cutting rings
Materials: Steel (42CrMo4), Stainless steel (1.4571)
Sealing: PTFE compound
Operating conditions: max. pressure 420 bar, max. temperature 225 °C, min. temperature -50 °C (*, 360° swivelling movements, rotating movements also suitable for low speed
|
|
Thermoplastic Couplings offer push-to-connect operation, light weight design, and excellent chemical compatibility to meet a broad range of applications.
PF Series are non-spill couplings designed for use in closed system transfer and dispensing of chemicals with minimal environmental contamination. Available in body sizes 1/2" through 2".
PPM and PPL Series are general purpose, thermoplastic couplings with push button operation. Available in body sizes 1/8" and 1/4".
Spectrum Series couplings are available valved or un-valved and in an optional panel-mount configuration. Available in body sizes 1/8" and 3/8".
|
|
|
|
|
|
Connections which give all freedoms of movement, with safety and reliability....
Revolving articulations GANYMED are used for the transport of all types of fluids or gas between a fixed point and a mobile point. By their capacity of rotation, the facility of installation, reliability and the lifespan, these articulations revolving GANYMED are a relevant solution for many applications,
The main features are:
- Rotation: until speeds of 10 turns per minute.
- Diameter of passage: DNN 20 with DNN 700.
- Pressure: vacuum with 700 bar
- Temperature of the fluid: of -50°C with + 225°C
- Sealing: by PTFE joint,
- Construction: with ball bearings integrated
- Connection: male threading, threading female, supports, connection for welding...
- Material of manufacture: Steel (42CrMo4) or stainless steel (1.4571).
Products very neat, manufactured in Germany, available on stock, prices very competitive.
Applications: Chemical process, loading arm, treatment of water, agro-alimentary and pharmaceutical process, energy....
MCPI is the sole distributer in the French-speaking countries of the company HAAG + ZEISSLER
Contact: mcpimail@mcpi.fr
|
|
|
|
|
|
Quick connect non-drip couplings designed solely for connecting low-pressure fluid and vacuum lines in which virtually zero spillage is critical.
CEJN non-drip couplings are adaptable to most applications and system requirements. The series includes two styles:
- Valved: One-hand operated; most commonly used style in fluid systems
- Valveless: Two hands needed for connection/disconnection; useful in coolant applications in which fluid loss at disconnection is not critical
Standard range includes three configurations: single shutoff, double shutoff, and straight through. The series is compatible with working pressures up to 290 PSI (20 bar) and temperatures up to 600° F (315° C) and is available in ¼-inch through 1-inch sizes. Constructions include nickel-plated brass with nitrile seals and AISI 316 stainless steel with Viton seals.
CEJN non-drip couplings are offered in four safety levels, enabling users to select the exact level of safety required. All levels are available with an optional safety-locking device that eliminates the risk of unintentional disconnection.
|
|
General Purpose Couplings
Colder Products Company - a world leader in the design of plastic, quick disconnect couplings for plastic tubing - has combined innovative engineering with leading edge manufacturing to provide a diverse range of fluid management solutions worldwide. For over 25 years, Colder has been providing connection solutions for industrial, biopharmaceutical, medical, chemical, food/beverage, and chemical applications.
Colder Products' quick disconnect couplings are available in a variety of sizes, styles, terminations, and configurations. Material options include acetal, polypropylene, polysulfone, aluminum, chrome-plated brass, and die-cast, nickel-plated zinc.
|
|
All-Purpose Clean Break Series CN
Features:
The squirt-free clean break couplings of the CN series are mainly used in the chemical industry, for the loading and transport of fluids, e.g. at hose stations. Other application areas are also possible.
Due to the special design principle, a squirt-free connection and disconnection, even with long, filled hose lines under pressure up to 5 bar, is possible.
In case of limited space the handwheel can be dispensed with, due to the small operating force of the CN-025. A hook wrench can be used instead.
Key Benefits:
• clean break coupling with bayonet locking
• squirt-free operation
• connects under residual pressure
• small dimensions
• very good flow rates
Nominal Sizes:
25, 50, 80 and 100 mm
Media:
• water
• compressed air
• diverse fluids
• fuel
• lubricating greases / oils
• technical gases
Pressure Range:
up to 25 bar, depending on the nominal size
|
|
NS4 Non-Spill Quick Disconnect Couplings
Colder Products’ patented NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few spilled or leaked drops of fluid pose problems regarding safety, environmental regulations or media cost. These innovative couplings are lightweight, chemically resistant and easy to use. The non-spill design virtually eliminates spills, minimizes downtime and enhances operator safety.
|
|
NSH Series Couplings
Colder Products’ patented NSH Series couplings feature a pressure-balanced, non-spill design and a 100% metal-free, spring-free flow path at a very competitive price. These innovative couplings are easy to use (single-handed operation) and provide high flow capacity. Their non-spill design virtually eliminates spills, minimizes downtime and enhances operator safety.
|
|
|
|
|
|
NS2 Couplings Deliver Cost-Efficient, High-Flow Fluid Line Transfer in a Small Footprint, Safely and Economically
Colder Products’ NS2 Series compact, non-spill quick disconnect couplings provides users with fast, safe and virtually leak-free fluid line connections. An excellent choice for printing and ink management, analytical instrumentation, electronic cooling, and many other applications, the patent-pending NS2 couplings provide high-flow fluid transfer in a small footprint.
For applications that require the safe transfer of fluids, the NS2 offers an easy, twist-to-connect locking mechanism and double-sided non-spill shutoff valves for added safety and convenience.
The NS2 meets the need for smaller, more cost-effective industrial couplings. The smaller couplings can replace larger ones, offering users a low-cost, space-saving option for a wide variety of coupling applications. The NS2 couplings also offer very low air inclusion – air induced into the coupling upon connection – minimizing contaminants and reducing the need to purge fluid lines.
Colder NS2 Series quick disconnect couplings are available in a variety of sizes and configurations.
|
|
|
Global Manufacturer of Quick Release - Quick Disconnect - Quick Connect Hose Couplings in General Purpose Poppet and Dry Break - Non Spill (Flat/Flush Face) styles for virtually any Hydraulic or Pneumatic fluid application. Many styles available from ISO Interchange designs to subsea, panel mount, screw to connect, connect under pressure, and many specialty designs are available from Snap-tite.
|
|
|
|
|
|
Our experts for special cases: Highest safety ex works!
Ball-Face Clean Break coupling for difficult fluid or gaseous media
BF series
Features:
Clean break coupling made of stainless steel, especially suited for difficult fluid or gaseous media. Adhering to highest safety standards and optimally operable through automatic locking, they are primarily designed for applications in the chemical industry.
This series is suited for non-lubricating media (as e.g. demineralised water, “dry gases”) as well as lubricating media. Tried, tested and proven for solvents, chemical fluids and water vapour. Also used for lyes, a wide variety of acids and many other media.
Key Benefits:
• clean break (low-loss operation with few inclusions)
• easy to clean smooth ball-face outer surface
• squirt-free
• minimal couple force
• safety through positively controlled locking and valve opening process (nominal
sizes 25 and 50 mm)
• automatic locking
• well proven
• nominal sizes 25 and 50 mm connectable under operating pressure by separate locking and valve opening process
Nominal Sizes:
5, 9, 12, 25 and 50 mm
Media:
• water, water vapour, solvents, acids, soap solutions, lyes, oils, all non-lubricating media and many more
• for difficult and gaseous media, primarily for the chemical industry
Pressure range:
up to 64 bar, depending on the nominal size
|
|
|
The dry break quick disconnect functions similar to a double shut-off quick disconnect however it provides a higher level of sealing during connection and disconnection. The dry break connects without leakage or fluid spray. Additionally, the design minimizes dead volume (the space between the internal and external ends when connected) to essentially eliminate any leakage when disconnecting.
|
|
|
