TOOLFLEX®
- backlash-free, torsionally stiff,maintenance-free
- non-positive bellow-hub connection
- frictionally engaged clamping hubs
- suitable for high temperatures due to flanged insert connection ( max. 280° C )
- well-resistant to corrosion - bellow made from stainless steel and aluminium clamping hubs |
|
| For the correct selection of high-speed, dynamic or reversing precision drives and shaft joints. Only backlash-free couplings are able to fulfil these requirements. The wide selection of backlash-free and price competitive coupling variations underline our market leadership. We have a backlash-free coupling for every application which optimally harmonises with your drive system. |
|
- backlash-free transmission of torque
- high torsional stiffness, precision of transmission of rotational angle
- different torsional stiffness
- backlash-free shaft connection
- small dimensions, low moment of inertia
- compensation for radial, axial, and angular misalignment free of wear, maintenance-free, no standstill period
- not sensitive to temperatures between -30 °C and +100 °C, higher temperature ranges available on demand
- simple and operationally safe assembly
- economical and user-friendly due to modular system
- nominal moments between 0.4 - 5000 Nm |
|
The Zero-Max CD Coupling is a unique hybrid coupling combining the best features found in both steel disk and elastomeric couplings. Through its patented open arm design and use of rugged composite materials, the coupling offers high misalignment and high torsional stiffness.
All models are available with Setscrew or Clamp suppliers style hubs. Hubs are available with steel or aluminum hubs for single flex and double flex.
Single Flex and Double Flex are now available with Low Inertia Aluminum Hubs.
|
|
Misumi is the NO 1 supplier of over 500,000 standard and customised components for Mechanical Factory Automation/Special Purpose Machinery, Professional press Dies and Plastic Mould. We delivery components europewide in averagely 6 – 8 days GUARANTEED DELIVERY from the day of purchase, stock items available from 2 days delivery.
Misumi components are different in that they can be configured to your need using our unique part coding system. Dimensions, materials and special machined requests can all be selected within the misumi system enabling engineers and designers to achieve a configured parts as standard with no extra machine costs. Standard items are also available via the catalogues.
All components can be designed using the Misumi CAD portal . Compatible with industry wide packages a designer can configure our parts at the touch of a button in up to 0.01mm, and download in seconds saving valuable design time, registration required.
To receive our extensive catalogue and save valuable time and money, visit our website or request yours today by clicking the request banner.
MISUMI – Precisely what you need. |
|

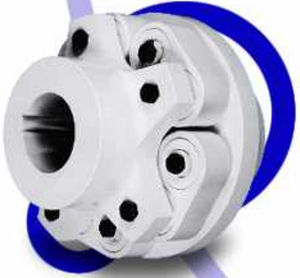

Zero-Max has designed the Schmidt line of couplings specifically for difficult misalignment applications.
The five different Schmidt Coupling types -- Offset, Inline, 5D, Flexible, and Control-Flex® -- provide a full range of design options for solving most misalignment problems.
|
|
BoWex®
- Curved-tooth gear coupling
- Torsionally stiff, double cardanic
- Material combination: nylon / steel
- Torque : 5 Nm - 2500 Nm
- Finish bores : Ø 6 mm - Ø 125 mm |
|

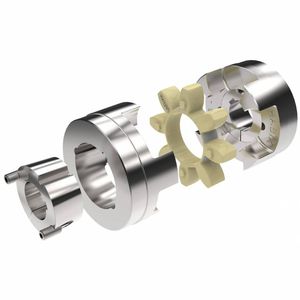

ROTEX®
- Torsionally flexible jaw-type coupling
- Axial plug-in, good dynamical features
- Failsafe, vibration reducing
- Max. torque: 70,000 Nm
- Max. bore diameter: 200 mm |
|
Elastomer couplings:
- excellent dampening capabilities
- low cost
- blind assembly
EKM, ESM / ESM-A, EKS, EKM-ESM |
|
| Backlash-free flexible shaft fitting - Simple plug-in installation | Vibration-damping function | Maintenance-free | ATEX Conform available |
|
Features:
- backlash free
- simple, plug-in mounting
- vibration damping
- compensation of radial, axial and angular
- misalignment
- transmission of torque values between 0,5 and 650 Nm
Common Applications:
- professional encoder
- precision drives
- feed drives
- grinding and machining spindles
- unit tools
- packaging machines
- industrial professional robots
- transfer stations
- multi-spindle heads
- wood processing equipment
- textile machinery
- conveying equipment
- linear motion
- measuring equipment and controls
- test rigs... |
|
Description
Para-Flex Couplings employ a molded, non-lubricated elastomeric flexing member loaded in shear.
Features/Benefits
Finished Bore Flanges offer extra bore capacity that allows smaller coupling selections. Taper-Lock Flange Design offers reversible flanges for H or F style mounting on size PX50-120. Five year limited warranty on elements sizes PX40 thru PX200. No lubricaton and visual inspection which saves time. Torque is transmitted through composite element system that is reinforced with torque carrying tension cords and split end reinforcement.
|
|
| For the correct selection of high-speed, dynamic or reversing precision drives and shaft couplers. Only backlash-free couplings are able to fulfil these requirements. The wide selection of backlash-free and price competitive coupling variations underline our market leadership. We have a backlash-free coupling for every application which optimally harmonises with your drive system. |
|
Ramsey produces a range of silent professional chain shaft joints in both carbon steel and 316 stainless steel. Couplings have a torque capacity that is greater than the largest mild steel professional shaft upon which they can be mounted. Contact Ramsey for more information.
|
|
Features:
- backlash-free transmission of torque
- high torsional stiffness, precision of transmission of rotational angle
- different torsional stiffness
- backlash-free shaft connection
- small dimensions, low moment of inertia
- compensation for radial, axial, and angular misalignment
- free of wear, maintenance-free, no standstill period
- not sensitive to temperatures between -30 °C and +100 °C, higher temperature ranges available on demand
- simple and operationally safe assembly
- economical and user-friendly due to modular system
- nominal moments between 0.4 - 5000 Nm |
|
Description
Dodge Gear couplings are power dense and capable of transmitting high torque at high speeds while still remaining inherently well balanced. Gear Couplings transmit torque by the mating of two hubs with external gear teeth that are joined by flanged sleeves with internal gear teeth.
Features/Benefits
Large tooth profile for longer life, Interchangeable with other IND. STD. gear couplings
Technical data
Horsepower range @ 1800rpm is 30,000 hp, torque up to 1,000,000 in lbs, bore up to 12.31"
Sizes / Housing Styles Available
Flex halves with exposed bolts suppliers, and rigid hubs from stock, spacer, limited end fleat, and other designs available by contacting DODGE engineering.
|
|

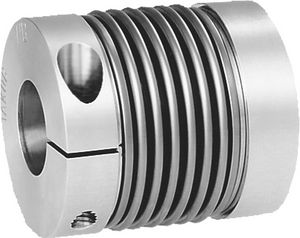

Metal bellows couplings:
- high torque range
- high torsional stiffness
- high temperatures
- patended connection method
- high speed |
|
| The perfect servo coupling - Low cost | Plug-in type, variable bore diameters | Larger shaft misalignment compensation capability | Minimal mass moment of inertia |
|
| The Roller Chain coupling is a safe, compact and powerful flexible coupling, able to handle loads from 0.1 - 11,000 kW. The sprocket teeth are specially shaped and hardened, and torque is evenly apportioned. |
|
- From stock available
- Fast and simply installs
- Large selection of types
Did you not already often look for those to a rotation transducer professional fitting and its requirements appropriate professional clutch?
We have the clutch solution for you from a hand.
Wachendorff clutches can adjust axial, radial and also for angle disalignment up to certain orders of magnitude, so that the camps of the rotation transducer are protected.
Further advantages are:
From stock available as well as fast and simply installs.
|
|
| The Jaw type couplings from Lovejoy are offered in the industry’s largest variety of stock bore/keyway combinations. These coupling require no lubrication and provide highly reliable service for light, medium, and heavy-duty electrical motor and internal combustion power transmission applications. Applications include power transmission to industrial systems such as pumps, gearboxes, compressors manufacturers, blowers, industrial mixers, and conveyors manufacturer. Lovejoy’s standard bore program covers AGMA, SAE, and DIN bore/keyway and spline bore combinations. The Lovejoy’s Jaw type coupling is available in a variety of metal hub and insert materials. Hubs are offered in sintered metal, aluminum, bronze, steel, stainless steel, and ductile iron. |
|
Lovejoy’s CJ Series provides to the world market highly reliable curved jaw coupling for light, medium and heavy duty electrical motor and internal gas combustion engine applications. The GS Series provides a coupling solution for the motion control industry which continues Lovejoy's long history of being the world's premier coupling supplier.
The three-piece design incorporates a radial curvature to the jaw face and both radial and axial curvature (crowning) to the elastomer (spider). The curved jaw hubs are offered in sintered iron, steel, aluminum, cast and nodular iron materials. The CJ Series curved jaw coupling and the variety of urethane elements allows for angular, parallel, and axial misalignment. A simple three-piece design, makes it easy to assemble. Unlike some metallic coupling designs, the CJ Series design requires no lubrication. When assembled, the CJ Series offers no metal to metal contact of parts. The elastomer in compression design offers the benefit of continuing to function even after the elastomeric ele¬ment fails (fail-safe design). The torque range of the CJ Series product is 7.5 to 28,000 Nm. Lovejoy offers the CJ Series in a range of prod¬uct with finished stock metric bores and keyways as well as with metric bores on a made-to¬ order basis.
|
|
The TCB barrel coupling is recommended for installation
in the professional drum drive of professional crane constructionsand mechanical
conveying systems. In this field Jaure has gained an
important experience in the most difficult and rough
operating conditions. |
|
The product range covers flexible and highly spider couplings, gear joints, all-steel couplings, fluid couplings, clutches and torque limiters.
N-EUPEX (pin coupling) up to 62,000 Nm
BIPEX (claw coupling) up to 3,700 Nm
RUPEX (pin and bush coupling) up to 1,300,000 Nm
ELPEX (ring coupling) up to 90,000 Nm
ELPEX-S (rubber disk coupling) up to 40,000 Nm
ZAPEX (gear coupling) up to 7,200,000 Nm
ARPEX (all-steel coupling) up to 1,500,000 nm
FLUDEX (fluid coupling) up to 1,500 Nm
PLANOX (professional clutch) up to 30,000 Nm
|
|
The motion control market segment is unique by itself where it is all about small, precision and repeatability. Lovejoy has done it right by addressing these distinctive needs with its expanded line of motion control couplings, in a variety of different styles, including Beam, Oldham, Mini-Jaw, Bellows, Mini-Soft, Mini-Disc and Curved Jaw.
With a wide selection, Lovejoy motion control couplings spans multiple market segments with zero backlash requirements, including printing, pharmaceuticals, semiconductor, packaging, robotics and metal cutting machine supplier tools, to name a few.
For harsh environments, maximum temperature tolerances on some styles reach 300F. High-speed operations can look to the GS Curved Jaw mini- coupling, with a maximum 31,800 RPM. While the Bellows clamp specifications style coupling specifically addresses higher torque and bore capacities. Companies will find the Lovejoy motion control coupling line is competitively priced, to help OEM’s and other businesses maintain a stable price structure in an increasingly challenging economic environment.
|
|
The 2" coupling size probably covers the most diverse selection of applications in the Todo-Matic family. Available in a range of material and connection configurations, Todo-Matic 2" is designed for rapid and safe transfers. Offshore chemical dosing, pharmaceutical feedstock and aggressive chemical vapor transfer are just some of the challenging applications Todo-Matic couplings see on a daily basis.
|
|
No need for lubrication and maintenance.
There is no need to disassemble the coupling to inspect.
Additionally, the condition of the discs can be checked
while the machine is running, using a professional strobe light.
The machine misalignment can be assessed.
Torsionally rigid without any backlash.
No wearing parts, high resistance to harsh environmental
conditions.
Infinite life if properly aligned. |
|
Lovejoy brings to the market the best disk coupling yet to be offered. The Lovejoy/Jaure disc coupling utilizes the latest design efforts through Finite Element Analysis, extensive testing of materials and couplings, and several years of operational experience in actual applications. The Lovejoy/Jaure disc coupling is manufactured in the ISO 9001 certified manufacturing facilities of both companies.
Types of couplings include the three-piece industrial spacer unit used for general industrial applications and on OEM equipment. The five-piece dropout coupling is specially suited for refinery and API type applications. The close-coupled units fit in place of standard gear couplings.
|
|
Rexnord® Thomas® Disc joints
No lubrication required
Visual inspection
No backlash
Low restoring forces
Wide temperature range
High reliability
Broad range of styles and sizes
Custom design capability |
|
| The JAUFLEX® coupling uses an elastomeric element, and provides the required torsional flexibilityfor a smooth torque transmission. |
|
|
|
