HEAVY DUTY BASE MACHINE FOR FOUNDATION WORK
Max. Lifting Capacity: 80 tons x 3.6 m
Max. Boom Length: 54.9 m
Heavy-duty reliability from wet-type disc brakes. Powerful and large capacity drums to handle any job with power to spare. Drawing on long experience in crane manufacture, KOBELCO researched the bottom line in boosting operating efficiency in civil engineering and foundations work, and has unveiled a new generation of base machines.The BME800HD features power and precision in operations, simple controls and comprehensive safety features. Economic to run, easy to transport, kind to operator and environment alike. In every respect the BME800HD delivers a performance that sets new standards for heavy-duty foundation work.
|
|
Max. Lifting Capacity: 80 t x 3.0 m
Max. Crane Boom Length: 54.9 m
Max. Fixed Jib Combination: 42.7 + 18.3 m, 45.7 + 12.2 m
The CKE800 crawler crane from KOBELCO takes advantage of new technologies to raise performance to new heights. Winches with extremely powerful line-pull handle the toughest jobs, while the innovative "wettype" multi-disc braking system provides safe and sure control with minimal maintenance. A large winch capacity promotes ultra-smooth operation and enhanced component service life. An optional full-sized third winch enables the use of an impressive selection of attachments. Add these new features to the renowned power and reliability of KOBELCO cranes, and you have the ideal combination of lifting performance, economical operation and durability.
|
|
Max. Lifting Capacity: 110 t x 3.6 m*
Max. Crane Boom Length: 70.1 m
Max. Fixed Jib Combination: 61.0 m + 21.3 m
The CKE1100 crawler crane from KOBELCO takes advantage of new technologies to raise performance to new heights. Winches with extremely powerful line-pull handle the toughest jobs, while the innovative "wettype" multi-disc braking system provides safe and sure control with minimal maintenance. A large winch capacity promotes ultra-smooth operation and enhanced component service life. An optional full-sized third winch enables the use of an impressive selection of attachments. Add these new features to the renowned power and reliability of KOBELCO cranes, and you have the ideal combination of lifting performance, economical operation and durability.
|
|
CRANE BOOM
Max. Lifting Capacity: 60 tons @ 3.0 m
Max. Boom Length: 51.8 m
FIXED JIB
Max. Lifting Capacity: 6.6 tons @ 16.0 m
Max. Fixed Jib Combinations: 42.7 m x 12.2 m
39.6 m x 18.3 m
The CKE600 crawler crane from KOBELCO takes advantage of new technologies to raise performance to new heights. Winches with extremely powerful line-pull handle the toughest jobs, while the innovative "wettype" multi-disc braking system provides safe and sure control with minimal maintenance. A large winch capacity promotes ultra-smooth operation and enhanced component service life. An optional full-sized third winch enables the use of an impressive selection of attachments. Add these new features to the renowned power and reliability of KOBELCO cranes, and you have the ideal combination of lifting performance, economical operation and durability.
|
|
Max. Lifting Capacity: 70 t x 3.1m
Max. Crane Boom Length: 54.9 m
Max. Fixed Jib Combination:
42.7 + 18.3 m
45.7 12.2 m
The CKE700 crawler crane from KOBELCO takes advantage of new technologies to raise performance to new heights. Winches with extremely powerful line-pull handle the toughest jobs, while the innovative "wettype" multi-disc braking system provides safe and sure control with minimal maintenance. A large winch capacity promotes ultra-smooth operation and enhanced component service life. An optional full-sized third winch enables the use of an impressive selection of attachments. Add these new features to the renowned power and reliability of KOBELCO cranes, and you have the ideal combination of lifting performance, economical operation and durability.
|
|
SL 6000
Max. Lifting Capacity: 550 ton
STANDARD
Max. Boom Length: 108 m
Max. Luffing Jib Combination: 60 + 72 m
HEAVY LIFT
Max. Boom Length: 108 m
Max. Luffing Jib Combination: 66 72 m
SUPER HEAVY LIFT
Max. Boom Length: 126 m
Max. Luffing Jib Combination: 84 84 m
The KOBELCO SL6000 crawler crane, with a lifting capacity of up to 550 tons, targets large-scale energy-related projects and large infrastructure installations. In addition to its superb lifting capacity, the SL6000's innovative unit assembly system' is designed to comply with transport regulations worldwide and to minimize labor required for assembly/disassembly. The SL6000's wide range of attractive features includes advanced safety devices, a wide, comfortable cab giving excellent visibility and other enhancements. KOBELCO is proud to premiere this much-awaited new model, which will further enhance our global reputation for tough, reliable, and outstanding performance.
|
|
CRANE BOOM
Max. Lifting Capacity: 135 tons @ 4.5 m
LUFFING BOOM
Max. Lifting Capacity: 80 tons @ 8.0 m
LONG BOOM
Max. Lifting Capacity: 44.3 tons @ 10.6 m
FIXED JIB
Max. Lifting Capacity: 26.8 tons @ 16.0 m
LUFFING JIB
Max. Lifting Capacity: 36 tons @ 12.0 m
Whether positioning bridge girders or constructing tall buildings, smooth and speedy operation is the most important performance. KOBELCO CKE1350 crawler crane is designed with latest job trends in construction environment. With its excellent operability, sensitive controls, and most important, its safety features, the CKE1350 achieves the best balance in its
overall performance. In regular crane or luffing jib operations for building construction, as well as general foundation work, there's more than enough capacity. The difference is in its basic performance.
|
|
Max. Lifting Capacity: 400 ton x 5.5 m
Max. Luffing Boom Length: 96 m
Max. Luffing Jib Combination: 78 m + 66 m
|
|
Raw power and durability alone are no longer enough in today's fs construction environment, as operators and owners increasingly demand greater comfort and operability. KOBELCO has evolved accordingly with advanced hydraulic technology and onboard electronics that help you get the job done more quickly and reliably than ever before. But the real focus of our machine design is safety, both for the operator and for all the workers on the site. With their ideal combination of power, speed, comfort, operability, and advanced safety features, KOBELCO cranes are being used with confidence throughout the world. And now, we are proud to present them to the European market as the CKE Series.
CKE2500
Max. Lifting Capacity : 250t @ 4.6m
Max. Crane Boom Length: 91.4m
Max. Fixed Jib Combination: 76.2m + 30.5m
Max. Luffing Jib Combination: 61m 61m
|
|
Max. Lifting Capacity: 180t x 3.75m
Max. Crane Boom Length: 85.3m
Max. Long Boon Length: 85.3m
Max. Fixed Jib Combination: 73.2m + 30.5m
Max. Luffing Jib Combination: 54.9m + 51.8m
|
|
For nearly 50 years SENNEBOGEN has been developing heavy-duty universal rope excavators. Years of experience and the continuous intensive refinement of the product family have produced a complete range of high performance rope excavators featuring state-of-the-art technology. Adaptable to a wide range of jobs, extremely stable and with universal utility; rope excavators will remain indispensable in the 21th century.
SENNEBOGEN - HD crawler cranes are avaiable from 30 t - 180 t service weight
|
|
Lattice mast crawler cranes are enjoying a real renaissance, and with good reason. Outstanding lifting capacities, almost unlimited mobility on building sites, simple and quick to transport, self-assembly systems and low investment and running costs guarantee maximum benefit for operators. SENNEBOGEN's robust crawler cranes feature state-of-the-art technology, maximum flexibility and excellent economy.
SENNEBOGEN - Crawler Cranes are avaiable from 80 t - 180 t service weight
|
|
SENNEBOGEN telescopic cranes are extremely reliable and useful for assembly jobs on any building site, as well as in industry and wherever precise, safe load positioning is required. Low operating costs, compact construction and excellent mobility make our telescopic cranes on crawlers or wheels the ideal machinery for universal applications.
SENNEBOGEN - telescopic cranes are avaiable from 16t - 80 t service weight
|
|
|
Cranes are supplied by Hitachi Sumitomo Heavy Industries Construction Crane Co., Ltd. (a Hitachi group company). If you want information about these types of equipment, please visit their website.
|
|
C850 NG - Technical Data
- Lifting capacity: 90 t | 3.9 m
- Engine power: 440 kW
- Main winch: 250 kN
- Auxiliary winch: 110 kN
- Max boom length: 42 m
- Operating weight: 80 t
|
|
C240 NG - Technical Data
- Lifting capacity: 24 t | 2,7 m
- Engine power: 116 kW
- Main winch: 79 kN
- Auxiliary winch: 56 kN
- Max boom length: 21 m
- Operating weight: 25.5 t
|
|
Equipped with REXROTH and Kawasaki hydraulics components imported from Germany and Japan;
Excellent micro-mobility performance;
Independent main and auxiliary winches, convenient for operation;
Multi-disk clutch and brakes are self-compensated, free of adjustment, automatic compensation;
Travel with heavy load feature, and free-fall hook increase operation's efficiency and working coverage;
Built-in features as torque limiter, electronic controller and over-winding prevention device enhance operation safety;
Larger chassis is used for better stability;
Light weight and small specific ground pressure;
Adjustable track width for transportation convenience;
High-strength steel pipe boom for high load capacity.
|
|
|
YTQU160 is the hydraulic crawler crane developed by the most experienced R&D team within Yutong Heavy Industries Co., Ltd. with its own characteristic, being both advanced technology home and abroad combined.
|
|
|
|
|
|

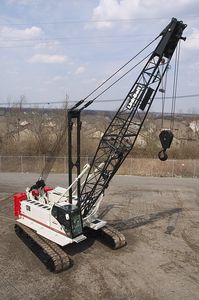

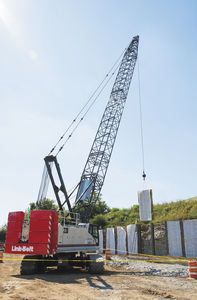

Link-Belt
138 HSL
80-ton (77.62 mt)
Lattice Boom Crawler Crane
- Best capacities in its class!
- 40’ to 200’ (12.19 m to 60.96 m)
tube boom
- 40’ to 160’ (12.19m to 45.72m)
angle boom attachment option
- Live mast standard
- Maximum boom jib length combination
of 180’ + 60’
(54.86m + 18.28m) tube and
150 +60’ (45.72m + 18.28m) angle
- Tier III whisper quite Isuzu power
at 284hp – tops in its class
- Matching high line pull front &
rear drums with Link-Belt designed
“out board style ”wet brake. This
brake design offers low resistance to
free spooling in free fall mode, even
in cold climates.
- Optional front mounted 3rd drum
and or rear mount high line pull
4th drum (with free fall)
- New fast easy counterweight
removal system
- Hydraulic machine “assembly
cylinder” option - mounted in boom
base section for fast easy assembly
& load out
- HSL style cab with latest comfort
technology, high output A.C, AM/FM
radio, 6 way adjustable seat with
djustable console
- Smooth, precise, Bullet proof hydraulic pilot operated function controls for years of trouble free operation and dependability
- HSL 1 Rated capacity limiter with state of the art electronics including color graphic monitor
|
|
With the LR series, Liebherr offers a well-balanced programme of lattice boom crawler cranes. In the class below-300 metric tons, low transport weights, rapid self-assembly, optimum load capacity values across the entire working range and comprehensive operating information are among these cranes' main functional features.
For its larger crawler cranes with lifting capacities up to 1,350 metric tons, Liebherr also offers a wide range of multifunctional jib systems. These cranes can reach heights of up to 223 m at the hook and working radii of up to 152 m, but retain their outstanding manoeuvrability thanks to innovative solutions for the handling of extremely high ballast weights. The LR series is completed by the hydraulic duty cycle crawler cranes range (HS series), which is similar to the LR series in design. The machines have been developed for the most diverse material handling operations. This series comprises 6 models with load capacities between 35 and 200 metric tons.
|
|
|
Manitowoc offers 15 models with capacities ranging from 73 t (80 tons US) to 2 300 t (2,535 tons US). Over 75 years of innovation, experience and passion go into every Manitowoc
|
|
|
The variety of applications of the HS 835 HD is nearly unlimited due to several equipment possibilities and includes jobs like material handling with clamshell, dragline bucket or similar, different types of demolition applications, dynamic soil compaction and jobs with diaphragm wall grab or casing oscillator.
|
|
|
Crawler cranes deliver excellent mobility over soft surfaces. These multiple-purpose cranes can be used in a broad range of applications, ranging from construction to civil engineering and port cargo handling.
|
|
Link-Belt
TCC-450
45-ton (40.8 mt)
Telescopic Crawler Crane
- 33’ – 105’ (10.06 – 32.00m)
4-section boom
- Height: 10’ 6” (3.2 m)
- Width: 11’ (3.35 m)
- Length: 40’ (12.20 m)
- 1.18 mph (1.90 kph)
maximum travel speed
- Isuzu 182 hp (135.72 kw)
Tier III engine
- Maximum line pull:
11,023# (5 000 kg)
- Maximum line speed:
328 fpm (99.97 mpm)
- Track gauge: 11’ (3.35 m)
- Track length: 18’ (5.47 m)
|
|
|
The LTR 1100 unites the advantages of a telescopic crane and those of a crawler crane. The crawler chassis has outstanding off-road capabilities and manoeuvrability. What is more, the cranes displaces its load with excellent precision. The advantages of telescopic cranes are short set-up times, easier transportation and the variability of the boom and jib system.
|
|
JLG combustion-powered booms get you into position quickly and efficiently for optimum productivity. They offer exceptional reach, high capacity, versatile performance, and easy maintenance.
600SC
Features
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
660SJC
Features
- For your toughest jobs and terrains, the 600 Crawler Series provides the mobility you need
- Single drive / steer joystick for one-handed operation
- Zero turning radius to get around the jobsite easier
|
|
|
Crawler cranes deliver excellent mobility over soft surfaces. These multiple-purpose cranes can be used in a broad range of applications, ranging from construction to civil engineering and port cargo handling.
|
|
Cranes
SOILMEC has developed a full range of multipurpose foundation cranes ranging from 20 to 120 ton capacity. The base carrier is designed with built-in facilities for foundation technologies such as:
- hydraulic vibrohammer
- casing oscillator
- hammer grab
- hydraulic rotary
|
|
The Favelle Favco crawler crane range is jointly developed with Caterpillar Industrial Products Inc and are a combination of Favelle Favco lifting technology and Caterpillar technology. The model lineup is divided into lattice boom and telescopic boom. The crane sizes range from 30 ton to 60 ton with a telescopic boom and 60 ton with a lattice boom. The innovative telescopic crawlers are ideal for remote jobs which require quick mobilization as they are able to get to work immediately off a truck without the aid of another crane. Their versatility is even more pronounced as it is able to "pick and carry"on rough terrain.
Applications:
- General Construction Worksites
- Pipe Laying Work
From:
MAX LOAD 27.5t
MIN BOOM LENGTH MAX 8.5m
BOOM LENGTH 27.9m
TIP LOAD 0.3t at 27.9m
To:
MAX LOAD 55t
MIN BOOM LENGTH MAX 10m
BOOM LENGTH 32.3m
TIP LOAD 1.8t at 29m
|
|
The Favelle Favco crawler crane range is jointly developed with Caterpillar Industrial Products Inc and are a combination of Favelle Favco lifting technology and Caterpillar technology. The model lineup is divided into lattice boom and telescopic boom. The crane sizes range from 30 ton to 60 ton with a telescopic boom and 60 ton with a lattice boom. The innovative telescopic crawlers are ideal for remote jobs which require quick mobilization as they are able to get to work immediately off a truck without the aid of another crane. Their versatility is even more pronounced as it is able to "pick and carry"on rough terrain.
Applications:
- General Construction Worksites
- Pipe Laying Work
50PL
MAX LOAD 49t
MIN BOOM LENGTH MAX 15m
BOOM LENGTH 42m
TIP LOAD 0.8t at 42.7m
60L
MAX LOAD 55.1t
MIN BOOM LENGTH MAX 15m
BOOM LENGTH 54m
TIP LOAD 0.6t at 53.4m
|
|
|
|
