Vermeer is the track leader. Proven Vermeer hydrostatic trenching units offer high torque, excellent horsepower, deep digging depths and work-condition flexibility. The exclusive TEC 2000 and TEC 2000.2 control systems monitor operating conditions, increase productivity and reduce machine wear. Features like heavy-duty track chains and durable construction enhance machine efficiency.
With nine models to choose from, an optional Vantage Track 3-year/3000-hour or 5-year/5000- hour Extended-Care Service Program and a worldwide network of on-site support, Vermeer is the clear choice for your track trenching needs - talk to your dealer today.
Track trenchers from a trusted source for trenching equipment.
|
|
The T560 is a hydrostatic drive chain trencher with a 185-horsepower Cummins turbocharged, after-cooled diesel engine. It features a two-speed infinitely variable digging chain drive for changing ground conditions and machine leveling capability for trenching on sloped surfaces.
The forged tailwheel provides smooth chain operation. True load sensing helps maintain balance between track speed and trencher speed for maximum productivity. The low-profile digging chains allow for optimum tooth penetration. This unit can achieve trenching depths from four to eight feet and widths from 10 to 24 inches. Routine service points are easily accessible from the ground.
|
|
|
|
|
|

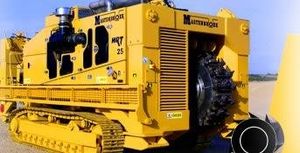

Hard rock trenching series
ENGINE Model Cummins© QSM 11
Number of Cylinders 6
Power @ 1,800 RPM 335 hp (250 kw)
Electric starting 24 V
TANK CAPACITIES Diesel Fuel 400 litre
Hydraulic Oil 435 litre (tank refill)
WEIGHT 49,000 kg (approx)
UNDERCARRIAGE Heavy Duty Track Frame
type equivalent to D5B
pad type triple bar grouser 450mm width
rollers lifetime lubricated std.
suspension oscillating undercarriage
track drive independent hydrostatic
track tension hydraulic - grease gun type
track length 4.6 m
SPOIL DISCHARGE Conveyor system
discharge swing conveyor to either left or right hand side thro 180°
discharge speed stepless adjustable from 0 to 5 m/s
TRENCH UNIT Fixed offset to left hand side
Trenching method heavy duty digging chain with bolt on digging plates and cutting drums
Cutting tools conical rotary carbide point attack
Cutting drums 1.5m diameter (over pick tips)
Chain drive hydrostatic, by one direct coupled, low speed high torque motor
Chain tension remote hydraulic with mechanical lock
TRENCH SIZE
Trench width 0.65 m
Trench depth ground level to 2.5 m
|
|

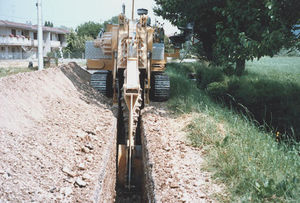

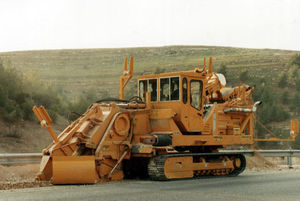

All different types of trenchers with chainsaw, rockwheel and "bucket" wheel digging attachments as well as the surface miners are designed and manufactured in the plants of Alvarado - Texas and Grassobbio - Italy.
These machines offer advanced technology and state-of-the-art solutions to solve any problem of excavation or rock crushing, providing high productivity and cost effective work.
The wide range of machines allows different trench sizes and the capability to dig in the hardest conditions and difficult terrains like solid rock and frozen soil.
It is possible to trench for different applications, such as:
- fibre optics and power cables
- oil and gas pipelines, water and sewer lines, drainages
- automatic laying of cables, conduits and plastic pipes
- excavation and crushing of solid rock in the quarries
- reclamation of rocky soils to be used for agriculture.
|
|
It's a big world, and a big world demands a big, powerful machine to civilize it. Ditch Witch heavy-duty tracked and wheeled trenchers can take whatever nature throws in their path.
RT55
The powerful, compact and incredibly versatile Ditch Witch RT55 is designed to drive a wide range of attachments.
RT75
The compact, 74-hp (55.2 kW) Ditch Witch RT75 has the muscle you need for tight working spaces.
RT95
The 99-hp (73.8 kW) Ditch Witch RT95 comes with your choice of hydrostatic or powershift transmissions.
HT115
The Ditch Witch HT115 offers an easy-to-use track drive system, a wide selection of attachments, and a choice of rubber or steel tracks.
RT115
The rubber-tired, four-wheel drive Ditch Witch RT115 is ideal for both paved and off-road work.
HT220
The Ditch Witch HT220 trenches up to 8 feet (2.4 m) deep and up to 24 inches (610 mm) wide.
HT300
The HT300 can trench up to ten feet (3.1 m ) deep and 36 inches (914 mm) wide in the most extreme jobsite conditions.
|
|
RIV300 TC150
CATERPILLAR engine C9 224 kW (305 hp)
Certified emission CARB and EPA stage II
Operation :
- Trench depth : 650 to 1500 mm
- Trench width : 250 - 350 - 450 mm
Weight : 19 t
Conveyor belt for soil evacuation - Radio control (optional)
|
|
RIV152 TR82
CUMMINS engine 113kW (152HP)
6 cylinders in line turbo 3056 DIT
Wheel : trench depth : 0 to 600mm
Trench width : 80 to 180mm
Weight : 9.5T
|
|
RIV152 TC120
CUMMINS engine 113 kW (152 HP)
6 cylinders in line, turbo
Operation :
-Trench depth : 350 to 1200 mm
-Trench width : 180 to 300 mm
Weight : 9.5 T
Constant working angle : from 350 to 1200 mm
|
|

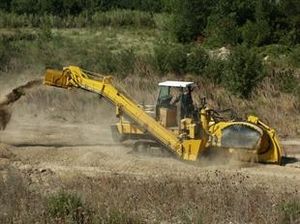

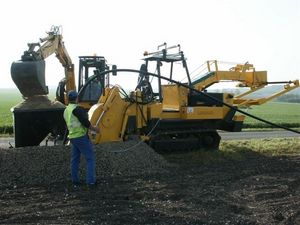

UNAC builds two types of trenchers : on tyres or on caterpillar tracks. The 200SC, on caterpillar tracks, is light and compact. With its tool offset, it is possible to work in towns without blocking the traffic.
The 200SC stands out for its three main subsets :
-The carrier on caterpillar tracks, guided from a cabin or with a remote control.
-The trenching tool. A rotary rocksaw that can dig down to depths of 800 mm. A chain that can dig down to depths of 1400mm.
-conveyor belts, to remove excavated material.
Each subset can be dismounted. From the carrier on caterpillar tracks, the user can choose to work with the rocksaw or the chain. He can choose to evacuate the material into a truck or not. This principle, which is available on all the trencher in the range, provides considerable versatility for network installation companies.
|
|
The 250SC trencher resembles, at first sight, the 200SC trench excavator.
But not only is it more powerful and with superior mass, above all it has a much higher excavation capacity. The 250SC can escavate down to depths of 1 m with the rocksaw and 1.80m with the chain.
The caterpillar tracks and commands are identical to those of the 200SC trencher.
|
|
|
|
