Caljan CurveTrack - belt conveyor
Caljan curvetrack is designed to quickly move unit loads through curves to the next conveyor.
Caljan CurveTrack belt conveyors are modular, providing maximum flexibility, reliability and needing very little maintenance. Moving units at 4 metres/second, high capacity is maintained - even through sharp curves.
|
|
The Model TS1500-100 provides a positive flow of product by means of a belt, driven by tapered pulleys. Conveyor is a versatile in that it can transport a wide variety of products. Available in 45°, 60°, 90°, and 180° turns.
- Bed - 8-3/8" inside, 10-1/2" outside. 2" x 2" x 3/16" structural steel all welded construction
- Belt - Black Monofilament, PVC top with urethane guide strip.
- Motor - 3/4 HP shaft mounted right angle gear motor standard-5 HP max.
- Adjustable Floor Supports Available
|
|
Curve section belt conveyors are used to change direction while keeping the product or products conveyed the right way up and maintaining product flow.
Rotation angle, speed, radius...are adapted to each application.

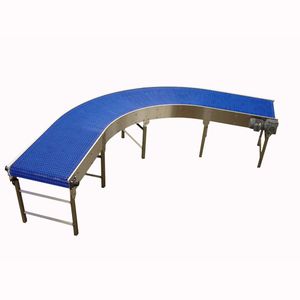

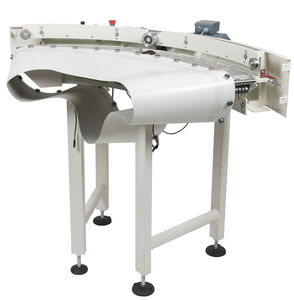

Belt bend conveyor : CCD RANGE "Economical"
Suitable for light loads
Maximum speed of 0,4 m/s
Made of painted steel or microballed stainless steel
FDA white or green PU belt
Cylindrical drums, 45 mm dia
Belt widths between 100 and 1,200 mm
Angles : from 30° to 180°
Silent running
SEW motorization
Applications:
Food industry
Pharmaceuticals and cosmetics
Automobile equipment
Porcelain / crockery, etc.
|
|
|
Belt curves by Interroll Axmann Automation move extremely small to very heavy/bulky piece goods reliably and gently through turns with conveyor curve angles between 30° and 180°.
|
|
MPB Series Modular Plastic Belt Conveyors
• Accumulation
• High Temperatures
• Sharp parts
• Low maintenance
7400 Series Curve & Straight Plastic Belt Conveyors
• Curves & Straights
• Opens in Seconds for easy cleaning
• No Tools Required
• Welded construction
|
|
Corner belt conveyors allow the solving of logistic problems through the deviation of the conveying system from a few degrees to a 180 ° turn.
Their main features are a constant flow of the material being transported and remarkable space saving. The standard angles are 45°, 90° and 180°, but it is also possible to supply any other angle with no limitation in the shape of rollers (tapered end rollers or knife edges) for the continous transfer of items throughout the system avoiding instability problems and the use of connection plates or rollers.
The belt conveying surface can be PUR, PVC or rubber according to the application it is meant for: chemical, foodstuffs, graphics and cartons, wood and brick industry; mail automation, material handling, airports etc.
|
|
|
Transver belt conveyors set new standards concerning hygienic aspects and convenient servicing. Fast and easy belt change, open frames for easy cleaning access and a sturdy construction for a maximum of availability in multi shift operation have been considered in the developement.
|
|
|
With its closed design, a tube belt conveyor allows optimum adaptation of the conveying route to topographic conditions. Since the conveyed material is completely enclosed, it can be transported dustfree, and even extremely steep gradients are safely coped with. This technology is based on proven machine components and a special belt design which ensures a safe operation.
|
|
Based on an original idea combining know-how and technical innovation, this handling system makes it possible not only to preserve the environment but also to protect the product conveyed.
The tubular conveyor can be used to convey all types of products in bulk, from the finest to the coarsest, with a tube diameter two and a half times greater than the maximum grain size.
The types of materials which can be conveyed by the tubular conveyor are extremely varied and currently include various sorts of materials of a powdery nature (cements, ash, fly ash, etc.) or otherwise (coal, coke, ore, limestone, gypsum, sludge, fertiliser, sugar, wood chips, etc.).
|
|
The universal transport solution, for applications where no cooling lubrication is present.
* Also suitable for parts with sharp edges
* Not suitable for transporting hot chips
Our belt conveyors are predominantly used on punch-nibbling machines, for transporting punching scrap and punching trimmings. However, other parts can also be transported, such as waste parts from plastic injection machines. The transport belt of the conveyor is resistant to oil and grease.
Structure:
*Housing made of steel plate
*Oil-resistant belt
*Protective motor switch
*Convex return shafts
*Shafts with ball bearings
*Adjustable belt tension
|
|
| ... products without technical information |
| |

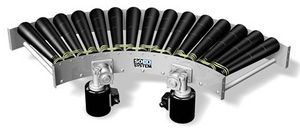

Curve of conveyor with motorized conical rollers.
Frame: tack welded, painted
Ray: interior ray 500 mm
Rollers:
base cylindrical Ø 30 X 1,5 mm out of zinc coated steel,
conical Pots PVC
with pinion doubles 3/8 Chaine steel
with bracelet in cascade
chains on the external ray
Entraînement:
Motor reducer 230/400 V, 50 Hz, IP 54,
fixed Speed: v = 10 m/mn,
Capacity: maximum loading 40 kg
Support doubles adjustable steel height
Accessoires:
Feet supports
Guides bilateral
Interrupteur M/A for a direction of walk
Variable speed transmission
|
|
The 45 and 90°-bent free wheel conveyors Comarme belonging to the series "RCR" consist of sturdy lateral shoulders made of anodised aluminium sheet. The supporting stands are telescopic and made of galvanised sheet steel, with aluminium square pipe legs and plastic supporting feet. The packages displacement takes place through steel rollers on caged balls.
- Structure shoulders extruded aluminium 25x70 mm
- Rollers diameter 48 mm made of steel,assembled on bearings, with steel pin
|
|
The 138 Spool Curves are designed to be slave driven from the 138-NSP Conveyor. Curves are used when turns in the conveyor line are necessary.
- Bed - 9-1/2" deep x 12 ga. formed steel channel frame powder painted
- Rollers - 1-1/2" dia. tapered to 1" dia x 18 ga. and/or 1-3/8" dia. x 18 ga. galvanized rollers
- Overall Frame Widths: 12", 15", 18", & 24"
- Adjustable Floor Supports Available
- Available in 30°, 45°, 60° & 90°
|
|
|
The curved roller conveyor is fitted with precisely tapered cone rollers, ensuring the precise running in and out ot totes and cartons. The flat strap drive used with this device also ensures a quiet run. The curved roller conveyor offers first class curve conveying at low cost.
|
|
The Okura Free Curve Conveyors allows a vast flexibility for adaptation to various job conditions and requirements. The Free Curve line allows for extension, bending and shrinking of the conveyor line as the situation and requirement dictates.
SFXD motorised Free Curve conveyor provides for smooth conveyance, together with flexibility in layout for either straight or curved requirements. The ease of curving, expansion or contraction by just the usage of one hand increases operativity sustantially.
|
|
- Connection on STANDARD element of conveyer TRL
- Curve with double lines of cylindrical rollers
- Rollers zinc coated steel or PVC Ø50mm, Axis 8mm
- Frame 50/10ème, gray completion Epoxy RAL 7035 or blue 5002.
- Interior Ray: 800mm
- Not of the rollers on average radius: 75mm with 86mm
Accessories (foot, guidance, thrusts, etc)
are to be ordered separately.
|
|
Gravity roller conveyor curves with conical rollers
By employing conical rollers, the product orientation in curves is maintained.
Only by using such rollers is the exact trace of goods in a curve followed.
Conical rollers are available in various models.
Also available in stainless steel.
|
|
| ... products without technical information |
| |
|
With its closed design, a tube belt conveyor allows optimum adaptation of the conveying route to topographic conditions. Since the conveyed material is completely enclosed, it can be transported dustfree, and even extremely steep gradients are safely coped with. This technology is based on proven machine components and a special belt design which ensures a safe operation.
|
|
Based on an original idea combining know-how and technical innovation, this handling system makes it possible not only to preserve the environment but also to protect the product conveyed.
The tubular conveyor can be used to convey all types of products in bulk, from the finest to the coarsest, with a tube diameter two and a half times greater than the maximum grain size.
The types of materials which can be conveyed by the tubular conveyor are extremely varied and currently include various sorts of materials of a powdery nature (cements, ash, fly ash, etc.) or otherwise (coal, coke, ore, limestone, gypsum, sludge, fertiliser, sugar, wood chips, etc.).
|
|
Flexicon flexible screw conveyors can feed bulk solids from large pellets to sub-micron powders in any direction, around obstructions, over short or long distances, with no separation of blends, dust-free and at low cost.
Also known as a spiral conveyor, screw conveyor, helix conveyor or centerless auger conveyor, a flexible screw conveyor can outperform rigid screw conveyors, bucket elevators, drag chain conveyors, aero mechanical conveyors and other equipment intended to transport powder and bulk solid materials. Its simple design delivers efficient performance and high reliability while reducing maintenance and cost.
|
|
|
|
|
|
Versatility of installation and the ability to deal with the widest range of material particle sizes, bulk densities and flow properties puts Spiroflow systems and equipment at the leading edge of flexible screw conveyor technology.
Dust-free in operation
The Spiroflow flexible screw conveyor is totally sealed during operation - and because air isn't used as a conveying medium, there's no risk of dust contamination or humidity from the atmosphere, a critical factor when used in food and pharmaceutical applications. In addition, the presence of dust can cause not only airborne contamination of other products, but can also pose a threat to the working environment.
Gentle handling of product
The rotating flexible screw conveyor spiral, being centralised within the conveying tube, gently moves the material without degrading it. Its unique action also eliminates the risk of mixed product separation.
Constant remixing
The action of the Spiroflow flexible screw conveyor
ensures the material is being constantly remixed.
This is particularly important when feeding pre-mixed product to packaging and tabletting machinery.
|
|
AERO-FLEX flexible conveying systems are engineered to transport most dry bulk materials at a reduced cost. They convey powders and granular material without separation of product.
The Aero-Flex system utilizes a stainless steel or carbon steel one-piece helix, which is enclosed within a stationary plastic tubing, for transferring material from its feed hopper to the discharge point, quickly and efficiently.
Operating Principle of flexible conveying system
Applications
The AERO-FLEX is excellent for transferring most types of products including, Foods, Pharmaceuticals, Chemicals, and Plastics, from bulk bag unloaders, bag dump stations, and feed hoppers.
- Load filling machines 1 Blenders/Mixers 1 Surge Hoppers
- Bulk Bag Loaders
- Grinders, Pulverizers, Air Classifiers
- Load and unload sifters
|
|
|
|
