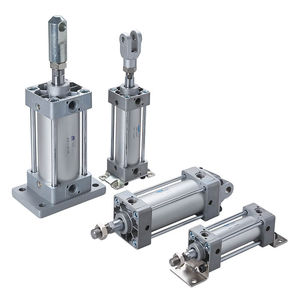

The Series 60 cylinders have been designed to comply with the dimensions laid down] in the DIN/ISO 6431 standards. A permanent magnet is mounted on the piston in these cylinders which enables, by means of proximity switches positioned along the cylinder tube, receiving information about the piston's position.
This cylinders series is normally equipped with adjustable end-stroke cushioning. Moreover these cylinders are equipped with a mechanical cushioning in order to reduce the impact of the piston as it reaches the end of the stroke. |
|
| The Airpel Air Cylinder does away with any perceptible stiction. And reduces running friction to exceedingly low levels. This gives it the unique ability to impart super smooth motion – motion smoother than any other air cylinder. Even at very low pressures. Even at very slow speeds. Even with very short strokes.Even after standing idle for years! How do you account for this remarkable performance? The Airpel incorporates a unique construction to become an instrument-quality air cylinder. It uses a precision fit graphite piston which slides freely – without lubrication – inside a Pyrex® glass cylinder. This makes it ideal for forces from a very few grams to 30 lbs. or more. In fact, Airpel is particularly well-suited to applications requiring smooth motion at ultra-low pressures – and to moving lightweight objects or delicate loads at slow or high speeds. But this air cylinder is no weakling. It can be used to provide brute forces, too – operating under extreme temperatures, at very high speeds and cycle rates, with no degradation in performance. It also runs cleaner than typical air cylinders because it contains no oil. What’s more, it has no rubber or plastic seals to abrade, wear out, or harden with time. And because all exposed surfaces (except pivot model bushings) are stainless steel and nickel, Airpel is extremely clean and corrosion resistant. |
|
Without corners and sharp edges - and yet outstanding! To ISO 6431/VDMA 24562. Rounded, easy to clean design, with integrated proximity sensor.
• Diameters 32 ... 100 mm
• Stroke length 10 ... 500 mm
• Rod wiper seal made of PUR
• High corrosion resistance
• Food industry approved lubricating grease (to USDA-H1) and rod wiper seal (to FDA)
• Optional: flanged cover screws made of stainless steel
|
|
The GLOBAL SERIESTM Cylinder has been a very popular addition to the Pancake® Line of cylinders. This rugged, space savings cylinder is loaded with features not found in others. Available as a "hard metric" model, this cylinder is truly the choice for the International market.
Features:
10 Bore Sizes (12mm thru 100mm)
Strokes from 5mm to 150mm
Machined from Aluminum Extrusion
Duralon® Rod Bearing for Reduced Wear
Prelubed with Magnalube-G® Grease
Chrome Plated Stainless Steel Piston Rods
Air & Hydraulic Service to 150 PSI
10 Mounting Accessories
3 Port Choices - NPT & BSP Parallel/Tapered
Metric or Inch Rod Thread & Mounting
Plenty of Options Available
Magnetic Piston Sensing Available
|
|

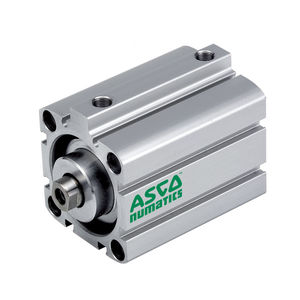

Powerful, reliable and economical: these second generation compact cylinders are highly convincing with their standardised dimensions, a broad product spectrum and out standing performance.
? Diameters 12 ... 125 mm
? Strokes to 500 mm
? Wide variety of variants and sizes - going beyond the standard
? Mounting accessories for practically any installation requirements
? Cylinder sensor on 3 sides
? Software and CAD data for easy, reliable design engineering
|
|
Features Include:
- Simple Inlet Design
- Constant Air Flow
- Up to 7,000 RPM Capability
- Standard Built in Trapping
- Optional Trip Rod and Thru Port |
|
| The Airpel Air Cylinder does away with any perceptible stiction. And reduces running friction to exceedingly low levels. This gives it the unique ability to impart super smooth motion – motion smoother than any other air cylinder. Even at very low pressures. Even at very slow speeds. Even with very short strokes. Even after standing idle for years! How do you account for this remarkable performance? The Airpel incorporates a unique construction to become an instrument-quality air cylinder. It uses a precision fit graphite piston which slides freely – without lubrication – inside a Pyrex® glass cylinder. This makes it ideal for forces from a very few grams to 30 lbs. or more. In fact, Airpel is particularly well-suited to applications requiring smooth motion at ultra-low pressures – and to moving lightweight objects or delicate loads at slow or high speeds. But this air cylinder is no weakling. It can be used to provide brute forces, too – operating under extreme temperatures, at very high speeds and cycle rates, with no degradation in performance. It also runs cleaner than typical air cylinders because it contains no oil. What’s more, it has no rubber or plastic seals to abrade, wear out, or harden with time. And because all exposed surfaces (except pivot model bushings) are stainless steel and nickel, Airpel is extremely clean and corrosion resistant. |
|
| In addition to its broad line of standard catalog products, nearly half of Bimba's business consists of custom and semi-custom products designed for specific customers and applications. These products, used in machinery and automation, are sold to original equipment manufacturers and end-users throughout the world in an expanding variety of industries. |
|
| Custom designs are available. The Airpel cylnder can be modified to accomodate non standard length, stroke, materials and performance. The Airpel Air Cylinder does away with any perceptible stiction. And reduces running friction to exceedingly low levels. This gives it the unique ability to impart super smooth motion – motion smoother than any other air cylinder. Even at very low pressures. Even at very slow speeds. Even with very short strokes. Even after standing idle for years! How do you account for this remarkable performance? The Airpel incorporates a unique construction to become an instrument-quality air cylinder. It uses a precision fit graphite piston which slides freely – without lubrication – inside a Pyrex® glass cylinder. This makes it ideal for forces from a very few grams to 30 lbs. or more. In fact, Airpel is particularly well-suited to applications requiring smooth motion at ultra-low pressures – and to moving lightweight objects or delicate loads at slow or high speeds. But this air cylinder is no weakling. It can be used to provide brute forces, too – operating under extreme temperatures, at very high speeds and cycle rates, with no degradation in performance. It also runs cleaner than typical air cylinders because it contains no oil. What’s more, it has no rubber or plastic seals to abrade, wear out, or harden with time. And because all exposed surfaces (except pivot model bushings) are stainless steel and nickel, Airpel is extremely clean and corrosion resistant. |
|
| Clean and corrosion resistant stainless steel outer cylinder and inner glass and graphite components offer no lubrication operation. The Airpel Air Cylinder does away with any perceptible stiction. And reduces running friction to exceedingly low levels. This gives it the unique ability to impart super smooth motion – motion smoother than any other air cylinder. Even at very low pressures. Even at very slow speeds. Even with very short strokes. Even after standing idle for years! How do you account for this remarkable performance? The Airpel incorporates a unique construction to become an instrument-quality air cylinder. It uses a precision fit graphite piston which slides freely – without lubrication – inside a Pyrex® glass cylinder. This makes it ideal for forces from a very few grams to 30 lbs. or more. In fact, Airpel is particularly well-suited to applications requiring smooth motion at ultra-low pressures – and to moving lightweight objects or delicate loads at slow or high speeds. But this air cylinder is no weakling. It can be used to provide brute forces, too – operating under extreme temperatures, at very high speeds and cycle rates, with no degradation in performance. It also runs cleaner than typical air cylinders because it contains no oil. What’s more, it has no rubber or plastic seals to abrade, wear out, or harden with time. And because all exposed surfaces (except pivot model bushings) are stainless steel and nickel, Airpel is extremely clean and corrosion resistant. |
|
Double-Wall Cylinders
One basic cylinder converts into six NFPA mounting styles.
Epoxy-coated aluminum tie-tube protects inner 304 stainless steel body tube from harsh environments.
6 NFPA rod end options and a variety of stroke lengths.
Bore sizes: 1-1/2", 2", 2-1/2", 3-1/4", 4".
Quick delivery of catalog models - off the shelf to 3 days!
Custom designed cylinders available to meet your exact specifications and requirements. |
|
Flat Cylinders
If your application is tight on space, our round, square, non-rotating, dual-power or three position Flat Line cylinders are the answer. These compact and repairable cylinders offer unequaled design, versatility and reliable performance.
Benefits of Flat Cylinders Include:
* 304 stainless steel cylinder body with a mirror finish I.D.
* Stainless steel fights corrosion and scoring from dirt particles
* Longer piston seal life
* Oil impregnated bronze rod bushing is standard in all models
* Ground and polished 303 stainless steel piston rod
* High strength piston to rod connection
* Precision machined, anodized aluminum alloy heads |
|

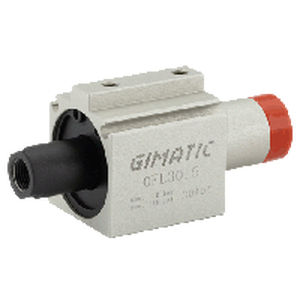

Integrated double effect cylinder Ø20 to 50 mm
Precise and sturdy guide: great resistance to radial load (conveyor thrust…)
Compact, strong, and precise, they resolve all small stroke where rigidity is required
|
|
Twin Bore Cylinders
Small cross-section, double-bore cylinder that provides highly accurate linear motion.
Incorporates extra long piston rod bearings, resulting in high radial load capacity.
Single and double end rod units are available in both Delrin® and ball bushing styles. The highly precise Air Table incorporates a rigid linear rail with recirculating ball bearings.
3 Cylinders in the series: Basic Twin Bore (TB), Double End Twin Bore (TBD), and Twin Bore Air Table (TBA)
TB: Dual bores exert twice the fore of a traditional cylinder while providing smooth, non-rotating actuation. The cylinder is symmetric and can be mounted from either side to allow convenient port access.
TBD: Double rod end provides a saddle-mount unit with improved loading and resistance to deflection.
TBA: Smooth, precise movement is achieved via integration of a highly accurate recirculating ball bushing rail.
Options available for Side Mounting Holes and Shock Absorbers. |
|
The Slide Units Séries QCTF - QCBF are available in four différent sizes and hâve been designed to be used in (applications where space is limited and when the load must be guided. Regarding the bearings, the Slide Units are available in two versions, one with double sintered bronze bushes (Mod. QCTF) and the other with double linear bail bearings (Mod. QCBF). The QCTF version would normally be selected when the side loads applied to the slide unit are high. Model QCBF slide units are suitable for fast cycles (less side load) and higher précision. Regarding the end cushion: The Slide Units Séries QCTF - QCBF are available in three différent variants:
A. fixed mechanical cushion (standard),
B. with two shock absorbers located on the body and
C. with one shock absorber located central on the rear flange.
Accordingly, the variant B and C are suitable for
handling of higher mass forces and / or when it's
necessary to adjust the stroke.
The design of the Slide Unit body allows the moun-
ting of the Slide Unit using either top, bottom or
side faces.
Several T shaped grooves in two faces allow
magnetic sensors Mod. CST to be fitted in a number
of positions. |
|
• Pneumatically adjustable end position cushioning or shock absorbers
• End-position accuracy < 0.05 mm
• Precision stroke adjustment in advanced and retracted position
• 2 bearings per guide rod
• Diameters 12 ... 63 mm
• Strokes up to 400 mm
• Plain-bearing guide/recirculating ball-bearing guide
|
|
| The Airpel Air Cylinder does away with any perceptible stiction. And reduces running friction to exceedingly low levels. This gives it the unique ability to impart super smooth motion – motion smoother than any other air cylinder. Even at very low pressures. Even at very slow speeds. Even with very short strokes. Even after standing idle for years! How do you account for this remarkable performance? The Airpel incorporates a unique construction to become an instrument-quality air cylinder. It uses a precision fit graphite piston which slides freely – without lubrication – inside a Pyrex® glass cylinder. This makes it ideal for forces from a very few grams to 30 lbs. or more. In fact, Airpel is particularly well-suited to applications requiring smooth motion at ultra-low pressures – and to moving lightweight objects or delicate loads at slow or high speeds. But this air cylinder is no weakling. It can be used to provide brute forces, too – operating under extreme temperatures, at very high speeds and cycle rates, with no degradation in performance. It also runs cleaner than typical air cylinders because it contains no oil. What’s more, it has no rubber or plastic seals to abrade, wear out, or harden with time. And because all exposed surfaces (except pivot model bushings) are stainless steel and nickel, Airpel is extremely clean and corrosion resistant. |
|
| Good for applications where space is at a premium. No mechanical connection to the piston. Fully enclosed actuator body prevents contaminants from entering. Air or oil actuated to 100 PSIG. Operation temperature range of 0°F to 170°F. |
|
Diaphragm Cylinders
This 1-1/4" bore diaphragm cylinder is designed for a clamping application with minimal friction losses. Its short overall height allows the cylinder to fit into a tight space with minimal friction.
Stroke length: .12".
Output force will be approximately 15% less than theoretical when units are not extended full stroke.
Cylinders should not be operated without a part being clamped (extension should be limited by customer to maximize life). |
|
Miniature "Cube" Cylinders
CFS-01011-A is a double-acting, miniature "cube" cylinder (1/2" x 1/2" x 1/2") ideal for applications requiring low output force in extremely tight spaces.
Has been successfully applied in various semiconductor industry applications. Several are mounted side-by-side in a test fixture for circuit board continuity testing. Another application involves silicon wafer processing, in which the cylinders are used to clamp wafers during certain operations.
Stroke Length: .125". |
|
| MODEL E9 BORE (inches) .366, PISTON AREA (sq. inch) .105, PRESSURE RANGE: FULL VACUUM TO - (PSI) 100, FORCE OUTPUT AT MAX PRESSURE ON REAR SIDE (lbs) 10.5, FORCE OUTPUT AT MAX PRESSURE ON ROD SIDE (lbs) 9.3, FORCE FACTOR REAR SIDE (factor x pressure=force output) .105, FORCE FACTOR ROD SIDE (factor x pressure=force output) .093, MIN PRESSURE DIFFERENTIAL REQD FOR ACTUATION (PSI) <.2 PISTON, FRICTION AS % OF LOAD (without side load) 1%-2%, OPERATING TEMPERATURE RANGE -55° C to +150°, WEIGHT OF COMPLETE UNIT (grams), Double rod end models 31.7+(9.52 x STROKE), MAX LEAK AT REFERENCE PRESSURES , AT PRESSURE PSI= 50 MAX LEAK RATE by Piston: SL / min 1.16, MAX LEAK RATE by Rod: SL / min 2.2 The Airpel incorporates a unique construction to become an instrument-quality air cylinder. It uses a precision fit graphite piston which slides freely – without lubrication – inside a Pyrex® glass cylinder. This makes it ideal for forces from a very few grams to 30 lbs. or more. In fact, Airpel is particularly well-suited to applications requiring smooth motion at ultra-low pressures – and to moving lightweight objects or delicate loads at slow or high speeds. But this air cylinder is no weakling. It can be used to provide brute forces, too – operating under extreme temperatures, at very high speeds and cycle rates, with no degradation in performance. It also runs cleaner than typical air cylinders because it contains no oil. What’s more, it has no rubber or plastic seals to abrade, wear out, or harden with time. And because all exposed surfaces (except pivot model bushings) are stainless steel and nickel, Airpel is extremely clean and corrosion resistant. |
|
FO2, FO3, FO4
Double-acting, single end rod cylinders that multiply the force output by supplying air to multiple pistons on extension. They save space and eliminate the need for a higher pressure system. Only one piston is powered on the return stroke, saving air volume and operating costs.
Body - 304 Stainless Steel.
Heads - Anodized Aluminum Alloy.
Piston Rod - Ground and Polished 303 Stainless Steel.
Seals - Buna N (High temperature seals optional).
Rod Bushing - Oil Impregnated Bronze.
Pressure Rating - 100 PSI Maximum (Air only).
Temperature Rating - From -20°F to +150°F (-25°C to +65°C) Buna N seals with a temperature range of -20°F to +150°F (-25°C to +65°C) are standard in all Bimba air cylinders. Fluoroelastomer seals rated for higher temperature applications are available. If cylinders are operated below 0°F (18°C) for extended time periods, special modifications may be required.
Special seal materials are available upon request! |
|
EFP MultiPosition Cylinder
Provides three position output on extension using the same EF bore footprint to save space.
Easily interchangeable to other compact extruded cylinders of the same bore size.
Available in 10 bore sizes from 12mm to 100mm.
Versatile to easily connect and operate with application's pneumatic logic.
PTFE impregnated, hard anodized aluminum body for superior wear resistance. |
|
Flat-II
Flat-II nonrotating, double-acting cylinder provides the answer to applications where rotation cannot be tolerated and space is at a minimum.
Nonrotation is achieved with dual piston rods and a rod end block that insures the rods work in tandem. Eliminates the need for external alignment devices, such as guides, rods and alignment posts or pins.
Body - 304 Stainless Steel
Heads - Anodized Aluminum Alloy
Piston Rod - Ground and Polished 303 Stainless Steel
Piston Seals - Buna N (High Temperature Seals Optional)
Rod Bushing - Oil Impregnated Bronze
Rod Seals - Buna N O-ring (High temperature seals optional)
Rod End Block - Anodized Aluminum Alloy
Pressure Rating - 200 PSI Maximum (Air only)
Temperature Rating - From -20°F to +150°F (-25°C to +65°C) Buna N seals with a temperature range of -20°F to +150°F (-25°C to +65°C) are standard in all Bimba air cylinders. Fluoroelastomer seals rated for higher temperature applications are available. If cylinders are operated below -0°F (18°C) for extended time periods, special modifications may be required.
Special seal materials are available upon request! |
|
Non-Rotating Air Cylinders
* Bimba’s new Non-Rotating Original Line stainless steel body air cylinder design consists of a unique square piston rod with rounded corners. The square rod prevents rotation better than other rod configurations, and the rounded corners provide longer seal life than conventional hexagon rods. The unusual geometry of the square rod also provides superior rotation control.
* All bore sizes have a rotational control of less than or equal to ±3 degrees. Bore sizes for the non-rotating cylinders are 9/16", 3/4", 1-1/16", 1-1/2", 2", and 2-1/2".
* The special high strength aluminum alloy rod guide provides high load carrying capability and abrasion resistance. The urethane-based rod seal provides excellent seal life and leak-free service.
* The Non-Rotating Original Line cylinder is dimensionally interchangeable with the standard Original Line stainless steel cylinder.
* Available in Double Acting and Reverse Acting models. |
|
Nonrotating, Double Acting 4 Bore sizes 3/4" thru 2" Strokes to 4" standard
Twin piston rods are incorporated into the cylinder head to achieve NON-ROTATION. The rods are securely fastened to the piston and tied together externally by a rod end tool bar.
The tool bar insures that the rods move in tandem and provides an ideal mounting surface for any attachments required by your application. The tool bar is furnished with threaded mounting holes or optional counter bored mounting holes.
Features:
4 Bore Sizes (3/4" to 2")
Strokes to 4" Standard (consult factory for longer strokes)
Self-lubricating Composite Body
Clear Anodized Aluminum Alloy Heads
Stainless Steel Tie Bolts
Bronze Rod Bushing
Prelubed with Magnalube-G® Grease
Chrome Plated Stainless Steel Piston Rods
Rod End Tool Bar
Air Service to 200 PSI
Minimum Recommended Operating Pressure - 15 psi
Temp Rating (cylinder) -25° to 225°F (-32° to 121° C)
Temp Rating (electronic sensors) -4° to 176°F (-20° to 80° C)
Internally Lubricated Buna-N Seals
Many Options Available
Magnetic Piston Sensing Available
|
|

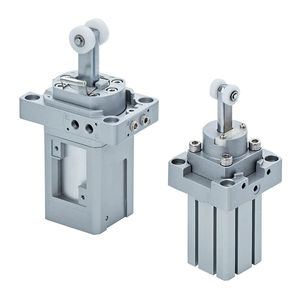

Magnetic piston is included as standard.
Rugged body is machined from aluminum extrusion and mounts rigidly to equipment in a minimum of space.
A variety of styles are offered to meet different application requirements.
The direction of rollers are adjustable for use in different applications.
Shock absorbers are available as safety stops.
Magnetic sensors can be mounted on cylinder surfaces when input signals are required for controllers. |
|
|
