A DC/AC inverter converts direct to alternating current, as in a 220V backup power supply. It can be used with batteries or any other source of DC power.
These devices are used as backup or uninterruptible power supplies, for emergency lighting, backlighting for LCD screens, to connect solar panels to the power grid, for variable speed control in AC machinery and when only battery power is available for AC devices.
The inverter uses a transistor bridge to generate a square wave signal in the primary circuit of a transformer, which produces a sinusoidal or nearly-sinusoidal voltage in the secondary circuit. Units for adjustable speed motors can operate on a modified sine wave, even if the signal is far from a true sine. Variable frequency inverters produce three-phase power if the motor requires it.
In emergency power sources, the transformer's primary coil is excited by a pulse-width modulated voltage, producing a waveform in the secondary circuit which is close to a 220V/50Hz sine (depending on country). This is the preferred means of supplying AC power for electronic devices.
Choice of a backup power supply inverter will depend primarily on output voltage and frequency, power and efficiency factor. Power often is expressed in VA.
- Reliable backup power
 |
 |
Off-grid DC/AC inverter 1 kVA | DA10SC / DA10SA SANYO DENKI EUROPE
1 kVA Stand Alone Inverter - DA10SC / DA10SA DA10SC / DA10SA The DA10 is a compact stand-alone inverter that provides 1kVA true sine...
 |
 |
Outdoor DC/AC central solar inverter 30 - 170 kW | PS 450 Compact Outdoor Bonfiglioli
Weather-proof, robust and equipped with an innovative cooling system, RPS 450 Compact Outdoor inverters carry on delivering excellent performance even under adverse ambient conditions and at high temperatures. The external body features a precision, compact design...
 |
 |
DC/AC grid-tie sine wave solar inverter FRONIUS
Solar energy is converted into electricity and fed into the public grid. Efficient, reliable, high power...
 |
 |
DC/AC inverter for railway applications BORDLINE® ABB Motors Drives and Power Electronics
BORDLINE®-Compact Converters BORDLINE® -Compact Converters are main propulsion converters with integrated auxiliary supply. All power electronics found on a vehicle are integrated in one product. This yields a very compact design with one interface to the vehicle. As world...
 |
 |
DC/AC traction inverter for hybrid electric vehicle Delphi Power Train
The Delphi high-performance traction inverter converts highvoltage DC power into multi-phase AC power required to drive three-phase induction or permanent magnet electric machines used in hybrid and electric vehicle propulsion. The traction inverter can be customized to operate over a wide range of power...
 |
 |
DC/AC solar inverter 5 000 W | SPV-5.0 Astec Power
SPV-5.0 Solar Inverter Series WebSheet Total Max Power: 5,000 W Total Max Current: 22 A Input Voltage: 250 V to 550 V Outputs: Single Size (L x W x H):...
 |
 |

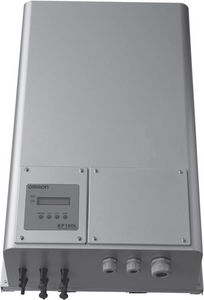

DC/AC solar inverter KP100L Omron Europe
KP100L photovoltaic inverter The KP100L’s versatile matching enables monocrystal and polycrystal solar modules. Furthermore, three MPPT devices (Maximum Power Point Trackers) with a wide MPPT voltage...
 |
 |
DC/AC central solar inverter max. 250 kW | S-Max series Eaton Count Control Products
The Eaton S-Max Series 250kW grid-tied solar inverter is listed to cUL 1741 for three-phase utility interactive operation. Backed by a century of experience with electrical power systems and a global reputation for excellence. The Eaton S-Max grid...
 |
 |
DC/AC inverter for railway applications SANYO DENKI
DC/AC Inverter SANUPS Inverter A DC/AC inverter that has high power-feeding...
 |
 |
Rack-mount DC/AC inverter 1 - 6 kVA | SANUPS D11A SANYO DENKI America, Inc.
DC/AC Inverter SANUPS Inverter A DC/AC inverter that has high power-feeding reliability....
 |
 |
DC/AC sine wave inverter Absopulse Electronics
Absopulse's rugged, single and 3-phase DC-AC inverters typically deliver sinusoidal voltage ranging from 30VA to well over 15kVA, and meet 50Hz, 60Hz or 400Hz application requirements. The company's solutions address almost any DC/AC or AC/AC specifications. Other products in the AC-output range include a selection of single and 3-phase frequency converters...
 |
 |
Rack-mount DC/AC inverter 1 500 - 4 500 VA | PHASYS SOCOMEC
The PHASYS inverter modules have been designed to be used either in parallel operation or as a stand-alone solution. The built-in static by-pass provides...
 |
 |
Compact DC/AC inverter for mobile applications SPS AUTO SALICRU
Amounts into little dimension, such as a drink can, Aluminium wrap and due usual portable equipment power. Lighter type input connect and Europlug output, including Schuko type adaptor so as to connect...
 |
 |
Compact DC/AC inverter for mobile applications EA-ELEKTRO-AUTOMATIK
DC-AC inverters are designed to operate in versatile applications where no mains supply is available. The units operate with a 12V or 24V DC source, typically...
 |
 |
Low voltage DC/AC solar inverter iMars BG1K5 / 2K2 / 3KTL series ShenZhen INVT Electric Co., Ltd.
Technical Features: 1.Optimized electric control technology, over 97.2% efficiency; 2.Advanced MPPT algorithms, maximum tracking efficiency up to 99.99%; 3.Large LCD interface, easy...
 |
 |
DC/AC grid-tie sine wave solar inverter EverExceed Industrial Co. Ltd
EverExceed Sunrise Series Grid-on Inverter Features - Using advanced 32-bit DSP Control Technology, which can guarantee table and reliable operation of equipment - Using MMPT technology, which can guarantee the largest photovoltaic array output...
 |
 |
Description The WEW and the WDW are built on the same platform as our flagship PEW and PDW. They work properly under the harshest conditions...
 |
 |
DC/AC solar inverter BlueSolar Grid Victron Energy
Off-grid The presence of a functional electricity grid is not always as obvious as it would seem to be. An insufficient infrastructure...
 |
 |
Transformerless DC/AC solar inverter 4.3 - 22 kW | THEIA TL series Eltek Deutschland GmbH
With a model range from 4.3kW to 22kW and efficiencies to 98% the high performance, transformerless, THEIA TL String solar inverters maximise the energy harvested from the PV...
 |
 |
Medium voltage DC/AC central solar inverter 10 - 1200 kW VACON
Solar inverters, such as the Vacon 8000 Solar, are a vital part of the configuration between the solar panels and the general grid. The function of an inverter is simply to convert the captured photovoltaic power into AC, and feed it into the grid. The Vacon 8000 Solar covers all the needs of the commercial and utility sectors. Our products have been designed with ease in mind. They are easy to...
 |
 |

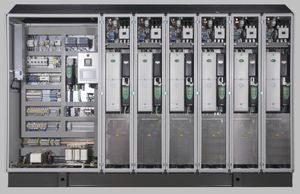

DC/AC central solar inverter 145kVAp - 1590kVAp CONTROL TECHNIQUES
SPV Inverters - High yield utility scale photovoltaic inverters Emerson SPV systems offer a range of transformerless central inverters for PV installations from 145kVA to 1590kVA. Each inverter is constructed using multiple standard 145kVA or 175kVA modules. Based on a stable design, our inverter modules are mass produced for both industrial and PV applications. Proven to be reliable and robust,...
 |
  |
DC/AC pure sine wave inverter 300 - 2 000 W | PST UL series Samlex America
This high efficiency DC-AC inverter converts 12 Volts DC to 300 Watts of pure sine-wave AC power at 120 Volts,...
 |
 |
DC/AC sine wave inverter 0.6 - 3.5 kW, 12 - 60 V | IBS series Zentro-Elektrik
IBS series Power (W)600W - 3500W Input Voltage...
 |
 |
Light, compact and easy to maintain: PCS Rail AU 500 onboard power supplies are especially well-suited for use in trams, commuter trains and underground trains....
 |
 |

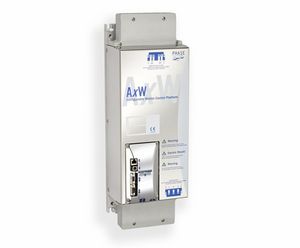

DC/AC static inverter max. 228 kW | AxW Phase Motion Control S.r.l.
The highest efficiency and power density in high power Dc-Ac converters it reached by the new Ax-W range. Production started of the high power, water cooled Ax-W range of Dc-Ac converter drives rated 250,300 and 400 amp, up to 700 V Dc input. AxW converter drives complement at the high...
 |
 |
DC/AC static inverter 3 kVA, 220 V | ESI-1F03 Edit Elektronik
Devices that supply your critical loads with constant voltage and frequency in places and conditions where main...
 |
 |
19" rack mount DC/AC sine wave inverter 115 - 550 V, max. 30 kVA | TSD series TRACOPOWER
With the TSD series we offer a range of high performance sine wave inverters with...
 |
 |
Compact DC/AC inverter for mobile applications CONVERGYS 150W GYS
The CONVERGYS 150 W inverter turns the cigar lighter outlet of your vehicle...
 |
 |
DC/AC central solar inverter 1 000 - 2 000 kW | PowerStation™NX Advanced Energy
The PowerStation NX turnkey solution is a fully integrated DC-to-AC power conversion system for utility-scale PV projects requiring extremely high...
 |
 |
Three-phase DC/AC static inverter INVERTRONIC modular Benning
Three Phase Inverter System with Modular, Hot-Plug Design BENNING´s new advanced inverter system INVERTRONIC modular is a hot-plug modular three phase system which operates from a central (battery based)...
 |
 |

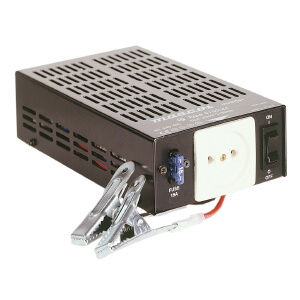

Modified sine wave DC/AC inverter 110 - 140 W, 12 - 48 V | 9150 Mascot
Used as a mains source in cars, boats, cabins, caravans, etc. for most types of electronic...
 |
 |
DC/AC solar inverter Array Power
At the heart of the ArrayPower Sequenced Inverter™ is a new approach to synthesizing AC power from the DC output of solar modules. Existing inverter technologies are inherently complex and failure-prone, relying on components that...
 |
 |
Outdoor DC/AC central solar inverter 1 MW, 480 VAC GE Solar Technology
GE Energy's 1 megawatt (MW) Brilliance Solar Inverter is our latest evolution in renewable energy power electronics. Building on GE's leadership in the renewable energy industry and designed with the heritage of GE's proven controls expertise, the Brilliance...
 |
  |
The new OutBack Power Radian Series GS8048 inverter/charger provides a comprehensive answer for Grid-interactive and Standalone power systems. Based upon a proven foundation of reliable technology, but engineered from the ground up to simplify the design, distribution, installation and implementation of energy storage,...
 |
 |
DC/AC solar inverter 3 600 W | SunMaster ES3.6TL Mastervolt International
String inverters with a high annual yieldMastervolt inverters are designed to maximize annual yield under realistic conditions. In addition to perfect performance under normal conditions, you can expect the best possible energy capture even in less favourable conditions. The SunMaster ES is developed based on Mastervolts unique philosophy, the...
