BEUMER paletpac® 5000
The BEUMER paletpac® 5000 is in a class all of its own. This is our top of the line high-speed palletizer. This system has been designed for projects demanding the highest capacities, and lives up to these requirements. Palletizing capacities: up to 4.500 bags/h.
|
|
|
|
|
|
We are manufacturing different types of palletizers for bags and boxes, capacity from 100 - 4000 units per hour. Our high level palletizers are basically designed to handle all types and sizes of bags, and change from one product to another is without any mechanical adjustment. Our palletizers is further very compact, have memory for 80 product programmes and has positioning, side- and top pressing facilities, which results in straightsided, stable and stackable pallets regardsless how difficult the product is. Based on 15 years experience our palletizers are of the highest quality and therefore troublefree and with the lowest possible maintenance and spare part costs. We offers standard solutions, but also designs, builds and installs systems customzed in detail to the specific project requirement, also as turnkey supply including bagging machines, stretch wrapping or hood stretching machines.
Our product range is proven in a large number of applications worldwide. We offer the user the guarantee for a high degree of availability and an economical operation.
Our slogan is "If it is possible to make our palletizers better, then we do it ourselves".
|
|
* compact palletizing modul
* process indepentent of stacks loading and unloading
* bidirectional processing of both palettes
* no interruption while palettes change by processing time > 6 sec.
* standardized interfaces for control and pneumatic
* fast conversion to different palette hights
|
|

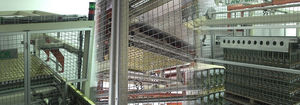

Palletizing Modul for loading and unloading components
* compact palletizing modul
* process indepentent of stacks loading and unloading
* bidirectional processing of both palettes
* no interruption while palettes change by processing time > 6 sec.
* standardized interfaces for control and pneumatic
* fast conversion to different palette hights
Function components
* two height adjustable palettes carrier
* multiphase motor axis (x-axis) for the palettes transport
* fast multiphase motor axis (y-axis) for the components transport
Technical parameter
* Palettes size 300 x 400 mm / 287 x 387 mm
* max. stack height: 500 mm
* nax. stack weight: 120 kg
* minimum processing time: 4 sec.
|
|
|
|
|
|
The depalletising robot of the two types DeRo 800 and 1000 for Euro and industrial pallets has been designed for the layerwise depalletising of packages (e.g. glasses). The robot makes use of its 3 operating axes to securely place the layers on a reception table and to simultaneously remove the interlayers.
The gripper
A reliable gripping system is indespensible for the collection of complete layers. The gripper designed and manufactured by our company encloses the upper package layer and pulls it onto the layer sheet positioned behind the pallet. Back at the reception table, the complete layer is pushed back and the interlayer still resting on the packages is lifted and placed on a seperate stack.
The control system
The control system of the PARO® palletising-robot system is trendsetting in the field of automatic palletising. Thanks to the simple and intuitive software layout, it is possible to operate the system already after brief instructions. The user can carry out all functions of the device via the touch-screen opearting interface by a touch of his finger.
The application of the latest control-system components, such as IPC and CAN-Bus, facilitates the integration of any kind of periphery into the PARO®-Control system (bar-code scanner, scales, conveyor systems, etc.).
DeRo is qualified for an application in pharmaceutical industry and can serve several pallet sites. In the development of the system, great emphasis was placed on the application of low-maintenance components. The three axes of
the robot are driven by maintenance-free servo motors. The robust and simple kinematics reduce maintenance costs to a minimum.
|
|
|
This bulk depalletizer delivers low level operation and container discharge, providing the simplicity and convenience of a floor level machine. Its clean, open profile ensures high visibility and the floor level operator station makes it easy to control operation and review operating data. Designed with innovative features to maintain total bottle control during depalletizing, and built for long-term production, this depalletizer is the solution for bottle handling productivity.
|
|
DEP200 Depalletizer
DESCRIPTION
Machine for depalletizing round/oval bottles up to 3500 bottles per hour
ADVANTAGES
The bottles leave the machine ordered on the conveyor
Less bottle damages
Low cost compared to unscramblers
|
|

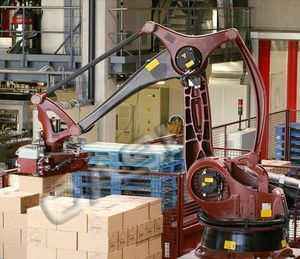

CASI robotic depalletizing systems are capable of depalletizing cases, bags, bundles, trays, totes, pails, pallets and sheets. Depalletizing robotic work cells are the solution for unloading palletized product. Each depalletizing cell is custom designed for your project requirements and plant layout. All CASI robotic depalletizing systems feature a multi-axis articulated arm robot, which provides the ultimate in flexibility and reliable operation. With fast, pre-programmed changeovers and customizable end-of-arm tooling, the system can easily depalletize a variety of different products.
Ask us about a custom solution for random product and case sizes. CASI provides some of the most cutting edge controls in the industry. Custom applications and tooling also available.
|
|
|
|
|
|
ILERPAL
HIGH LEVEL LAYER PALLETIZERS (HIGH IN-FEED) by means of bags/boxes side pushing.
TMI equipment allows for palletizing a wide range of products in several formats and output capacities.
They are designed to deliver optimum performance for years with minimal maintenance. Machines have smooth operation with eliminated hard starts or stops, so extending life of mechanical parts.
All mechanisms are carefully designed, optimizing their resistance and durability.
Construction is based on top range materials as high resistance steel or PE-1000 for surface treatment of sliding parts, delivering high quality of pallet piling up.
The touch screen dialog reaches the maximum facility for the user or maintenance operator.
Characteristics:
- Top layer palletizer, with counterweighted motorized elevating platform driven by inverter for pallet piling.
- Specially developed modules for bag shaping and pallet forming.
- Possibility of bag turning system by PATENTED “flap” to obtain speed, auto-adjustment or pre-grouping of bags.
- Positioning systems based on robotic controls (CNC) which give precise and smooth movements.
- Electrically driven counterweight platform, motorized side blocks, sliding platforms and layer pressing give a regular and stable bag pile.
- Possibility of ATEX configuration.
|
|
In recent years, there have been great advances in product sales and distribution systens.
This has led food companies to have to work with their own brands and with customer brands. This has caused the entire storage, labelling and packaging process to become more complex, thereby increasing the costs. For a number of years, EZMA S.A has dedicated considerable time to studying storage problems and their possible solutions. It has thereby achiaved cost reductions and has successfully constructed practical and versatile warehouses through personalised studies for every customer.
Standard machinery that we manufacture:.
Cager
Decager
Paletiser
Depaletiser
Machinery with different degrees of automation in order to achieve the rational operation of all processes..
|
|
|
|
|
|
Function
Layer by layer a fully loaded pallet is split into single packages or cartons. A picking conveyor approaches the "gap" under the top layer of the pallet. The TGW grip-roller (patent pending) on the front end of the conveyor enters the "gap" and raises the first row of packages and transfers the complete layer, row by row to the adjacent belt conveyor. The entire layer is then transferred to the subsequent conveyor system before the grip-roller positions below the next layer and continues the process until the required number of layers have been "split" from the pallet.
Product Integrity
Each package or carton is fully supported accross its base surface throughout the entire process. This support prevents product damage and enables the system to handle the widest possible range of packaging materials.
During the de-palletizing process the pallet load is also secured by lateral supports. These securing plates support the top two layers of the pallet from three sides throughout the layer splitting process.
Technical Data
De-palletizes layers of SKUs accross the widest range of packaging materials including trays, shrink-wrapped foil, cartons or sacks
- performance: 35 pallets per hour
- maximum weight per single package or carton: 0.5 - 35 kg
- maximum weight per layer: 250 kg
- noise level 72 dB(A)
|
|
SEND PLASTIC BOTTLES TO THE RINSER/FILLER DIRECTLY FROM THE PALLET.
- No more bottle necks.
- No accumulation tables.
- No operator.
- Greatly reduced floor space.
- We have solutions for all speeds. Unlabelled and pre-labelled bottles.
|
|

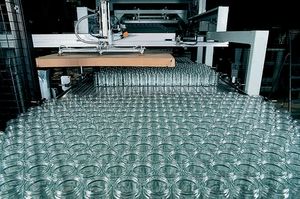

The ADB10 system allows the automatic depalletisation of glass containers.
MACHINE MODEL PRODUCT DIMENSION MAXOUTPUTcpm
ADB 10 Glass containers Min Ø60 mm 200
ADB 10 Glass conteiners Max Ø175 mm 600
|
|
The system PDM4 allows the palletisation and depalletisation of filled cans with a magnetic pick-up head and stationary pallet
MACHINE MODEL PRODUCT DIMENSION MAX OUTPUT cpm
PDM4 Cans Min Ø45 mm 900
PDM4 Cans Max Ø175 mm 250
|
|
Pal-Kombigrip is an automated steady-pallet low-infeed palletizer with gripping heads suitable for plastic crates and bottles.
Designed for medium-speed output, Pal-Kombigrip can reach higher speeds by palletizing on two stations at the same time.
Configurable as required, the Pal-Kombigrip is highly reliable, has reduced maintenance, and will cope with the toughest load flows.
Different types of clamping heads may be fixed on the lifting trolley according to the application and type of production to be handled.
|
|

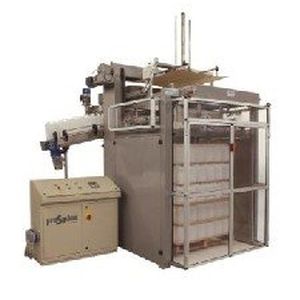

Serie DPA
DPA
Depalettizer from top to bottom
Output: 240 layers/hour
The automatic depalletizer DPA is designed to adapt any type of products, differentiating the bottles transfert system from pallet to the bottles exit conveyor belt.
In the automatic version pallet entry with the motorized roller-chain and pallet are located on the load platform that is adapted to lifting the pallet layer to layer. The bottles with a mechanical pusher system are pushed on the download belt.
The extracting of the layer is managed automatically and it is deposited in its layers magazine.
The machine is designed with maximum simplicity to guarantee high efficiency, easy in changing format and little maintenance.
The depalletizer DPA is available also in antiexplosive version: Serie DPA/AD.
|
|
Depalletisers/Palletisers
The depalletising and palletising systems are suitable to automatically feed/pack the container or the packages/carton boxes.
As far as concerns the operations of removing/placing of an interlayer and of managing the magazine for empty pallets, these machines can be supplied in automatic or semiautomatic version.
|
|
