The CUBIC diaphragm pumps are known for their high performance, power and sturdiness that make them suitable for pumping fluid with a very high apparent viscosity, of up to 50.000 cps (at 20° C) even when suspended solid parts are present. The dry suction capacity from considerable suction heights when the pump is not flooded, together with the possibility to fine-tune the speed without a loss in pressure, flow rate and head, and the possibility of loadless operation without causing any damage, make these pumps extremely versatile. The vast choice of composition materials allows you to determine the best chemical compatibility with the fluid and/or the environment without neglecting the temperature aspect. Their construction makes them particularly suitable for severe environments with high humidity or in potentially explosive environments (ATEX certification).
Main features:
- executions in: Polypropylene, PVDF/ECTFE
- use in explosive atmospheres (ATEX certification);
- suitable for severe environments and with high humidity;
- dry operation;
- dry self-priming;
- supply with non-lubricated air;
- adjustable flow rate and head;
- fine-tuning of the speed at constant pressure;
- possibility of twin manifolds (two separate intakes and deliveries);
- bench or ceiling installation;
- three delivery and intake positions
- ease of maintenance and replacement of parts;
- very good performance/cost ratio.
|
|
Suitable for pumping liquids and gases.
Even aggressive mediums can be delivered.
The liquid pump Bimor uses the piezoelectric effect, has no motors or shafts or other troublesome mechanisms and thus minimal vibrations and fewer breakdowns.
The maximum flow rate is 500ml/min. The max. achievable pressure is 0,35 bar.
Please get informed about the complete BIMOR Series.
|
|
One product example of our diaphragm pumps is Model VC0100.
Whisper silent, low power comsumption and low price are convincing arguments.
-Air flow 6l/min.
-Pressure up to 200mbar.
The airflow of the new series lies between 6 l/min up to 25 l/min, the maximum pressure is 200mbar, maximum achievable underpressure -250mbar.
Basic power supply is 230V. Special models in lower voltage (in any case AC) can be manufactured.
Please also be informed about our wide range of linear piston air compressors, vacuum pumps, liquid pumps (BIMOR), AC-pumps, quick cuplers and pneumatic tools.http://img.directindustry.com/images_di/2ai/save-En.gif
|
|
DP0110 is the powerpack of our diagphragm pumps.
-Brushless DC Motor
-Air-Rate of 7,5l/min
-Pressure from -0,67 to 1,5,bar
-Available in 12V/24V DC
Best applications are medical products, analysers, nebulizers and other devices in which the reliable air supply plays an essential roll.
Please visit our homepage www.nitto.de .We also offer various Diaphragm pumps, Linear piston pumps, Vacuum pumps, Liquid pumps (BIMOR) Air Blowers, Cuplas, Quick Connecting Couplers and Tools.
|
|
As well as unique linear-shuttle pumps we also produce cup seal pumps and diaphragm pumps as we want to introduce one of them here.
The airflow of the VC series lies between 6 l/min up to 25 l/min, the maximum pressure is 200mbar, maximum achievable underpressure -250mbar.
Basic power supply is 230V. Special models in lower voltage (in any case AC) can be manufactured.
Beside a manifold range of applications these new models can be found in laser devices, massaging devices and especially in fuel cells.
Please get informed about the whole range of our pumps under www.nitto.de or send us an email info@nitto.de or have a quick look at the catalogues here on direct industry.
|
|
Double diaphragm pumps, thanks to their technical characteristics, guarantee the greatest level of safety in all industrial applications where the use of compressed air driven pumps is required in the presence of particularly aggressive fluids.
These pumps may be used in explosive environments (ATEX), in situations characterized by high humidity and where the hazards of dry operation are high.
The pumps function using two membranes that simultaneously operate in opposition to each other: the air introduced behind the first membrane pushes the product being pumped towards the discharge and, simultaneously, through the force of the shaft, it drags the other membrane resulting in suction in the suction line. The two Long-Life membranes, which work alternatively in two directions, allow an extremely long duration even when subjected to particularly severe working conditions.
|
|
A favorite among Process Professionals, the Expert Series diaphragm pump line features the best total cost of ownership of any diaphragm pump on the market. These pumps provide optimum energy efficiency and downtime solutions. A large range of material and porting configurations are available with flow rates up to 1041 l/min.
For stall-free, ice-free operation. The patented “Unstallable” unbalanced air valve design avoids stalling issues associated with other pumps. The “Quick-Dump” exhaust valves divert cold exhaust air from ice-prone components, preventing freezing. This is the most reliable pump line on the market today.
|
|
Diaphragm Liquid Pumps LIQUIPORT for neutral and aggressive Media.
The use of chemically-resistant materials allows the pumps to be used for the transfer of almost all neutral or aggressive substances. The pumps features: self-priming and will operate dry, excellent for pressure and maintenance-free.
|
|
|
|
|
|
The FEM diaphragm dosing pump has been specially developed
in order to accurately dose small quantities of liquid over a long
period of time whereby two of its most distinctive features are its
compact size and robustness (pump and electronics). The FEM
pump and electronics makes a complete dosing system which
is suitable for both simple as well as complex applications. With
the functions „quasi continuous flow“ and „batch dispensing“ the
FEM diaphragm pump differentiates itself from pumps based on
alternative technologies eg. piston, gear, syringe and peristaltic
pumps. Other interesting features are its high reliability, a
favourable purchasing price and low maintenance costs.
KNF has developed a specially programmed electronic control
module so that the integrated solenoid valve and the movements
of the diaphragm are exactly synchronised. This results in an
exact dosing which is gentle and low in pulsation. In addition
to these unique pump characteristics the control module also
allows a wide range of control possibilities to be used eg.
serial interfaces.
The dosing pump is self priming, maintenance free and can
be run dry
|
|
|
Universal applicable OEM pump. Chemically-resistant diaphragm gas sampling pump for the transfer of neutrale and aggressive gases. For explosion-proof applications - explosion protection to ATEX (94/9/EC).
|
|
|
|
|
|
Typical applications for chemistry diaphragm pumps include evacuating chemically aggressive gases from such equipment as rotary evaporators, vacuum drying cabinets and centrifugal concentrators. Chemistry diaphragm pumps from VACUUBRAND have uncompromising chemistry designs: They are very resistant to chemical vapors from inlet to exhaust, and are very tolerant of condensate. Our two-, three- and four-stage pumps also have a gas ballast valve that helps to preserve pump performance when working with condensable vapors. Pumping chambers are hermetically separated from the drive space, ensuring long lifetimes of mechanical parts. Most importantly, diaphragm pumps are oil-free, for vastly reduced service demands compared with oil-sealed pumps. They eliminate the water waste of water-jet aspirators, and the contaminated waste-oil disposal of rotary vane pumps.
- PTFE sandwich diaphragms and valves made of perfluoro elastomer or PTFE
- internal tubing and fittings made of PTFE/ETFE/ECTFE compounds
- patented new drive system for extra quiet, ultra-low-vibration operation
- exceptional diaphragm lifetimes with ultra-durable PTFE sandwich design
- head cover and clamping disc with stability core for unsurpassed long-term performance
- new sealing system provides reduced leakage rates for improved ultimate vacuum
- very long service intervals for low lifetime cost-of-ownership
- patented new valve mounting system to simplify service access
- smooth surfaces for easy cleaning
|
|
ATEX
Chemistry Diaphragm pumps
Chemistry vacuum systems
Vacuum gauges

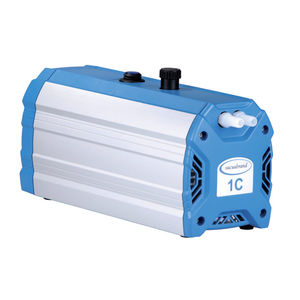

VACUUBRAND offers chemistry diaphragm pumps for use in potentially explosive atmospheres of equipment category 2 (e.g. for zone 1) with ATEX-conformity (European Union Directive 94/9/EC). Chemistry diaphragm pumps offer an excellent basis for avoiding ignition sources due to their high chemical resistance, their oilless design, the absence of gliding surfaces and the hermetic sealing of the pumping chamber.
|
|
High Volume
CHEM-PRO C2 features: PVDF Pump Head, Adapters and double ball valves; digital LCD touch pad control; variable speed motor adjustable from 1 - 100% in 1% increments, smooth operation no hammering; priming/de-gassing valve aids priming under pressure and removing gas from system; powder coated aluminum housing, NEMA 4X / lp66 rated enclosure; Full stroke every time avoids vapor lock; DFD built-in Leak Detection System senses diaphragm failure and shuts off pump.
CHEM-PROTM C2 can be ordered with low flow diaphragm for output to 97 LPH. The high flow diaphragm has maximum 142.7 LPH output, both have 10.3 bar maximum working pressure.
|
|
Dry running diaphragm pump. Characterised by high efficiency, low noise level and good air tightness. Adapts well to different gases.
Used equally as a compressor and as vacuum pump.
Free flow: 90 l/min max.
Pressure: 2,8 bar max.
End vacuum: 10 mbar abs
|
|
An elastomer diaphragm (see illustration) is moved up and down by an eccentric. On the down-stroke it draws the air or gas being handled through the inlet valve. On the up-stroke the diaphragm forces the medium through the exhaust valve and out of the head. The compression chamber is hermetically sealed from the drive mechanism by the diaphragm. the pumps transfer, evacuate, and compress completely oil-free.
Features of Diaphragm Pumps
-uncontaminated transfer, no pollution of the media
-maintenance-free
-compact design
-smooth running
-easy installation
-with very few exceptions, the pumps can operate in any installed position
Liquid pumps have the following additional features:
-self-priming
-will operate dry
In addition to the above features, diaphragm pumps for gases have excellent gas tightness.
|
|
Applications of KNF Products for Air, Gases and Vapours
Medical:
Surgical Suction units
Blood pressure measurement
Pulsing sleeves
Laboratory
Vacuum Distillation
Multi-flask filtration
Gel drying
Replacement of water jet pumps
Vacuum distillation
Dental ovens
Vacuum ovens/drying
Development/pre-production testing
|
|
Diaphragm pump for liquid.
Model : 5013 DC12V Max flow rate 180 ml/min
5014 DC24V 190 ml/min
7038 DC24V 600 ml/min
7039 DC24V 0.32--110ml/min
Wetted parts : FKM (Option :EPDM, PTFE, FFKM)
PFA
Motor type : Coreless motor
Brushless motor
Feature
* High pressure
* High Chemical resistance
* No cavitation problems
* Low Acoustic noise
* Self priming
Application
* Fuel cell
* Ink jet Printr
* Washing machine
* Cooling system
|
|
KNF diaphragm vacuum pumps for air and neutral, slightly aggressive or corrosive gases and vapours offer the right choice for many applications. Irrespective of size, the special features of the diaphragm are built into every pump: uncontaminated transfer , no pollution of the media, maintenance-free and gas tightness. Application e.g. used as a roughing pump for turbo molecular pumps.
|
|
|
|
|
|
VACUUBRAND diaphragm pumps are totally oil free, mechanical vacuum pumps. Diaphragm pumps are the efficient and environmentally friendly alternative to water jet pumps. They do not consume water and, therefore, they do not produce contaminated waste water. Diaphragm pumps can be used in a multitude of applications for vacuum generation in laboratories and process plants, such as vacuum filtration, vacuum degasing, vacuum impregnation, vacuum drying chambers, rotary evaporators, distillation, gel dryers, gas analytical systems and roughing of wide-range turbo molecular pumps.
Diaphragm pumps offer low ultimate vacuum down to 80 mbar (one-stage pumps), 9 mbar (two-stage pumps), 2 mbar (three-stage pumps) or 0.3 mbar (four-stage pumps). Optimized kinetics for minimum work and wear of the diaphragm result in high reliability, low scuffing, long life and low noise level of the diaphragm. Only selected resistant materials such as FPM (e.g. Viton® fluoroelastomers) and aluminium or PTFE compounds - depending on the version - are used for the gas and vapour contacted parts.
|
|
KNF diaphragm pumps for air and neutral, slightly aggressive, high aggressive or corrosive gases and vapours offer the right choice for many applications. Irrespective of size, the special features of the diaphragm are built into every pump: uncontaminated transfer , no pollution of the media, maintenance-free and gas tightness.
|
|
Savino Barbera snc offers the new series of double diaphragm air driven pumps
Using such alternate and selected materials for the diaphragms, these pumps can be used with the major part of aggressive liquids, and can also run dry.
General specifications:
Materials: PP, PVDF, aluminium, stainless steel
Pumping of viscous fluids with air or gas (paints, resins, inks, fuels, glues, oils, juices, soaps…) or with abrasive particles
Self-priming: no internal sealing systems allows dry running without damaging the pump.
Explosion-proof
|
|
Temperature-resistant and heated Diaphragm Vacuum Pumps and Compressors
Uncontaminated transfer of air and neutral, slightly aggressive gases and vapours at temperatures of 240 °C. Heating prevents condensation of gas. Versions with electronic temperature control.
|
|
Dry running diaphragm pump. Two different means of actuation: linear and vibration armature. Very high life time, low noise level, and high efficiency. Used as a vacuum and pressure pump.
Free flow: 300 l/min max.
Pressure: 0.7 bar max.
Vacuum: -550 mbar
|
|
|
|
|
|
The Micro Pumps are used frequently in the fields of analysis and medicine.
CONCEPT
The Micro Diaphragm Gas Sampling Pumps from KNF
are based on a simple principal - an elastic diaphragm,
fixed on its edge, moves up and down its central point
by means of an eccentric. In this way the medium is
transferred using automatic valves.
The range of KNF Micro Pumps is for the equipped with the patented stress-optimised structured diaphragm, resulting in a high pneumatic performance, a durable product and compact size. New, very efficient
valves and sealing systems as well as the precise placement of the pump head are some of the other technical features we can offer.
For pump drive we provide a selection of dc motors with
various levels of performance, durability and price.
AREAS OF USE
KNF Micro Diaphragm Pumps are used frequently in the
fields of analysis and medicine.
For instance as pumps for gas measurement, for
example for sampling environmental conditions in the
workplace, or for exhaust gas and smoke analysis or
built into machines for measuring blood pressure.
As they are dc driven, the micro diaphragm pumps are
suited for use in portable and stand-alone equipment
|
|
Dry runnig miniature diaphragm pump for liquids
Direct drive with different DC motors
Excellent transfer when handling mixed media liquid / air
Free Flow 180 ml/min
Maximum pressure height up to 80 m H2O
Suction height up to 6 m H2O
|
|
Plastic corrosion-resistant pumps
Pumps for processing chemically-aggressive liquids made from corrosion-resistant thermoplastics: PP, PVC, PVDF, PE-HD. No metal parts in contact with pumped liquid. Chemical pumps designed around system specifications and chemical resistance
Quick maintenance and with easy-to-replace components, diaphragm pumps are fed with non-lubricated air and have an adjustable flow rate and head.
Their explosion-proof properties have been certified for the ATEX version according to Directive 94/9/EC ATEX Equipment.
Speed fine tuning without affecting high pressure. These pneumatic diaphragm pumps also run dry without problems and are equipped with patented internal coaxial exchangers.
|
|
KNF diaphragm pumps for air and neutral, slightly aggressive, high aggressive or corrosive gases and vapours offer the right choice for many applications. Irrespective of size, the special features of the diaphragm are built into every pump: uncontaminated transfer , no pollution of the media, maintenance-free and gas tightness.
|
|
|
|
|
|
VACUUBRAND's aluminum design diaphragm pump is a perfect match for many applications in the laboratory and operations because it is oil-free and whisper quiet, and because it requires so little service. Diaphragms have especially long lives, and hermetically seal the drive space from the pumping chamber to protect mechanical parts from corrosion. The pumps achieve their distinctively high performance from high pumping chamber volume relative to the minimal dead space. Highly flexible FPM double diaphragms with fabric reinforcement guarantee an extremely long diaphragm lifetime. The pumps operate absolutely oil free and do not have any sliding components on the vapor side; in normal operation they are completely free of abrasion. Besides contributing to the long service intervals, the lack of abrasion also eliminates most of the particulate impurities frequently generated on the vacuum side of scroll or piston pumps.
- innovative connections in the new NT models ensure very low leak rates for excellent flow rates under vacuum and long-term performance stability, even after thousands of hours of service.
- no abrasion, making it dust- and contamination-free
- long diaphragm and valve lifetimes: made of highly flexible FPM, with fabric-reinforced double diaphragms for improved long term stability
- new patented drive support system in NT pump models provide for uniquely quiet, low-vibration operation
|
|
For the dosing of liquid chemicals, Alltech Dosieranlagen GmbH has developed the piston diaphragm metering pumps of the FKM series.
These metering pumps meet the highest requirements in operational reliability and accuracy.
Alltech piston diaphragm metering pumps are built in a modular concept. This guarantees high flexibility in combining the pump elements for various areas of applications.
By using different materials and designs for the liquid end, Alltech metering pumps may be used for the dosing of almost all kinds of chemicals.
To find an optimal solution for your dosing tasks, we offer various dosing capacities and pressure ranges.
The integrated pressure relief valve guarantees maximum security.
A wide range of accessories (stroke actuators, pulsation dampers e.g.) completes the range of our production.
|
|
Features
- Transfer and handle your dry process powders quicker, cleaner and at a fraction of the cost associated with installed "systems"
- Replaces Manual Powder Processes
- Reduce Airborne Contamination - With direct transfer from the powder container to your recipe
- Unique Patented Air-Induction System - Avoids the possibility of powder pack-out
- Economical and Simple - Unlike large, complex systems
- Portable - Can be moved from site to site
- Advanced Air-Induction Technology - 4-Way air efficiency valve, delay timer, pump major air valve, air induction valve, main air control valve and air motor muffler
- NPT, BSP and Tri-Clamp material connections
|
|
|
|
