2/2 Way Pneumatically Operated Diaphragm Valve with Stainless Steel Body, DN 4-100
|
|
Diaphragm valves, plastic and metal
DN 12 - 100; valve bodies in plastic (PVC-U, ABS, PP, PVDF, PFA, Inliner PP-H Outliner PP reinforced) and DN 4-100 metal (brass, cast iron, S. G. iron, cast steel and stainless steel; lined with hard and soft rubber, PP, PFA, PVDF, Halar etc.); connections to DIN, ISO, ANSI, BS, JIS etc.; manual, pneumatic and motorized operators
|
|
|
|
|
|
Attributes
Maintenance-free diaphragm actuator
For neutral, gaseous and liquid media
Non-sensitive against contaminated media
Control functions:
normally closed (NC)
normally open (NO)
double action (DA) available
Compact design
Sizes DN 15 – 200
Full bore design (without wire)
Different valve body materials
Different lining as protection against corrosion possible (PTFE, Butyl, EPDM, hard rubber)
Threads and flanges
Diaphragm materials: EPDM, NBR, Hypalon, Butyl, natural rubber
Features
For neutral and aggressive liquids and gases
Especially for high viscous and with big particles contaminated media
With the right lining also for abrasive media
The flow can be in either direction
High flow rates
High cleaning quality
Low-end function: only the diaphragm and the body are in contact with the medium
Secure sealing also for contaminated media
Universal application possibilities because of the different material combinations of body and diaphragm
High pressure range, vacuum up to 10 bar (depending on the size)
Easy handling and maintenance
|
|
High Purity diaphragm valves in PFA-HP, PVDF-HP and PP
Cleanroom manufactured High Purity valves for microelectronics, semiconductor production, solar industry and opto-electronic production
DN 6 - 100; valve bodies in ultra-pure plastic materials (PFA-HP, PVDF-HP and natural PP), own cleanroom production in Switzerland, manual, pneumatic and motorized operators, FlareStar PFA-HP fittings, HydraLine pressure measurement devices, TubeStar PFA-HP tubing, SonicLine PFA-HP ultrasonic flowmeter, variable area flowmeters in PVDF-HP
|
|
Features
High cycle double piston stainless steel actuator
Compact design, the outside diameter of the actuator is of the same size as the bonnet flange connecting diaphragm and body
Advantages in multiport bodies and manifold valve assemblies
Control air connection on the top, away from the process product line
Direction of control air connection is mountable in 90° rotations
Circumferential, defined sealing angle between process diaphragm and valve body
Flexible diaphragm suspension
Encapsulated diaphragm
Clean and polished exterior design ideal for sterile wash downs
Optional
Available with a wide range of control equipment and accessories, also for retrofitting
Autoclavable
|
|
Aseptic diaphragm valves, stainless steel
DN 4 – 150; valve bodies in stainless steel (investment cast, forged, block material) and special materials; surface finishes down to 0.25 µm Ra available with or without electropolishing; 2/2-way bodies (2/2-way valve), T-valves (3/2-way valve), tank valve (B600) , GMP-SAP valve configurations, (W600), multi-port valves (M600); connections to ISO, DIN, SMS, ASME BPE, JIS etc.; manual, pneumatic and motorized operators
|
|
This type of valve is actuated by pressure acting on a piston or diaphragm. The fluid is usually neutral e.g. air, water, hydraulic oil. The pressure range varies and is specified accordingly in a data table.
"Normally Closed" (N/C) valves of this type remain closed under spring pressure, when de-activated.
"Normally Open" (N/O) valves of this type remain open under spring pressure, when de-activated.
When pressure is connected to port "Z" the valves open or close according to type.
A separate 3/2 pilot valve is used to supply pressure to port "Z", it is mounted either directly on the actuator or remotely.
In some cases a 4/2 or 5/2 pilot valve will be required. The main valve position can be N/C or N/O. The basic position is determined by connecting the pilot valve output lines accordingly. (The direction of flow is usually indicated by an arrow or shown schematically on the body).
|
|

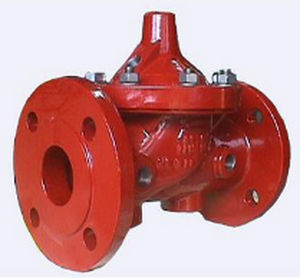

Diaphragm control valves, of semi-direct type,
Body materials: SG cast iron, Steel, or Chromed stainless steel and cast iron.
Coating: Ebonite, Butyl, Anti-abrasion, Rilsan, Halar, PTFE, etc…
Membrane adaptable to all types of fluids Loaded or Viscous:
BLD, Chlorobutyl, nitrile, neoprene, EDPM, hypalon, viton.
Foodstuffs quality: All types of elastomers.
From DN.20 to DN.300
FTF spacing: Standards NF EN 558 series 1, DIN3202 F1 or BS 5156 (up to DN.200).
Flanges PN.10 and ASA.150#, taped ends, SW or BW weld ends (from DN.10 to 40)
Manual, pneumatic NO/NF, Double effect, electric (Servomotor) controls.
”On/off” controls, Regulation possibility.
|
|
|
|
|
|
One of our key products is the ToP-Flo® Hygienic Diaphragm Valve. Top Line competes with the major suppliers in the industry for weir type diaphragm valves and we have recently gained approval to mark CE on our valves in accordance to the PED on this product line. Pricing is very competitive and our lead times are typically outstanding compared to our competition.
Here are some key standard features to consider for your next requirement:
*Low ferrite DIN 1.4435 316L forged body sizes 1/4"-4" with controlled sulfur content to ASME BPE 0.005-0.017 with 3.1B Material Certification
*Autoclaveable Viton® o-ring sealed 304SS stainless steel manual bonnet with adjustable PPS thermoplastic handwheel
*Thermoplastic piston type pneumatic actuators with your choice of popular controls for feedback (Westlock, StoneL, Burkert, etc.)
*FDA and USP Class VI (Sections 87 & 88) conforming steam grade EPDM, TFM/EPDM, and TFM/Viton® backed diaphragms
*Specialty fabricated sterile access and GMP style valves
*Zero DL machined block body style valve types - Point of Use, T-pattern, Divert style, Tank Bottom, and many others specialties as designed
*Interchangeable diaphragms and topworks with most other manufacturers
*Extensive on the shelf inventory for project support
|
|
|
|
|
|
The MV-11 Manual 3 Way Diaphragm Valve is designed for use in high purity semiconductor applications. It is also ideally suited for ultra-pure water and aggressive chemical or gas applications. The design utilizes a molded high purity PFA body with precision machined sealing areas. One piece machined modified PTFE diaphragms are also utilized for excellent flexibility and life. A full 1/2" orifice provides maximum flow capability in a compact package.
FEATURES:
* Precision machined diaphragm manufactured from the latest technology modified PTFE. Provides over five times the flexural life as compared to conventional PTFE. Tongue and groove seal for positive diaphragm to body seal. Benefits are high cycle life, lower replacement costs and less downtime
* PVDF coated stainless steel spring reduces effects of corrosive environments
* Submergible option isolates all valve components from the external environment. Benefit is valve remains functional while operating in wet or gaseous corrosive environments
|
|
Pneumatically actuated diaphragm valves of the future
The DIASTAR product series from GF Piping Systems presents a complete family of pneumatically actuated diaphragm valves providing you with an optimal solution for controlling aggressive media.
Valve bodies are available with threaded connections, spigots, sockets, flanges and branches, depending on the installation. International
standards, e.g. ISO, BS, ASTM, ANSI and JIS, have also been taken into consideration.
|
|
HMC - Economic Ultra Clean Metal Diaphragm Valve for general purpose
*Compact design.
*Manual 3/4 turn handle and position indicator (open/close)
*Safety clip; Locking device for manual Round 3/4 turn handle.
*Pneumatic actuated, Normally Close and Normally Open version.
*Electropolished surfaces as standard.
*Standard panel mounting.
|
|
|
Dia-Flo diaphragm valves are the workhorses and foundation of Engineered Valves' product offerings. Durable, dependable Dia-Flo diaphragm valves are engineered for tough work environments in the chemical processing, water treatment, pollution control, food and beverage, mining, pharmaceutical, pulp and paper, and power generation industries. ITT is a leader in valve technology and the foremost innovator of diaphragm type valves. The diaphragm valve is dependable, cost effective and versatile and is installed across the world in virtually every type of process plant.
|
|
|
Diaphragm valve type MV/F, PN 16, from DN 65 PN 10, upper part complete of stainless steel with travel stop and stroke index, body material: ductile cast iron EN-JS 1049 acc. to DIN EN 1563 (0.7043 DIN 1693), diaphragm of modified PTFE (TFM) with EPDM-diaphragm support, epoxy coating, bonnet, hand wheel compressor and nuts and bolts of stainless steel, face to face: DIN EN 558-1,basic series 1, ISO 5752 series 1 (DIN 3202F1), flange connecting dimensions: DIN EN 1092-2 type B, ISO 7005-2 type B (DIN 2533)
|
|
Stainless steel 316L VAR secondary remelt or Hastelloy® alloy C-22® construction
15 μin. surface finish (10, 7 and 5 μin. opt)
Metal to metal seal to atmosphere
Replaceable PCTFE seat
|
|
Diaphragm valves with ball housing
Application:
- When leakage of even the smallest quantities must be avoided with certainty
- For maximum requirements to operating safety
- For higher requirements to draining and cleaning, particularly with difficult products (e.g. products with fibres)
- For liquids, pasty products and gases in the pressure range up to 10 bars
- As tank bottom valves, particularly for controlled draining of sediments from pressurized tanks
|
|
Diaphragm
Gas flow double stage CNG pressure regulator for passenger cars
Brand :
Automotive
Working pressure :
260.00 bar
|
|
|
|
|
|
Diaphragm Valves - Rotoflex
The Rotoflex lends itself particularly on filling applications. The sleeve is fixed with clamping rings. It can also be used on in-line systems but care must be taken to ensure mating gasket or flange does not interfere with rotating clamping ring.
The Flexible sleeve valve has proved itself over a number of years as a simple, reliable isolation or variable feed control valve on applications in the powder or air handling industries - its simplicity being its major advantage.
The basic construction is a rubber sleeve that, with each end being held firmly to a circular shape on rotation through 180°, will completely seal against the very finest of powders and limited air pressure.
Partial rotation leads to partial opening and a multitude of different types of sleeve can be accommodated, the better type of sleeves are food quality nylon, impregnated cloth and wear resistant natural rubber. These types of sleeves are weighty, give the valve good full opening properties and are dust tight.
|
|
|
Achieve reliable performance with the complete line of Swagelok® biopharmaceutical fluid system components including sanitary fittings, radial and weir-style diaphragm valves, ball- pinch- and plug-valves, butt weld and sanitary clamp fittings, and pumps
|
|
The model VD510 diaphragm valve is designed for precise flow control of low to medium viscosity liquids with a minimum shot size of 0.001cc. The diaphragm separates the wetted parts from the air supply which makes it suitable for such as cyanoacrylates, reagents, anaerobics, UV adhesives and resins, paint, ink, solvents, glue, electrolytes, alcohols, and other similar materials.
Features
• Designed for low to medium viscosity materials
• Stroke adjustment provides shot size control
• Minimum shot size 0.001cc
• Suitable for machine integration
• Will dispense hazardous materials
• Has a high cycle rate of 500 shots a minute
|
|
The Flowserve McCannaseal is the original patented Top-Entry, Wedge-Seated ball valve. Available in regular port sizes from 1/2" through 20" and in FULL port sizes from 1" through 16" and pressure classes 150 through 1500.
The McCannaseal reputation for consistent, reliable operation in handling today's most volatile applications is known the world over and is featured on most ''approved'' lists for all types of processes.
Available with standard bonnet or with extended bonnet for cryogenic or high-temperature service. Wide range of body alloys and broad selection of seat and seal materials.
Features
* Top Entry-Inline serviceable
* Wedge Seats. Spring-loaded, self adjusting
* Back-seated conical stem seals. Blowout proof, seals tighter at higher pressure.
* Bi-Directional
* Polymer, metal, or ceramic seats available
* Flanged, threaded, and weld-end bodies
|
|
|
|
|
|
The PV-12 Pneumatic Diaphragm Valve is designed for use in high purity semiconductor applications, and is also ideally suited for ultra-pure water and aggressive chemical or gas applications. The design utilizes a molded high purity PFA body with precision machined seat and diaphragm sealing areas. A one piece machined modified PTFE diaphragm is also utilized for excellent flexibility and life. A full 1" orifice provides maximum flow capability in a compact package.
FEATURES:
* Precision machined diaphragm manufactured from the latest technology modified PTFE. Provides over five times the flexural life as compared to conventional PTFE. Tongue and groove seal for positive diaphragm to body seal. Benefits are high cycle life, lower replacement costs and less downtime.
* PVDF coated stainless steel spring reduces effects of corrosive environments.
* Submergible option isolates all valve components from the external environment, which allows valve to remain functional while operating in wet or gaseous corrosive environments.
|
|
|
|
|
|

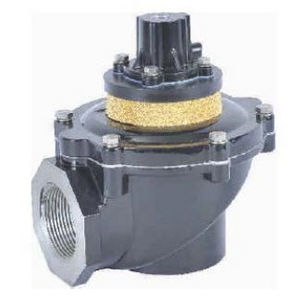

Standard Filter Corporation now offers the finest Diaphragm Valves manufactured by Goyen! The valves are available in a wide range of configurations to suit a variety of reverse pulse filter designs. These sophisticated valves precisely control airflow through the filters for optimal cleaning. The range now includes the exciting 'next generation' Millennium series which sets a new standard in performance, design, ease of installation and maintenance economy. The range of Diaphragm valves includes:
3 Series Pulse Jet Valves
Superior performance, easy maintenance diaphragm valve available with threaded ports (T3 Series), dresser nut ports (DD3 Series) or flange and slide ports (FS3 Series). Outlet at 90 degrees to inlet.
T Series Pulse Jet Valves
High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90 degrees to inlet.
DD Series Pulse Jet Valves
High performance diaphragm valve with dresser nut ports. Available with integral pilot or as remotely piloted valve. Outlet at 90 degrees to inlet.
FS Series Pulse Jet Valves
Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal. Available with integral pilot or as remotely piloted valve. Outlet at 90 degrees to inlet.
|
|
|
U.S. Air Filtration can provide dust collector diaphragm valves in a range of configurations to suit all types of pulse jet cleaning baghouse designs. These sophisticated diaphragm valves utilize a flexible molded diaphragm to regulate airflow through the filters for optimal cleaning. The diaphragm valve creates a pulse of air that shakes through the bag, shaking off any dirt from the outside of the bag, cleaning the filter. U.S. Air Filtration can provide a replacement diaphragm valve for any dust collection application. Specifically, we stock and distribute Goyen Diaphragm Valves, Goyen Diaphragm Valve Repair Kits, Goyen Solenoid Valves
|
|
|
The FIP Diaphragm Valve VM is particularly suitable for regulation or on-off operations with dirty or abrasive fluids. The hand-wheel operator and the diaphragm type sealing, allow precise regulation and reduce the water hammer. It can be mounted in any position.
|
|
|
|
|
|
Superior Design:
Hayward all-plastic diaphragm valves have been specifically designed to perform in the most demanding liquid, gas, and slurry applications in both on/off and modulating service.
Position Indicator:
Hayward's standard highly visible, beacon-type position indicator will always give positive position indication, unlike rising stem indicators that can be inaccurate because of misadjusted stems. Sight panels are made from clear Eastar®.
Diaphragm Saver:
The Diaphragm Saver travel stop is a standard feature on all sizes of Hayward Diaphragm Valves. Its special design prevents overcompression of the diaphragm and prolongs its service life.
No Corrosion Problems:
These valves have no wetted metal components. The valves will never fail because of corrosion and they do not require painting or epoxy coating to stand up to aggressive environments.
True Union Design:
Hayward Diaphragm Valves with socket or threaded connections have a true union design so that they can be removed from the line without having to disconnect piping connections.
|
|
|
|
|
|
After a thorough test concerning the needs within the various fields where technical application is carried out, e.g. the biotechnology and semi-conductor industries, as well as pharmaceutical, food and medical processes, the Ratti snc industry has projected a new diaphragm valve, which allows for clean and sterile handling of the fluid.
Through the research of an innovating internal design, a system has been carried out, it includes an option for an open and a closed valve, that is, internal inclined contact surfaces to drain the fluid.
This valve makes the cleaning process easy, thus foreseeing a minimization of empty volumes and the tinning of the fluid areas.
The valve is completely autoclavable, the body and the external parts are totally manufactured in AISI 316 L, while PTFE support bars file the handle and the diaphragm.
The valve is manufactured in the following dimensions: from 1/2" to 3", which include connections according to the BS-OD 4825 codes.
Whenever the pieces are traced for validation, the valve is laser identified, including the production series number, and it is furnished, upon request, with the chemical analysis certificates of the materials, as observed in code EN 10 204.1B, and in superficial finish checking.
|
|
| ... products without technical information |
| |
|
|
|
|
Remote Control Valve:
Hayward's Pneumatically Actuated Diaphragm Valves are designed for the reliable, remote control of liquids in piping systems. They are suitable for both clean and slurry type fluids at pressures up to 150 PSI.
Position Indicator:
You never have to guess if a Hayward Diaphragm Valve is in the open or closed position. A visual position indicator comes standard with every valve.
Powerful Actuator:
The actuator used to operate the valve, while lightweight and compact, is still powerful enough to open and close the valve at all internal pressures up to the full rated pressure of the valve,150 PSI.
No Corrosion Problems:
Hayward's Diaphragm Valves stand up to the most aggressive fluids and they will never rust, corrode or contaminate the process fluid. Even the actuator housing is plastic and requires no failure prone coating or painting.
Modular Options:
Several modular design options are available. This concept is very cost effective because the actuator can be configured exactly for a specific application using only the options required. You never have to pay for options you do not need.
|
|
|
|
