| Pratt & Whitney Power Systems' newest product, the FT8 MOBILEPAC, is a self-contained, gas turbine powered electric generating unit using PWPS' efficient FT8 gas turbine. This new mobile package consists of two primary units - the power trailer and the control trailer. The power trailer contains the gas turbine and the electric generator, while the control trailer houses the electrical control unit. |
|
60 Hz: 687 - 750 kVA (Standby); 625- 681 kVA (Prime) & 50 Hz: 550 - 700 kVA (Standby); 500 - 635 kVA (Prime)
Caterpillar Inc. introduces a new diesel-fueled generator set with ACERT™ Technology. The rating ranges for this new 60 Hz package include 350 - 550 ekW (Standby) and 320 - 455 ekW (Prime), all powered by the new Cat® C15 engine.
The generator set is designed for standby, prime and load management applications, offering the latest in engine design technology to provide emissions compliance without sacrificing power density or fuel economy.
An ADEM™ A4 controller, MEUI fuel system and cross-flow cylinder head comprise the building blocks of ACERT Technology. The generator set offers an Air-To-Air After Cooler (ATAAC) cooling system, an advanced EMCP 3 control system, multiple control panel and power connection location options, and enhanced package-mounted circuit breaker options.
The self-excited, random-wound generator provides a Class H insulation system. It features IP23 protection, a R448 voltage regulator with load adjustment, and 2/3 pitch stator winding. The single-bearing compact design is close-coupled to the engine, offering a smaller footprint and a wider scope of installation options. |
|
Caterpillar Inc. introduces the first in a line of diesel-fueled generator sets with ACERT™ Technology. With rating ranges of 900 - 1000 ekW and 1000 - 1100 kVA, the new generator set is the first EPA Tier 2 certified generator set to be offered in the North American marketplace.
The generator set is designed primarily for standby, prime and load management applications. It offers the latest in engine design technology to provide emissions compliance without sacrificing power density or fuel economy. Available in 60 Hz and 50 Hz models, the clean diesel generator set is powered by the new Cat C32 - a 32-liter displacement, 12-cylinder, "V" configured engine.
An ADEM™ A4 controller, mechanically actuated electronic fuel injection (MEUI), and crossflow cylinder heads comprise the building blocks of ACERT Technology. The generator set offers an Air-To-Air After Cooler (ATAAC) cooling system, an advanced EMCP 3 control system, multiple control panel and power connection location options, and enhanced package-mounted circuit breaker options. It features a permanent magnet excitation with Class H insulation, Class F temperature ratings (105°C prime/130°C standby), and anti-condensation space heaters. |
|
60 Hz: 687 - 750 kVA (Standby); 625- 681 kVA (Prime) & 50 Hz: 550 - 700 kVA (Standby); 500 - 635 kVA (Prime)
A new diesel generator set with ACERT™ Technology from Caterpillar provides improved emissions compliance without sacrificing power density or fuel consumption. The rating ranges for this new package include 550 - 600 kW (Standby) and 500 - 545 kW (Prime) in a 60 Hz model, and 550 - 700 kVA (Standby) and 500 - 635 kVA (Prime) in a 50 Hz model, all powered by the new Cat® C18 engine.
Designed for standby, prime and load management applications, the generator set offers the latest in engine design technology. An ADEM™ A4 controller, MEUI fuel system and cross-flow cylinder head comprise the building blocks of ACERT Technology. The generator set features an Air-To-Air After Cooler (ATAAC) cooling system, an advanced EMCP 3 control system, multiple control panel and power connection location options, and enhanced package-mounted circuit breaker options.
The brushless self-excited generator offers a Class H insulation system, IP23 protection, a R448 voltage regulator, and power terminal strip connections. A wide range of factory-installed attachments is available to customize the generator set to meet specific customer application needs. |
|
Caterpillar's new diesel-fueled generator sets with ACERT™ Technology. With rating ranges of 225 ekW - 275 ekW and 250 ekW - 300 ekW, the new generator set is the first EPA Tier 3 certified generator set to be offered in the North American marketplace.
The generator set is designed primarily for standby, prime and load management applications. It offers the latest in engine design technology to provide emissions compliance without sacrificing power density or fuel economy. Operating at 60 Hz, the clean diesel generator set is powered by the new 8.8-liter Cat® C9 engine.
An ADEMTM A4 controller, HEUI™ fuel system and cross-flow cylinder heads comprise the building blocks of ACERT Technology. The generator set offers an Air-To-Air After Cooler (ATAAC) cooling system, an advanced EMCP 3 control system, multiple control panel and power connection location options, and enhanced package-mounted circuit breaker options. It features a brushless, self-excited generator with Class H insulation. |
|
812 - 1000 kVA (Standby); 738 - 906 kVA (Prime)
Caterpillar Inc. introduces its latest in the line of diesel-fueled generator sets with ACERT™ Technology. With rating ranges of 650 - 800 ekW for standby applications and 591 - 725 ekW for prime use, this generator set is EPA Tier 2 certified.
Offering the latest in engine design technology, this clean diesel generator set provides emissions compliance without sacrificing performance or fuel economy. Operating at 60 Hz, it is powered by the Cat® C27 - a 27.03-liter displacement, four-cycle diesel engine.
An ADEM™ A4 controller, mechanically actuated electronic fuel injection (MEUI), and crossflow cylinder heads comprise the building blocks of ACERT Technology. The generator set features an advanced EMCP 3 control system, an Air-To-Air After Cooler (ATAAC) cooling system and single-point access to accessory connections. The self-excited generator offers a Class H insulation system. Optimum winding pitch allows for minimum total harmonic distortion and maximum efficiency. |
|
Rated frequency (Hz)
50 60
Rated output(kVA)
10 12
Max. ouput (kVA)
12 15
Rated voltage (V)
400/230 416/240
Rated current (A)
13.7 14.6
Rated speed (r/min )
3000 3600
Phase number
Three-phase
Excitation mode
Self-excitation and constant voltage(AVR)
Power factor £¨cos¦Õ£©
0.8(lag)
Insulation grade
F
Pole number
2
Engine model
MGS2V86F
Engine type
two-cylinder,4-stroke,air-cooled,v-twin, direct injection
Bore¡Ástroke (mm)
86¡Á72
Displacement (L)
0.836
Compression ratio
19:1
Rated power [kW/(r/min)]
12.3/3000 14.3/3600
Fuel type
0#£¨summer) -10#£¨winter£© -35#(chill cold) diesel
Lube oil brand
SAE10W30 (above CC grade )
Fuel consumption£¨g/kw.h£©
¡Ü340
Fuel tank capacity (L)
25
Continuous running time£¨hr£©
10.3/50Hz, 11.3/60Hz
Overall dimension (mm) (L¡ÁW¡ÁH)
850x630x730
Dry weight (kg)
105
Starter system
electric starter
Noise level£¨dBA/7m£©£¨at the rated load£©
70
Structure type
Open Frame |
|
Caterpillar's new C3.3 diesel-fueled generator set, rated at 22.5- 30 ekW. With engine power ratings below 37 kW, this generator set allows for easy permitting and installation.
Utilizing elements of ACERT™ Technology, the C3.3 generator set is capable of meeting Tier 2 emissions compliance without sacrificing performance or fuel economy. This generator set delivers optimized engine compatibility, improved electrical performance and increased power density. Low oil consumption and extended service intervals are additional benefits.
Features on the C3.3 include EMCP 3 controllers, 2/3 pitch winding, automatic voltage regulator and multiple excitation options. Enclosures, fuel tanks, circuit breakers and battery chargers are optional on the generator set package. |
|
Caterpillar Inc. introduces the new C1.5 diesel-fueled generator set. Rated at 12 kW (15 kVA) prime and 13 kW (16.2 kVA) standby, this generator set offers superior performance and fuel economy.
The C1.5 package features a mechanical governor with an electronic governor option, Class H insulation system and an EMCP 3.1 digital controller. The circuit breaker is UL/CSA listed, with a NEMA 1 vibration isolated steel enclosure. The automatic voltage regulator provides fast recovery from transient load changes. The generator set package is skid mounted, with a heavy-duty fabricated steel base offering Zone 4 seismic vibration isolators and the base is raised for convenient forklift access. A Level 2 Silencer is standard on the C1.5 open generator set with a 10 dB(A) reduction. The optional enclosure offers sound attenuation, single point lift and a panel-viewing window.
|
|
Caterpillar's new C6.6 diesel-fueled generator set, rated at 114–150 ekW. With ACERT™ Technology, this generator set is capable of meeting Tier 3 emissions compliance without sacrificing performance or fuel economy. Caterpillar’s 125 ekW model will be one of the first to market with Tier 3 certification.
The C6.6 features an EMCP 3 controller that communicates directly with an ADEM™ A4 Electronic Control Module for advanced troubleshooting. It provides 3-5 dBA engine noise reduction, excellent fuel economy, lower oil consumption and extended service intervals of up to 500 hours. The C6.6 generator sets can be open or closed with sound attenuation and weatherproof.
|
|
Caterpillar's new 54–100 ekW rated diesel-fueled generator set. Powered by the C4.4 engine, this generator set is designed for standby, prime, stationary and rental use. Utilizing elements of ACERT™ Technology, it is capable of meeting EPA Tier 2 emissions compliance without sacrificing fuel economy or performance.
The C4.4 provides optimized engine compatibility and improved electrical performance to deliver high efficiency with low voltage dips and reactances. A new block structure and bore finish result in reduced oil consumption.
Features on the generator set include EMCP 3 controllers, 2/3 pitch winding, automatic voltage regulator and multiple excitation options. Enclosures, fuel tanks and circuit breakers are optional on this package. Extended service intervals and ease of maintenance are additional benefits of the C4.4 generator set.
|
|
| Thanks to the advanced technology and to the technical solutions it can offer, MATTEI S.p.A. - Energy Division, stands out in the field of generating sets production. In the market of diesel engines and their applications since some decades, MATTEI manufacturing program is complete and diversified: it is based on the experience of highly skilled technicians, and on the use of computerised facilities and advanced machinery, in Vimodrone (Milan) factory. |
|
Wärtsilä has developed a new
concept, the Wärtsilä 20 Powerskid,
in response to increasing demand
for small diesel power plants
running on heavy fuel oil (HFO).
Designed to meet a power demand
of 1-3 MW, the Powerskid is
skid-mounted to minimize
investment and running costs and
to optimize installation. |
|
Model: SH8
- Rated Output: 8KW
- Rated Voltage(V): 220/110
- Rated Current(A): 34.5/69
- Frequency (Hz): 50/60
- Power Factor: 1.0
- model: 295AD(20HP)
- Fuel Comsumption: 270g/kw.h
- Dimension L/M/H(cm): 137/59/90
- Net Weight: 430kg |
|
MGS15000N SILENT DIESEL ENGINE
- Rated frequency (Hz) 50 60
- Rated output(kVA) 10 12
- Max. ouput (kVA) 12 15
- Rated voltage (V) 400/230 416/240
- Rated current (A) 13.7 14.6
- Rated speed (r/min ) 3000 3600
- Phase number Three-phase
- Power factor (cos ¦Õ) 0.8(lag)
- Engine model MGS2V840
- Engine type two-cylinder,4-stroke,air-cooled,v-twin, direct injection
- Bore x stroke (mm) 86 x 72
- Displacement (L) 0.836
- Compression ratio 19:1
- Rated power [kW/(r/min)] 12.3/3000 14.3/3600
- Fuel type 0# (summer) -10# (winter) -35# (chill cold) diesel
- Lube oil brand SAE10W30 (above CC grade )
- Fuel consumption (g/kw.h) ¡Ü340
- Fuel tank capacity (L) 25
- Starter system electric starter
- Noise level (dBA/7m)(at the rated load) 72
- Structure type super-silent |
|
Range : HERMES
Power: 6 - 32 kVA
Engine: Lombardini
Cool System: Water - Air
Fuel: Diesel
Application: Housing, Tourist services, Small industries, Agriculture, Farms...
Gamme : KRONOS
Puissance: 4-40 kVA
Moteur: HATZ
Refroidis: Air
Carburant: Diesel
Applications: Maisons, Services touristiques, Industrie légère, Agriculture, Fermes, Travaux publics, Construction...
|
|
Global Power Projects® is a division of COELMO® employing engineers and technicians dedicated to design adaptable solutions handling the specific requirements of end users.
The Global Power Projects® division draws upon the innovative technology solutions of our Generating Sets, uniting them with the personalised technological solution for the end user.
The team of engineers and technicians in Global Power Projects® is in a position to quality assure the planning, production, project management, testing, installation and commissioning of the Generating Sets anywhere in the world.
With over 50 years of experience and numerous projects currently worldwide, the Global Power Projects® represents the technological frontier of personalised Energy Systems.
|
|

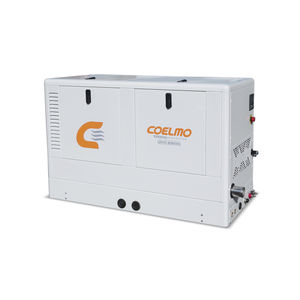

COELMO® is one of the largest Italian manufacturers of Generating Sets, with a strong and consistent presence in the international market.
With 70 years of experience in the field, COELMO® designs and produces Generating Set, standard and custom-made solutions, from 3 to 3000 kVA. |
|
Construction based on ISO standard containers, the containerised cogeneration sets do not need any building work for siting them; offering an efficient solution for temporary services or where mobility and fast installation is required.
Application
The containerised sets offer a great solution within the areas of electrical generation, cogeneration and trigeneration. They are an efficient answer for isolated developing regions which do not have alternative energy sources and for those applications where mobility and fast installation of energy plants are required. |
|
Range : CENTAURO
Power: 650 - 2.340 kVA
Engine: MTU
Cool System: Water
Fuel: Diesel
Application: Housing, Tourist services, Communications, Airports, Hospitals, Public works, Mining, Navigation, Agriculture and the entire range of industries...
|
|
Range : KRONOS
Power: 4-40 kVA
Engine: HATZ
Cool system: Aire
Fuel: Diesel
Application: Houses, Tourist services, Small industries, Agriculture, Farms, Public works, Construction...
Range : TOR
Power: 22 - 503 kVA
Engine: IVECO Aifo
Cool System: Water
Fuel: Diesel
Application: Housing, Tourist services, Communications, Airports, Hospitals, Public works, Mining, Navigation, Agriculture and the entire range of industries...
Range : HEAVY HELIOS
Power: 644 - 2134 kVA
Engine: PERKINS
Cool System: Water
Fuel: Diesel
Application: Housing, Tourist services, Communications, Airports, Hospitals, Public works, Mining, Navigation, Agriculture and the entire range of industries...
|
|
MODEL X715K
Stand-by Power @ 50Hz 572kW / 715 kVA
Engine (MTU , 12V2000G23E )
Charge alternator 24 V , Governor: Elec
Alternator (LEROY SOMER , LSA491M5 )
Single bearing alternator IP 23 , insulation class H /H
Radiator 40°C [104°F]°C max. T° air inlet with coolant cap
Skid and vibration isolators
Dry type air filter
Main line circuit breaker
Microprocessor control panel |
|
MODEL J200K
Stand-by Power @ 50Hz 160kW / 200 kVA
Engine (JOHN DEERE , 6068HF120-183 )
Charge alternator 12 V , Governor:Meca
Alternator (LEROY SOMER , LSA462M3 )
Single bearing alternator IP 23 , insulation class H /H
Radiator 50°C [122°F]°C max. T° air inlet with coolant cap
Skid and vibration isolators
Dry type air filter
Main line circuit breaker
Microprocessor control panel
12 V battery, rack and cable
Industrial silencer (loose) |
|
MODEL T27HK
Stand-by Power @ 50Hz 22kW / 27 kVA
Engine (MITSUBISHI , S4L2.SDH )
Charge alternator 12 V , Governor:Meca
Alternator (MECC ALTE , ECO28-2L2 )
Single bearing alternator IP 23 , insulation class H /H
Radiator 50°C [122°F]°C max. T° air inlet with coolant
cap
Skid and vibration isolators
Dry type air filter
Main line circuit breaker
Microprocessor control panel
12 V battery, rack and cable
Industrial silencer (loose) |
|
MODEL X3025K
Stand-by Power @ 50Hz 2420kW / 3025 kVA
Engine (MTU , 20V4000G62E )
Charge alternator 24 V , Governor: Elec
Alternator (LEROY SOMER , LSA54S7 )
Single bearing alternator IP 23 , insulation class H /H
Radiator N/A°C max. T° air inlet with coolant cap
Skid and vibration isolators
Dry type air filter
Main line circuit breaker
Microprocessor control panel |
|
Diesel Generating sets, range 1MW to 10 MW :
Open version or in a building, supplied with automatico control panel to enable automatic switch between the main and the generator.
The independent power modules 2 MW:
Designed to meeT the demand of fast installation and execution of works.
Immediately ready to start, once positioned on the ground are completely independent and can delivery power as soon as connected.
The system includes:
Generator set of 2200 kVA with MTU engine;
40 foot special container silenced at 65dB(A);
20 foot conditioned container for MV panels;
3000lt. automatic fuel tank or 12 hours operation;
5000 hour spares parts & tools |
|
For the power your operation depends on, Caterpillar has Diesel (12kW to 10,475kW) and Natural Gas (11kW to 4,900kW) generator sets that lead the industry in durability, reliability and efficiency - a solid foundation for any fully integrated power system.
|
|
For maximum reliability, Coast Intelligen offers a variety of backup generators as part of our power generation packages, sized to meet your needs and powered by diesel or natural gas.
Coast Intelligen systems are reliable
Coast Intelligen systems are engineered for maximum performance and longevity, with millions of run-hours in the field. We have more than 15 years of experience designing, building, installing and maintaining cogeneration equipment, and use only the highest quality components to help ensure seamless, around the clock operation for years to come.
Coast Intelligen systems are versatile
Coast Intelligen provides clean and efficient power for a wide variety of users. Office buildings, hospitals, schools, factories, hotels, shopping malls, farms and health clubs are just some of the types of facilities that can - and do - rely on Coast Intelligen power generation equipment.
Coast Intelligen systems produce environmentally friendly energy
In addition to providing worry-free solutions for your energy needs and saving you money, Coast Intelligen systems offer another major benefit: they are environmentally friendly. Our generation equipment produces very low emissions, well within the most stringent governmental air quality requirements, and often cleaner than the power generated by utilities. |
|
| Specially designed for industrial prime power and standby applications, the Atlas Copco | | |
