Readouts series VD3 and VD4 display voltage, current, speed, angular or linear positionss and any physical or chemical measure which can be converted into an electrical signal.
All the different availble versions can read analogue or digital signals alike.
The indicators series VD4 avail on front parameter-entering keys and on two relay-outputs with threshold alarms on the displayed variable.
|
|
|
|
|
|
Examples:
-JUMO di 308 Digital Indicator, microprocessor-controlled, with max. 2 inputs, wide range of expansion options, panel-mounting DIN housing, bezel 96mm x 48mm (70.1550)
Configurable process display text (max. 24-character running text)
Alarm signal text with color changeover green-red (also as running text)
Up to two configurable analog inputs
Three option slots
Math and logic module (option)
4 limit comparators
Fast and convenient configuration through setup program
RS422/485 interface (option)
PROFIBUS-DP interface (option)
cUL/UL approval applied for
-JUMO di48 indicating instrument, programmable via PC Setup with voltage output 24V DC / 45mA, bezel size 96 x 48mm (70.1520/95.1520)
configuration from PC through setup program
electrically isolated measurement input (setup is not isolated from the measurement input)
many different inputs possible: resistance thermometer in 2-/3-/4-wire circuit, thermocouple, resistance transmitter, standard signals, potentiometer in 2-/3-/4-wire circuit
internal cold junction
customised linearisation
offset correction
input filter for interference suppression
24 V supply for 2-wire transmitter
|
|
The DMP200 series consists of four universal input indicators offering unparalleled price and performance. The use of surface mount components and modern microprocessor technology has enabled powerful features to be packed into a standard 1/8 DIN case.
The DML300 series of digital panel indicators is designed specifically for use with LVDT transducers. The "Fast-Cal" feature provides a fast and simple means of calibrating an indicator to the transducer at any two stroke positions.
|
|

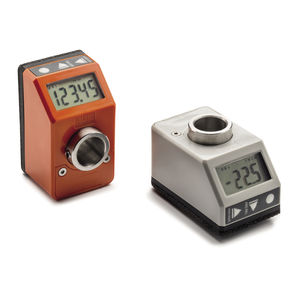

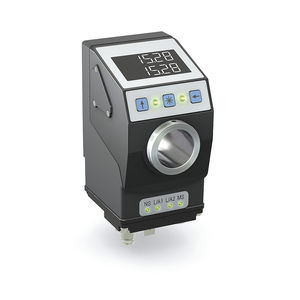

Electronic-digital position indicators proviede flexible, electronic capture of measured values and semi-automatic adjustment control at axels.
Benefits:
- Spindle pitch, direction of rotation and decimal point can be freely programmed
- Length or angle indication
- Incremental measurement function or offset input
- Zero setting of the shaft is performed at the touch of a button
|
|
|
Position values on shafts and spindles can be simply and clearly controlled with the original SIKO counters. Extremely simple installation and retrofitting is one of the decisive advantages. The displayed value can be adapted to the required spindle pitch with an integrated gear unit.
|
|
|
|
|
|
The digital indicator DI25 is a competitively-priced, multifunction instrument for a wide variety of measuring tasks.
The multi-function input has 18 different input configurations, which can be selected via the rear connections and also by selection the appropriate input signal with in the instrument configuration. In this way it is possible to connect transmitters with current or voltage signals, and both resistance thermometers or thermocouples to the same instrument.
The measured value can be retransmitted for further processing via an analogue 4 ... 20 mA output (standard) or via an RS-485 Serial Interface (optional).
Other analogue retransmission signals are also available as option.
The basic version of the DI25 indicator features three alarm outputs. Instruments with the optional 24 V transmitter power supply have two alarm outputs available.
With the high ingress protection of the fascia (IP66) the digital indicator DI25 can also be used under extreme operating conditions.
All configuration and programming can be done using the front control keys.
|
|
FUTEK products include Sensors, Cables, Digital Displays, Signal Conditioners, Accessories, and Sensor Verification Systems just to name a few.
Once a particular Futek Transducer has been chosen for a given application, provisions must be made for appropriate excitation and for conditioning the output signal. The nature of the conditioning depends on the electrical characteristics of the transducer and the destination of the signal.
FUTEK related Signal Conditioners with Digital Displays are as follows:
1) IBT100 Bench Top Rotary Torque & Angle Digital Display
2) TEDS Capable IBT500 Bench Top Signal Conditioner with Digital Display
3) IHH300 Hand Held Portable Signal Conditioner with Digital Display
4) TEDS Capable IPM500 Panel Mount Signal Conditioner with Digital Display
5) IPM600 Color LCD Touch Panel Signal Conditioner with Digital Display
6) EXCLUSIVE TEDS Capable Verification Calibration (VCAL) System ONLY offered at FUTEK
|
|
New PAX Lite Model with Relay Outputs : PAXLA
The first in a new series of PAX Lite panel meters has just been released. The new PAXLA can accept DC current, DC voltage, or process input signals, and scale them to a desired readout. This new model also has two form "C" relays capable of switching up to 5 amps, providing complete dual setpoint output control capability!
Flexibility has been built-in to the power supply as well. The newly designed universal power supply accepts 50 to 250 VAC or 21.6 to 250 VDC and provides 24 VDC output for sensor power.
Combining dual setpoint capability, the universal signal input and power requirements, and a low PAX Lite price, the new PAXLA offers exceptional value in a panel meter!
- 5 Digit, 0.56" High Red LED Display
- Programmable Scaling and Decimal Points
- Programmable User Input
- Dual 5 AMP Form C Relay
- Universally Powered
- NEMA 4X/IP65 Sealed Front Bezel
- Optional Custom Unit Overlay with Backlight
- Minimum and Maximum Display Capture
|
|
|
|
|
|
The new Digital Indication and Control Instrument VarioFox from AFRISO is a compact, ready-to-connect universal measurement and control instrument with integrated sensor supply and 2 (also choice of 4) voltage-free switching outputs. The instrument is very easy to operate and to program due to its text-orientated menu guidance (German, English or French).
VarioFox features a measurement unit listing, where units can be freely edited, as well as a free scaling/calibration of start and end of scale display values (99.999 - 9,999) which allows for almost all possibly required parameter settings. For horizontal cylindrical and spherical tanks integrated calibration charts can be accessed. For non-linear vessels or specially fabricated tanks a customer- specific 24-point linearization is available. The highest and lowest operational values are memorized but can also be utilized as instrument-internal visual and audible alarms on request. An alarm mute/accept button on the front of the instrument requires the responsible operator to act and this in itself provides for additional operational safety.
The measuring instrument works off an AC 50-253 V or DC 20-253 V supply and integrates a sensor input (4-20 mA, 0-20 mA, 0-10 V) and two isolated separate analogue outputs (0/4-20 mA und 0-10 mA).
|
|
Programmable panel meter for process, temperature and load cells.
Size: 96x48x60 mm.
Tricolor display: ±19999 (4 ½ digits)
|
|
Product ISI36
Technical data - electrical ratings :
Accuracy 0...0.05 %
Approvals UL/cUL
CE conform
Backlit 24 VDC ±20 %, 50 mA
Control NPN
PNP
Floating contact
Counting frequency 7 kHz, 12 kHz, 30 Hz
Digit height 8 mm
Display LCD, 7-segment display
Display range 0...12000
Display refresh 1 s
Emitted interference DIN EN 61000-6-4
Function Tachometer
Frequence display
Input logic NPN / PNP coded by wire jumper
Interference immunity DIN EN 61000-6-2
Measuring principle Gate time measurement 1 s
Number of digits 8-digits
Power supply lithium battery (approx. 8 years at 20 °C)
Unit displayed 1/s
Other products available:
|
|
|
Electronic indicators for pressure, flow, volume, temperature and level measurement. To program the device a password must be entered. Data are displayed on a 4-digit dispaly; easy setting by using the front panel keys. Some models are available with automatic programming of the sequence of operations. It is possible to programm up to 4 alarms, fix the beginning angìd the full scale values, set the engineering units, the decimal points and the peak value. Bargraph indicators and low-cost series available.
|
|
INDICATORS and CONTROLLERS
KB - DIGITAL INDICATOR
APPLICATIONS
- Laboratory Measurements
- Force, Torque or Pressure
- Process Control
- Weighing Applications
- O.E.M. Requirements
FEATURES
- 260,000 Count Resolution
- 50,000 Display Digits
- Universal Mounting Stand
- 0.02% Accuracy Class
- Digital Filtering
- RS 232 Serial Interface
- Peak Hold Option
- Stainless NEMA 4/4X Option
- One Year Warranty
|
|
Digital Indicators
Dorsey offers the most popular styles of digital indicators to complement our gages
|
|
- BluePort® Front interface and BlueControl® Software
- Maintenance manager and error list
- 5-digit, 20mm big display
- Limit signalling functions with hysteresis, discriminator time and rate of change monitor
- ON/OFF-, 2-point- and continuous controller
- oxygne high-resistance measurement
Applications
Furnaces, ovens, burners and boilers
Weighing and batching
Process engineering
Plastic processing
....
Main attributes
100 ms cycle time ensures a fast reaction
High >14 bit resolution
Customer-specific linearization for all sensors (16 segments)
Maximum and minimum values are always stored and may be displayed on the front
Tare and Sample & hold function
Signal filtering with adjustable tolerance bandwidth
Adjustable display resolution
Screw terminals
|
|
|
|
|
|
MDA241
Digital panel instrument (current) MDA241, 3 1/2 digit, dimensions 96x24x89 mm
MDV241
Digital panel instrument (voltage) MDV241, 3 1/2 digit, dimensions 96x24x89 mm
MDC241
Digital panel instrument (temperature) MDC241, 3 1/2 digit, dimensions 96x24x89 mm
MDK241
Digital panel instrument (process variables) MDK241, 3 1/2 digit, dimensions 96x24x89 mm
MDR241
Digital panel instrument (pressure) MDR241, 3 1/2 digit, dimensions 96x24x89 mm
MDA245
Digital panel instrument (DC currents) MDA 245, 3 1/2 digit, dimensions 48x24x85 mm
MDV245
Digital panel instrument (process variables, DC voltages) MDV 245, 3 1/2 digit, dimensions 48x24x85 mm
MDC245
Digital panel instrument (process variables) MDC245, 3 1/2 digit, dimensions 96x24x89 mm
MDA480
Digital panel instrument (DC and AC currents) MDA 480, 3 1/2 digit, dimensions 96x48x166 mm
MDV480
Digital panel instrument (DC and AC voltages) MDV480, 3 1/2 digit, dimensions 96x48x166 mm
MDK480
Digital panel instrument (process variables) MDK480, 3 1/2 digit, dimensions 96x48x166 mm
MDR480
Digital panel instrument (pressure) MDR480, 3 1/2 digit, dimensions 96x48x166 mm
MDZ480-F
Digital panel instrument (frequencies) MDZ480, 4 digit, dimensions 96x48x166mm
MDZ480-V
Digital panel instrument (frequencies) MDZ480, 5 digit, dimensions 96x48x166 mm
|
|
A Capacitive Level Sensor measures level by applying a radio frequency (RF) signal between the capacitance electrode (the probe) and the electrically conductive vessel wall. The RF output creates a small amount of electrical current that flows through the medium (the dielectric) from the probe to the vessel wall. When the level increases or decreases the dielectric constant, or the capacitance reading, increases or decreases.
In other words, the level change results in a variation of the capacitance value around the probe, depending upon the degree of immersion. For point level detection, the probe's electronics detect the change in the RF signal and then alter the state of the level switch. For continuous level detection, the probe's electronics convert the RF signal into a 4-20mA-output signal that is proportional to the change of the level.
|
|
Digital Display For Flo-tech ActivaTM Sensor Arrays
Remote flow meter monitoring
Totalizing
Alarm processing
Process control
|
|
|
Universal digital indicator for pressure transmitters. Offers the possibility to process all standard signal-inputs. The RS-485-/422 interface connects the instrument to a PC for data acquisition. Four different models cover all configurations (outputs, switching contacts etc.).
|
|
|
This digital panel indicator series accepts a wide range of input signals (process, temperature, pulse/impulse, weight, etc.), that can be displayed in any required value. It also includes a green/red colour change display feature, which clearly visualises the status of a process.
|
|
ATT300 :
can work with any current or voltage input of any transmitter : pressure, humidity, temperature, air flow, air velocity...
Display : -9999 to 99999
Display of the reading : 5 matrix digits
Display of units : 4 digits
Power supply : 24 Vac/Vdc
Analog inputs : 3 x 4-20mA, or 3 x 0-10V, or RS232 + one current or voltage input.
Housing : Stainless steel, IP65
Output : RS232
Modbus system (RS485 network)
Join our distribution network all over the word....Contact us !
|
|
AX 020:
Panel Meter for Standard Signals
Simple low cost indicator with front dimensions 48x24 mm
and LED size 8 mm
Power supply 10 ... 30 VDC
Analogue inputs 0-10V, 0-20 mA and 4-20 mA
Display range -19 999 to 99 999, adjustable zero and full scale value,
14 bits of resolution
Latch input to freeze the display, minimum/ maximum record memory
Easy to set up by only two front keys and menu support
Delivery includes adapter frame for 50x25 mm cut out and
label set with dimensions
|
|
|
|
|
|
The Centor Star is the most advanced force gauge currently available, it has become the benchmark tool for force measurement. Besides having all the functionalities of the Centor Easy, it also provides additional handy possibilities: with its graphic capabilities, it can calculate and display in real time, not only the maximum, but also the values of the particular points of the curve, such as the rupture force, force on a trigger, force at a given time, first peak, etc.
The new features:
– Maximum within a time window: makes it possible to define a particular time period for a test and to calculate the maximum force during that period while keeping the test maximum in memory
– Calculation of the time necessary to reach the maximum force in tension or compression
– Average force over the duration of the test
All these results are stored in memory (up to 100 tests) which allows statistics to be calculated on the maximum values and on configurable calculations, then sent to a PC along with the dates and times of the measurements.
Furthermore, it is possible to freeze its configuration to avoid handling errors. It is the most versatile instrument designed for all tests in industrial surroundings.
|
|
The ATE300 is a multichannel indicator specially dedicated to flush-mounting (or wall-mounting) installations.
• Alternating display of 1 to 3 parameters
• 3 analogue inputs : 3 x 4-20mA or 3 x 0-10V
• 1 RS 232 digital input for KIMO external transmitter (class 200 & 300)
• 1 RS 485 digital input/output (Modbus protocol integrated)
• 22 pre-set units and 3 configurable units
• Configuration via software or remote control
• Electroluminescent front display, made of brushed stainless steel or white
lacquered
Join our distribution network all over the word....Contact us !
|
|
Intrinsically safe analogue indicators - GSI / BSI series
Located in EX area
Field mounting (IP66) or panel mounting
3 1/2 and 4 1/2 digits display or bargraph
4-20 mA loop powered
Front face programming
Agreement : ATEX II 1G
Options : alarms, backlight, internal calibrator, set point station
|
|
S Line - Compact / modular Displays:
Scalable display: 4, 6, 8, 4+7 digits
Universal input: Analog, Digital, By sensor
Retransmission output: Analog or digital
Power supply extended range: 80-265 Vac; 10-40 Vdc / 19-28 Vac; power transducers
Accuracy: 0,1% precision class; A/D conversion 14-16 bit
Alarms (relay): Hysteresys and threshold control
Multiple visualization: Real-time, integrated, totalized measured values
|
|
Symmetricom time displays are designed to provide widely visible time to local or remote areas. Ranging in character size from 0.5 inches to 4 inches high, these displays can be mounted in instrumentation racks, consoles, on ceilings/walls or desktop areas. Our Airborne Time Display is a small and rugged airborne display that can be mounted in a standard aircraft instrument panel.
All of Symmetricom's time code products are available with several optional configurations, and several are capable of displaying countdown time.
|
|
As well as the standard functions - preset, alarms, RS232 output, Max, Min, Difference, etc - Solartron digital readouts and dual digital displays boast a number of new functions.
For example, the new "Scaling Factor" function can be used to compensate for angled or lever operated probes, or diameter when measured in a V block. It also enables measurement of angles or squares.
Other new functions include the "Gauging Mode" - allowing global pass/fail evaluation of up to 30 scan channels -and "Max A Max B".
Ergonomically designed for the operator, the DR700 can be used with multiple probe fixtures using either Linear Encoders, Digital Probes or a combination of both - making it a truly versatile addition to the Solartron "Orbit" range.
|
|
|
|
|
|
PAX Series : Large range of Intelligent panel meters
The PAX Meter is the workhorse of our panel meter line-up. From its sunlight readable display to the wide variety of field-installable options cards, the PAX Meter will easily handle your application requirements. Select from the widest range of inputs in the industry, including models for both digital and analog signals. Their Comms capability allows data collection at various points of the machine and communicates the information to your management system, while still providing the machine operator with a localized display. Installing a complete system? Learn how to put a PAX Meter to work for you.
PAXC - Counter
PAXCK - Timer & Real Time Clock
PAXD - DC Volt & Current Input
PAXDP - Dual Process Input Meter
PAXH - AC True RMS Voltage and Current Meter
PAXI - Counter Rate Meter
PAXP - Process Input Meter
PAXR - Rate Meter
PAXS - Strain Gage Input
PAXT - Thermocouple & RTD Panel Meter
PAXTM - Preset Timer
Display of 5 LED digits of 14mm, with variable intensity for good outdoor readability (factor 1 to 15)
These intelligent solutions can be enabled with optional plug-in cards, for set point alarms (2 or 4),analog output and communications (RS232, RS485, Modbus, Devinet, Profibus), enabled Ethernet via external module (ICM8)
|
|
Large Displays for process control
· Inputs: ±10V, ±0-20mA.
· Three digits size available : 57, 100 and 250 mm.
· From 2 to 5 digits, 1 or 2 displaying sides.
· Serial line option (RS232 or RS485) and dual relay output option.
|
|
|
|
