METERING INSTRUMENTS AND CURRENT TRANSFORMERS
- Digital voltmeters, ammeters, wattmeters, frequency meters and cosphi meters
- Digital multimeters, expandable, with graphic LCD
- Connection to single, two, three phase systems
- Ideal for distribution systems, co-generation energy systems, stand-by generating sets and on-board machinery installations
- High measurement accuracy
- Totally programmable digital outputs
- RS485, RS232, USB, Ethernet, serial interface for remote control and data-logger.
PROGRAMMABLE LOGIC RELAYS
- 10, 12 and 20 Input-Output base units
- Expansion modules with 4 Inputs and 4 Outputs
- Maximum configuration: 44 Inputs/Outputs
- RS232 serial interface port for PC or program backup memory connection
- On-board programming languages: Italian, English, Spanish, French, German, Portuguese and Chinese
- PC programming languages: Italian, English and Spanish.
SWITCHING POWER SUPPLIES
- Versions: modular and 35mm DIN rail mount
- Output voltage adjustment by front potentiometer
- Short-circuit protection
- Built-in input voltage surge suppressor
- Used as power supply for DC electromechanical and electronic equipment.
|
|
|
The NEW Agilent U1250A Series handheld digital multimeters are 4 ½ digit, dual display and packed with many advanced functionalities. Get accurate readings with error rate as low as 0.025% and true RMS measurement. You can perform high-speed automated data logging to detect event anomalies with the optional IR-USB cable and free GUI data logging software.
|
|
Combination Autoranging multimeter with IR Thermometer
* Non-contact InfraRed thermometer measures surface temperature of objects unsafe to contact or difficult to reach
* InfraRed features 8:1 distance to target ratio with 0.95 fixed emissivity
* Input fuse protection and mis-connection warnings with audible and visible signals
* Auto power off, Data Hold
|
|
Basic multimeters with 8 functions and choice of True RMS model
* Easy to read large backlit display
* True RMS AC measurements (EX411)
* Type K thermometer built-in for surface or air temperature measurements
* Input fuse protection and mis-connection warnings with audible and visible signals
* Data hold freezes display reading
* Ergonomically designed to fit comfortably in your hand
|
|
* Non-contact InfraRed thermometer measures surface temperature of objects unsafe to contact or difficult to reach
* InfraRed features 8:1 distance to target ratio with 0.95 fixed emissivity
* Input fuse protection and mis-connection warnings with audible and visible signals
* Auto power off, Data Hold
* True RMS AC measurements
* Relative function
* Type K thermometer, Capacitance, Frequency, and Duty Cycle
* Complete with CAT III test leads, multi-position tilt stand, hanging strap, holster with test lead storage, bead wire temp probe, and 9V battery
|
|
The 2709B is a full featured auto ranging true RMS DMM that combines performance, value and functionality. The 6600 count LCD has a green back light that allows the meter to be used in dimly lit environments. The 2709B can measure resistance values up to 66 Mohm and capacitance to 66 uF. With the auto power off feature you won't have to worry about accidental battery consumption. Value-packed features make this meter a must in every "Tool Kit®".
# Features Magnetic hanger
# One-handed operation
# True RMS
# Large easy-to-read LCD with backlight
# Auto/manual ranging
# Auto power off
# DC voltage to 1000 V
# Measures up to 10 A (AC & DC)
# AC voltage to 750 V
# Resistance to 66 Mohm
# Capacitance to 66 uF
# Frequency counter to 66 MHz
# Diode test
# Continuity test
|
|

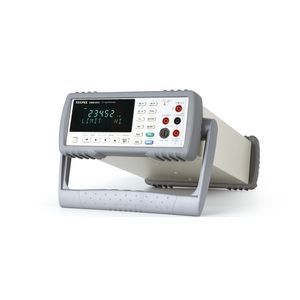

The model 5491A is a very accurate 50,000 count, dual display, true RMS bench multimeter.
Low cost and high performance
True RMS (AC, AC + DC)
Resistance measurements up to 50M ohms
Measures frequency to 500KHz
DBm measurement
RS 232 Interface
|
|

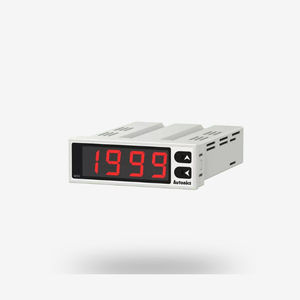

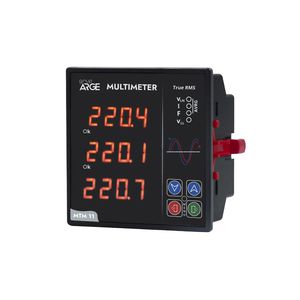

Features:

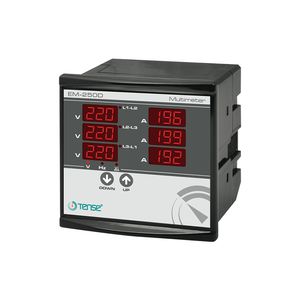

- Calculates the current demand.
- 4 displays with red LED´s of 3 digits with 7 segments for easy reading.
- 3 membrane push-buttons.
- Automatic scale of units.
- Suitable for all electrical switchboards used in the industrial field for instruments, motors, generators, etc.
- With active and reactive energy meter.
- 4 displays with red LED´s of 3 digits with 7 segments for easy reading.
- 3 membrane push-buttons.
- Automatic scale of units.
- Suitable for all electrical switchboards used in the industrial field for instruments, motors, generators, etc.
|
|
|
|
|
|
732 Series Digital Multimeters
73201 Digital Multimeter
Accuracy 0.5% at DC voltage and 4300 count digital display. Compact sized body with large display provides good viewing. Our safety design allows you to measure up to AC/DC 20A
73202 Digital Multimeter
Accuracy 0.5% at DC voltage and 4300 count digital display. Compact sized body with large display provides good viewing. Our safety design allows you to measure up to AC/DC 20A. Also, capacitor check function is available for this model.
73203 Digital Multimeter
Accuracy 0.3% at DC voltage and 4300 count digital display. Compact sized body with large display provides good viewing. Our safety design allows you to measure up to AC/DC 20A. Also capacitor check function is available for this model.
73204 Digital Multimeter
73204 is exclusive model for voltage measurement. Accuracy 0.5% at DC voltage and 4300 count large digital display for good viewing. Elimination of current measurement function provides safe voltage measurement of distribution board at heavy electric machinery.
|
|
|
|
|
|
PCI 7.5 Digit DMM
Features:
* DC a AC Volts a Current
* 2-Wlre & 4-Wlre Resistance Measurement
* True AC RMS Measurements, 10Hz to 10OkHz
* Measure 1uV to 330V
* Self-Calibrating
* 330V Isolation Barrier
* Precise Triggering Capabilities
* Frequency Counter 1 Hz to 300kHz
* 20,000 Readings/Second
* Extensive Windows Support
* Visual Basic, MS Visual C++, Borland C++
* LabView & LabWindows/CVI
Two versions of the digit DMM are available and both plug into any PCI motherboard. Both have all the functionality and performance expected of high quality bench top DMMs, and a lot more. Both versions feature external triggering and programmable level trigger. The 51 -210-064 version provides additional capability to measure Offset Ohms, make RTD Temperature measurements, supports Thermocouples (8 types) and provides frequency, timing, capacitance and temperature measurements, as well as event counting. The 51 -210-064 version also measures Peak-to-Peak AC, Inductance, and provides a torce/guard 6-wire Ohms capability for making in-clrcuit resistance measurements. Leakage current can be measured using an In-built programmable voltage source. Resistance measurements to 1,000M can be performed.
|
|
The 2880B is a Dual Display 51,000 Count DMMs with exceptional accuracy and functionality. It offers superb performance with many features that are useful for trouble shooting electronic and electrical circuits or to test and evaluate circuits in a field service application.
# Features: True RMSACV and ACA
# 5 Digit LCD for both the primary and secondary displays
# 21 Segment analog bar graph
# Automatic polarity indicator
# 0.025% Basic DCV accuracy (0.03% for 2880B)
# Resistance measurements up to 500Mohm
# Conductance measurements up to 50nS with 0.01nS resolution
# Capacitance measurement
# Frequency with ACV measurement
# Data Hold
# dBm Measurement
# REL Mode
# 1ms Peak Hold for glitch capture
# Conforms to IEC-1010-1 600V CAT III and 1000V CAT II
# CE Approve
|
|
High performance and value priced, this Test Bench® model 390A offers more features for the dollar than other multimeters. This meter has a dual injection molded case that allows a better grip and offers better meter protection. CE marked and UL listed.
3 3/4, 4000 count LCD display
0.1% basic accuracy
RS232 interface and software included
Auto or manual ranging
Auto power off
All current ranges are fused protected
Designed to meet IEC61010 1, CATIII 600V, class2
|
|
Setting the new multimeter standard
The three models of the new 170 Series are the new benchmarks for general purpose multimeters. They set the standard with a combination of precision, features, ease-of-use, safety and reliability.
|
|
3/4 digits, 3,999 Count
AC True RMS
Auto/Manual range
42 Segment analog bar graph
Data Hold/Max-Min memory
Relative mode
Capacitance measurement
Overload protection
Frequency measurement
Audible continuity check
Diode test
Auto power off
20Amp Range measurement
Double fuse protection (500mA, 20A)
Overlapping rubber holster
Temperature measurement -50'C ~ 1300'C (-58'F ~2372'F).
RS232 interface
|
|
Combining the two tools frequently used by every instrumentation technician,the ecom 789 Process Meter will be at home in every instrumentation technician ’s toolbox.The ecom Process Meter combine a DMM and a Loop Calibrator in one rugged,handheld tool. With its built-in 24 V loop supply it reduces the need for taking a separate power supply when doing off-line transmitter testing.
|
|
As soon as it came on the market, the MX 24B became the reference 5000-count TRMS digital multimeter.
It has an ADP input and can be connected to a wide range of accessory probes: luxmeter, ammeter clamp, thermometer, etc.
- 5000-counts
- Backlit display, 34-segment bargraph
- 500kΩ low impedance measurement input
- Voltage up to 1000VDC and 750VAC impedance 10MΩ
- Direct intensity up to 10ADC and 6A AC
- Resistance up to 50MΩ
- Audio continuity test, diode test
- Capacitance meter function up to 50µF
- Frequency meter function up to 500kHz
- MEM/AUTOMEM key
- Dimensions 170 x 80 x 35mm, weight 300g.
|
|
|
National Instruments digital multimeters/voltmeters and LCR meters achieve remarkable throughput rates while maintaining precision and stable measurements. These digital multimeters accurately measure voltage, resistance, current, capacitance, inductance, and temperature. You can build a high-channel-count system by integrating these digital multimeters with a single or multiple NI switch modules.
|
|
Multimeters are capable of measuring a number of variables. Each instrument can measure voltage and resistance, as well as performing continuity and diode testing as standard.
In addition, the individual multimeters also feature extra measuring options such as current, frequency, capacitance and temperature. Digital multimeters have the advantage of a clear display which can be read easily and directly. With these instruments, mistakes arising from faulty calculations of the measuring ranges or misreading the display are a thing of the past.
|
|
SMY device is designated for measuring and recording of voltage, current, power factors, frequency, active power, harmonics of voltage and current, etc in three-phase LV, HV, VHV grids. It can also measure and record temperature. All values can be stored internally
Characteristics
- True root-mean-square values of voltage and current (TRMS)
- Both true power factor (PF) and power factor of fundamental harmonics (cos fi)
- Total Harmonic Distortion and harmonics of voltage and current up to the 25th order
- Viewing actual values on the display and record into the memory of up to 1MB capacity
- Built-in three tariff electricity meter of active (separate import/export) and reactive (separate inductive/capacitive) power
- Two relays with programmable function
- Two analog outputs 0/4-20 mA with programmable function ("A"-model only)
- Local RS-232 or remote RS-485/CAN communication link
|
|
Pencil-type DMM with Penlight
Full-auto ranging, 4199 count display
Penlight brightly illuminates test points
Overload protection to 600 V (ohm and continuity functions)
|
|
|
The METRAHIT / T-COM cable multimeter is a portable measuring instrument for use in the field. It performs measurements for pinpointing errors in cable networks, and measures cable and system related parameters: voltage, current, resistance, insulation and loop resistance, capacitance and cable length.
|
|
Digital multimeters (DMM): GPIB, USB, Ethernet, LXI-based, audio analysis/THD, switch integrated dataloggers.
- Airbag/Automotive Source/Switch Modules
- Airbag/Automotive Source/Switch Systems
- Audio Analyzing and Total Harmonic Distortion DMMs
- DMMs
- Integra Series Integrated Switching/Measurement/Datalogging Systems
- Integra Series Software
- Integra Series Switch/Control Modules
|
|
