Epsilon EP
“Motion Made Easy”TM
230V Servo Drive Systems
Epsilon EP, the compact and easy to use servo drive, is scalable from a simple amplifier to a completely programmable 1.5 Axis motion controller. The Epsilon EP comes in 3 flexible models, and 5 drive sizes — 2.2A, 4.0A, 6.5A, 9.0A and 16.0A, able to deliver over 40Nm of torque at the rated motor speed.
3 functional configurations:
Base: Epsilon EP-B
This base drive is ideal for servo applications utilizing an external motion controller. The EP-B has the unique capability of combining an analog command with a preset velocity for trimming or advance/retard operations. The EP-B drive is an excellent choice for stepper replacements or centralized control systems.
Indexer: Epsilon EP-I or EP-IDN
The EP-I drive is a highly capable position controller that provides Home, Index, and Jog motion profiles. The EP-I has a unique alternate mode feature whereby it can perform an Index or Home function, and then switch to an alternate mode such as analog torque, analog velocity, or pulse follower mode on the fly! This compact indexing drive is a cost-effective solution for countless applications.
Programming: Epsilon EP-P, EP-PDN and EP-PPB
The EP-P drive provides the highest level of control by allowing the user to create complete user programs to sequence the motion control along with other machine functionality. The EP-P can be used to solve the most complex motion applications and still be easy-to-use because of the PowerTools Pro configuration software. With intuitive software and plenty of online help, programming this servo drive is easy; in fact it is “Motion Made Easy!”
|
|
The servo amplifier series ECOVARIO covers a peak power range between 1.4 kW and 7.0 kW. ECOVARIO is suitable for operation of 2- or 3-phase synchronous servo motors, DC motors and EC motors. ECOVARIO offers a large variety of interfaces and functionality. Standardized field bus options such as EtherCAT, CANopen (also interpolated), or Profibus DP ensure a fast system integration. Customer specific enhancements are possible.
New: 2-axes servo amplifier ECOVARIO MiniDual, the cost-optimized PCB solution with a peak power of 2 x 0.45 kW.
|
|

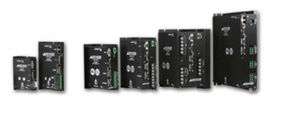

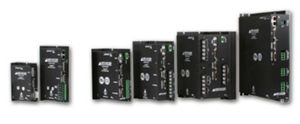

DigiFlex® Performance™ series: Any Control - Any Motor - Any Feedback
This means you the designer can choose the best of breed components for your system. Control, Motor, and Feedback and ADVANCED Motion Controls will fit neatly in the middle.
How can we do this? Under a single platform, the DigiFlex® Performance™ series offers more than 130 variations to meet any need.
DriveWare™ Software
DriveWare™ gives full control of your command scheme, tunig parameters, I/O functionality, troubleshooting and more.
|
|
Intelligent Digital Servo Drives
Our servo drive controllers support AC/DC brush and brushless servo motors with multiple feedback options - including incremental encoder, resolver, analog and digital Halls, analog sin-cos, absolute, tacho and potentiometer feedbacks.
Elmo's SimplIQ digital servo drives combine high power density, intelligent functionality and space-friendly design. The drives integrate Elmo's advanced, SimplIQ motion control core technology, which enables superior control performance, offers advanced programming capabilities and supports standard communication protocols. All the drives in the series include a fully digital motion controller that features current, velocity and position loops and a wide range of commutation types and position feedbacks. The result: higher dynamics and increased precision for a wide variety of implementations.
|
|
|
|
|
|
Servo Dynamics new cost effective SD94S and SD94P Servo Drive Series are full featured with superior performance and power.
SD94S operates straight from the AC line, 120/220/380/460 VAC (nominal) and can produce up to 2.3 kW of continuous power by using the latest algorithms for field-oriented commutation, current, velocity and position loop control.
The SD94P adds networking, motion profiling and execution. SimpleMotion language with Basic-like commands allow the user to program and store motion profiles and multi-axis coordinated moves in the drive to be executed through a network connection or I/O. This compact servo drive operates straight from the AC line, 120/220/380/460 VAC (nominal) and can produce up to 2.3 kW of continuous power.
The Electronic Program Module is ideal for duplicating axis or field service. All configuration and tuning parameters are stored on this module and can be copied using a simple programming device. The SD94S is available with an optional integrated EMI filter as a cost and space saving feature.
The SD94S is UL listed and CE compliant.
|
|
|
|
|
|
Teknic SSt-series Servo Drives, a high-speed DSP control processor controls all of the feedback loops: position, velocity and actual torque. Torque is actively measured and controlled, with losses in the motor effectively minimized. The operation is truly all-digital: the motor currents are converted directly into digital format for the DSP and the outputs to the motor are digital PWM pulse streams-no drift- or noise-prone analog processing is used whatsoever.
The dedicated DSP processor within the SSt servo drive knows, at all times: the state of the position/velocity compensator, the state of the motor's magnetic field, the output voltages of the amplifier, the limit switch inputs, the RMS current in the motor, and numerous other variables. The SSt's proprietary control algorithms are specifically designed to make good use of all this information. The result is superior performance not only in the standard benchmarks (bandwidth, settling time, tracking accuracy), but also in the subjective benchmarks such as quiet jitter-free operation, virtual elimination of overshoot, reduction of torque "chatter", and more. In addition, the DSP's knowledge of the entire state of the servo system enables several unique features. Thousands of hours of computer simulation and experimentation have yielded, among other features: Adaptive Inertia Matching Technology (IMT), Hard-stop homing, fuzzy MoveDone signal false trigger suppression, and continuous current sensor calibration. For more information on these unique features, see the Systems Information section.
|
|
Digital Servo Drive System:
The Fagor servo drive system consists of high technology Sercos digital drives with high speed internal processing utilizing Vector control digital technology which calculate and controls three control loops: position, speed and torque.
- Flexibility of either Analog or Sercos Digital drives
- High Resolution Encoders are incoporated with each motor for velocity feedback.
- Over voltage protection
- Over current protection
- Over speed alarms
- Over temperature alarms
- Hardware alarms
- Drives available for Axes or Spindles
- Direction position feedback: Differential TTL, Vpp, Distance-codes Io or Fagor Absolute Encoders
- Encoder Simultor board (optional)
- Built-in programmable PLC (optional)
- Flexibility of either Modular or Compact systems
- All accessories available
|
|
