The SP725 is an array of SCR/Diode bipolar structures for ESD and overvoltage protection of sensitive input circuits. The SP725 has 2 protection SCR/Diode device structures per input. There are a total of 4 available inputs that can be used to protect up to 4 external signal or bus lines. Overvoltage protection is from the IN (Pins 1 - 4) to V+ or V-.
The SCR structures are designed for fast triggering at a threshold of one +VBE diode threshold above V+ (Pin 5,6) or one –VBE diode threshold below V- (Pin 7,8). From an IN input, a clamp to V+ is activated if a transient pulse causes the input to be increased to a voltage level greater than one VBE above V+. A similar clamp to V- is activated if a negative pulse, one VBE less than V-, is applied to an IN input.
Features:
ESD Interface per HBM Standards
IEC 61000-4-2, Direct Discharge........... 8kV (Level 4)
IEC 61000-4-2, Air Discharge................15kV (Level 4)
MIL-STD-3015.7..................................................25kV
Peak Current Capability
IEC 61000-4-5 8/20 μs Peak Pulse Current...... ± 14 A
Single Transient Pulse, 100 μs Pulse Width....... ± 8A
Designed to Provide Over-Voltage Protection
Single-Ended Voltage Range to......................... +30V
Differential Voltage Range to............................. ±15V
Fast Switching...............................................2ns Risetime
Low Input Leakages...........................5 nA at 25 ºC Typical
Low Input Capacitance....................................5 pF Typical
An Array of 4 SCR/Diode Pairs
Operating Temperature Range..................-40ºC to 105ºC
|
|
This new family of devices combines multiple different discrete devices in the same surface mount case. The first series of these are packages in the newest smallest PICOmini™ SOT-563 case. By incorporating multiple devices in a single package, these devices assist the design engineer in meeting their strictest requirements for smaller discrete components and overall product size reduction.
Coupled with proven reliability and nothing less than total customer satisfaction, this family of components will provide answers to some of industries most demanding requirements.
|
|
| ... products without technical information |
| |
|

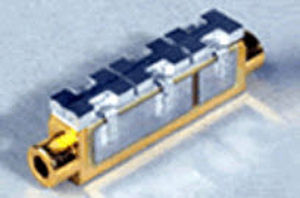

Lasertel's QCW array packages are engineered and manufactured to perform reliably and efficiently in the most demanding environments. No other array provider can equal our combination of output power levels and operating temperatures.
|
|
Description
HTOE Laser diode array series has been designed to provide the high output power, long lifetime and high reliability required for solid laser pumping ,medical usage and other high power laser diode applications.
Features
* Output peak power 15000W
* Spectral Width ≤4nm
* High Reliability
* High Efficiency
* CW stack arrays adopt micro-channel package
* QCW stack can be designed according to the customer of non-standard products heat sink package
Applications
* Laser Pumping
* Medical Usage
* High power laser diode applications
|
|
| ... products without technical information |
| |
|
Lasertel's QCW array packages are engineered and manufactured to perform reliably and efficiently in the most demanding environments. No other array provider can equal our combination of output power levels and operating temperatures.
|
|
Description
HTOE Laser diode array series has been designed to provide the high output power, long lifetime and high reliability required for solid laser pumping ,medical usage and other high power laser diode applications.
Features
* Output peak power 15000W
* Spectral Width ≤4nm
* High Reliability
* High Efficiency
* CW stack arrays adopt micro-channel package
* QCW stack can be designed according to the customer of non-standard products heat sink package
Applications
* Laser Pumping
* Medical Usage
* High power laser diode applications
|
|
