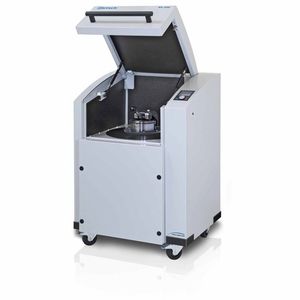

The Vibratory Disc Mill RS 200 is suitable for the extremely quick, loss-free and reproducible grinding of medium-hard, hard, brittle and fibrous materials to analytical fineness.
Grinding sets made from hardened chrome steel, tungsten carbide, agate and zirconium oxide permit a wide range of applications. The RS 200 is primarily used for sample preparation for spectral analysis.
Product Advantages:
- powerful Stabilized-Plane-Drive
- excellent reproducibility
- analytical fineness in seconds
- 1-button operation with graphics display
- 10 parameter combinations can be stored
- grinding tools in 5 different materials
- quick-action grinding set clamping device
- agate recognition for automatic speed reduction
- sealed, noise-insulated grinding chamber
- maintenance-free, CE-conforming design
- 2 year warranty
|
|
The FRITSCH Disk Mill is most suited for size reduction
within the medium particle size range. Comminution takes
place through pressure and shearing force.
|
|
|
The RETSCH Disc Mill DM 200 is used for batchwise or continuous preliminary and fine comminution of medium-hard to hard-brittle solids (up to 8 Mohs). Thanks to its robust design, it can be used under rough conditions in laboratories and pilot plants, as well as online for the quality control of raw materials.
|
|
|
The FRITSCH Vibrating Cup Mill for fast sample preparation is found in almost every spectroscopy preparation lab as well as in ore and geology laboratories.
|
|
These Sturtevant Sample Grinders are of the "Open Door" disc type construction and are capable of very fine work, producing products as fine as 100 mesh (coarser if desired) when working on dry, friable, soft or moderately hard materials. They also can work on many hard rocks and ores, but with somewhat reduced capacities.
Benefits
* Product fineness adjustable during operation
* Uniform product size assured by spring-loaded grinding discs
* Heavy-duty cast iron construction offers decades of dependable service
* Various grinding discs available
* Easy access to wear areas for inspection and maintenance
|
|

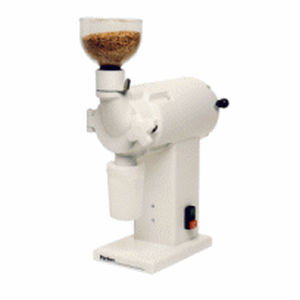

The type of sample preparation depends on the requirements in the analysis to be made. For this reason it is important to select the correct preparation for the analysis in question. Perten Instruments can offer two types of Laboratory Mills, the hammer type mill and the disc type mill.
Disc mills are used when grinding samples for moisture determination, whereas hammer mills are used for most other applications, such as Falling Number, Glutomatic and NIR analysis for example
|
|
GPX.WC Water Cooled Disc Style Coffee Grinder - Ideal for regular, Turkish and flavored coffee grinding applications
This new design delivers all of the exceptional features of our standard GPX grinder (see other) as well as the advantages of water cooled coffee grinding.
This grinder is ideal for high production (regular or flavored) coffee applications up to 450 lbs./hr. with grind capabilities including Turkish.
By removing heat from the grinding process, the water cooling on the GPX.WC eliminates the loss of important flavor "volatiles" and aromas thereby optimizing the quality of the ground coffee product. Includes solenoid shut-off valve to allow water cooling only during grinding operation.
|
|
MPE Disc-Style Grinders provides a high degree of versatility in the size reduction of a broad spectrum of materials. These compact, economical grinders serve a variety of grinding applications, including chemicals, dry foods, food aggregates, minerals, spices and a wide assortment of similar materials.
Ruggedly-constructed, MPE's Disc-Style Grinders feature "diamond hard" grinding discs that are precision cut to optimize their cutting "action", resulting in a better end product with an increased production capability. This "action" produces results superior to a hammermill at a fraction of the price. The disc grinders work best on "friable", or breakable, materials and adjust to deliver target sizes from 6 - 150 mesh (3,000 - 100 microns).
|
|
|
|
|
|
Innovate technology and precision manufacturing combine in the new Model GPX.DC double chamber coffee grinder to produce segregated coffees with the same grinder.
The Model GPX.DC is designed for coffee applications that require the separation of different coffee flavors, styles, grinds, etc. In the past, this would require two grinders or a clean out of the grinder between operations.
* Electronic logic automatically opens the hopper gate for the selected grinding chamber during operation.
* When one grinder chamber is used, its gate is opened and the other gate is closed automatically.
* Designed to grind from 250-500 lbs./hr. (espresso to urn), the Model GPX.DC provides cost effective grinding to the same excellent grinding specifications and reliability as the "industry standard" Model GPX.
* Convenient dial allows the rapid selection of any desired coffee grind with each grinding chamber, the result being the ability to achieve two grinds and two different coffee flavors on the same grinder.
* Standard hopper size is 10 lbs., which can be enlarged up to 50 lbs. if desired.
|
|
|
|
|
|
Applications
Neue Herbold ZM series pulverizers are designed for the pulverizing of mid-hard, brittle to high impact plastics that require the final material to be in powder form. Typical applications are PE, PVC, PC and other various types of plastics. The required pulverizer input material must be in a granulate form with a maximum size of 6-8 mm (1/4-5/16 in.).
Design
The ZM series pulverizer (pulveriser) is a extremely high out put unit can be supplied with automatic temperature control. The material to be pulverized is vibro feeder fed into fixed and high speed rotating pulverizer (pulveriser) discs. In conjunction with a integrated inner disc that material is centrifically forced through the pulverizer (pulveriser) discs to the outer chamber for discharge with a down stream material transport system. Neue Herbold ZM series pulverizers (pulverisers) operate without a screening machine. The specific final powder size is dependent on the teeth configuration and the adjustable gap between the pulverizer (pulveriser) discs. In the event that the application requires a maximum particle size, a screening machine can be easily integrated into the system.
Advantages
- extremely high through put rates
- minimal thermal material stress
- longer disc life and reduced re-sharpening costs
- quick and easy disc adjustment and replacement
- cost effective operation
|
|
... see all the products in the category
Mills
|
The Vibratory Disc Mill RS 200 is suitable for the extremely quick, loss-free and reproducible grinding of medium-hard, hard, brittle and fibrous materials to analytical fineness.
Grinding sets made from hardened chrome steel, tungsten carbide, agate and zirconium oxide permit a wide range of applications. The RS 200 is primarily used for sample preparation for spectral analysis.
Product Advantages:
- powerful Stabilized-Plane-Drive
- excellent reproducibility
- analytical fineness in seconds
- 1-button operation with graphics display
- 10 parameter combinations can be stored
- grinding tools in 5 different materials
- quick-action grinding set clamping device
- agate recognition for automatic speed reduction
- sealed, noise-insulated grinding chamber
- maintenance-free, CE-conforming design
- 2 year warranty
|
|
The FRITSCH Disk Mill is most suited for size reduction
within the medium particle size range. Comminution takes
place through pressure and shearing force.
|
|
|
The RETSCH Disc Mill DM 200 is used for batchwise or continuous preliminary and fine comminution of medium-hard to hard-brittle solids (up to 8 Mohs). Thanks to its robust design, it can be used under rough conditions in laboratories and pilot plants, as well as online for the quality control of raw materials.
|
|
|
The FRITSCH Vibrating Cup Mill for fast sample preparation is found in almost every spectroscopy preparation lab as well as in ore and geology laboratories.
|
|
These Sturtevant Sample Grinders are of the "Open Door" disc type construction and are capable of very fine work, producing products as fine as 100 mesh (coarser if desired) when working on dry, friable, soft or moderately hard materials. They also can work on many hard rocks and ores, but with somewhat reduced capacities.
Benefits
* Product fineness adjustable during operation
* Uniform product size assured by spring-loaded grinding discs
* Heavy-duty cast iron construction offers decades of dependable service
* Various grinding discs available
* Easy access to wear areas for inspection and maintenance
|
|
The type of sample preparation depends on the requirements in the analysis to be made. For this reason it is important to select the correct preparation for the analysis in question. Perten Instruments can offer two types of Laboratory Mills, the hammer type mill and the disc type mill.
Disc mills are used when grinding samples for moisture determination, whereas hammer mills are used for most other applications, such as Falling Number, Glutomatic and NIR analysis for example
|
|
|
|
|
|
Twiflex VMS-DP Mill Brake Stand. One of four units supplied to Metso Minerals for use at the Telfer Mine, Australia. The two units combined produce 16Million NM of brake torque!
The VMS-DP Mill Brake brakes will be installed on SAG (semi-autogenous grinding) Mills used for the extraction of copper and gold from virgin rock. Fresh ore is continually conveyed into the mills that are pre-charged with various sizes of steel balls, crushing the rock when the mill rotates. The ore is crushed until small enough to pass through the openings in the discharge grates. The material is then conveyed to a secondary Ball Mill for fine grinding.
The brakes which are used for emer-gency stopping and holding have been designed specifically for this application and will be the largest that Twiflex has ever manufactured. The VMS-DP caliper is approximately the size of an office desk and weighs approximately 2 metric tonnes. Each brake produces 768kN of braking force, 4-6 calipers provide braking to each mill flange.
|
|
Large cutters that can be used on small machines
Disc concept aimed specifically for cutting aluminum on compact machines!
- Roughing
Disc Cutter S
- Finishing
Disc Cutter PRO
Why a disc cutter?
- Multiple passes must be made when cutting a wide range of workpieces on compact machines, which create offsets at the lapped areas.
- On a compact machine limited to a total tool weight of 3 kg including the arbor, the conventional ø125 steel cutter was overweight.
- Meanwhile, an aluminum body cutter that solves the weight issue requires a special arbor that extends the tool protrusion.
Solutions
- Arbor-and-cutter developed under a new concept. Made of steel, yet it is
thin, lightweight, and offers a high level of tool rigidity. Thus, highly efficient
cutting can be realized through the use of a large-diameter cutter, which could not be used in the past!
|
|
The cornerstone of Seco Tools' approach to disc milling is to offer the widest range of inserts, cutter bodies, and attachment types in the industry.
Seco Tools is your single source supplier for slotting, backfacing, circular interpolation, circlip grooving, dual-radius slotting, and trochoidal T-slotting. The full standard range of Seco Tools disc milling cutters is available in diameters from 24 - 315 mm (1"-12").
LNK INSERTS
Very tough inserts designed for weaker machines or unstable machining conditions; these cutters have fewer teeth engaged in the cutting process
SNHQ INSERTS
Higher metal removal rate achieved under stable machining conditions. Excellent results for light cutting applications
|
|
|
|
