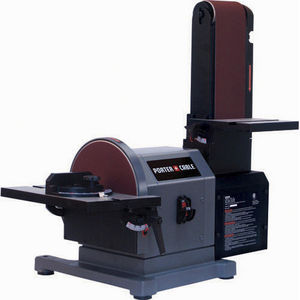

S612 & S612V Combination Sander With Vacuum !! 3 HP !!! Made in USA!!! 6" x 48" belt, 12" Disc, Vacuum Base
Available with OR without dust collector. 3HP 1PH 220 OR 3HP 3PH 220/440 volt. ( Specify voltage) Manual switch with overload protection.
Built in 100 CFM dust colletor base with cartridge filter.
Quick change belt, pre-tensioned one lever belt change...FAST !!
Models:
- S612-1 No vacuum, 1 phase/220 volt
- S612-3 No vacuum, 3 phase 220 or 440 volt
- S612V-1 Vacuum base, 1 phase/220 volt
- S612V-3 Vacuum base, 3 phase 220 /440 volt
Dimensions: L12" x W14" x H60", Weight: 500 lbs.
Specifications:
Belt Sander
Work Table- Cast iron 6" x 10" with 1/2" x 1/8" slot
Platen- Steel 6-1/2" x 14"
Belt- 6" x 48" - 2800 SFPM
Disc Sander
Work table- Cast Iron 8" x 14"
Disc- 12" aluminum disc, 5/8" arbor Speed- 2500 RPM
Other products available:
|
|
DS10 10" disc sander
Heavy-duty, all steel
Tilt table, 45 degrees down - 15 degrees up
Optional: MG10 mitre gauge
10" aluminum disc
5/8" arbor
6" x 11" table
1/2 HP (110/220V), 1 PH TEFC motor
48 lbs.
Model: DS10
Other products available:
|
|
150mm(6") Disc Sander
- Hitachi powerful motor (900 W max. output) and 2.0kg lightweight
- Completely novel design and comfortable grip handle covered with elastomer and rubber side handle
- Thanks to the adoption of the bearing bushing, the ball bearing chamber of the commutator side is durable
equipped with spindle lock for easy tool replacement
- Soft air cover which can easily attached and detached for comfortable operation
- Wear-resistance tail cover
- Double insulation
|
|
- Disc Sander and Random Orbital Sander Combination
- 12,000 RPM Dynalocke® is truly "two tools in one", easily changing from a rotary Disc Sander to Random Orbital Sander with the flip of a switch
- Includes low profile, premium urethane sanding pad
- Very lightweight with ultra-smooth sanding performance
- Ideal for paint stripping and blending
|
|
Outstanding process power and throughput has reached a new dimension with the AC 700 HT Fine Grinding System – accompanied by numerous ready-to-go processes and economical automation solutions your cost per workpieces can now reach their all time low but keep the precision you already appreciate from our other Fine Grinding Systems of the microLine® range.
PETER WOLTERS research team has found the optimal power solution for your grinding challenge by optimizing the interaction of software, coolant supply temperature management, pressures and power of the drives. The result is extremely high cut rates that make you forget about any pre-grinding you had to do in addition in the past. Just combine stock removal and finishing into one, economical system.
|
|

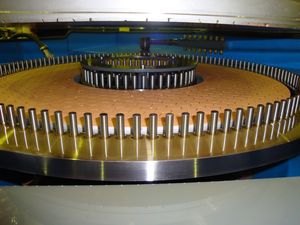

The Lapmaster line of dual side planetary fine grinding machines are specially designed and built to withstand extreme conditions within a production environment while requiring minimal maintenance. These units are available with fine grinding platens from 20" up to 55" in diameter, and are specially configured for each application. Depending upon the application, these machines utilize fixed abrasive diamond or CBN suspended in resin, metal, and vitrified bonds to grind a wide range of materials to very tight specifications.
The Lapmaster DSG series of twin wheel grinding machines are driven by three, variable speed motors for maximum process control flexibility. All three rotating machine components, the sun gear, top plate, and bottom plate, are independently controlled. Process down pressure requirements are pneumatically regulated and continuously monitored by a load cell.
|
|
With SATURN double-disc surface grinding, two vertical grinding wheels simultaneously grind the workpiece on its parallel outer surfaces. The grinding wheels are set against each other at a slightly conical angle, so that as it passes from top to bottom, the workpiece retains its final dimension only in the bottom section of the grinding path. Because the workpieces are fed vertically between the grinding wheels, the bearing weight of the workpiece does not affect the grinding result. What’s more, the
coolant can simply drain downwards together with the removed material. The SATURN range comprises three
different machining processes:
- Rotation process
- Parallel grinding with linear through-feed
- Pendulum grinding
|
|
|
|
|
|
Cinetic Giustina double disc grinders are field proven because they are backed by more than 150 years of engineering experience in designing and manufacturing production grinders and special grinding machines for a multitude of industries worldwide.
This series of double disc grinders are high production and an efficient solution for processing flat and parallel surfaces at the lowest per piece cost. Various working modes include rotary, through-feed, reciprocating, continuous and plunge grinding mode which are selected according to process requirements. Available in vertical or horizontal axis type.
Horizontal axis machines are ideal for grinding gearbox faces, connecting rod faces and plunge grinding for piston rings. Available in grinding wheel diameters from 450 to 1050 mm and with wheel spindle power up to 100 kW.
Vertical axis machines are ideal for plunge grinding of gear faces, bearing race faces and small disc brake rotors. Available in grinding wheel diameters from 450 to 660 mm with wheel spindle power up to 50 kW.
|
|
|
|
|
|
Cinetic Giustina double disc grinders are field proven because they are backed by more than 150 years of engineering experience in designing and manufacturing production grinders and special grinding machines for a multitude of industries worldwide.
This series of double disc grinders are high production and an efficient solution for processing flat and parallel surfaces at the lowest per piece cost. Various working modes include rotary, through-feed, reciprocating, continuous and plunge grinding mode which are selected according to process requirements. Available in vertical or horizontal axis type.
Horizontal axis machines are ideal for grinding gearbox faces, connecting rod faces and plunge grinding for piston rings. Available in grinding wheel diameters from 450 to 1050 mm and with wheel spindle power up to 100 kW.
Vertical axis machines are ideal for plunge grinding of gear faces, bearing race faces and small disc brake rotors. Available in grinding wheel diameters from 450 to 660 mm with wheel spindle power up to 50 kW.
|
|
The VERTICAL AXIS version is particularly suited for grinding thin parts and, the version with interpolated feed system, for grinding critical materials such as tungsten carbide or ceramic using diamond grinding wheels.
INTERPOLATED FEED:
It is the latest and most exclusive system, designed by VIOTTO for grinding parts in tungsten carbide, cermet and ceramic, even of large size.
This is obtained by the interpolation of 3 axes, controlled by the CNC, which perform the following movements:
rotation of the workpiece to carry it between the wheels (AXIS 1)
oscillaton of the workpiece between the wheels (AXIS 2)
plunge cycle of the top wheel on the workpiece (AXIS 3)
In this feed system the grinding wheels are set perfectly parallel to obtain still closer tolerances for flatness and parallelism.
|
|
| ... products without technical information |
| |
SYNCHRO 4000
- Grinding of centrical workpieces in one clamping
- Workpiece supported between centers
- Any number of grinding wheels, limited only by the grinding length
- Plunge-cut grinding with CBN or corundum
- Grinding wheel package changed by a hydraulically-based clamping system
|
|
|
|
