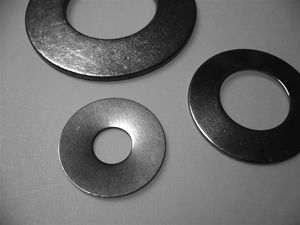

Disc springs are conically-shaped, washer-type components designed to be axially loaded. What makes disc springs unique is that based on the standardized calculations of DIN 2092, the deflection for a given load is predictable and the minimum life cycle can be determined. Disc springs can be statically loaded either continuously or intermittently, or dynamically subjected to continuous load cycling. They can be used singularly or in multiples stacked parallel, in series or in a combination thereof.
- A wide range of load/defl ection characteristics
- High load capacity with small defl ection
- Space savings - high load to size ratio
- No set under design loads
- Longer fatigue life
- Inherent dampening especially with parallel stacking
- Flexibility in stack arrangement to meet your application requirements
|
|

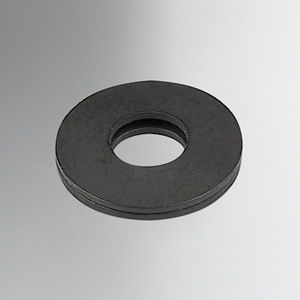

The characteristic benefits of original SCHNORR® disc springs include:
- Load deflection curves of straight, progressive or degressive character according to the selection of spring arrangement and dimension.
- Simple adjustment of the spring stack length by the addition or removal
of individual springs, thus altering the spring stack characteristic.
- Efficient use of space with high spring forces obtainable with small deflections.
- Largely self damping, particularly with parallel stacking.
- No setting or fatigue under normal loads load.
Long service life
- Flexibility in application of the disc springs can lead to a reduction in
stock levels.
By means of these characteristics, the original SCHNORR® disc spring has developed such a wealth of application areas that nowadays there is scarcely an engineering area where it is not used.
|
|

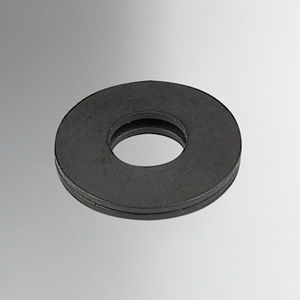

Specifications:
Disc springs to DIN 2093 (Group 1, Group 2, Group 3...)
Disc springs to Mubea Factory Standards or other as required
Range of dimensions: outside diameter 8.0 mm to 800 mm
Materials to DIN 2093 (DIN 17 221, DIN 17 222) and special materials (see menu materials)
Disc springs with a thickness of 0.5 mm and greater are shot-peened to improve fatigue life
Springs are phosphated and oiled as a standard (see menu corrosion prevention).
|
|

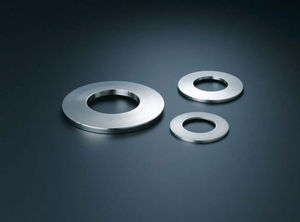

A disc spring is a conical shell which can be loaded along its axis either statically or dynamically.
Particular feature:
"Highest load in the smallest space"
Manufacture acc. to DIN 2093 and to works standard. Using all suitable non-galvanic surface treatments as well as in custom-sizes and from special materials (see our Materials overview list).
|
|
Disc spring stacks
On request, Mubea can deliver disc springs pre-assembled in stacks or on a guiding device.
Advantages:
Assembly is more efficient with pre-assembled stacks
Stack specific load - deflection diagrams (modern load testing machines can provide test loads up to 1000 kN)
Small load tolerances possible
100% load testing can be used to prevent incorrect stacking
|
|

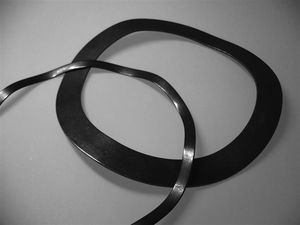

Special springs
Areas of application:
Adaptation to special fitting requirements in : Couplings, Gearboxes, transmissions, etc.
Mubea will work with the customer to develop special springs to meet the requirements of specific applications.
|
|
| ... products without technical information |
| |
... see all the products in the category
Springs
|
Spring apply hydraulic release multiple disc brakes, thru-shaft brakes, posi-torque winch brakes, pressure override brakes, and wheel mount brakes. Brakes are available in a variety of SAE mounting configurations.
|
|
Industrial Clutch Parts Spring Applied Parking Brakes for chair lift and wheel chair / mobility applications.
A range of Industrial Clutch Parts Spring Applied Parking Brakes include Flange mounted, flange mounted with rotary release and magnet mounted.
|
|
|
Ogura is the largest manufacturer of electromagnetic clutches and brakes in the world. Current manufacturing capacity is in excess of 30 million clutches and brakes per year. We have 14 manufacturing plants throughout Europe, the Americas, and Asia. All plants are certified ISO9001 and most have been certified ISO 14001 and TS16949. We have over 3,000 designs available. Besides the standard product shown we also make a variety of specialty products. These brakes are used in used in the following industries: brakes for servo motors, robotics applications, elevators/escalators, industrial machinery, automotive, and medical applications. Ogura holding brakes are made in both the spring set type and permanent magnet type. Optional designs such as zero backlash are available. Brakes can be made in a variety of DC voltages. Standard torque ranges are from 1nm to 800nm, although specialty multiple disk elevator brakes have been made up to 30,000nm.
|
|
|
Spring applied safety brakes offer high operational security for all applications, protecting personnel, machines and equipment, reliably braking for positioning or holding duties or for sudden machine stops for emergency OFF or power failure. We have developed as the technology leader in the field of safety brakes by developing optimised solutions for a wide product range.
|
|
Electromagnetic Spring Applied Brakes
The CLASSIC LINE is comprised of DC operated spring-applied single-disc and multiple-disc brakes whose sturdy design and variable connection features make it ideally suited for the most demanding applications.
Electromagnetic spring applied brakes generate the braking torque when voltage is removed and the electromagnetic force is neutralised.
Versions
77 600..A00 – Single disc brake
(service brake)
Standard rated voltages
24 V, 102 V, 178 V DC
Protection
IP 54
IP 55 (when installed under Motor fan cowl)
Thermal class
F
Transmissible Torque
4 - 240 Nm
Accessories (Option)
Hand release, mounting screws
|
|
The VARIO LINE includes spring pressure single-disc brakes for direct current which can be matched to the individual application due to a wide range of variants. Electromagnetically operated spring pressure brakes build up the the braking torque when the current is switched off. By means of the electromagnetic force or an additionally mounted hand lifting device the braking effect can be neutralized. Fitting dimensions and the grading of the type series of the VARIO LINE are matched to IEC-motors.
Application
Working Machines, DC Motors, Industrial Trucks, Gear Motors, Instrument Manufacture, Handling Technology, Lifting and Conveying Technology, IEC Three-Phase AC Motors, Medical Engineering,...
Selected Technical Details
Nominal Moment: 1 - 400 Nm
Voltage: DC 24, 102, 178, 205 V
Protection Class: IP 55
|
|
Electromagnetic clutches: Electronically controlled drive elements to connect or disconnect the drive. Transmissible torques from 1 to 400 Nm. Special designs can be produced to order.
Electromagnetic brakes: Electronically controlled elements to generate braking torques up to 400 Nm. Special designs can be produced to order.
|
|
|
Ortlinghaus offers a broad spectrum at brakes for your application as catalog execution: spring-tensioned brakes with hydraulic, pneumatic, electromagnetic or mechanical ventilation for wet or unlubricated operation. With some your applications these due to certain constructional basic conditions will not be suitable. In this case we offer to you to develop one exactly on your application cut solution together with you. Profit from our experience!
|
|
KFB
Application:
- Gantry, Trolley, Hoisting Application at port cranes
- steel mills
- wind energy systems
- coal mining
- dynamic and static use at general engineering
Technical data:
- seawater protected (IP67)
- brake torque: 100 - 1600 Nm
- weight: 19 - 168 kg
- nominal voltage 110 V
|
|
Electromagnetic multi-face (multi-disc) spring-applied brakes
Characteristics:
Spring-applied,
released by D.C.
* Torques from 25 to 1000 Nm (higher torques on request)
* By selection of suitable friction disc combinations wet operation or dry operation possible
* Outer diameter 114 to 255 mm
* Less residual torque in released condition, also with horizontal mounting
* No axial force
* Less maintenance
* Simple handling
|
|
Ausco invented the spring applied-hydraulically released multi-disc brake in the early 1970s. Today, Ausco remains the leader in spring applied-hydraulically released brakes. Ausco's catalog product offerings include all of the common SAE mounts. Most of our brakes are offered in both wet and dry configurations. Variations on shaft and spline sizes are also a common option. In addition, Ausco offers a number of specialty multi-disc brakes for articulated vehicles, mining shuttle cars, etc.
|
|
|
|
|
|
Hydraulically released spring-applied multi-disc brakes
Applications:
There is a variety of possibilities to use hydraulically released spring-applied multi-disc brakes in the stationary and mobile sector, also combined with hydraulic motors. The brakes can be integrated in the oil circuit of the motor.
When starting the hydraulic motors, the brakes release with oil pressures of 15 - 38 bar. Thereafter the full system pressure up to 320 bar can be connected.
The brakes can be used in wet and dry operation. With failure of the oil pump, an emergency release is possible.
Characteristics:
* Torques from 30 to 500000 Nm (higher torques on request)
* Oil pressure from 15 to 50 bar for releasing, thereafter the system pressure up to 320 bar can be connected
* Application in wet or dry operation possible
* Several friction faces
* Less residual torque in open condition
* Smallest dimensions with high torque
* High heat capacity
* Requiring less maintenance
* Simple handling
* Single and double bearing
* Sealing face wear-resistant and corrosion-proof
* Variety of executions to catalogue D 227
|
|
Series 1EB Spring Applied Electromagnetically Released Brake
These brakes are used as motor brakes, let it be servo motors, or any other motors for any application, including winches and cranes.
They are designed for dry use. They are engaged by a disc spring and disengaged by a DC Voltage. The hub is fitted to the shaft which is being braked.
1EB Features
* Spring-applied ensuring engagement in the event of a power failure
* Design configuration is particularly suitable for external mounting, simplifying retro-fitting to existing machinery
* Only the hub and friction disc rotate, minimising rotational inertia
* Efficient magnet design reduces power consumption and heat generation
Typical Applications
* Printing machinery
* Textile machinery
* Material handling
* Conveyors
* Packaging machinery
|
|
|
|
|
|
Park Brakes
Hydraulic - SAHR (Spring Applied Hydraulic Release)
Brake Series / Application :
DXP195 Articulated dump trucks
FCP RV chassis, School buses, On-highway vehicles
G1 Front-end loaders, Mining vehicles, Other construction vehicles, Industrial equipment
G2 Construction equipment, Mining vehicles, Industrial equipment
G6 Off-highway construction equipment, Mining vehicles, Industrial equipment
HMB Multi-Disk Wet Skid steers
PD1134 Front-end loaders, Construction vehicles, Industrial cranes, Underground mining equipment
PD1591 Front-end loaders, Underground mining vehicles, Industrial vibratory rollers, Industrial cranes, Lift trucks, Dump trucks, Compactors, Reach trucks, Tow tractors
PD1599 Oil well pumping units, Industrial vibratory compactors, Underground mining vehicles
SA-7000 HP Rough terrain cranes, Front-end loaders, Backhoe loaders, Other construction vehicles, Underground mining vehicles, Agricultural machines, On-highway vehicles, Industrial equipment
SA-7000 LP Graders, Wheel loaders, Other construction vehicles, Underground mining vehicles, Agricultural machines, On-highway vehicles
SCL15 Industrial equipment
SCL25 Articulated dump trucks
SCL34 Mining shovels, Winches
SCL50 Mining vehicles, Mobile construction equipment
SCL57 Mobile construction and mining equipment
SCL69 Mobile construction and mining equipment, Agricultural machines, Logging industry vehicles
SCL70 Large surface mining haulage trucks
|
|
