The water and powder mixer is composed of main machine boby and centrifgal pump water wheel,which are vertically installed.Through a double-layer wall pipe,the liquid materials and solid materials are separately pumped in,which can prevent them from agglomeraling before entering into the main body. When the liquid enters into the main machine body of mixer at high speed,vacuum will produce in the center of water wheel to suck the solid materials. The soild materials will be evenly sucked in through the regulation of valve under the doukou tank.It has brief design and multiple functions.lt can rapidly and evenly mix multiple solid materials without contacting the air.The mixing is enough and the product can be recycled. Under some conditions,use"online" and there is no need for recycling.Sanitary design and clamp connection with convenient assembly and disassembly.No need to dismantle any device during the cleaning and disinfecting.Mechanically close the valve to keep the inside sanitation.40°standard doukou tank.Specialty designed for manufacturers of dairy products and beverages,the equipment can be used to mix solid
materials and liquid materials in the production of syrup,Sorbitol,glucose,lactose and its side products,in the reduction of milk powder,in the solving into milk with cocoa powder or white sugar.in the solving of whey powder,in the solving into water wtih flour and starch,in the production of salt water and in the preliminary mixing of yoghurt and other dairy products.Wilh advanced design.fine manufacturing，high production efficiency and durable use,it has obtained stale patent.
|
|
This equipment is composed of one ribbon at the periphery to bring up the product along walls.
It is sometimes associated with one screw type "Archinede" to optimize the brewing, when required.
|
|
|
YTRON-ZC powder disperser. Instantly wetting and thorough dispersing of extremely difficult to wet powders and concentrations of 50% and more, leading to highest yields in viscosity. Only a single pass is required to achieve a perfecly wetted product. Typical products to be processed are difficult to wet thickeners and binders such as CMC, Guar, Locust Bean Gum, Alginates, Carrageenan, Pectin, Xanthan Gum as well as other polymers with a tendency to form lumps such as Polyacrylic Acids, Carbopol ® etc. The wide range of YTRON-ZC types ensures that specific requirements from lab size up to production size for incorporating of more than 5.000 kg/h of powders is possible using the standard production range.
|
|

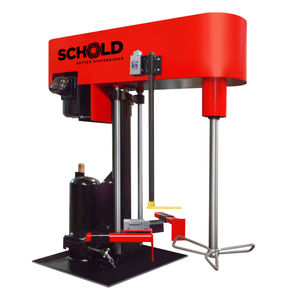

Conventional High Speed Dispersers consist of a driven vertical shaft and a high shear disk type blade.
The blade rotates at up to 5000 fpm and creates a radial flow pattern within a stationary mix vessel. The blade creates a vortex that pulls in the contents of the vessel to the blades sharp edges. The blade surfaces then mechanically tear apart solids thereby reducing their size, and at the same time dispersing them among the liquid used as the carrier fluid.
High Speed Dispersers are ideal for dispersions that are up to a maximum of approx. 50,000 centipoise. When used in conjunction with Multi-Shaft Mixers, they can be useful to several hundred thousand centipoise.
|
|
|
|
|
|
ULTRA-TURRAX®-machines for batch processing are available in 3 different series. All 3 machine series are distinguished by simple, rugged design. Parts which come into contact with the product are made of chromium-nickel steel in accordance with material specification no. ss 316 Ti.
With UTC-machines the stator is fixed to the stationary shaft tube.
For the UTS variant the stator is connected to the motor with 3 rods and a mounting flange. For machines working under pressure or vacuum as well as for the UTS-type the mounting flange is made of ss 316 Ti. For applications without pressure the flange is made of grey cast or aluminium, painted with a chemical resistant lacquer.
UTC and UTS-machines are suitable for installation on open or closed vessels. The preferred installation positions are vertical with an inclination or only vertical out of centre or lateral with an inclination.
With UTE-machines the three-phase motor, the rotor shaft and the flange for fixing of a stator are combined to one unit by means of a lantern. The mechanical seal is also integrated into this unit. These machines are designed for bottom entry. The bottom should be designed as dished bottom.
|
|
The High Viscosity Disperser is a useful mixer when slow speed-high viscosity paste mixing is required.
The LSD Model includes an air/oil hydraulic lift to raise and lower the agitator from a mix can. The agitator is either a slow speed Turbine or a Bow Tie design. As the agitator rotates in the batch of material, it gently belends the product until full homogenity occurs. Wetted parts are normally of stainless steel and drives are designed for variable speed operation using a Variable Frequency Inverter.
|
|
Within the same construction size all dispersing machines of the series 2000 are far reaching convertible. For example from an UTL to a DR-machine, or vice versa. Constant parameters for speed and geometry of the generator allow an exact scale up. All machines are suitable for CIP respectively SIP design, materials and quality of surfaces are in accordance to the recommendation of FDA and EHEDG.
Dispersing tools are interchangeable within one construction size. The drives can be adapted to the respective conditions such as quantities, power consumption, protection type or Ex-protection.

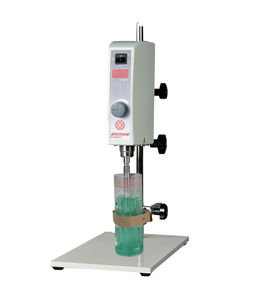

For working in the laboratory scale the Labor-Pilot is the right machine. It is a single-stage dispersing machine, which by means of different modules can be extended to a three-stage dispersing machine, a dispersing machines for mixing powdery materials into liquids or to a colloid mill.
|
|
Horizontal Powder Mixers
VARLIK horizontal drum mixers provide best blends which is the main quality factor of product.
Each part of mixers is result of long term research and experience. Improved bearing and housing, materials in high resistant against abrasion, short mixing time, best discharging, powerful and secure driving system? all serve you over the years.
Additionally turbo agitators, automatic sample taker, hydraulic clutches are available.
|
|
The IKA® MHD-Plant serves for continuous "Inline mixing and dispersing" of powders into liquids.
Especially the quick and complete wetting of the solids (powders or granules) guarantees for a very good homogeneity and an extremely shortened duration of the process.
The mixing components are fed by means of a positive-displacement pump for liquids and a dosing device for solids, available with or without desaggregation device at your choice. The dust-free dosing makes working with this plant very comfortable.
On request the plant can be equipped with a complete measuring and control technique for automatic operation.
These mixing plants are available with total capacities of up to 40 t/h. With reduced flow capacity a solids content of up to 80% can be reached. In that case the ready mixed product is a highly viscous paste.
The MHD-Plants are available in 6 different sizes.
|
|
Parimix is specialised in powdery and liquid products mixing.
The continuous mixer is specially conceived to offer solutions for a regular and sustained production (flows up to 40 m3/h) or a less important production but requiring a constant or high quality mixing.
The discontinuous mixer (turbo mixer) offers solutions for multiple formulations, varied recipes, low or important outputs.
|
|
|
|
|
|
The first choice for demanding unit operations
- Solid-Liquid mixing
- Deagglomeration
- Micro-dispersing
- Dissolving
- Homogenizing
- Paste production
Applications: Mixing pastes, breaking down agglomerates dissolving, dispersing, emulsifying and homogenizing viscous materials, such as primers, paints and printing inks, pigmented coating compounds, plastic pastes, ointments, creams photographic emulsions, adhesive and resin solutions, etc.
System Advantages: Outstanding dispersing performance and uniform fineness through intensive shearing action of the new rotor-stator impeller, featuring a patented external pinned ring rotor. Almost vertical flow of the circulating materials effects rapid entry of fine powdery constituents into the batch. Drastically reduced mixing times. Minimum heating of the batch. Low energy consumption. Simplified operation and processing. Simple servicing and maintenance. Central control panel with indicators for all machine functions. Automatic central positioning of change can.
The newly developed Drais Disperser ideally combines the proverbial Drais sturdiness and longevity with innovative process technology and control features. In three machine sizes drive powers of 11 to 132 kW are supplied for vessels of 150 to 6000 liters. The speed variation by electronic frequency inverter control is included as standard feature even in the basic equipment.
|
|
