OEM sensors in plastic housing for large quantities.
ASM Cable Actuated position sensors are made of a specially-manufactured and calibrated measuring cable and a highly accurate graduated drum. They are very easy to install and are ready for use in a very short time.
Technical advantages:
Low Cost
Compact outline
Plastic housing
Measuring ranges:
- WS31: 250 mm / 500 mm
- WS42: 750 mm / 1000 mm
Resolution essentially infinite
Mounting selectable between mounting brackets or spacer nuts with internal thread
Zero position adjustable ±45°
|
|
|
|
|
|
With our new Laser-Distance Sensors DLS-B you measure absolute distances up to 500 meters. Thanks to state of the art laser technology the DLS-B device measures with a precision of 1.5 millimeters. It represents a cost efficient solution even at extreme environment temperatures as low as -40° C.
The DLS-B is an optical measuring device. You can measure, maintenance-free, distances on natural and reflective surfaces. You determine positions on objects difficult to access or with very high surface temperatures. Just as well you can measure distances in an aggressive environment in an easy and accurate way.
Serial, analog and digital interfaces are standard features for the complete DLS-B product line. This enables you to easily connect the DLS-B to a control system (SPS, IPC or PC)
The DLS-B device runs in a “Stand-alone-mode” and independently executes all programmed functions. Thanks to the flexible range of functions an external display can be connected directly to the DLS-B device via interface RS232 or RS422. Via a digital input, measurements can also be activated from an external button or switch.
For easy configuration of the DLS-B devices, the necessary software is at your disposal
|
|
|
|
|
|
Magnetostriction - A Milestone in Measurement Technology
The heart of MTS sensors is the ferromagnetic measuring element, also known as the waveguide, and a movable position magnet that generates a
direct-axis magnetic field in the waveguide. When a current or interrogation pulse passes through the waveguide, a second magnetic field is created radially around the waveguide. The interaction between the magnetic field in the waveguide and the magnetic field produced by the position magnet generates a strain pulse which travels at a constant ultrasonic speed from its point of generation, the measurement point, to the end of the waveguide where it is transformed into an electric pulse in the sensor element. The resulting signal is processed by the specialized electronics of the Temposonics sensor. With our extensive know-how of ferromagnetic materials, magnetic effects and ultrasonic processes, MTS remains unrivalled in performance standards for non-contacting position measurement of the highest precision.
|
|
|
|
|
|
Magnetostriction - A Milestone in Measurement Technology
The heart of MTS sensors is the ferromagnetic measuring element, also known as the waveguide, and a movable position magnet that generates a
direct-axis magnetic field in the waveguide. When a current or interrogation pulse passes through the waveguide, a second magnetic field is created radially around the waveguide. The interaction between the magnetic field in the waveguide and the magnetic field produced by the position magnet generates a strain pulse which travels at a constant ultrasonic speed from its point of generation, the measurement point, to the end of the waveguide where it is transformed into an electric pulse in the sensor element. The resulting signal is processed by the specialized electronics of the Temposonics sensor. With our extensive know-how of ferromagnetic materials, magnetic effects and ultrasonic processes, MTS remains unrivalled in performance standards for non-contacting position measurement of the highest precision.
|
|
|
|
|
|
POSIC presents a new type of inductive position sensor for the measurement of gears, disks and linear bands. The IS2201 sensor consists of a differential microcoil transformer that is integrated on a silicon chip together with the associated electronics, leading to an extremely robust and very compact sensor.
The differential inductive sensor has a high immunity against magnetic and electromagnetic perturbations, does not need a bias-magnet and works with ferromagnetic (iron, nickel) as well as with electrically conducting (aluminum, copper, brass) gears and discs. These features make the microcoil sensor ideally suited for applications where magnetic sensors fail or show reliability problems.
Typical applications are in the motion control domain with magnetic actuators like brushed and brushless motors, voice coil actuators etc. Markets served include industrial, automotive, robotics, medical, instrumentation and office equipment.
The IS2201 sensor comes in the form of a 8.7 x 6.2 mm PCB with two half-holes for alignment/fixation, ready for assembly in e.g. an electric motor or an industrial machine.
The IS2201 sensor as well as the corresponding evaluation kit are available from stock.
|
|
Non-contact capacitive displacement sensors of the capaNCDT series measure distances, lengths, dimensions, or positions of any electrically-conducting targets (e.g. metals). A linearisation function is integrated for measurement against insulator materials.
A wide range of sensor and electronic unit options allows optimum solutions even for the most demanding measurement tasks. The product range includes custom design versions for specific customer requests as well as low-cost versions for OEM applications.
|
|
|
|
|
|
The confocal chromatic measurement system, optoNCDT 2401, consists of a controller and a sensor. A fiber optical cable, which can be of almost any length, connects the two components. This system has no moving components and is therefore wear free. It can also be used in ATEX / EX environments. The system consists of a LED based controller a fiber optical cable and one of the sensor heads of the series 2400/2401 or the world first miniature sensors series 2402. This unique measuring principle enables displacements and distances to be measured with high precision and extreme
spatial resolution. Both diffuse and specular surfaces can be measured. With
transparentmaterials a one-sided thickness measurement can be accomplished along with the distancemeasurement. Since the emitter and receiver are arranged in one axis, shadowing is avoided. In contrast to conventional triangulation sensors the optoNCDT 2401 system is able to measure in narrow apertures, small gaps and cavities. The series optoNCDT 2402 is also with radial beam deflection for bore hole inspection available.
|
|
Precision Displacement sensor CD4 series
High resolution Linear image sensor for high accuracy displacement measurement.
Electronic shutter controls receiving light level to minimize error. 7 models with different
spec are available for different application. Amp and sensor head are separated and the head
is small enough to install on movable part of system and limited space.
|
|
|
|
|
|
POSIC presents a new type of inductive position sensor for the measurement of gears, disks and linear bands. The IS1101 sensor consists of a differential microcoil transformer that is integrated on a silicon chip together with the associated electronics, leading to an extremely robust and very compact sensor.
The differential inductive sensor has a high immunity against magnetic and electromagnetic perturbations, does not need a bias-magnet and works with ferromagnetic (iron, nickel) as well as with electrically conducting (aluminum, copper, brass) gears and discs. These features make the microcoil sensor ideally suited for applications where magnetic sensors fail or show reliability problems.
Typical applications are in the motion control domain with magnetic actuators like brushed and brushless motors, voice coil actuators etc. Markets served include industrial, automotive, robotics, medical, instrumentation and office equipment.
The IS1101 sensor comes in the form of a 9 x 6.8 mm PCB with alignment/fixation holes, ready for assembly in e.g. an electric motor or an industrial machine.
The IS1101 sensor as well as the corresponding evaluation kit are available from stock.
|
|
|
|
|
|
WS position sensors capture position measurement either absolutely or incrementally, using measuring cables made from stainless steel. Using different constructions, and with measuring lenghts of up to 60,000 mm, the ultra-simple, sturdy, space-saving designs make these sensors the ideal basic solution for many length and positional measuring tasks.
Technical advantages:
Fast and easy to assemble, only minimal linear guidance required, compact design, resistant to vibration and shock, high protection category to IP68, linearity of up to 0.01%, high measuring speed upt to 20 m/s, mearuting lenghts of up to 60,000 mm, many output types.
WS positions sensors ensure reliable operation in many sectors of automation, process engineering, industry and research, e.g. in handling systems, circular saws, printing presses, aircraft testing, automobile testing, elevator technology, conveyor belt technology, warehousing technology, local transportation vechicles, tunnel-boring machinery, wind power plants, rehabilitation technology, medical engineering, patient beds, etc.
|
|
Stout, easy to install, highly protected against environmental agents: linear wire transducers are the ideal solution for those industrial applications which require high accuracy and measuring length up to 12 m.
ELAP proposes two types, with potentiometer (series HPS) or encoder (series HLS) output, and three different sizes (S, M, L).
For all the types the transducer consists of a strong stainless steel wheel covered with nylon.
- Stout
- Easy to mount
- Measures from 200 mm to 12 m
- High protection degree
|
|
Draw-wire displacement sensors measure linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal. Measurements are performed with high accuracy and high dynamic response. The use of high quality components guarantees a long life cycle and high operational reliability. MICRO-EPSILON offers a wide selection of draw-wire displacement sensors with numerous types of output signal. This means that each customer has the opportunity of selecting the best sensor for his application. Choose between analog and digital outputs to optimize your individual measurement task. OEM-solutions for
customized integration possible. wireSENSORs are application friendly due to the excellent measurement range to size ratio and the fact that they are easy to mount and use. The rugged sensor construction ensures reliable operation even under difficult ambient conditions. Measuring ranges between 50mm and 50m are available.
|
|
|
The DLS series of draw-wire linear position sensors are a cost effective way to measure linear displacements up to 5000mm in the most demanding industrial environments.
|
|
|
SIKO wire-actuated encoders are a perfect measurement solution thanks to their state-of-the-art, fail-safe technology and effortless integration. They are suitable for a wide range of measurement tasks under very varied conditions. Their sturdy design and wire types guarantee an exceptionally long, maintenance-free service life.
|
|
The electromagnetic sensors induSENSOR are based on the well-proven inductive principle. They are employed both in single and large-scale applications.
The measurement ranges of the displacement transducers extend from a few tenths of a millimeter to over 600 mm. The actual measurement acquisition takes place without contact and wear free.
|
|
|
The non-contact displacement sensors in the optoNCDT series operate according to the triangulation principle. Different models are suitable depending on the requirement. From the low-cost model to the ultrafast precision sensor. Measuring ranges from 2 mm to 750 mm are available. The product group is distinguished by resolutions from 0.03 µm to 300 µm and linearity between 1 µm and 1200 µm. Sensors for special surfaces such as shiny metals round off the range. The many times proven function for real-time surface compensation of changing reflection characteristics, RTSC, provides maximum signal quality in the market.
|
|
Optex FA Cost effective Laser Displacement Sensor CD33 series
- CD33 is designed ideally for built-in use with OEM machines.
- Analog output (4-20mA or 0-10V) and 2 transistor control outputs are available.
- Stand-alone design capable of direct operation without controller.
- RS422 I/F model is available for every measurement range.
- Line up : 26-34 mm, 40-60 mm, 65-105 mm, 60-180 mm
- One of the most cost effective laser displacement sensor in the world.
|
|
CD5 series is the highly balanced laser displacement sensor with high resolution, high linearity, high stability and high operationality.
Range: 30mm, 85mm, 350mm, 500mm, 2000mm for diffuse type
25mm for specular type
Linearity: +/-0.05%F.S. for 85mm type, +/-0.08%F.S. for 25/30/350/500mm type, +/-0.1%F.S. for 2000mm type
Resolution: 0.02um(25mm type) ~ 10um(500mm type) ~ 30um(2000mm type)
Up to 3 sensor heads can be connected to one controller.
Using 3 result from 3 sensor heads, you can calculate variously, for example: levelness, contortion, warpage, area, capacity, thickness, etc.
Sensor head can measure by it self and controled through RS422 without controller.
16 Banks are available. 5 outputs are available with individual threshold.
Easy setup by backlit ten-key.
|
|

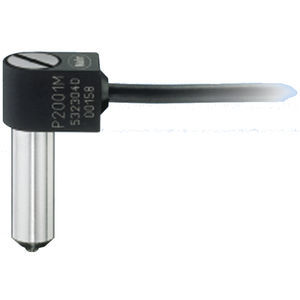

Non-contact displacement sensors using eddy current technology measure distances, displacements, or positions of any electrically-conductive target. These objects may have both ferromagnetic and non-ferromagnetic properties. Due to the high insensitivity to oil, dirt, dust, moisture, interference fields, etc. the eddy current principle is ideally suited to applications in harsh industrial environments.
Eddy current sensors designed for industrial use in factory automation, for machine monitoring, for inspection and for measuring and testing.
|
|
|
Draw wire sensors are suitable for measuring linear and non-linear motions. The compact style allows flexible and easy installation. Due to the small size, precise measurement is possible even in difficult applications.
|
|
|

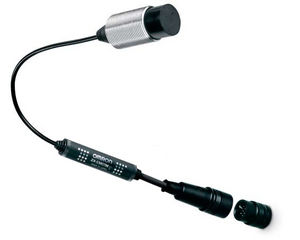

Analog displacement sensors output a linear voltage or current signal which changes in proportion to the distance from the target. The characteristic curve is linear over the entire working range. These sensors are ideal for distance measurement, for sensing rotating objects, detecting longer travel by means of lateral approach or for detecting different materials..
|
|
High resolution, noncontact, capacitive sensors.
Available in compact, embedded systems or modular cabinets.
Ranges: 10µm to 10mm
Resolution: as low as 0.4nm
|
|
|
The Accumeasure 9000 is Ultra-high precision capacitive gaging system offering nanonmeter accuracy. It is ideal for a wide variety of displacement, position, vibration and dimensional gaging applications.
|
|
OPTIPACT Optical length and velocity sensor
- Contact-free optical measurement principle
- Measurement in 2 orthogonal axes
- Compact industrial design (120mm x 47,5mm x 42mm)
- Velocity range up to 4 m/s
- Detection of standstill and direction of motion
- Allows deviation from nominal working distance
- Suited for rough and smooth surfaces
- Measurement uncertainty <1 %
- Self adapting to measurement object
- Long life LED illumination
- Programmable via Graphical User Interface
- Protection class IP 65
- Price for one piece: < 1000€
|
|
Magtrol's line of Displacement Transducers provide contactless measurement of absolute piston position in hydraulic and pneumatic cylinders and other applications. Their robust construction, large insensitivity to shocks and very long life (due to no moving parts and therefore no wear of components) make them both cost effective and very reliable. Magtrol transducers offer a wide range of operational temperatures and admissible pressure resistance for even the most demanding applications.
The transducer provides a direct 4-20 mA output signal corresponding to the measuring range, as well as VDC temperature output. As an option Magtrol offers the CST 113 Signal Converter, which allows the complete chain to be calibrated according to the specific needs, either in current or voltage output.
|
|
|
The Accumeasure 9000 is Ultra-high precision capacitive gaging system offering nanonmeter accuracy. It is ideal for a wide variety of displacement, position, vibration and dimensional gaging applications.
|
|
|
|
|
|
|
Wilcoxon Research adds a displacement sensor to its popular PC420 Series of 4-20 mA vibration sensors. The PC420D is the first IEPE displacement transducer and 4-20 mA vibration transmitter packaged as a single sensor. The PC420D sensor outputs a 4-20 mA signal based on the displacement level of the machine vibration. The 4-20 mA output is determined by first measuring the peak to peak vibration, then converting that level to a 4-20 mA signal. Because balance components tend to dominate the vibration spectrum when viewed in displacement units, the PC420D sensor is able to track the balance component of machines, one of the most sought after parameters. Integrating this signal into an existing PLC, DCS or SCADA system simplifies real time health monitoring because vibration, formerly considered too complex, can now be trended in easily understood units of mils or millimeters of displacement. Measuring displacement can unmask hidden problems and provide data in easy to understand measurement units. Instead of converting to displacement after the measurement is taken, a common practice in diagnostic vibration monitoring systems which can introduce errors known as “ski slopes”, the PC420D sensor integrates at the measurement point for the cleanest vibration data. The PC420D is ideal for condition based monitoring and predictive maintenance of motors in the speed (frequency) range of 300 rpm to 60,000 rpm (5 Hz to 1,000 Hz). The PC420D can be widely used to monitor balance of plant instrumentation such as pump motors, blowers, fan motors, compressor motors, and a wide variety of machine tool drive motors to significantly reduce failure rates in the field.
|
|
- Voltage output, Current output or Potentiometer output
- High repeatability, Can be combined with incremental, absolute or fieldbus encoders
- High repeatability, Can be combined with incremental, absolute or fieldbus encoders
|
|
DIN Rail mounted electronics,
Aluminum encased electronics,
Edge-connector PCB electronics for OEM use.
Ranges: 0.5mm to 15mm
|
|
DIN Rail mounted electronics,
Aluminum encased electronics,
Edge-connector PCB electronics for OEM use.
Ranges: 0.5mm to 15mm
|
|
|
|
