Whatever you want from a Bulk Materials cut-off valve you’ve got it with Clyde Materials unbeatable Dome Valve® - the cost effective valve solution.
The Clyde Dome Valve®, widely regarded as the original and best material handling valve in the world, offers exceptional life from only a single moving part. The Dome Valve® is recognised as a low maintenance, long life solution that can last at least 1 million cycles between maintenance inspections. It has the ability to cut through static or moving columns of material and is pressure-tight, ensuring a consistent pressure tight seal is created when the valve is in the closed position, but in the open position it provides an unrestricted full bore opening for the best product flow characteristics possible. The Dome Valve® can also be used as a line, vessel or reactor isolation valve.
The Dome Valve® enhances other technologies from Clyde Materials Handling, a leading provider of pneumatic injection, conveying, materials handling & vacuum cleaning solutions.
The solutions we create for our customers generate many benefits and are backed by three decades of domain knowledge, expertise and a track record of generating exemplary success.
Dome Valve® sold in the United States under the trade name ‘Spheri Valve’
|
|
- Size Range: 15 - 50 mm
- Service Operation: Diversion, Mixing, Blending
- Materials: Stainless Steel, Carbon Steel
- End Connections: Screwed, Buttweld, Socket weld, Sanitary and others
- Service Application: Water, Oil, Steam, Gas, Thermal Fluid, Chemicals and others
- Temperatures: -30°C to 300°C
- Operation: Manual or Actuated
|
|
|
Gericke offers a comprehensive range of different diverter valves for pneumatic conveying systems. Starting with simple flat diverter valves, Gericke offers for dense phase conveying systems plug diverter valves and for hygienic applications pipe selector diverter valves type PS. The PS valve is suitable for a wide range of materials and all types of pneumatic conveying systems up to 4 barg. FDA approved materials to meet stringent hygiene requirements. Fast clean version to allow frequent and safe disassembly, gas tight seal which remain inflated even during change along. This valve is suitable for both diverting and converting modes.
|
|
3-way Poly Diverter KZValve, Side Load with KZCO EH3 low voltage actuator
VALVE FEATURES:
- 3-way Side Load Diverter valves available in 3/4" to 1 1/2" FP with threaded outlets
- Threaded or QHP hairpin connections available
- 150 PSI MAX (poly valve)
- 300 PSI MAX (nylon valve)
- 21 GPM @ 1CV
- Ball and Stem: 316 SS
- Valve body available in POLY or NYLON
- Seat: Virgin PTFE
- Stem Seal: Dual VITON O-Ring
- Body Seals: EPDM
ACTUATOR FEATURES:
- High quality, durable actuator housing rated NEMA 6P for waterproof applications and NEMA 7D for Ignition Protection applications
- 12/24 VDC and 24 VAC operation
- Tough aluminum gear box with metal gears
- Actuator housing available with "indicator flag" or with "blank" lid
- Waterproof wire plug connectors
- Private labeling available
Consult our Engineering or Sales staff for application assistance.
|
|
A Multiport selector manifold is a multiport valve that is used to replace traditional production and test oil field manifolds. It is sometimes called a ManiFlow diverter valve (MDV).
This valve replaces multiple valves and extensive piping in oil field applications and as a result significantly reduces operating costs.
The SchuF MDV has up to eight inlets, a test outlet and one main or production outlet. Typical sizes are from 1 inch (DN25) to 12 inches (DN300) and up to ASME 900 pressure class.
|
|
|
SchuF designs and manufactures a range of standard and special diverter valves. Many of our multiport diverter valves are exclusive designs for critical processes and often for severe applications. They are widely used in the PTA, Petrochemical, Polymer & Plastics, as well as Refinery industries.
|
|
Plug type diverter
- Pressure shock résistant up to 10 bar*
- Two channel design
- Minimal maintenance
- Quick clean version available
- Compact form
- User friendly design
- Nomoving parts on the outside
- Pressure up to 3 bar g with static seals
- Sizes 50-150 up to 6 bar g with inflatable seals
|
|
|
DP Plug Diverters are used on all types of pneumatic systems because of their simplicity and reliability. The machined plug with a bored "Y" through the center rotates in the machined body to divert flow. On-the-fly diverting is possible under many conditions. Available in sizes from 3" to 12" in cast iron, cast aluminum or cast stainless steel.
|
|
Diverter Valves - Conveying Diverters
Designed to meet the pneumatic conveying industry's requirement to re-route powder, pellets or granules from discharge points to another with minimal pressure drop and high sealing efficiencies.
Rotolok manufacture a full range of Flap, Plug and Weigh Diverters, which cover all applications in the pneumatic conveying industry to re-route powder, pellets or granules from one discharge to another.
For standard two way diversion applications, Rotolok specify the Flap Type Diverter Valve Range.
|
|
90° Diverter
Series 229 & 237
Compact, Abrasion Resistant
The Dynamic Air 90° Diverter is a reliable, low cost, compact and simple design of heavy duty construction. A positive rubber-to-rubber seal is created by the internal flapper which presses against the unused port. The seal improves as the conveying pressure increases, ensuring better performance against leakage in even the most severe dry bulk solids applications.
Features
Abrasion resistant
Positive sealing to 100 PSIG
Full port design
Economical
Compact, low profile
Low maintenance
Position sensors standard
|
|
Fills hoppers via cyclonic separation in the inlet load tube and
exhausting air in the outlet tube.
Valves can be stacked on top of each other allowing multiple sources to multiple hoppers.
Standard Features
- Stainless steel material contact points.
- Lightweight aluminum frame, corrosion resistant.
- Positive blade lock (PBL) between blade and cylinder rod.
- Active compression seals (ACS).
- Internal magnetic piston cushioned air cylinder.
- Stacking design for multiple conveying lines.
- Rated for 82oC (180oF).
|
|
Features:
- Seal rings at each port
- Full round port pass way design
- Heavy duty body design for pressure surges up to 90psi (6.0bar)
- Manual or pneumatic operated
- Heavy duty pneumatic actuator with integrated mechanical stops
Application:
- Suitable for granular and pellets
- For distributing or merging of product flow
- For differential pressure up to 60psi ( 4.0 bar)
|
|
|
|
|
|
The V-Diverter valve is used especially for diverting the bulk material flow in pneumatic dense- and dilutephase conveying systems.
The patented design of the plug enables application in any conveying direction.
Design characteristics
- suitable for pneumatic dense- and dilute-phase conveying systems
- smooth and gap-free transition due to patented design of inlet and outlet
- single channel design avoids plugging
- high dust and pressure tightness due to sealing pressing against the housing
- pressure tight from -1.0 to +6.0 bar (g) gauge to the outside and the non activated leg
- high reliability based on maintenance-free actuator
- solid temperature range from -20 to +120°C and ambient temperature range -20 to +40°C for standard design
- no additional safety device necessary as there are no moving parts outside the valve
- easy installation in all orientations because of integrated cast flanges and supports
- easy subsequent change of complete drive from left to right side of diverter valve
- easily visible direction indicator of plug orientation
- direct control of plug orientation by proximity switches
- all bolts in stainless steel
- low total weight
- defection angle 45°
|
|
Bulk flow has to be distributed an collected. For that diverter valves with the highest demand on functionality and operational safety are used. For product pureness deposit-free and CIP capable diverter valves are indispensable.
Their maintenance-free operation is a deciding factor for the profitability of the plant. Diverter valves from Coperion Waeschle fulfil these numerous requirements even at high pressure and temperature ranges.
|
|
|
|
|
|
The M-Diverter valve is used especially as a distributor of bulk materials.
The geometric design of the plug enables application in any conveying direction diverting or merging of the material flow from four lines to one or reversible.
Design characteristics
- suitable for pneumatic dense- and dilute-phase conveying systems
- smooth and gap-free transition due to patented design of inlet and outlet
- single channel design avoids plugging
- high dust and pressure tightness due to sealing pressing against the housing
- pressure tight from -1.0 to +6.0 bar (g) gauge to the outside and the non activated leg
- high reliability based on maintenance-free actuator solid temperature range from -20 to +120°C and ambient temperature range -20 to +40°C for standard design
- no additional safety device necessary as there are no moving parts outside the valve
- easy installation in all orientations because of integrated cast flanges and supports
- flanges easy accessible; no special connections required
- easily visible direction indicator of plug orientation
- direct control of plug orientation by proximity switches
- all bolts in stainless steel
- low total weight
- standard design with electrical connections in IP 65
- defection angle 4 x 45°
|
|
|

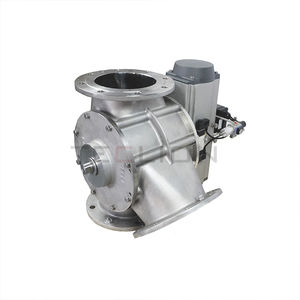

Twin-Outlet Diverting Rotary Valve combines the function of a rotary feeder/airlock and diverter valve in one simple mechanism. Select left or right discharge by changing rotor direction via motor and reversing switch. Only one moving part. Very compact. Exclusive tapered rotor allows rotor gap to be easily adjusted. Heavy cast aluminum, iron or stainless steel valve body. Adjustable packing gland shaft seals -- purge available. Heavy duty permanently sealed outboard roller bearings. Ideal for vacuum or pressure conveying systems. Available in five sizes with capacities up to 2,500 cubic feet per hour.
|
|
|
DG Gravity Diverters for gravity flow applications. Mild or stainless steel construction. Standard sizes from 4" to 12" and up to 24" custom designs. Round or square flanges. Optional internal dust seals. Standard leg angles (measured from vertical) are: 0°/30° and 30°/30°, but almost any angle can be accommodated. Available in 2-way and 3-way designs.
|
|
Standard Features
- Stainless steel material contact points
- Dust tight seals
- Lightweight aluminum frame, corrosion resistant
- Choice of stainless, aluminum and carbon inlets and outlets
- 60o configuration standard -45o optional
- No internal ledges for product to collect
- Rated for 82oC (180oF)
|
|
The PRS6 is a three-way pressure reducing valve that has been developed to give reduced pressure in a particular part of the hydraulic system. The valve maintains the secondary pressure setting constantly, regardless of pressure variations on the primary side. Common applications include pilot circuits in hydraulic and electro-hydraulic servo systems.
Compact and easy to install
Easy to adjust within respective pressure range
Can be factory set and sealed to prevent unauthorized pressure changing
Highly suited for use as a reducing valve in pilot circuits where the pilot pressure is taken from the main circuit
|
|
80000 Series
Masoneilan's 80000 Series 3-way control valve is designed for either combining or diverting flow applications. It provides large flow capacities with low-pressure recoveries, using a flow-to-open plug design.
Consolidated Pressure Relief Valves
Dresser Consolidated is a worldwide leader and full service provider of dependable pressure relief valve solutions. We design, engineer, manufacture, market and service the critical equipment that forms the backbone of pressure relief management throughout industries across the world.
|
|
|
These manifolds are generally used in differential pressure application with pressure gauges, pressure switches & pressure transmitters. Two isolating valves of 1/2" NPTF inlet & out let & one equililizing valve is provided in a single unit 1/4" NPTF vent port is provided as an option.
|
|
» high cycle life
» fast actuation
» compact design
» maintenance free
» bi-directional flow
» pressure balanced
» back pressure tight
» installation position optional
» valves operate form 0 bar upward
» application with contaminated media
|
|
|
|
|
|
The MV-11 Manual 3 Way Diaphragm Valve is designed for use in high purity semiconductor applications. It is also ideally suited for ultra-pure water and aggressive chemical or gas applications. The design utilizes a molded high purity PFA body with precision machined sealing areas. One piece machined modified PTFE diaphragms are also utilized for excellent flexibility and life. A full 1/2" orifice provides maximum flow capability in a compact package.
FEATURES:
* Precision machined diaphragm manufactured from the latest technology modified PTFE. Provides over five times the flexural life as compared to conventional PTFE. Tongue and groove seal for positive diaphragm to body seal. Benefits are high cycle life, lower replacement costs and less downtime
* PVDF coated stainless steel spring reduces effects of corrosive environments
* Submergible option isolates all valve components from the external environment. Benefit is valve remains functional while operating in wet or gaseous corrosive environments
|
|
