Megadoor Special Doors are designed for individual customer needs, normally extreme size requirements. Doors can be supplied in widths up to 50 m and heights up to 100 m. In multiple door design, dimension possibilities are almost unlimited. Numerous reference objects are available on request.
Door leaf thickness
290 or 580 mm. In multiple door design daylight widths are unlimited and daylight height up to 80 m.
Opening and closing speed
Up to 0.2 m/s. Door leaf can be dimensioned for almost any windload.
Colours
White, blue, red, grey, yellow, tan, green and translucent white. Windows available as option. A number of automatic systems for opening and closing are available.
|
|
Megadoor S800 is the door model for medium-sized openings in industrial environments where doors are exposed to moisture, cold, heavy wind loads or dust.
Door leaf thickness S800: 100 mm.
Designed for daylight width up to 8 m and daylight height up to 12 m. Can also be supplied in a self supporting construction up to 8 m daylight width.
Opening and closing speed:
0.2 - 0.3 m/s. Special model available designed for double opening speed 0.4 - 0.6 m/s.
Colours:
White, blue, red, grey, yellow, tan, green and translucent white. Windows available as option. Heat resistant fabrics available as option. Automatic systems for opening and closing.
|
|
Your fast pace and rugged workplace demands tough doors that give you peace of mind. Year after year, receive trusted performance with miximum up-time and minimal maintenance. TNR's team gets you the door you need, especially for applications with:
* Rugged, harsh environments
* High pressure and windload
* Door impact concerns
* High traffic conditions
|
|
EFAFLEX aluminium high-speed folding doors are predominantly employed as exterior doors for thehall exit. They provide protection against noise and draughts; their fast opening and closing action saves on time and energy, and possess impressively good heat retention and sound proofing
properties. Where designing modern building exits, aspects like surface finish, the division of the leaves, rail arrangement, colour, bracing, insulation and much more can be individually adapted to match the façade in question. Clear acrylic glass, if desired double-glazed, permits daylight to penetrate the building. A fully automatic locking system which engages automatically after every closing action offers the best protection against intrusion. Reliable, economical, safe, environmentally friendly…
|
|
EFAFLEX high-speed roll-up doors come in many different versions so that there is an individual, yet always tried-and-proven system solution for every conceivable set of requirements. All EFAFLEX high-speed roll-up doors are characterised by a virtual maintenance-free technology as part of a space-saving modular system. EFAFLEX-Collision Protection (EFA-EAS) is the intelligent option should you want to keep the consequences of a „crash“ to the bare minimum. If desired, stainless steel surfaces
made of V2A or V4A can be provided. The EL model range is an all-rounder aimed at the priceconscious purchaser seeking a respectable and reliable high-speed door at a favourable price. Because, in the end, perfect and precise functionality is the most economical way to go.
|
|
EFA-SRT-EC High-Speed Roll-up Door for wet and hygienic environment
The EFAFLEX “Easy Clean” (EC) series is well suited for all kind of internal transits in foodsupplying enterprises. The elastic curtain fully complies with the HACCP and FDA requirements. Of course, the whole door construction is built of stainless steel.
All critical door sections are well accessible for cleaning purposes. Because of its space-saving construction the EFA-SRT-EC High-Speed Roll-up Door can be mounted even under cramped construction conditions.
|
|
Model HDS - High Speed
Examples of Applications: manufacturing, food processing, automotive, bus transit stations, parking garages, postal, airports and railways.
* Suitable for applications up to 20 feet in width or height.
* Self-supporting steel mounting angle
* Knock-away double angle steel bottom bar for 10lb/ft with rubber loop and reversing edge
* Frame mounted thru-beam photoelectric sensor
* High Efficiency Heligear Head (HG) Operator with multi-function PLC panel
* Soft Start Soft Stop using Inverter technology
* Door speed of up to 60 inches per second
* Counterbalance spring assembly cycle rating of 100,000
|
|
REVOLUTIONARY: COMPLETELY NEW SPIRAL DOOR GENERATION
Therefore as the first and only producer in the world, EFAFLEX will as of immediately offer double walled insulation laths in thermally separated and insulated models for exterior high - speed doors – now in serial production.
The circular, continuous round spiral is the standard solution. Herein, the door blade is coiled up free of abrasion in a patented circular spiral above max. headroom. This guarantees a smooth and calm run and, moreover, preserves the brandnew appearance of the door over many years!
If the allowed freespace for the header is not sufficient, oval designs will be used. For highly limited space, a low header application is available.
The engineers at EFAFLEX have had a true stroke of genius together with the introduction of an active crash system (EFA-ACS) for solid (!) door blades. If desired, the new EFA-SST generation with the model “EFA-ACS-DS” can be provided with a double sided moving device for the lower door blade area.
The most successful model “EFA-SST” will be offered in three different performance classes, namely “Premium”, “ECO” and “Basic”.
NEW: The EFA-SST Premium is now available at extra width known as the XL model.
|
|
High-speed turbo-door is the term used for a globally unique high-speed door for indoor applications, the door leaf of which is made of single-wall slats which are permanently transparent. On request the door leaf can be supplied PVC-free and as such is best suited for applications in the automotive industry (painting stations), in chemical and pharmaceutical plants as well as all sectors of the food-processing industry. The high-speed turbo-door EFA-STT is up to 3 m/sec. fast. It stays tight even under overpressure and underpressure conditions. Even under strong wind loads, the door remains fully operational.
The door leaf consists of individual single-wall slats which - each separately - are bolted to strap hinges on both sides so that no force acts within the hanging. The vertical hoisting motion is introduced directly via the strap hinges. The door leaf is taken up in a patented round spiral above the door opening - contactless and virtually wear-free. As a consequence, the door leaf can see years of wear without losing its appearance, and door travel is especially quiet.
Just recently announced, the transparent high speed door from EFAFLEX
has been released in a model with active crash system (EFA-ACS) which
enables the door to repair "itself" after a collision, within a very short period of time.
|
|
The EFA-STR High-Speed Roll-Up Turbo Door opens a new dimension in door construction: with opening speeds of over 3.6 m/sec the EFA-STR is the worldwide fastest door system of its type.
NEW: The Active Crash System EFA-ACS with its electronically monitored, fully automatic return system represents an accessory for EFA-STR doors which is highly recommended:
For the first time flexible and differing coloured door panels have been combined with the spiral formed door panel accommodation. The individual curtain components accommodated in the patented spiral are held away from each other, so that a contactless and practically wear free travel is guaranteed. Even sight sections remain fully transparent for many years. Further the door panel is made of individual, rapid and simply replaced segment-modules. Excellent wind stability, secure sealing and smooth travel also provide for exceptional availability.
|
|
Model HDL - Large Size
Examples of Applications: heavy manufacturing, steel, pulp & paper, waste management, oil & gas and mining.
* Suitable for applications beyond 40 feet in width and up to 35 feet in height.
* Self-supporting steel mounting angle
* Knock-away double angle steel bottom bar for 10lb/ft with rubber loop and reversing edge
* Frame mounted thru-beam photoelectric sensor
* High Efficiency Heligear Head (HG) Operator with multi-function PLC panel
* Door speed of up to 20 inches per second
* Counterbalance spring assembly cycle rating of 50,000
|
|
Geryon security revolving doors protect secure areas of a building against unauthorised access and offer a variety of options for different levels of security. They are equipped with sensors to monitor and analyse the interior of the unit. They can be activated by card readers, buttons, operating panels or by biometric identification systems. The well-rounded selection of optional extras includes reinforced units to protect against burglary and bullet impact and versions with special sliding wings which provide EI-30 fire containment.
Our Geryon product range also includes STS security turnstiles, suitable for use in medium-level security environments. Reduced mobility access can be provided by placing swing or sliding doors at the side.
|
|
Albany Door Systems' self repairing UltraFast™ high speed door is a work-horse. It was designed specifically for high traffic, heavy duty, industrial and commercial applications. The door can be applied in either interior or exterior applications where moderate wind and/or negative pressure are a problem.
When fork-truck traffic is high, maintenance is a concern and safety concerns are at a premium, UltraFast™ is the solution.
|
|
TMI, LLC (Trading & Manufacturing Industries) headquartered in Pittsburgh, Pennsylvania has the largest stock of different sizes and thicknesses in the United States. Materials vary from .004" thick up to .500" thick and from 4" wide up to 86" wide. Through customer demands we have developed lines of:

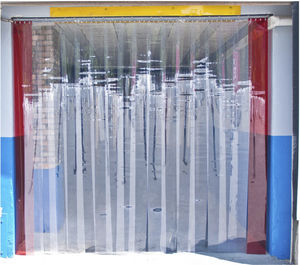

Strip Doors
Air Doors

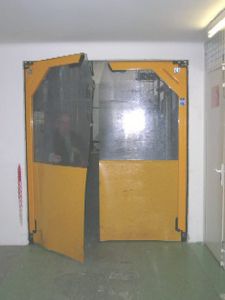

Swinging Doors
Soft Wall Enclosures
Industrial Curtains
Screens
that offer the most economical solutions to environmental separation problems such as cold, heat, humidity, dust, and noise.
|
|

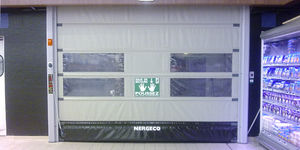

High speed door for cold room
Supple folding system for cold room
NF P 25-362 safety Standard - EC
Self supporting mill galvanised steel frame with polyester powder coated finish - No welding
Option Frame : stainless steel 304 L - Stainless steel 316 L
Double uprights with isolating foam for thermal brake
Front upright removable in case of chock without interrupting circulation
Uprights and transom fully boxed with double insulated fabric
Heating system with airtight, watertight, dustproof silicone cables in a tube spreading heat
Peripheral isolating foam between structure and wall
Water repellent semi-rigid side guides installed quickly
Double fabric including 4 thermo-reflective aluminium films in between which are caught air bubbles and isolating cushion
Curtain with composite strengthening tubes and seamless safety straps
Special low temperature oil - stainless steel brake -
Speed : 1m/s
Maximum clear opening dimensions in mm : W 4000 x H 4000
|
|
Megadoor Hangar Doors are designed for individual customer needs, normally extreme size requirements. Single door leaves can be supplied in widths up to 50 m and heights up to 80 m. In multiple door design, dimension possibilities are almost unlimited (extremely wide openings). Numerous reference objects are available on request.
|
|
Albany Door Systems' UltraBig M&I Re-Coil-Away, "The World's Toughest High Speed Rubber Door", is designed for door openings over 30' x 30'. This big and tough door provides dependable performance in the most rugged industrial applications. The heavy duty side frames, thick rubber curtain and patented windlok design form a near airtight seal and can resist extreme wind pressures.
The UltraBig M&I is designed to last. It is durable, safe, low cost to maintain and can take a hit.
|
|
This light-weight high-speed roll-up door is suitable for many applications such as environmental separation, distribution centers and manufacturing facilities to name a few. Its compact size (both in terms of height and width), enables trouble-free installation even when there are space restrictions.
Curtain material is available in standard blue, orange, red and clear PVC. It has a wide range of safety features such as failsafe reversing edge, counterbalanced emergency access/egress mechanism (available on both sides of door), Nema-4 external electronic control panel and two (2) guide mounted photocells as reversing devices.
|
|
EFAFLEX-Accident-System (EFA-EAS)
EFAFLEX-Accident-System (EFA-EAS) is the intelligent option and solution for reducing potential damage when the door is hit by a moving object. Downtime and possible repair cost can be substantially reduced or totally avoided. Logistics within your production area will be more efficient.
High-speed doors have to meet a variety of economic requirements. One of these is to avoid downtime and overhead costs in case of a potential damage e.g. by a crash. The EFA-EAS system offers an intelligent solution for mitigating the consequences of a crash!
EFA-EAS -> no damage -> no downtime -> no repair -> no expenses
|
|
A springless low-headroom rubber roll-up door designed for use in underground parking applications for condos, office complexes, hotels and airports to name a few.
This high performance door is best suited for any application where head room clearance is a concern. Maximum door width is 25’ 0” and maximum door height is 10’ 0” with a minimum requirement of 18” head room clearance.
It is designed to take full impacts with little or no downtime and is easily reset from the floor without the use of special tools or parts.
The Model HDP includes a high-efficiency helical gear head operator with a multi-function capacity PLC (programmable logic circuit) and offers door speeds up to 30 inches per second.
|
|
Albany Door Systems' self-repairing and low profile UltraLite™ high speed door is ideally suited for industrial and commercial applications where traffic conditions are moderate and space is at a premium. The door can be applied in either interior or exterior applications where moderate wind and/or negative pressure are a problem.
Albany's UltraLite™ is designed to last. It is fast, safe, low cost to maintain, can take a hit and engineered to cycle hundreds of thousands of times.
|
|
Albany Door Systems' self repairing UltraCool™ door is designed for high traffic cold storage applications where the need for speed is paramount. It was designed specifically for high traffic, heavy duty cooler facilities.
When fork-truck traffic is high, door speed is important and safety concerns are at a premium, UltraCool™ is the door solution.
|
|
EFA-SST-ISO High-Speed Spiral-Door – Perfect insulation
The EFA-SST-ISO is the ideal closure door for highly used openings, e.g. in controlled temperature logistics, in refrigerated areas or in conventional industrial constructions, if an efficient insulation is required. A speed of up to 1.5 m/s and a basicly wear free door panel qualify the EFA-SST-ISO as a professional single door solution. The construction is designed for at least 150,000 operations per year - highest availability at lowest maintenance expenditure guaranteed.
|
|
|
Albany Door Systems' self-repairing UltraCleanT door is designed for high traffic sanitary applications where environmental control and hygiene are critical. Its fast opening and closing speeds control air infiltration and the spread of contaminants. Two piece side column design and stainless steel components allow for easy cleaning.
|
|
The professional clean room appliance
By its compact and self-contained seamless construction in stainless steel (V2A) the EFA-SRT-CR (Clean Room)is best positioned for the use in clean room areas and air locks. This door has been designed to meet the high standards for clean rooms and is the ideal solution for separating rooms with a pressure gradient. In contrast to conventional doors this appliance has an extreme narrow and dense side guidance of the curtain which results in very low air leakage of less than 100 m3/h at 150 Pa delta air pressure.
|
|
High speed door for inside application
Industry
NF P 25-362 safety Standard - EC
Self supporting mill galvanised steel frame with polyester powder coated finish
Structure with Flexible track - Patent
Unique Flexible track for Break-a-way Curtain
with Automatic Reinsertion System without human intervention
Soft bottom edge technology - no more trouble with rigid bottom edge electronics
Hood/top roll and motor cover
Jamb inserted control panel
Speed : Open and close : 1 m / s
Curtain 900 g/m² reinforced by composite tube
Option: semi automatic or automatic counterweight in case of power failure
Maximum clear opening dimensions in mm : W 4000 x H 4000
High speed door for inside application
Industry - Food industry
Multi-purpose door
- Either rolling or folding type
- For industry or food industry (Stainless steel version) - LERPAC agreement
NF P 25-362 safety Standard - EC
Self supporting mill galvanised steel frame with polyester powder coated finish - No welding - Option Frame : stainless steel 304 L - Stainless steel 316 L
Structure with Flexible track - Patent
Unique Flexible track for Break-a-way Curtain
with Automatic Reinsertion System without human intervention
Soft bottom edge technology -no more trouble with rigid bottom edge electronics
Standard lintel spring : 350 mm
Lintel spring with folding type curtain : 780 mm
Curtain 900 g/m² with composite made horizontal strengthening
Speed : 1m/s
Maximum clear opening dimensions in mm: W 3500 x H 3500
|
|
Megadoor S1500 (Special Doors) are designed for individual customer needs, normally extreme size requirements. Doors can be supplied in widths up to 50 m and heights up to 100 m. In multiple door design, dimension possibilities are almost unlimited. Numerous reference objects are available on request.
Door leaf thickness
290 or 580 mm. In multiple door design daylight widths are unlimited and daylight height up to 80 m.
Opening and closing speed
Up to 0.2 m/s. Door leaf can be dimensioned for almost any windload.
Colours
White, blue, red, grey, yellow, tan, green and translucent white. Windows available as option. A number of automatic systems for opening and closing are available.
|
|
Megadoor S1000 is the door model for large-sized openings, where doors are exposed to moisture, cold, heavy wind loads or dust.
Door leaf thickness S1000: 160 mm.
Designed for daylight width up to 14 m and daylight height up to 16 m.
Opening and closing speed:
0.2 - 0.3 m/s. Special model for smaller sizes available designed for double opening speed 0.4 - 0.6 m/s.
Colours:
White, blue, red, grey, yellow, tan, green and translucent white. Windows available as option. Heat resistant fabrics available as option. Automatic systems for opening and closing.
|
|
Talos revolving doors offer optimum thermal insulation for entrance areas thanks to their design.
Revolving doors can be equipped with a wide range of features to meet customer requirements: emergency exit function, integration of manual or motorised night shutters and much more.
By choosing the relevant features Talos revolving doors can be made to comply with various security standards (breaking and entering, fire, etc...). Side swing or sliding doors in conjunction with revolving doors can provide access for people with reduced mobility and for the transportation of goods.
|
|
Kerberos/Charon HSB: Sensor barriers
The complete HSB range was designed for access control of staff and visitors in the reception area of companies and public organisations. The barrier is a sensor-monitored channel with automatic waist-high swing doors. After access authorisation has been confirmed, the swing doors quickly open in the desired direction making it easy to move through, even with bags or luggage. The doors close automatically as soon as the authorised person has passed through to prevent any unauthorised access.
An additional version with a wider opening provides access for people with reduced mobility.
|
|
|
|
