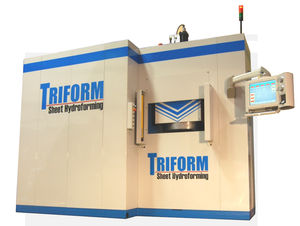

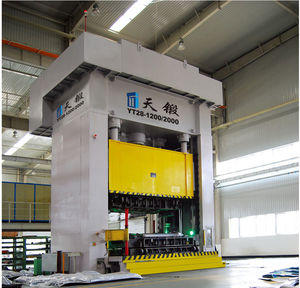

Specially designed to perform advanced deep drawing operations and hydromechanical forming.
Can produce deep drawn parts in one single cycle.
|
|
AP&T manufactures and delivers complete production units for pressing filter housings in different designs.
The equipment is standardized and adapted to meet the customer's demands on finish and cost per detail.
|
|
|
This four column versatile hydraulic press is designed in a one piece Welded Plate steel frame (WP) based on FEA stress analysis. Suitable for drawing operations, punching, embossing and hydroforming with pressure dome. The slide is equipped with an 8-point gib guiding system. The cushion and third cylinder can be selected as options and are available in sizes that correspond to the available press forces. Press force range up to 3150 kN and press bed size up to 1600x1300 mm as standard.
|
|
|
|
|
|

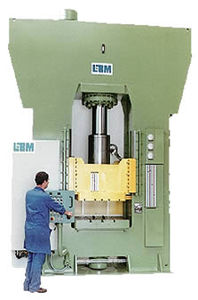

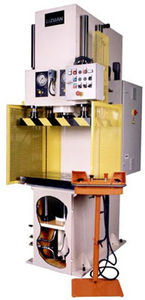

C-frame drawing presses (HEZ)

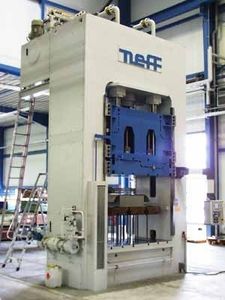

Double-sided drawing presses (HDZ)
Standard version:
* Safety 2-hand control in accordance with UVV (German accident prevention regulations)
* Overrun control device NKS with electrical display
* Oil backflow filter with gauge
* Oil cooler (air / water)
* Engine hours meter, stroke counter
* Ram return stroke through pressure/time switch. The holding load of the ram can be selected under pressure between 0.3 - 3 secs.
* Force for ram and drawing cushion infinitely adjustable (approx. 10 - 100%)
* Ram speed infinitely adjustable in the drawing range (min. = pressing speed)
* 6/8-fold guided ram with individually adjustable guide bars
Accessories:
* Light-barrier control with single and two-stroke, as well as protective barrier
* Flat or column-guided drawing cushion
* Motor-driven backward movement of the drawing cushion
* Mechanical stroke limitation of the ram, motor-adjustable
* Cutting force absorption designed for max. pressing force
* Parallel operation for the ram
* Hydraulically controlled ejector in the ram
* Blank holder in the ram
* Hydraulic tool clamping
* Sliding table
* Automatic lubrication for ram and drawing cushion guides
* Oil cooler (air / water)
* Oil pan for oil leakage fitted underneath the press frame
|
|

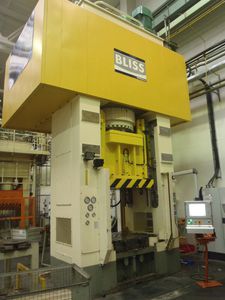

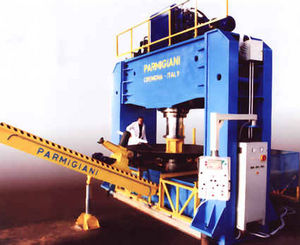

- Our presses have large frames in which the slide is guided by large-size bronze guides with graphite inserts.
- The cylinders are made of steel with hard chromium plated rods.
- The guidance system uses loaded PTFE and the seals are of the polyurethane composite type.
System characteristics :
- Slide thrust force : 400 tonnes.
- 2 thrust cylinders (200 tonnes each) the movement of the 2 cylinders is managed by a PLC and servovalves allowing the work to be done with an off-centre force.
- Slide travel : 1000 mm.
- Maximum distance between tables : 2700 mm.
- Working speed at 400 tonnes : 15 mm/s.
- Approach speed : 650 mm/s.
- Return speed : 500 mm/s.
- Dimensions of the press table 2500 x 1600 mm.
- Two stamping pads with posts and a capacity of 80 tonnes each.
- Travel : 350 mm.
- Return speed 195 mm/s.
- Dimensions of the stamping table : 2250 x 1250 mm.
|
|
|
The press Mecamaq type PDV250C, has a power of 250tm, the low table is of 1.200 x 1.100mm and Superior of 1.000 x 1.000mm with guided of the table for 4 guides of Ø 70mm and with tips of bronze. The course of the top table, 300mm and the maximum opening between tables, 600mm. The hydraulic group is 2 speeds and the power engine of 15Hp. He has a hydraulic cushion of 65tm of power, with a cylinder of double effect, the plate of the cushion is of Ø 950mm with a course of 180mm, with regulation of top ceiling by means of via end of track.
|
|

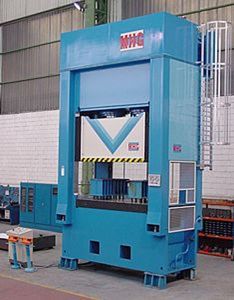

Press for flattening oxycutting plates.
* 400 Tn power.
* Motor-driven floating cylinder headstock.
* 400mm cylinder course.
* 500mm usable vertical light.
* 2,800 x 1,500mm workbench.
* 2 speeds, approximation and operation.
* 10 Hp engine power.
* 2 elevating rollers on the workbench.
|
|
| ... products without technical information |
| |

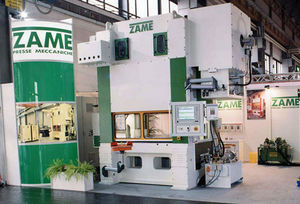

High speed production lines consisting of:

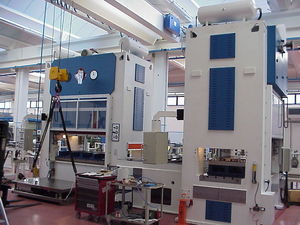

Sheet feed stamping press to produce cap shells, type END-O-MAT.
Rotary cap former with pre-curling, curling and lugging, type CAP-O-MAT.
Lacquer hair aspiration with antistatic unit.
Liner for plastisol compound,
type END-O-MAT.
Drying and curing unit.
Video inspection.
Packaging units.
Conveying units.
|
|
| ... products without technical information |
| |

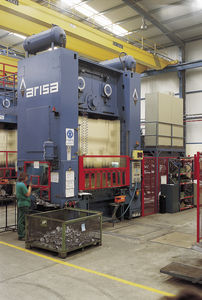

Minster Roll Feed Standard Features
• Free Standing Feed Cabinet with Shock Isolation Mounts or Compact Press-Mounted Design
• Hardened and Ground Feed Rolls
• Proportional Drive System with Low Inertia Belt
• Dual Roll Drive with Precision Anti-Backlash Gearing
• Adjustable Passline Height
• High Efficiency Pneumatic Roll Lift Design
• Adjustable Stock Guides
• Photo Electric End of Stock Detector
• Digital Servo Motor and Drive Control
• Feed Operator Interface Through PMC Control
• Hand Held Feed Set-Up Pendant
• Integrated Coil Line PMC Control
• Machine Finish
• Heavy Cast Frame
• High Efficiency Pneumatic Roll Lift (425 spm)
• Chrome Blast Roll Finish
• Cascading Roll Catenary with Stock Guides
• Allen Bradley Ultra 5000 Drive
• Allen Bradley MP Series Low-Inertia Brushless Servo Motors
• Cutler Hammer Panel Mate Operator Interface, PMC Control
• Allen Bradley Panel View 300 Operator Interface, Basic Retrofit
|
|
