MP-X Drills
For Multi-Application drilling across a wide range of materials
CDX-Inox Drills
For Stainless Steel and exotic materials for drilling to 5 x D
CDX-DH Drill
For Deep Hole Drilling to 8 x D
|
|
Sutton Tools drills and surface coatings are manufactured in Australia and meet international standards.
Drill surface coatings are available in: Blue Finish, Bright Finish, Titanium Nitride, Titanium Carbonitride, Titanium Aluminium Nitride, and Nitriding.
These high performance coatings provide excellent toughness, resistance to wear, stress and corrosion, and present a superior work piece finish.
|
|
AMEC HSS Super Cobalt
PVD Coated Production Drills
Features and Benefits
- HSS Super Cobalt Substrate
Allows longer tool life and increased heat resistance over HSS drills
- Preferred Point for Stainless Steels
135° split point
Self centering point
- Heavy Duty Construction
For increased tool strength
Reduces thrust for ease of penetration
- For Use in Most Materials
Stainless Steels, Tool Steels, Alloyed Steels, Titanium, Cast Irons and Carbon Steels, Free Machining Steels, Steels etc.
- Choice of Coatings
Balinit® Helica coating for greater abrasion resistance, extra sheer strength, lower adhesion tendency
AM200® for increased tool life and improved drilling performance
- Stocks
Stocked in Helica coating and uncoated condition from 1mm to 13mm diameter
Stocked in Stub, Standard, Long Length and Extra Long Length
- HSS Cobalt drills manufactured to DIN standards
|
|
|
|
|
|
Walter Titex UFL – always the first choice for drilling specialists
The special flute profile, the 40º helix angle and the form U point grind guarantee good chip clearance, considerable tool rigidity, excellent chip evacuation properties and a controlled chip breaking.
Unique AlCrN-based power coating
Perfect chip removal thanks to large chip clearance
Can be used universally
Attractive price/performance ratio
High process reliability
Varied application possibilities with regard to materials and application (e.g. MML).
Ensures free machine capacity
VA INOX – HSS-E-drill
Austenitic stainless steel is extremely difficult to machine due to its very high strain, great toughness, unfavourable chip formation and poor heat conduction. A completely new type of HSS-E drill has been developed as a reliable solution – the “VA INOX”.
TINAL FUTURA TOP coating for increased wear resistance, optimum chip transport and prevention of material pick-up.
Enormous increase in feed rates
Economical production of small and medium-sized batches as are often required for stainless steel components
Extremely high productivity
|
|
|
|
|
|
Revolution Drill™
The AMEC Indexable Drill Range
The AMEC range of adjustable indexable carbide drills provides the ultimate in versatility as they can be pre-set to cut any diameter hole within their range of 47.75mm to 142.75mm.
The AMEC Revolution™ drilling system uses 'over-centre' cutting to drill from solid without the need for a pilot hole.
Available in a range of shank styles and capable of drilling to depth up to 5 times diameter. The AMEC Indexable range is a powerful and versatile drilling solution that can delivery high productivity and a low cost per hole in a diversity of applications and industry sectors.
Features and Benefits
Drills from Solid, no pilot required
Revolutionary design allows adjustability upto 5.1mm on diameter
Drill Depths up to 4.5 times diameter
Removable cartridges for easy replacement
Insert design allows for excellent chip control and aggressive penetration rates
Less tool inventory needed for range of diameters
The proprietary AM200® coating increases tool life above competitors premium coatings.
|
|
Pointing the way in solid drillingKOMET KUB® solid drills
For more than 30 years, the KOMET KUB® solid drill family has been developing into a leading tool concept. Through the use of high-performance hard metals and coatings of the latest generation, the cutters are optimally matched to the solid drilling process.
|
|
Walter provides its customers with yet another boost in productivity through the introduction of the two new drills from the Xtra-tec® series.
The Xtra-tec® Insert drill with two four-edged indexable inserts is ideal for full or spot drilling on inclined or spherical surfaces.
The Xtra-tec® Point drill is particularly convincing when producing short drill holes or through holes with additional chamfer.
Walter B4213
Increase in productivity from the higher work values
Low hole tolerance thanks to the optimum balance of forces
Excellent surface finish from the WIPER action at the hole diameter
Cost reductions:
– 4 cutting edges per insert
– higher cutting parameters – saving additional follow-up operations
High process reliability from positive
locking of the insert
|
|
The new solid carbide drill Walter Titex X·treme PLUS is an innovative masterpiece and it sets new standards. This high-tech tool has a unique multifunctional double coating for extremely high cutting speeds.
This enables huge increases in drilling productivity - with the best surface finishes.
X-treme
Walter Titex Xtreme
Maximum productivity; at least double that achievable using conventional tools = more productivity, lower production costs
ALTERNATIVE: double the tool life with conventional cutting data = e.g. fewer tool changes
High process reliability
Excellent surface quality
Varied application possibilities with regard to materials and application (e.g. MQL).
Ensures free machine capacity
|
|
|
|
|
|
Sutton Tools recognises the relentless challenge facing metal working industries to produce faster and more efficiently than ever before and is pleased to provide the high performance market with the most cost efficient cutting solution with the release of it’s High Performance Range of Drills.
The comprehensive range of high performance drills now includes Cobalt and Vanadium based grades of high speed steel(HSS-Co, HSSE-V), as well as the latest developments in Powdered Metallurgy high speed steel (PM-HSS) and Carbide ranges, manufactured to DIN standards, which are complemented by TiN, TiCNite, AITiN (multi-layer) and CrN ceramic surface coatings and state of the art Vacuum Heat Treatment.
There are so many variables that affect the final outcome, and hence overall cost effectiveness of a job, that selecting the right drill can be some what of a challenge.
However the Sutton High Performance Range has simplified this task, by colour coding the tools to the material group in which it is intended for, allowing you to quickly select the most suitable tool for your job.
For more information visit our website on http://suttontools/IndustrialDrills
|
|
ASC 320™ Solid Carbide
High Penetration Drills
Patent Pending Geometry For 3-20mm Diameter Product Range
Unique combination of geometry and coating allows for use in a wide variety of applications
Durability through reinforced shank
Through coolant design
Available in 3.5 x, 6x, and 9x drill depth to diameter ratios
Parallel core for optimum reconditioning opportunities
High productivity in difficult materials
Extended tool life
Excellent chip control
Ideal for use on Stainless Steel, Inconel, Hastelloy, Titanium etc.
|
|
Features
# Excellent chip flow
# Low cutting force by cross thing
# High rigidity of drill body
# High accuracy & surface finish
# Longer tool life with TT 9030 grade.
Solid carbide dill
Internal coolant
SHO 3 XXX - 3XD
SHO 5 XXX - 5XD
# Drill range
3.0mm to 20.0mm
External coolant
SHD 3 XXX - 3XD
SHD 5 XXX - 5XD
# Drill range
3.0mm to 20.0mm
carbide drill
Internal coolant
BHD 3 XXX - 3XD
BHD 5 XXX - 5XD
# Drill range
12.0mm to 32.0mm
|
|
CHAMDRILLJET, the new evolution of CHAMDRILL, has all of the familiar CHAMDRILL advantages and in addition two coolant holes extending all of the way to the cutting edges.
The new CHAMDRILLJET also features new drill head geometries.
All of these new developments are a result of ISCAR's advanced manufacturing technology.
Drill Heads
CHAMDRILLJET features four different, standard drill head geometries designed specifically for optimal performance and
maximum reliability when used on various materials.
- IDP - For use on carbon and alloy steel (ISO P).
The drill head has a honed cutting edge.
- IDM - For use on stainless steel and high temperature
alloys (ISO M).
The drill head features a T-land on the cutting edge.
- IDK - For use on cast iron (ISO K). The drill head is designed with
a honed cutting edge and two peripheral chamfers.
- IDN - For use on aluminum (ISO N). The drill head is manufactured with a sharp cutting edge and polished flutes.
|
|
|
|
|
|
General description:
The Wave Drill Series indexable drill brings together the wear resistance of carbide inserts and the toughness of a steel drill body. This combination lets the customer use higher feed rates to increase productivity.
The WDS drill has two unique styles of carbide insert geometries for its cutting edges. For diameters under one inch, Sumitomo offers a parallelogram insert that allows the customer one index after initial use. Three cutting edges are offered in WDS drills with diameters ranging from 1.00" to 2.00". All WDS sizes are available with side coolant ports and coolant-through shanks in standard (3X) and long (5X) diameter drill lengths.
Features and Benefits
Diameters ranging from 0.5625"- 2.000" with 3X and 5X diameter to depth drill lengths
- Coolant through capable with additional side coolant ports
- Inserts for diameters 1.000" use XPMX three edged inserts
- Insert grade availability include AC350 and ACZ310
- Boasts the heaviest feed rates in the industry
|
|
SHARK-Drill® Catalogue
• SHARK-Drill®
• Cutting inserts
• VHM twist drills
Perfection: ARNO tools in use!
|
|
Indexable drills for steels and cast irons
(L/D2, L/D3, L/D4, L/D5)
Highest Productivity, Maximum Performance
New Wiper chipbreaker: -DW
- 2, 3, 4 and 5xd for different bore hole depths
- 4 different high performance cutting grades
- 3 different chipbreaker geometries
- Wiper technology
- Inserts with 4 cutting edges
- Suited for minimum quantity lubricating
- Eccentric sleeve
- Low vibration and low noise drilling of most different cutting materials
- High cutting parameter, reduced machining time
|
|
DIAMOND AFFUTAGE
GLASS - TILING
5090V Intensive-use glass drill bit
5005V Multipurpose drill bit
|
|
Posicut Twist Drill
- H.S.S. Ø 0.002" - .087"
- H.S.S. Ø 0.05mm - 2.20mm
- Carbide Ø 0.0039"- 0.0971"
- Carbide Ø 0.10mm - 1.45mm
- Reinforced Shank & four facet grinding.
Asycut Drill Reamer
- Solid Carbide Construction.
- Inch Ø 13/64" - 3/4"
- Metric 3mm - 20mm
- Coolant fed up to 5xØ standard.
Tricut Drill Reamer
- Solid Carbide Construction.
- Inch Ø 0.028" - 0.551"
- Metric Ø 0.70mm - 14.00mm
- Degressive helix angle to aid chip evacuation.
|
|
Standard Length Drills
- DIN 338 2 Flute 27° Helix 118° 4 Facet Point 3mm to 7mm
- DIN 338 2 Flute 27° Helix 118° 4 Facet Point 7mm to 12mm
Medium Length Drills
- 2 Flute 25° Helix 118° 4 Facet Point
- 2 Flute 25° Helix 118° 4 Facet Point
|
|
|
Designed for portable and machine drilling in a broad range of steel, ferrous and non-ferrous materials (bright finish in non-ferrous), under many different conditions. TiN coating with increased surface hardness allows for extended tool life, greater lubricity, better chip ejection, increased productivity, and lower horsepower requirements.
|
|
|
DIXI Polytool’s standard families of drills are dedicated for various applications. The ranges of Ø start at 0.10mm.
|
|
C019V3005 19Pc HSS roll-Forged drill bit kit - metal case (ECO box)
C019V3005-2 19Pc HSS roll-Forged drill bit kit - metal case (PRO box)
C025V3075 25Pc Tecn'x Cobalt 5% drill bit kit - metal case
C025V3085 25Pc Tecn'x HSS M2 drill bit kit - metal case
|
|
|
SGS Solid Carbide Drills feature special geometry and other enhancements that provide greater hole dimensional accuracy at higher production rates. Available with SGS Ti-NAMITE Tool Coatings, including Ti-NAMITE (TiN), Ti-NAMITE-A (AlTiN), and Ti-NAMITE-C (TiCN), to dramatically increase tool life.
|
|
Drills HSS-E
- Twist Drills HSS / HSS-E
- Taper Pin Twist Drills,
Subland Twist Drills,
Core Drills / Shell Drills
- Centre Drills HSS / HSS-E
HSS / HSS-E
Solid Carbide
|
|
A wide range of metal drill bits:
3000V HSS ground
3005V PRO HSS roll forged
3085V Tecn'x HSS ground splint point
300XV HSS ground splint point
3075V Tecn'x cobalt 5% ground
3060V Tecn'x cobalt 8% ground
3098V cut & gold ground
3001V Tecn'x titanium ground
3065V cobalt 5% tiain HSS ground
3008V "coupe alu "M2 HSS metal
3020V Tecn'x M2 stub-lenght ground
3120V double-ended HSS ground
3010V tecn'x M2 long length ground
3016-17-18V tecn'x M2 extra long-length ground

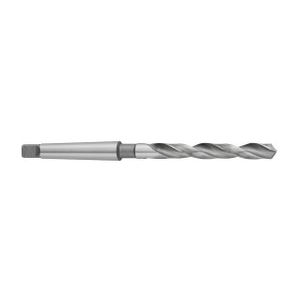

3030V HSS morse taper-shank ground
3031V cobalt 5% HSS morse taper-shank
3777V solid carbide
3009V carbide ground
3011V 90° step
3012V 120° step
3039V M2 HSS milling
3101V cobalt 5% ground spot weld
3071V M2 HSS ground spot weld
3050V 60° HSS center
Metal box : 7-10-12-19-25-32-81 drills bits
|
|
The new Posidrill Plus™ system offers excellent performance in short-hole drilling. The body and insert combination offer an unbeatable combination for 2x (all drills above 2.500” Ø) or 3x diameter short-hole drilling. The Posidrill Plus™ replaces the Posidrill II™.
- A unique pocket design preventing slugs as the drill
exits the component. This allows stacked plates and
welded assemblies to be drilled.
- Multiple inserts in each flute for larger drills break the
cut into smaller sections. This reduces the power
consumption, creates more manageable chips and
allows for excellent chip evacuation.
- Use in static and rotating applications.
- Able to bore up to 10% hole diameter
- Excellent performance in stainless steels
|
|
|
|
