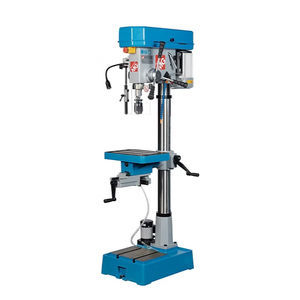

SERIE R 40 E: ELECTRONIC VARIABLE-SPEED UNIT
High performance transmission with electronic potentiometer which regulate
the three-phases 2,2 kW - 380V motor;
2 speeds motor: • 1st speed’s rpm: 45-900 • 2nd speed’s rpm: 110-2150
Drilling capacity on R50 steel: 40Ø mm
Equipped with: • Thread-cutting unit • Digital speed counter
Easily adjustable spindle speed thanks to the electronic potentiometer;
Ideal for every type drilling, tapping and milling;
Precision spindle with hardened morse taper;
Safety screen protection covering 3 sides of the working area, as the new
regulations required;
Immediate rotation-stop for the user safety.
|
|
Drilling Machines Serie HT - DIGIT is a new design,delivered with an inbuilt dimension-programmer so that the typical functions of a 3-axis dimensional display an the machine's operating controls can be handled from a single key-board. It's also equipped with an electromagnetic clutch for automatic spindle downstroke.
TECNICAL DATA:
DRILLING CAPACITY DIAM.50MM
TAPPING ON STEEL R50 M26
C.M. 4
QUILL STROKE 145 MM
SPINDLE AUTOMATIC FEED 0,05-0.1-0,2
CROSS TABLE LONGITUDINAL STROKE 585
CROSS TABLE TRANSVERSAL STROKE 240
MOTOR POWE HP 3-4
|
|
The automatism of this machine transforms a normal pillar-type drill into a versatile and economical drilling centre, which can work even without the presence of the operator, except for the upload and download of the profile.
The unit enables the automatic and precise advancement of the profile, the programming of the velocity and of the acceleration of both ways of the carriage. The drill has a pneumatic jaw with Millimetric regulation of the position of the punches and it also has a pump for the micro-lubrification of the machine tool. The operation of up and down load of the profile is rapid and the execution of the entire program takes place without the presence of the operator.
|
|
|
|
|
|
Features
1/2 HP Totally Enclosed Fan Cooled Motor™ – heavy duty power to bore through the toughest materials
Heavy duty construction – extra wide cast iron base, table, head and heavy gauge tubular steel column
Left/right hub – allows positioning of the crank handles on the left or right side of the head
Easy-to-use woodworking table – large clamping edges and four mounting slots make this table extremely versatile
Poly-V belt drive – limits vibration and improves power transfer
3-3/4 in. Quill travel – bore completely through a dimensional 4x4 in one pass
Feature-packed – smooth actuating rack and pinion table elevation, tilting table, quick release belt tension lever, built-in work light and chuck key storage
User-friendly handles and controls – Sof-Touch™ handles and knobs, high visibility bevel and depth scales and indicators
Large capacity – throat depth allows drilling to the center of a 15 in. workpiece. 5/8 in. chuck accepts 1/32 in. to 5/8 in. drills and Forstner bits, 12 speed settings to optimize rate for material, hole diameter and depth
Specifications
Input: 1/2 HP TEFC induction, 120 V
Number of Speeds: 12
No Load Speed: 300 – 3,100 r/min.
Chuck Size: 5/8 in.
Spindle Travel: 3-3/4 in.
Overall Height: 65-1/2 in.
Tool Weight: 158.4 lb.
Includes
Chuck key, hex keys, and wrench
|
|
STANDARD EQUIPMENT
OPTIONS
SNT3 base - Coolant unit - 24V illuminating attachment - Electrical tapping attachment - Quill powerfeed box 0,1 mm/t - Raising column - Intermidiate table - Micrometric feed box - 1PH motor - 3PH motor - Chuck guard security - Attachments - 2 speeds motor
|
|
STANDARD EQUIPMENT
OPTIONS
SNT3 base - Coolant unit - 24V illuminating attachment - Electrical tapping attachment - Quill powerfeed box 0,1 mm/t - Raising column - Intermidiate table - Micrometric feed box - 1PH motor - 3PH motor - Chuck guard security - Attachments - 2 speeds motor
|
|
|
"On-the-fly" laser drilling system for tablets or capsules. Integrated vision systems provides 100% process validation. Flexible systems allows for a large range of tablet dimensions to be drilled with little to no changeover between sizes.
|
|
Application Materials
Steel Aluminum Diamond Ceramics Copper PCB Laminates Plastics Many others
Advantages
Excellent Process Control
No Tool Wear
Increased Throughput
Sub-micron Drilling
Fast and Repeatable Production
|
|
General description
Application: Drilling vapor tap holes in nylon aerosol spray valves.
Features: Designed for high-speed precision on-the-fly drilling, this system is built around a 75 watt CO2 laser. It was integrated into the customer's existing production line and drills the valves at the rate of 40,000 per hour.
|
|
* big range of Portable Magnetic Base Drilling Machines and more
* manual but also automatic feed
* max. plate thickness of 75mm
* hole diameter up to 55mm
* up to 950 rpm
Please find more details about our Portable Magnetic Base Drilling Machines and lots of other tools in our Machine Tools Catalogue here on Direct Industry or send an email to info@nitto.de or visit our homepage on www. nitto.de
|
|
|
|
|
|
The automatic plate systems are suitable to process heavy steel plates with a thickness up to 40 mm.
The CNC controlled plate processing machines are able to punch, drill, tap, centre point, deburr and mark heavy steel plates automatically.
V250 Plate punching system
The V250 plate punching system is consists of a hydraulic triple punching machine and a X-Y table with hydraulic material clamping. A drilling unit, an automatic tool changer, a numbering unit and a deburring unit can be added to the machine as an additional extra. With the drilling unit, steel plates can be provided with holes, which cannot be punched, due to the material thickness restrictions.
V200 Plate drilling system
The V200 plate drilling system consists of a CNC-controlled vertical drilling unit and a X-Y table. With the V200, steel plates, pre-cut to a certain dimension, are automatically provided with holes and screw taps. The X-Y table has a double hydraulic material clamping system. Automatic tool changer, a numbering unit and a deburring unit can be added to the machine as an additional extra. With the deburring unit the drilled holes will be deburred automatically from the underside.
|
|
Winbros’ GL-1 machine has been designed to accommodate the drilling of large combustors and similar type components. The GL1-A can be configured to allow fitting of the most suitable Laser for the application, the four laser types generally used are Pulsed High Peak Power Nd:YAG, predominantly for drilling, Continuous Wave CO2 or Fibre Laser for cutting, cladding and welding and High frequency Diode Pumped Nd:YAG for ablation.
* 5 axis system
* Fanuc control system
* PC process controller
* Trunnion system
* Percussion drilling
* Drilling on the fly
* Trepanning
* Laser scanning / mapping
|
|
ND-T Series
A Twin Drilling Machine of a new trend created by Hitachi
Hole drilling accuracy of ±0.008mm (on the Hitachi-specific conditions) achieved
ND-Q Series
350,000 min-1 Spindles (exclusively for φ2mm shank drills)
Suitable for precision fine diameter of φ50-100µm
Significant improvement of Productivity by Hovering drill
ND-S Series
One CNC capable of simultaneous drilling different-design PWBs. Capable of High accuracy drilling to the pattern by Vision system
|
|
STANDARD EQUIPMENT
Coolant unit - Illuminating attachment (except SRD 350) - Cubic table (except SRD 350) - Spindle nose MT4 (except SRD 350 CM3) - Quill powerfeed (except SRD 350) - Base for SRD 350 only
|
|
The "W" Series Vertical Lathe, primarily dedicated to the machining of light alloy aluminum wheels for the automobile industry, has been IMT Intermato's best selling machine for the past 20 years.
The most popular model, W20-T4, a four-axes machine with pallet loading system, has been produced hundreds of times over and it represents IMT's leading force, bringing along models 22, 24 and 32-all of which now form a large range of vertical lathes capable of meeting almost all existing market demands. The continuous implementation of the already sophisticated projection system has allowed IMT to fine tune and improve the
already high quality of its machines-consequently guaranteeing benefits that reflect in their safety, ergonomics and operation.
|
|
|
Robust and structurally balanced, providing excellent rigidity and thermal and mechanical stability-all resulting in improved accuracy, finish and tool life. The compact GX 480 DT drill/tap center offers exceptional and unprecedented speeds and feeds for high productivity
|
|
K1BL
High-speed hole EDM by Sodick for micro-holes of 0.08 mm diameter
The K1BL is an easy-to-use micro-hole EDM machine for hole diameters up to 0.08 mm.
Its strengths lie in the machining of steels, nonferrous metals, and other difficult materials. With a linear drive for the z axis, it operates with vibration-free precision and high dynamic response in the drilling of holes between 0.08 and 0.25 mm in diameter.
Highly responsive linear motors secure continuous and high precision drilling of very small holes down to the use of 80 micron electrodes. The machinining scope of K1BL, equipped with a Sodick linear motor on the main (Z axis) completes the range. In addition the high response of the linear motor increases the machining speed and reduces the electrode wear significantly.
|
|
PRO 36 RH is powerful, compact and light weight machine equipped with petrol Honda 4-stroke engine for drilling in rails. Fast positioning, quick clamping and instant unlocking mechanisms make it easy to use and safe device.
PRO 36 RH enables drilling in rails of any standard by means of 2pcs of optional rail profile templates and 1pcs of hole centre positioner, to be chosen by customers from a comprehensive range of auxiliary accessories dedicated to a variety of types of rails.
PRO 36RH - Technical specification
Spindle/Tool holder: Arbor 19 mm; 3/4" Weldon
Milling Cutter(Core drill): Ø 12 - 36 mm (1/2" - 1 7/16")
Special twist drill: Ø 1,5 - 16 mm; 1/16" - 5/8"
Stroke: 39 mm (1 9/16")
Max depth of cut: 30 mm (1 3/16")
Motor type: 4-stroke petrol engine
Power consumption [W]: 1500
Motor Power [W]: 1500
Speeds [rpm]: 225
Weight: 23 kg (49 lbs 10 oz)
|
|
Bench drilling machines F22 is equipped with variable-speed drive-unit that allows the ideal choice of speed according to the material and to the drilling diameter.
The spindle-speed control-level and all the electrical control devices are grouped on the front size of the machine in order to allow an easy utilization.
F22 is available column and on pedestal.
Drilling capacity on R50 steel mm ø 22
Tapping capacity on R50 steel mm M 14
Spindle-intake MT2
Column diameter mm 98
Transmission Variable drive unit
Bench model dimensions (h x w x d) mm 1.310 x 450 x 630
|
|
CFL: Automatic Drilling and Tapping machine for bars and contours
The machine is equipped with a special application that allows the feeding of pieces, also of remarkable length, in order to execute automatic drills and
tapps online.
The X and Z axes are synchronized for automatic cycles in this way the C.F.L. is the fastest solution for the workings in series of tubes,contours, or bars of various nature. Particularity of the machine is the great fl exibility, in fact it is possible to execute reamings, beyond that drills and tapps with a fi x or variable centre distance on blocks with rapid intermediate feed, chip removal and temporary stop.
|
|
|
The HL 1000 machines crankshafts of max 1020 mm length and 265 mm diameter. With bore diameters of between 4 and 8 mm, and using minimal quantity lubrication, the HL 1000 offers its users a tool life far above the normal. All machining results - even those of massive 150 kg truck crankshafts - are subsequently checked with the workpiece still held in the chuck, and logged by the control system.
|
|
Varioflex MD 30:
The flexible high performance complete machining of cubic parts in a single clamping - with the deep hole drilling milling centre.
|
|
Machines:Standard andSpecial
Using the above products, Zagar is noted for the many special machines, designed, built and supplied to industry world wide. Using developed principles, Zagar has constructed many machines that are a cornerstone of the manufacturing industry.
|
|
PRO 35 - The most compact machine designed by Promotech, and one of the smallest units in the world. Superior features: ultra lightweight, easy handling, maintenance free rail guide system and sheltered motor power cord. It is equipped with the latest generation of electromagnetic base.
PRO 35 TECHNICAL DATA
Power supply: 920W, 230 VAC, on request 120 VAC
Magnetic force: max 9500 N
Magnet base dimensions: 80 x 160 mm
Motor speed: 350 rpm
Max milling capacity: 30 mm
Stroke: 70 mm
Arbor holder: 19,05 mm
Max depth of cut: 52 mm
Weight: 10,5 kg
PRO 35 230 VAC: Ordering No. WRT-0272-10-20-00-0
PRO 35 120 VAC: Ordering No. WRT-0272-10-10-00-0
|
|
MicroBore 20/50
For smallest bores
Micro Bore Sizing Machine for micro- bores with Ø 0.015 - 0.060 mm
|
|
MicroBore 125
Eprouvée: plus de 100 fois par jour en production de série
Machine pour l’usinage des petits perçages de Ø 0.060 - 0.250 mm
|
|
|
|
