PE 60 A
Automatic sharpening machine for twist drills
- Sharpening capacity from mm. 6 to mm. 60
- for right hand left tools with 2-3-4 cutting edges
- for drills with angles between 90° to 140°
APE 80 A
Automatic sharpening machine for twist drills
- Sharpening capacity from mm. 10 to mm. 82,5
- for right hand left tools with 2-3-4 cutting edges
- for drills with angles between 90° to 140°
The accessories supplied include precision chuck with 3 sets of jaws , programmable sharpening cycle, water cooling system.
The accessories supplied on request include halogen lamp, extension for extra-long drills, etc.
|
|
Sharpening machine for twist drills, countersinks, taps, step drills
- Sharpening capacity from mm. 2 to mm. 40
- Right and left-hand tools up to 12 cutting edges with angles between 40° and 180°
- Toolholder head with automatic rotation
The accessories supplied include precision chuck with 6 jaws , device for web thinning, set of 4 cams, base, halogen lamp, grinding wheels, etc.
An air-cooled and pneumatic suction cooling system can be supplied as an alternative to the water-cooling system supplied as standard.
|
|
Sharpening machine for right and left-hand drills with 2-3 cutting edges, in HSS and hard metal
- Negative web thinning
- Sharpening capacity from mm. 0,5 to 16 mm (with option up to 20 mm.)
- Rapid, precise, self-centering in 3+3 rakes
Accessories supplied include: 16x optical projector with optic fiber lighting, two precision spindles to clamp the drill, 10 collets, halogen lamp, 3 grinding wheels, etc.
|
|
Sharpening machine for right and left-hand drills with 2-3 cutting edges, in HSS and hard metal
- Negative web thinning
- Sharpening capacity from mm. 0,5 to 16 mm (with option up to 20 mm.)
- Rapid, precise, self-centering in 3+3 rakes
Accessories supplied include: 16x optical projector with optic fiber lighting, two precision spindles to clamp the drill, 10 collets, halogen lamp, 3 grinding wheels, etc.
|
|
S11 speed
The specialist for any standard and special tools
- T-shaped design for easy one-side operation
- Motor-driven height adjustment
- Infinitely variable spindle drive from 2,000 to 12,000 rpm
- Schort work distance
- Axial infeed grinding spindle
- Measuring and checking on the machine: with the aid of a microscope, a projector or of ultra-modern video equipment
- Ideal for the maintenance of any standard and special tools such as step drills, rounding cutters, form drills and hobs
|
|
Sharpening machine for twist drills, countersinks, taps, step drills
- Sharpening capacity from mm. 3 to mm. 60
- Right and left-hand tools up to 12 cutting edges with angles between 40° and 180°
The accessories supplied include precision chuck with 6 jaws , device for web thinning, set of 4 cams, base, halogen lamp, grinding wheels, etc.
An air-cooled and pneumatic suction cooling system can be supplied as an alternative to the water-cooling system supplied as standard.
|
|
Sharpening machine for right and left-hand drills with 2-3 cutting edges, in HSS and hard metal
- Negative web thinning
- Sharpening capacity from mm. 0,5 to 16 mm (with option up to 20 mm.)
- Rapid, precise, self-centering in 3+3 rakes
Accessories supplied include: 16x optical projector with optic fiber lighting, two precision spindles to clamp the drill, 10 collets, halogen lamp, 3 grinding wheels, etc.
|
|

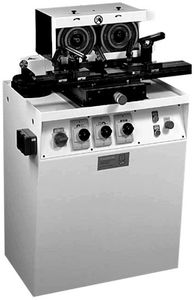

AUTOMATIC DRILL RE-GRINDING MACHINE
The easy-to-operate RDG-13 can resharpen "R thinning" and "X Split" points with different point
angle (118 to 140 deg) and can resharpen "X" thinning points; with or without a gash.
Features
1. This machine can resharpen R thinning, X thinning with a gash or without a gash from 3mm to 13mm diameter, max 200mm OAL.
2. The special sensors enable the machine to adjust the tool to the proper grinding position, and then grind automatically.
3. Standard accessories include special collets for drill diameters 3, 4, 5 and 6 mm.
More information on this product (including dimensions and list prices) can be found by contacting OSG Europe or visiting http://www.osg.co.jp/eng/products/index.html for download the PDF.
|
|
Dividing tool holder
Clamping Manual with accuracy 6 jaws chuck
Minimum tool ø 2 mm
Maximum tool ø 26 mm
Maximal tool length General : 600 mm
Grinding Wheel Spindle
Wheel ø 150 mm
Wheel Vitrified, CBN or diamond
Wheel nose Safety model
Spindel power 0,75 kW
Rotation speed 3000 tr/min
|
|
Easy and quick to operate
All grinding positions are predefined
Only 1 grinding wheel for all operations
Accurate
Clamping by collets
Sturdy
The sturdy construction and high quality guarantees a long life
|
|
Total enclosure reducing noise and grinding dust
Fully recirculating coolant system
Rigid structure incorporating protected grinding wheel spindle and slide
Quick set-up time and very ease to use
Short grinding time
Clamping of circular saw without tools
Low maintenance cost achieved through modern design
|
|

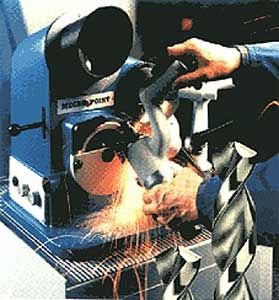

Standard equipment :
Electrical motor , 0.3 kW either for 220 V/50 Hz, 2800 rpm or 110 V/60 Hz, 3600 rpm and 6 V transformer for lens illumination
Built-in optical projection system with 10fold magnification, optional 6-fold, 14-fold or 20-fold magnification
Point splitting and web thinning attachment with drive.
Halogen machine lamp 6V/10 W
One double-sided grinding wheel 125 mm Ø, CBN, one side grit 100, one side grit 200.
One CBN grinding wheel for point splitting, 50 mm Ø x 4 mm.
Wheel guard with connection to dust collector.
Operation manual and spare part list
Net weight 45 kg (88 lbs.).
|
|
High productivity, low machine cost, low tooling cost
versatile machining possibilities, including turning, drilling, countersinking, and machining
of the reverse side of parts turned on an automatic lathe
hand-lever moves the slide against adjustable stops
a total of 5 or 6 turning tools can be used simultaneously
front and rear cross slides can be moved individually; with the additional cut-off unit mounted on the head,
a total of 6 movement axes are available allowing univeral machining with high production speeds
|
|
Speciality
Long drills grinding (up to 1m25), especially Gundrills
Automatic
The robot option allows for automatic loading of gundrills and cylindrical shank drills
Simple to operate
AVYAC 's software with user friendly interface
|
|
