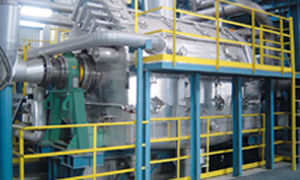

High performance solid/liquid filter separation technology.
Drum filters are the most frequently used continuous rotary filters and are found in many different applications due to their simplicity and ease of operation.
Applications include solid/liquid separation processes in the chemical industry, plastics production, mineral refining, food processing industry and in the field of environmental protection.
Whether you require a vacuum, gas-tight or pressure filter, we have the right design to suit your specific requirements.
Our rotary drum filter offers a number of separation process advantages:
- Increased filtration capacity through improved hydraulic efficiency.
- Low operating costs through maintenance friendly design.
- Enhanced performance with gas-tight, pressurized configuration.
Main Applications:
Plastic intermediates, BPA, carbonates, cellulose, pigments, iron oxide, indigo, TiO2, red mud.
|
|
The rotary vacuum drum filter (RVDF) is one of the oldest filters applied to industrial liquid filtration. A rotary drum filter resembles a large drum on its side. Half of the drum is submerged in the slurry, with the other half above it. The filter cloth winds around the drum and as the drum rotates, the slurry is sucked into the cloth. As the drum rotates out of the slurry, the cake is dried. This drying is caused by the vacuum continuously being drawn through the cake in the exposed section of the drum. At the end of the rotation cycle, at approximately a three o'clock position, the filter cake will be discharged and the process repeats itself. The filters may incorporate a drum cloth that is caulked onto the drum itself, or they may utilize an endless belt which tracks off and discharges away from the drum.
Typical Applications:
- Kaolin clay
- Titanium dioxide
- Alumina (red mud)
- Pharmaceuticals
- Chemical Processing
- Food processing (starches)
|
|
| ... products without technical information |
| |
Filter slats
* high tensile strength
* different specifications
* length as per your requirement
|
|
| ... products without technical information |
| |
The Spring is a self-cleaning drum filter complete with a fixed filtering net, for the elimination of magnetic and amagnetic particles from both neat and soluble coolant liquids.
The Spring Range comprises of 6 models capable of purifying from 20 – 300 l/min of neat oil and from 50 – 90 l/min of emulsions.
The filtration efficiency of the drum can be customised according to the customers requirements.
The self-cleaning filters in the Spring Range can be used together with a wide variety of machine tools such as machining centres, deep hole drilling, transfer, grinding and milling machines, machining with special tools requiring high-pressure coolant. The Spring range is particularly ideal for work that involves the removal of metal fines produced using machine tools, abrasives and washing. It is therefore flexible and meets a wide variety of the demands posed by both the engineering and the automotive industries.
|
|
|
|
|
|
Considerable quantities of metal chips are produced in the automated factories of transformation of
metals. The productivity of the factory can be improved in an important way thanks to a continuous system of removal and
of treatment of the chips, because the operator does not waste any more his time to get rid of the chips but it produces.
An economic system of removal of the chips and treatment of cutting fluids requires however
solutions to measure.
The chips are collected and convoyed out of the production zone thanks to especially studied conveyers.
The long chips or in ball are reduced by crushing in a regular flow of short pieces. Wet chips
are dried and cutting fluids are recycled and cleaned. The process must be continuous and asks only one work
minimum handbook.
The effective and economic solution for the treatment of the chips varies according to the company, according to the provision
workshop, volume and characteristics of the chips.
Sermeto & Arboga-Darenth have the experiment and know-how to bring the most economic solution,
adapted to your Company, either thanks to our standard equipment, or thanks to our integrated systems of treatment of the chips.
|
|
High sensitivity metal separators for installation in free-fall (gravity-fed) systems
E-Z Tec 9100 Metal Separators can detect all types of metal, including stainless steel, in a variety of industries, including plastics, wood, textiles and recycling. High speed diverter ensures minimum loss of clean product.
|
|
Permanent magnetic separators used for the automatic separation of ferrous metals and stainless steel
Ferrite models remove tramp and fine iron from dry bulk materials and Rare Earth models with 25 times the field strength of conventional ferrite magnets are able to separate very fine irons from both dry bulk materials/powders and slurries.
Key features: versatile, low maintenance, self-cleaning, choice of drum widths, custom-design
|
|
Minerals and Materials Processing (MMP) equipment includes wet drum, rare earth roll, superconducting magnetic, electrostatic, and electrodynamic separators; dry vibrating filters; as well as magnetic flocculators... for filtering iron contaminants, concentrating ores, and recycling wastes.
Separators - Magnetic
Separators - Drum
High Intensity Dry Magnetic Separators
Magnetic Separators - High Gradient
Wet Concentration
Separators - Wet Drum
High Intensity Wet Magnetic Filter
Dry Vibrating Magnetic Filters
Ball Mill Magnetic Separators
Electromagnetic Pulley
Separators - Pulley-type
Separators - Electrostatic
WHIMS Separators
Magnetic Flocculators
Demagnetizing Coils
|
|
Magnetic Drum Separator
Application: Automatic separation/recovery of ferrous materials, protection of processing machinery.
Main features:
- Custom-manufactured models with a wide range of options for special applications;
- Special options for heavy duty applications (abrasion resistant drum shells, easy shell replacement, etc.);
- Special options for high intensity applications (high gradient and field strength up to 9 500 Gauss, etc.);
- Top, bottom and side-feed installations;
- Wide range of drum diameters, lengths, magnetic field strengths available;
- Powerful Nd-Fe-B magnets used;
- No electric power required for magnetic field generation;
- Equipment can be linked to existing control systems;
(!) For conducting laboratory tests with your material please contact our sales department.
(!) All magnetic drums are custom-manufactured, please attach a completed questionnaire to quotation requests.
|
|
Polytech magnetic separators have been designed to remove ferrous and non-ferrous solid contaminants from coolants and oils. Magnetic separators can substantially reduce filter cartridge consumption and element changes when used in grinding, honing and lapping operations where filter cartridges are used. They can reduce the concentration of small fines left in the coolant by chip conveyors in broaching, milling and drilling operations that can settle in tanks and reduce tool life.
The magnetic drum is made up of alternating permanent magnets and steel discs. The magnetic field is extended by the magnetized steel discs to maximize effectiveness without resorting to more costly high strength or rare earth magnets. A comb type scraper and adjustable discharge chute optimizes sludge removal.
|
|
STEINERT Magnetic Drum separators MT excel at ferrous removal in all applications. They have no dead spots and work with larger operating gaps. They yield a clean ferrous product and clean bulk materials. They protect processing equipment from damage by tramp iron.
STEINERT offers both electromagnetic (E) and permanent magnet (P) cores. They can be fed from the top or from below. STEINERT has over 112 years of experience in design and improvement. Trademarks of STEINERT Magnets are increased efficiency, durability, and long operating life.
|
|
|
Magnetic Separator is designated for wet magnetic separating of material with granularity below 3mm, such as magnetite, pyrrhotine, roasted ore and washingtonite. It can also be used for deironing of coal, nonmetal materials, building materials, etc.
|
|
Degreasing liquid, filter concentrate, coolants, minerals
The wet drum separator NTS is used to remove very fine magnetisable components from low concentration, low-viscosity liquids. The NTS is intended for use in the metal processing industry and for the treatment of preconcentrates extracted from the STEINERT high gradient magnetic filter HGF.
Around 90 % of the grain sizes ranging from 1 µm to 1000 µm can be separated as sludge. Features such as stainless steel housing and powerful neodymium iron bore magnets are standard.
General Principe
The liquid flows through a semicircular separating chamber beneath a stainless steel drum to which the magnetisable particles are attracted. The strong, high-gradient magnetic field is created by a cylinder consisting of permanent magnetic discs positioned within the drum. These special permanent magnets generate particularly high field gradients which are necessary for successful separation, as is the need with all magnetic separators.
|
|
High intensity magnetic separators for optimum separation of paramagnetic particles from dry products
Key areas of application: to remove paramagnetic minerals; to separate fine irons from ceramic raw materials and spray dried ceramics, to eliminate fine iron contamination in granulated plastics / plastic beads in the plastics recycling industry
Most comprehensive selection: diameters of 75mm, 100mm and 300mm in a variety of widths
|
|
HIGH-INTENSITY SEPARATOR
This magnetic separator is so powerful that it can separate all paramagnetic and slightly magnetized materials from non-magnetic materials. Stainless steel that is processed through a shredder has these lightly magnetized properties and can be separated like this. This high-intensity separator is also employed for the removal of very small Fe particles from ceramic powders.
Removal of all weak magnetic particles, stainless steel, iron or nickel-bound raw materials
Continuous automatic cleaning
Suitable for the removal of particles from 50 mhu upwards in the recycling and ceramics industry
Suitable for belt-widths up to 2000 mm
Supply voltage essential
|
|
High Intensity / High Gradient Magnetic Roll Separator (HIMRS / HGMRS)
Application: Removal of paramagnetic impurities from various raw products, minerals recovery.
Main features:
- Custom-manufactured models with a wide range of options for special applications;
- Powerful Nd-Fe-B magnets used - high gradient and high field strength (up to 17 000 Gauss) guarantee peak separation efficiency;
- No electric power required for magnetic field generation;
- Field-tested solutions, reliable units and assemblies (belt tracking system, aspiration system, etc.);
- Equipment can be linked to existing control systems;
(!) For conducting laboratory tests with your material please contact our sales department.
(!) All the HGMRS models are custom-manufactured, please attach a completed questionnaire to quotation requests.
|
|
Permanent magnet : automatic cleaning,stainless steel manufacture.
Control whith pneumatic or electrical actuator
|
|
