Application:
•Decentralized motorization of light weight loads or loose product on belt conveyors
•Applicable to all industries (automotive, electronics, mail …) for transfer lines
Benefits:
•Safety (no exposed transmissions)
•Comfort/Ecological (without oil bath)
•Modular & flexible conveyor zones
•Space saving
•Quick and simple installation removing the need for maintenance (no exposed transmissions)
Concept and characteristics:
•The AC asynchronous 3 phase motor and the life lubricated planetary gears and bearings are integrated inside the roller tube to drive the belt directly
•Continuous or intermittent duty cycle (360 start-stop/hour)
•Speed from 5 to 40 m/min
•Speed variation possible using a frequency inverter
•IP55 and 65
•Without oil bath
•3 phase, 50 or 60Hz, from 230 to 415V
AC 3 phase range:
•Ø 76.3: series CN
•Ø 115:series IP
|
|
Motortised drums for conveyor systems & check outs
The motorized drums for conveyor systems type RL 072, MT 084, MT 112, MT135 are products specially able to motorizing conveyor systems thanks at their easy assembly and for their integration in to the conveyor.
|
|
|

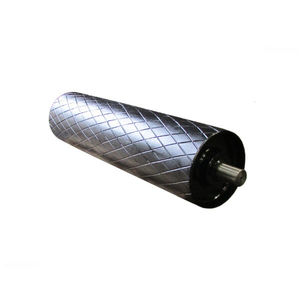

A drum motor is a motorized pulley where the body rotates around a stationary shaft. The rotating outer drum becomes the drive pulley which powers the conveyor belt.
|
|
|
|
|
|
Today the modern drum motor is considered to be one of the most reliable and effective belt conveyor drives available throughout the world. The Drum motor is in simplistic terms a highly efficient geared motor drive, which is totally enclosed, in a steel cylindrical shell. The shell, which is normally crowned to ensure central belt tracking, is fitted with bearing housings incorporating precision bearings; oil seals and rotates on a shaft. The motor stator is fixed to the shaft and the motor winding cable passes through one end of the shaft, eliminating the need for slip rings and brushes.
The squirrel cage motor manufactured in laminated steel is machined concentric to high tolerances and designed to give 200% starting torque. The rotor pinion is coupled directly to the gearbox. The gearbox transmits the drive directly to the shell bearing housing through a geared rim and provides a high efficiency from motor to drum face with very little frictional losses. The drum motor is oil filled, which acts as both a lubricant and a coolant whereby the heat is dissipated through the shell and conveyor belt...
|
|
Power, reliability and a tailor-made service backed by the know-how of the worldwide Interroll group - these are the hallmarks of Interroll's belt drives with diameters 220mm for heavy-duty unit handling.
Typical Applications include:
-Telescope conveyors
-Baggage handling in airports
-postal and distribution centre applications
|
|
|
A drum motor is a motorized pulley where the body rotates around a stationary shaft. The rotating outer drum becomes the drive pulley which powers the conveyor belt.
|
|
|
Delivering power of up to 0.37 kW, this innovative component will drive modular belts for conveying, positioning, drying, wash-down and frosting processes, etc. It provides a highly productive, space-saving solution for modular belt applications. No need for expensive custom versions or add-ons. Easily and quickly installed or retrofitted in modular belt conveyor applications.
|
|
|
|
|
|
Application:
•Decentralized motorization of loads < 500kg (cardboard boxes, trays, totes…) for conveying systems where there is no risk of accumulation
•Regulation for speed in gravity roller conveyors, access gate, bridging between conveyors, 90° transfers, powered roller bends…
•Applicable to all industries (automotive, electronics, mail …) for assembly lines and transfers
Benefits:
•Safety (no exposed transmissions)
•Comfort/Ecological (without oil bath)
•Modular & flexible conveyor zones
•Space saving
•Quick and simple installation removing the need for maintenance (no exposed transmissions)
Concept and characteristics:

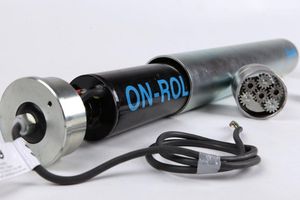

•The AC asynchronous motor and the life lubricated planetary gears and bearings are integrated inside the roller tube to drive the loads directly
•Internal shock absorber protects the gearbox
•Continuous or intermittent duty cycle (720 start-stop/hour)
•Speed from 4 to 50 m/min
•IP54, 55 and 65, clean room
•1phase or 3 phase, 50 or 60Hz, from 100 to 440V
•option : accumilation motor or brake motor
AC 1phase & 3 phase range:
•Ø 50 standard: series K
•Ø 57 standard: series A
•Ø 60.5 standard: series B
|
|
Concept and characteristics:
• The brushless 24V DC motor 1 and the life lubricated planetary gears and bearings 2 are integrated inside the roller tube 3.
• A circuit board drives the motor offering different control options (see “circuit board” section)
• Suitable for a host of environments: industrial, humid, dusty, wet, oily and clean rooms (IP54, 55 & 65)
• Continuous or intermittent duty cycles (1800 start-stop/hour)
• Speed range from 4 to 65 m/min
• Speed variation: see “circuit board” section
• Available with dynamic break and mechanical brake
|
|
A drum motor is a motorized pulley where the body rotates around a stationary shaft. The rotating outer drum becomes the drive pulley which powers the conveyor belt.
In simple terms it is a highly efficient geared motor, totaly enclosed within a steel shell. Unlike conventional drive systems, the BDL drum motor has no chains or V-belts to tighten or replace, no sprockets to align, clean or lubricate, no bearings to grease, and does not require chain guards. lt is a simple - yet small and powerful - integral motorized pulley that is guaranteed to power your belt conveyor for years without breakdown. All gearing is made of high alloy steel, not plastic. The BDL drum motor is lubricated for life and needs no oil change. The result, almost no maintenance or downtime, which means lower costs and higher productivity.
|
|
|

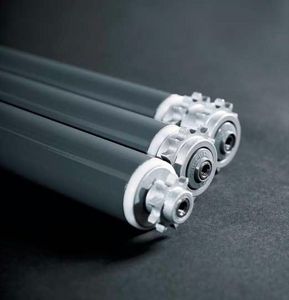

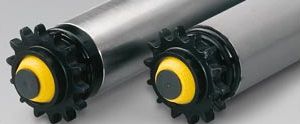

Conveying and friction accumulating via radial friction clutch between drive unit and slide bush (one-sided friction). The driving force of the roller is load-depending, it sets itself automatically. Friction roller series 3800 and fixed driven rollers series 3500 have the same dimensions. They can thus be combined easily with each other and also be retro-fitted with the other drive types (friction/fixed drive). Rollers series 3800 are based on the universal roller series 1700, e.g. roller housings of the roller series 1700 are to be found on the non-driven side. The drive elements are optionally available in plastic (Sprockets - Polyamid 6.6, Toothed pinion - POM) or steel. Sprockets made of plastic are non-abrasive, tough elastic and noise damping. Sprockets made of steel are precision turned with precise teeth. The maximum load capacity of the roller is directly dependent with the amount of accumulation during the whole operational time.
|
|
Motorized pulleys for handling systems
The motorized pulleys type RL 072FRand RL 089 contribute to motorized easily, simplely and quickly handling systems and transport of isoled loads.
|
|
|
|
|
|
Type 840-50
The Rollex Motor-Roller 50 is the solution for your automation. Parcels and small boxes up to 520 N can be transported with a high reliability. The compact control board guarantees simple installation and the low working noise makes working stress-free.
If in Pharmaceutical-, Food-Industry or Mail Order Business, the Motor-Roller transports your goods fast and reliable.
Speeds from 0,2 up to 1,3 m/s
Load Capacity max. 520 N
Temperature 0°C bis 40°C
Torque up to 1,8 Nm, low noise
Integrated Motor regulation, reverse drive possible
Small, extern connecting-box with integrated speed regulation
Controlled Safe-Off with reconnection
Type 850 - 89
The Motor-Roller is driven by an oil-cooled motor, that guarantees long life. The motor can be build with an intern or extern magnetic break that will be mounted with another conveyor roller of that section.
The Motor-Roller Type 850-89 is a Power Pack. With this Motor Roller pallets of 1000 kg can be transported. The drive system is especially for low construction heights, turn-tables and tramming cars.
|
|

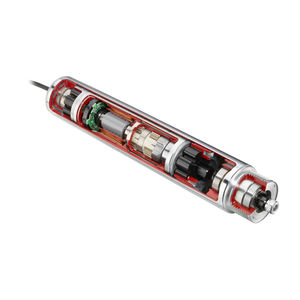

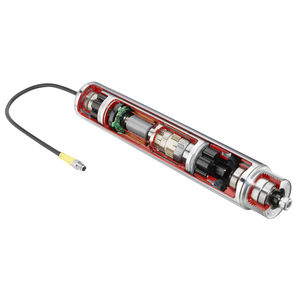

The debut of 24VDC RollerDrive and DriveControl products in the market has revolutionized the automated conveyor industry. Interroll RollerDrive and DriveControl products provide a comprehensive product offering with individual components available to be integrated to meet a multitude of needs for customized customer control...
Material handling systems powered by Interroll RollerDrives are configured systems free of external drive units, chains, drive shafting and expensive guard covers for safe, quiet and efficient operation.
The RollerDrive, with its internal electronic drive, represents an important break-through in conveyor technology.
The Interroll family of RollerDrive components can meet a broad range of materials handling requirements.
The brush type or brushless RollerDrives offer variable capabilities including higher speed performance, longer operating life, or higher load capacities.
|
|
driving roller 24v; brushless, diameter 50mm with throats allowing the resumption of transmission upstream and downstream. mini length. 400mm; electronic chart of order and protection with variation speed.
roller + chart: price starting from 385
Possibility of using the rollers engine in curve (with conical sleeves PVC on the tube steel)
|
|
| ... products without technical information |
| |
Key Attributes and Characteristics:
- Frame sizes ranging from 15mm to 60mm
- Output speed up to 750 rpm
- Windings can be designed for optimum performance
- Long life lubrication
- Simple mechanical construction with proven design characteristics
- Unipolar or Bipolar windings
- High torque size ratio
Advantages:
- Low cost construction
- Ease of use in application
- Simple open loop positioning
- Customization to meet application demands, including shaft, bearings, connectors, and sub-assembly
|
|
The new series of servo motors SM2A with integrated motor can be easily programmed through EVER's windows PC based user friendly development environment called ATOMIC.
The SM2A series are constructed with a high protection degree of IP65 and are equipped with reliable connectors. Other features are: AC power supply, fieldbus CANbus or serial RS232/485, optoisolated inputs and outputs, an encoder for the closed loop control of torque, velocity and position (optional), The motor section is made of magnetic Low Loss material and has a holding torque from 3,4 to 12,5 Nm.
|
|
|
|
