The Millennium is a versatile, high-performance dust collector that has been designed to meet the needs of most industrial applications. The Millennium offers a flexible design that reduces freight and erection costs, fits tight quarters, and is easy to install and service. Available in two sizes, the self-cleaning modules can accomodate up to 144 fabric bags each, at bag lengths of 8, 10, 12, or 14 feet. Since the Millennium is modular in design, there is almost no limit to the size of the collector. Common optional features available with the Millennium include pleated bags, pressure demand cleaning, NEMA 9 controls, explosion vents, inlet adaptor plates, a walk-in plenum, high temperature options, and various ancillary components.
|
|
Features
- All welded construction
- On-line self-cleaning
- Manual pulse cleaning
- Integrated control panel
- Timer board for pulse cycles
- Direct drive fans
- TEFC motors
- Powder coated (inside and out)
- Powder coated steel
- Cartridge efficiencies 99%
- No tool cartridge removal
- Filter Gauge
- 55-gallon drum connection
- Built-in silencer
- Easy access maintenance door
- Internal cartridge baffle to protect direct impact
|
|
ArrestAll
The AAF ArrestAll self-contained dust collector is a shaker-type fabric collector that removes over 99% of general industrial dusts by weight. The ArrestAll is economical to operate, simple to maintain, and requires minimum floor space. Designed to serve a single source or a system of multiple sources, it saves energy by recirculating clean air.
The ArrestAll has been engineered for years of efficient service in such intermittent applications as woodworking, grinding, polishing, packaging and venting with reliable off-line cleaning. It is available in modular configurations for almost unlimited airflow capacities. Choose from bin vent, flat bottom, or funnel bottom dust disposal arrangements, with either standard or extra wide pocket spacing. An automatic shaker is standard on sizes AR1-3 to AR6-25.
|
|
Donaldson® offers a complete line of dependable, rugged bag collectors to keep your processing operation running smoothly. Bag collectors have been used for industrial dust collection for over 50 years, providing a full range of solutions from nuisance dust to extremely heavy dust loads along with bin venting and product reclaim.
Unimaster® Collectors
The Donaldson Unimaster® dust collector is an economical and effective solution for a diverse range of nuisance dust problems. The Unimaster® is a compact shaker-type, intermittent duty collector with a wide variety of configurations and filter bag materials to suit many applications.
|
|
|
|
|
|
Clyde Materials Handling has developed a wide array of MAC Equipment air/dust filtration technology which can be applied to tackle any process filtration challenge. For more details contact Richard Sims, Managing Director – Industrial Process Technologies on 01302 321313 or visit www.macequipment.co.uk
MAC Pulse Jet filters can be used in a wide variety of air filtration applications. Depending on the configuration, they can be used as the filter in a dust collection system or as the product receiver in a pneumatic conveying system. Filters can also be equipped with a HEPA high efficiency filter on the clean air exhaust where the air is being reintroduced into the work environment. For lower energy consumption, medium pressure cleaning options are also available.
The MAC2Flo has large square footage of media per cartridge allowing for increased air flow with no increase in pressure drop. Dust-laden air enters the top of the filter, which provides a true downward airflow resulting in increased cleaning efficiency.
The MAC Medium-Pressure Controlled-Cleaning Dust Filter (MCF) is the most efficient and versatile bag filter made. Capacities range to over 250,000 CFM with over a dozen filter media options available. MCF Dust Filter combines superior consistent cleaning performance with major energy savings. Each round filter bag is cleaned only once per cycle to optimize bag life and pressure drop.
A full range of replacement filter bags in a variety of medium, cages and filter cartridges can be supplied.
Components are sold as stand-alone units. Some of these components are also used in Pneumatic Conveying systems to filter process dust from the air stream.
|
|
The Design M FabriPulse pulse-jet fabric dust collector meets the needs of industrial dust collection applications that have low air volume and require small, compact filter sizes. It is engineered to give years of efficient service and minimum downtime for continuous operation.
The Design M collector is built with rugged 12-gauge construction and efficient pulse-jet reconditioning. The bag cartridge assembly consists of four or six foot long bags made from fine denier polyester media. This premium quality fabric enables a 99+% collection efficiency, high operating air-to-cloth ratio (up to 8:1), and excellent dust cake release at minimum pressure loss. Normally, less than 1.0 SCFM of clean, dry compressed air will be required for each 1,000 CFM of dust-laden air, with pressure drop ranging from 3" to 6" w.g. The Design M FabriPulse is available with an optional integral fan and/or final filter, as well as bin vent models for bins and silos.
|
|
|
|
|
|
Clyde Materials Handling has developed a wide array of MAC Equipment air/dust filtration technology which can be applied to tackle any process filtration challenge. For more details contact Richard Sims, Managing Director – Industrial Process Technologies on 01302 321313 or visit www.macequipment.co.uk
MAC Pulse Jet filters can be used in a wide variety of air filtration applications. Depending on the configuration, they can be used as the filter in a dust collection system or as the product receiver in a pneumatic conveying system. Filters can also be equipped with a HEPA high efficiency filter on the clean air exhaust where the air is being reintroduced into the work environment. For lower energy consumption, medium pressure cleaning options are also available.
The MAC2Flo has large square footage of media per cartridge allowing for increased air flow with no increase in pressure drop. Dust-laden air enters the top of the filter, which provides a true downward airflow resulting in increased cleaning efficiency.
The MAC Medium-Pressure Controlled-Cleaning Dust Filter (MCF) is the most efficient and versatile bag filter made. Capacities range to over 250,000 CFM with over a dozen filter media options available. MCF Dust Filter combines superior consistent cleaning performance with major energy savings. Each round filter bag is cleaned only once per cycle to optimize bag life and pressure drop.
A full range of replacement filter bags in a variety of medium, cages and filter cartridges can be supplied.
Components are sold as stand-alone units. Some of these components are also used in Pneumatic Conveying systems to filter process dust from the air stream.
|
|
The OptiFlo DustCatcher 2 is a self-contained, horizontal cartridge, self-cleaning, down-flow pulse jet dust collector. This model measures 41" x 48" x 82" and contains two high efficiency, DuraKlean filter cartridges.
- CFM (Air Volume): 400-800
- Efficiency %: 99.999
- Media/Filter Area (sqft): 100-500
- Grain Loading/cf: 2-3
- Hours of Operation: 24/7
- Material Characteristics: Dry, Fibrous
- Max Temperature: 275° F
- Media Type: Cellulose, Polyester & Cellulose Blend, Spun Bonded Polyester, Polyester & Glass Blend, Carbon Impregnated, Olieophobic, Special, PTFE Membrane
- Type of Collector: Cartridge
|
|
n the 1970s, the Donaldson® TD Range was the first dust collection system to use pulse-jet, self-cleaning cartridge filter technology developed by the Donaldson Company. Then, in the early 80s, Donaldson again set the standard in dust collection by taking full advantage of the law of gravity with the introduction of the Downflo® dust collector, delivering extremely high collection efficiency whilst consuming less energy. Today we have 16 distinct collector lines and 16 different filter cartridges options.
Unicell%u2122 Collector
The newly designed Donaldson Unicell%u2122 dust collector accommodates a variety of applications and air volumes in small and large manufacturing facilities whilst conserving plant floor space. Unicell offers upto 25% more media via this highly efficient dust collection system.
|
|
|
The Donaldson Downflo® Oval 1™ dust collector provides a 25% increase in airflow capacity, improved airflow path and 29% increase in pulse cleaning pressure in a compact, high-efficiency collector using unique, oval-shaped filters. There are 26 Downflo® Oval 1™ models ranging from DFO 1-1 to DFO 4-128.
|
|
Gold Series Camtain on Pharmaceutical Manufacturing Applications
* The Gold Series (GS) Camtain units can be used in a variety of pharmaceutical dust collection applications including tablet presses, coating, fluid bed drying, spray drying, blending, granulation and general room ventilation.
* The GS Camtain is perfect for high efficiency filtration where recovery of the product is not required.
* Safe-change containment systems are available for both the filter cartridges and discharge system underneath the collector. The cartridge change utilizes the bag-in/bag-out (BIBO) method while the discharge uses continuous liner technology.
* The GS Camtain can also support traditional dust collection for nuisance dusts and fumes that do not require full isolation and containment.
* Farr APC has containment dust collectors for pharmaceutical applications in North, South and Central America, Asia and Europe.
|
|
|
|
|
|
Clyde Materials Handling has developed a wide array of MAC Equipment air/dust filtration technology which can be applied to tackle any process filtration challenge. For more details contact Richard Sims, Managing Director – Industrial Process Technologies on 01302 321313 or visit www.macequipment.co.uk
MAC Pulse Jet filters can be used in a wide variety of air filtration applications. Depending on the configuration, they can be used as the filter in a dust collection system or as the product receiver in a pneumatic conveying system. Filters can also be equipped with a HEPA high efficiency filter on the clean air exhaust where the air is being reintroduced into the work environment. For lower energy consumption, medium pressure cleaning options are also available.
The MAC2Flo has large square footage of media per cartridge allowing for increased air flow with no increase in pressure drop. Dust-laden air enters the top of the filter, which provides a true downward airflow resulting in increased cleaning efficiency.
The MAC Medium-Pressure Controlled-Cleaning Dust Filter (MCF) is the most efficient and versatile bag filter made. Capacities range to over 250,000 CFM with over a dozen filter media options available. MCF Dust Filter combines superior consistent cleaning performance with major energy savings. Each round filter bag is cleaned only once per cycle to optimize bag life and pressure drop.
A full range of replacement filter bags in a variety of medium, cages and filter cartridges can be supplied.
Components are sold as stand-alone units. Some of these components are also used in Pneumatic Conveying systems to filter process dust from the air stream.
|
|
Cyclones
The AAF Cyclone is a dry centrifugal collector for dusts of moderate to coarse particle size (>20µ). The Cyclone will remove up to 99% of dust (by weight) generated by steel grinding and saw dust. When used as a pre-cleaner, the Cyclone reduces the dust load on higher efficiency final collectors for longer service life.
Unlike many dust collectors, the AAF Cyclone contains no moving or replaceable parts and is essentially maintenance free. Air is drawn into the cyclone tangentially and rotates at high velocity, separating heavier dust from the air by centrifugal action. The basic Cyclone features an all welded heavy construction enclosing an internal helix, integral fan and motor assembly. Options include a 55-gallon steel drum, hopper with rack and pinion slide gate, discharge elbow, after-filter, and rotary airlock and receiver.
|
|
PowerCore® Collectors
PowerCore – the award winning revolution in dust collection – combines Donaldson’s patented Ultra-Web® nanofiber technology with new media packaging expertise. As a result the innovative, obround shaped PowerCore filter packs compose an extremely small but powerful package. PowerCore dust collectors handle high airflow, high grain loading, challenging particulate, and fit into the smallest places. The space-saving dust collector comes in two models: the CPC (stand alone dust collector) is up to 50 % smaller than traditional baghouses and can be ducted to many different applications. The CPV (bin vent) is up to 70 % smaller than traditional bag bin vents and can be used on silos, conveyor transfer points, conveyor discharges, blenders and mixers.
|
|
OptiFlo Cartridge Collector
The OptiFlo cartridge collector system is a completely modular design that allows an unlimited range of sizes. The compact modules help conserve valuable space, and can be interconnected to accommodate the largest air cleaning task.
OptiFlo units have the lowest flange-to-flange pressure drop, allowing up to 10% greater airflow with lower fan horsepower than competitive models. The OptiFlo's aerodynamic design permits free-fall of dislodged particulate into the hopper without direct impingement of contaminant on the cartridges, minimizing abrasion and dust build-up.
A wide selection of cartridge types, options, and accessories enable the collector to be tailored to specific application requirements. Choose from top or front inlet and side or bottom outlet arrangements.
|
|
Type W RotoClone
The Type W RotoClone is designed to combine the scrubbing effect of water with the principle of dynamic precipitation. It is a highly effective wet-type collector which discharges collected materials in slurry form. The Type W collector operates continuously at 98+% efficiency with minimum water requirements (only 1/2 to 1 gallon per 1,000 CFM of air).
The Type W is capable of handling hot, moist gas streams and sticky dusts, which makes it effective in applications such as chemical processing, mining, coal processing, food and pharmaceutical dust capture. Two optional outlets are available for vertical discharge: a 90-degree outlet elbow for immediate redirection, and a centrifugal outlet for recirculation or corrosive mists.
|
|
|
|
|
|
Technical specifications:
Prefilter: 20 liters.
Maximum static pressure: 3,2 kPa
Maximum airflow: 15 m3/min
Control panel: filter saturation, overheating and overloading indicators, 7 speed levels of suction.
Synchronization plug for connection with other applications.
Dimensions (mm) : 450 (L) x 531,5 (W) x 929 (H).

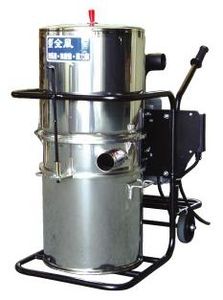

The SKV-900AT-HC-V1-CE is a dust compact and powerful dust collector with a suction capacity of 15 m3/min. Its prefilter of 20 liters allows an efficient management of dust and voluminous particulates important emissions. A shaking lever ensures a filter longer lifetime.
A special filter replacement avoids any particulates leak in the air. Filtration rate reaches 99,97 % for particulates ≥ 0,3 µ thanks to a HEPA final filter.
A control panel favors a more precise use of the machine through a speed regulator with 7 levels, light indicators for filter saturation, risk of overheating and anomalies. Likewise, a synchronization plug eases connection to other applications for a remote control.
Application domains: polishing, cutting, drilling, screwing, sharpening… and cosmetic, pharmaceutical and food powder.
Unusable for toxic gas, liquid, explosive, corrosive an abrasive substances.
|
|
|
|
|
|
Technical specifications:
Maximum static pressure: 8.5~10 kPa
Electric power: 250~1200 W
Maximum airflow: 1.5-4.3 m3/min
Control panel: filter saturation and overheating indicators, 7 speed levels of suction.
Synchronization plug for connection with other applications.
Weight: 14,5-16 kg
Minimum dimensions (mm) : 287 (L) x 317 (W) x 275 (H)
The products of the CBA Series combine high pressure and strong handiness. Offering an exceptional combination between an ultra-compact size and a real suction power (up to 10 kPa of static pressure), those models are especially designed for works of precision and can run 24 hours a day without any risk of overheating in all types of work environments.
A control panel allows you a complete and fast familiarization with the machines through filter saturation, overloading, overheating indicators, a speed regulator of 7 levels and a screen displaying ongoing pressure. The CBA-080AT-HC offers a connection to already existing productive systems thanks to a synchronization plug.
Possibility to use a final HEPA filter for cleanroom from class 10 000 to 100.
It is recommended to use a relatively narrow hose diameter in order to benefit from an optimal static pressure.
Non applicable for toxic gas, liquid, explosive, corrosive an abrasive substances.
|
|
|
|
|
|
As HERDING continues to develop filter elements and units which do not contain an ignition source, the company has accumulated extensive theoretical and practical experience in the field of fire prevention.
HERDING contributes its expertise to a variety of organizations including the Association of German Engineers (VDI), the German Engineering Federation (VDMA) and the German Insurance Association (GDV). HERDING also shares its expertise in handling flammable and explosive dust with companies that use filter units.
In addition to ATEX-compliant filter units, HERDING also offers a filter system analysis service to review customer compliance with ATEX requirements. HERDING assesses the systems on site, provides customer training and generates an explosion protection document based on German occupational safety regulations (BetrSichV). HERDING performs a risk assessment including zone and ignition hazard analysis and generates an appropriate preventive, design and organizational action plan. Why not contact us? We would be please to advise you.
|
|
The Absolent TSF is well suited for use in applications where dry dust is generated:
• Welding
• Laser cutting and plasma cutting
• Grinding and polishing
|
|
|
the DC line of dust collection systems utilize high capacity filter bags and a powerful blower to remove dust and particulates from the blast chamber of your blaster. A manual shake down mechanism is supplied to remove dust.
|
|
|
|
|
|
As HERDING continues to develop filter elements and units which do not contain an ignition source, the company has accumulated extensive theoretical and practical experience in the field of fire prevention.
HERDING contributes its expertise to a variety of organizations including the Association of German Engineers (VDI), the German Engineering Federation (VDMA) and the German Insurance Association (GDV). HERDING also shares its expertise in handling flammable and explosive dust with companies that use filter units.
In addition to ATEX-compliant filter units, HERDING also offers a filter system analysis service to review customer compliance with ATEX requirements. HERDING assesses the systems on site, provides customer training and generates an explosion protection document based on German occupational safety regulations (BetrSichV). HERDING performs a risk assessment including zone and ignition hazard analysis and generates an appropriate preventive, design and organizational action plan. Why not contact us? We would be please to advise you.
|
|
|
|
|
|
Gold Cone® Filters
Gold Cone
The exclusive and patented Gold Cone in the center of the cartridge offers benefits unavailable from any competitive filter cartridges.
* Expanded capacity due to the patented inner cone of filtration media.
* The inner cone provides uniform dispersion of back-pulsed air and opens up more usable space for airflow in the dust collector.
* Farr's PolyTech™ media is the most advanced pulse-cleaned media ever made.
* All Farr filter media offerings deliver a minimum of 99.999% separation efficiency down to 0.5 micron by weight.
* Continuous double seal gaskets give added insurance against leaks. No other filter design gives you a double seal barrier.
* HemiPleat® filter technology ensures uniform pleat spacing with synthetic beads that hold the pleats of the filter cartridge wide open.
Reverse Pulse Cleaning
* Featuring an injection-molded inner cone in the center of the cartridge, cleaning is accomplished by pulse waves that emanate outward from this inner cone providing advanced cleaning for more efficient operation, longer cartridge life and reduced service requirements.
* Test results indicate that this new pulse distribution method provides enhanced cleaning.
|
|
Fan cleaned filter-FCF is designed to tailor to special dust concentration and characteristic to serve Hygiene, paper and tissus industries. FCF filter is cleaned automatically according to design PLC setting by using fan. Unlike other bag house filters which normally used compressed air to clean its medias, FCF is using fan to clean its media which helps save energy.
FCF is CE Marked and complies to ATEX safety standard. It is delivered with 2 years part garantees. FCF is tested and in commercial operation with our global hygiene partner and delivered to its factory worldwide.
|
|
Because of some machining processes, the air of industrial environments may be full of polluting agents, as various dust and motes, harmful for health of working people and non-conforming with the relevant standards.
The company Savio S.r.l., ever-sensitive to and in the van of the solution of such problems, has studied and manufactured SQUARE FILTER which, being particularly compact and having high filtering surface/volume ratio, is widely used in chemical / foodstuff /metallurgy industries, in the field of ceramic production as well as in silos, mills, screens, mixers, etc...
|
|
The new and compact DELTAFlex design enables the end user and the operating company flexibility with a small foot print, particularly when large air flows are of concern.
The filter elements are mounted vertically and depending on the application, the filter unit will be equipped with DELTA- or DELTA²-filter elements.
The safety concept and the unit design following the ATEX-safety regulations will follow your needs.
|
|
Jet pulse cleaning bag house filter-model TSF
TSF is designed to handle various kind of air dust in many industries including metal,casting,automobile, powder chemical, powder detergents. TSF has been tested over many years with global leading companies around the world. TSF is with CE Marked and complies to ATEX saftety standard including 2 years part garantee.
With our extensive erfarenhet and many various project scales deliveries around the world can ensure our customers the high Swedish quality standard and technologies at target desired budget.
|
|
|
There are good reasons for a compact dust collection solution: Clean and therefore healthy workplaces are not only beneficial for employees, but also make a decisive contribution towards preventing annoying interruptions in production. Longer service life for machines and tools help to reduce production costs. The compact filter is a mini vacuum cleaner for air volumes from 500 up to 3.000 m³/h. Requiring very little space, it is ideally suited as an auxiliary device for mounting directly on the production unit. The design principle of this series is based on an innovative modular construction system. Fans, filter surfaces, dust containers and the mode of operation can be provided to comply with your specific requirements.
|
|
|

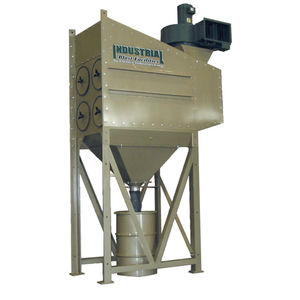

A modular self-cleaning cartridge collector with the markets most efficient cleaning system gives outstanding filterlife. The modular design makes it possible to tailor-make systems depending on application condition. Made for heavy applications usage.
|
|
Filter/Dust collector for different kind of dusts, also with ATEX compliant features .
DANTHERM FILTRATION filters/ dust collectors can be equipped with “cassettes” filters or with cartridge filters.
In both cases we can handle different kinds of various industrial dusts, including danger explosion dusts, that demand an ATEX cetificated filter.
The main characteristics of DANTHERM FILTRATION filters are compact size with a large filter area, high efficiency, easy maintenance and long life of filter elements.
|
|
|
|
