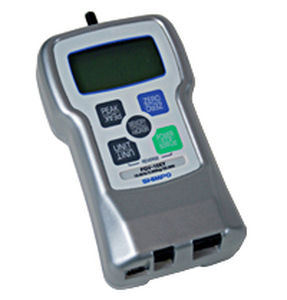

Digital force gauge for determination of compression and tension forces, usable for numerous applications in a lot of sectors of industry with RS 232, USB, Digimatic or analog output signal
- 2 operation modes:
real time - display the actual tension or compression force
peak force - to measure the peak force during a test
- Force measuring device with high sampling rate of 1000 times/sec to measure the peak force during a test switchable to 30 times/sec for applications with slow-changing forces or for damping forces, beeing influenced by vibrations.
- Display update time 10 mal/sec
- Force gauge with user switchable units: N, gf (kgf) und ozf (lbf)
- Programmable high/low set-points for go/no-go testing:
Display: underrun (-) - good (O) - exceeding (+)
- »Zero Set« to zero the gauge in all operating positions
- Manufacturers calibration report is included
- Display can be reversed for inverted use; e. g. on vertical test stand
- Force measuring device for exact measuring with an accuracy of 0.2 %
- Overload protection: 150 % full scale (up to 5 N)
200 % full scale (from 20 N)
- For hand-held use or mounting on test stand (mounting thread 4 x M4 in back)
- Easy to operate
- Force gauge with easy to read LCD display
- Ergonomically-designed, rugged die-cast aluminium housing
- Operates on rechargeable battery (NiMH) and/or AC adapter
- Full set of accessories included
|
|
|
|
|
|
Chatillon® DFE Series
The Chatillon® DFE Series is a compact, easy-to-use force gauge designed for economy applications without compromising functionality. Ideal for handheld or test stand applications, the DFE is available with capacities from 2 lbf (1 kgf, 10 N) to 500 lbf (250 kgf, 2500 N). The DFE features an integral loadcell with a measurement accuracy of better than 0.25% full scale. A large, easy-to-read, high resolution dot matrix LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, setpoints, pass/fail results, statistical results, loadcell actuation and direction. Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be "hidden" from the operator. The DFE gauge may be specified with or without RS232 serial communication. All DFE Series force gauges come with a carrying case, battery adapter/charger, testing accessories and NIST Certificate of Calibration with data. Uncertainty data per ISO/IEC 17025 is supplied standard.
Standard Gauge Measurement Functions
Normal Tensile and Compression Measurement
Peak Tension and Compression Measurement
Pass-Fail Limits
High & Low Setpoint Limits
Statistical Calculations
|
|

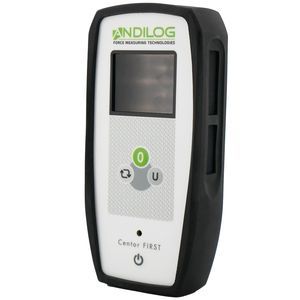

Simple digital force gauge : CENTOR FIRST
Simple and yet complete, the CENTOR First force gauge uses efficient technology to simplify force measurements, in tension and compression ...
Graphical force gauge : CENTOR EASY
Simple and complete,the CENTOR "Easy" is the best instrument for measuring in the workshop.The screen provides simultaneous readout of the current and maximum values as well as...
Advanced graphic dynamometer : CENTOR STAR
The CENTOR "Star"has many functions.It will become your preferred force measurement tool.The graphic screen displays the complete Force=F(t) curve ,...
Two sensors force gauge : CENTOR DUAL
It has all the functions of an STAR force gauge, but its calculation power enables it to record values sent by 2 different sensors simultaneously
|
|
|
|
|
|
Mecmesin digital force gauges are state of the art instruments, specifically designed to measure force in tension and compression (push or pull) with optimum precision and performance.
The Advanced Force Gauge (Mark 4) is the most versatile and fully-featured instrument offered by Mecmesin. The AFG comprises of 10 different models ranging from 2.5N to 2.5KN with the added ability of 1st peak and ultimate peak hold. The bi-directional interface (RS232, Mitutoyo, Analogue) ensures full data transfer between PC's, data-loggers and Mecmesin stands. All AFG's feature superb accuracy at ±0.1% of full scale and a sampling rate of 5,000 times per second.
The BFG (Basic Force Gauge) range of rugged, flexible and reliable instruments are designed for easy operation and outstanding force measurement performance - all at a budget price. A precise and reliable instrument, the BFG features accuracy at ±0.25% of full scale and a sampling rate of 1,000 times per second.
The CFG (Compact Force Gauge) is a pocket-sized, lightweight and low-cost force gauge, ideal for performing elementary tension and compression testing. The CFG is available in 3 capacities and features include a data sampling rate of 10Hz, accuracy of ±0.5% and versatile measurement options lbf, N, ozf, kgf and gf, with a resolution of 1:1000 or better.
Used either handheld or combined with a test stand and accessories they offer a complete testing solution for a virtually limitless range of tension and compression applications.
|
|
Technical Highlights:
- Data Sampling Rate: 1000 Hz
- Accuracy: 0,5 % of Capacity
- Secure Operability due to ergonomically Design
- Overload Protection 200 % of full scale
- Turnable Display automatic direction identification
- Attachable to all SAUTER Test Stands
- Auto-Power-Off
|
|
|
|
|
|
The Centor Star is the most advanced force gauge currently available, it has become the benchmark tool for force measurement. Besides having all the functionalities of the Centor Easy, it also provides additional handy possibilities: with its graphic capabilities, it can calculate and display in real time, not only the maximum, but also the values of the particular points of the curve, such as the rupture force, force on a trigger, force at a given time, first peak, etc.
The new features:
– Maximum within a time window: makes it possible to define a particular time period for a test and to calculate the maximum force during that period while keeping the test maximum in memory
– Calculation of the time necessary to reach the maximum force in tension or compression
– Average force over the duration of the test
All these results are stored in memory (up to 100 tests) which allows statistics to be calculated on the maximum values and on configurable calculations, then sent to a PC along with the dates and times of the measurements.
Furthermore, it is possible to freeze its configuration to avoid handling errors. It is the most versatile instrument designed for all tests in industrial surroundings.
|
|
Real time or Peak Hold Switch to observe transcients or capture peaks by a drag indicator
- Zeroing by a short push of the switch
- Tare Ring for an easy calibration of the tester
- Dual Scale: Shows NEWTON and kg
- Can be mounted on all manual test stands or the optional handle
|
|
|
|
|
|
Functionality, accuracy, and precision formerly reserved for expensive and complex material testing equipment are now available with Andilog Force Gauges. The functionality of material testers previously reserved for research or development applications are now available to the production floor with the introduction of the Centor Touch Force Gauge.
High accuracy of 0.1%, sample measurement rates up to 5000 Hz, internal memory, measuring peaks and graphical display are just the beginning features. Centor Touch can provide break force, average, curve force versus time or deflection, statistical calculations and real time pass/fail analysis based on user supplied tolerances. Data logging and communication to your computer or network is available with RS232 or USB ports. Centor Touch is designed for manufacturing environments, providing performance and easy operations to use and understand with the addition of the new, colored touch screen technology. Icons guide the operator in the selection of the appropriate measurement technique and method for their application. Setup menus, prompts and results are available in multiple languages.
When integrated in manufacturing processes, the Centor Touch can communicate with controllers through fast TTL outputs.
With the combined features of functionality, flexibility and simplicity, the Centor Touch is the solution for more sophisticated and economically feasible testing solutions for the factory floor.
|
|
Simple and yet complete, the CENTOR First uses efficient technology to simplify force measurements, in tension and compression.
A big display shows the force measured in tension or compression in the unit selected by the operator: newtons, kilograms or pounds. The bar graph completes the measurement.
The 3 keys make it very easy to use this force gauge and access the essential functions: measurement of the peak tension or compression value, resetting to
zero, and changing the measuring units. It is an ideal tool for basic tests during production. Its metal casing, protected by an elastomer overmould, gives it
exceptional strength.
The internal sensor stands up to an overload of 200% of its maximum capacity.
Simple, precise, robust, supplied with its own carrying case, mains adaptor and certificate, ready for use, it is the basic tool for force measurement.
|
|
The unique Alluris digital force gauge series FMI combines precise measurement with a very rugged aluminium dye cast housing. This robust housing in not only to protect the electronics but also to allow the use in a test stand with limited distortion. We offer a 5 year warranty periode for those instruments which are maintained and calibrated regulary in our works.
> 0,05% or 0,2% accuracy
> PEAK detection with 1000Hz sampling rate
> USB-Interface, RS232C-Interface, analog output (+/-1VDC)
> Overload output for test stand applications
> Comparator with limit switch
> Memory for 1000 measurement data
> Longlife load cell (mech. 200% overload)
> Display reversable for test stand applications
|
|
|
|
|
|
Multi-Measuring System, PHYSIMETER® 906 MC-S/E
The PHYSIMETER® 906 MC-S/E is a universal multi measuring system that, due to its versatility and its modular construction meets all relevant demands of technical measurements. The core of this system is a fully-fledged PC in the size of a credit card. For the first time, integration of different complex technologies in connection with an intelligent system architecture results in an efficient measuring system with intuitive operation. High quality and a clean design underlines the consequent concentration on perfect functionality and ergonomics. Designed as a mobile system the PHYSIMETER® 906 MC S/E is equipped with four channels for simultaneous data-recording of physical values such as force, stroke, pressure as well as the number of revolutions, torque or rotational angles. The versatile amplifier allows the connection of strain gauges, inductive stroke sensors, digital and analogue signals. The connected sensors are automatically identified and can be changed during operation. The strong aluminium housing plus optional force sensor enables the unit to be integrated in a stationary measuring system and is suitable for a load of 1kN.
|
|
It is the force measuring instrument of the electronic formula which can measure both tension and compression power by single axis.
It excels in a response and measured value is displayed in an instant. Since it is a digital instrument, various functions are available. For example, the memory function which can memorize up to 1000 measuring data, comparator function which can program high and low set points. ZP series has USB output function and it becomes easy to connect a computer. Using optional software, it is possible to make precise force-time chart by high speed USB communication. By using with a test stand, it corresponds to a large area from the field of a quality control to the field of research and development.
|
|
General description new BINTPRES M50
- Microprocessed instrument with Autozero function, suitable for the rapid, accurate and reliable measurement of the force applied by brush holder springs on the brushes of rotating electrical machines.
- New SM5 probes for better accuracy, reliability and strenght.
- Double kg and Newton digital readout, with a large dot matrix lcd display for an easy readability.
- Interchangeable probes, previously easy and quick instrument recalibration.
- Simple to use, small dimension, easy to handle.
- Lightweight, compact, rugged.
- Supplied with SM5 probe and carrying case.
- Fully complies with CE Directives.
|
|
Dynamometer radio + cable,
radio up to 250 m distance
cable up to 10 m distance
consisting:
-Measuring rod (max. 8 Stück)
-Hand receiver
-Accu charger
- Alu-case
Options:
a) 10 m coil-cable for cabel function
b) Further Measuring rods
c) Radio frequency 869 MHz
|
|
|
|
|
|
The dynafor® LLX2 dynamometers are precision appliances (0.1% ), for measuring pulling force and indicating loads. The capacity scale ranges from 500 daN to 6300 daN.
A dynafor® LLX2 is made up of a sensor and a mobile display unit. A two-way radio link-up using the 2.4 GHz wave band conects the two components.
16 radio channels are used. Each display unit and sensor have their own address, enabling unequivocal identification in the event of a multiple set-up.
The specific, patented shape of the attaching head enables you to use either standard shackles or standardised accessories for chains.
The LLX2 is available in two versions: Standard version with interlinking anchoring rings in the perpendicular surfaces, or an optional version with the anchoring rings both on the same side. The standard version enables articulation of lifting accessories on both sides, thus avoiding stresses due to load movements and enhancing appliance precision.
These assemblies are put together on our production line and cannot be modified later by the user. The technologies implemented on a radio and software level offer, aside from the standard uses to be expected from an industrial dynamometer, multiple configuration possibilities that combine several sensors with several display units. They also offer access to advanced function such as: saving, threshold management, monitoring etc. The PC - USB link permits to dowload, save and manage measurements data.
|
|
25.4mm LCD display
Accuracy 0,1% Emax
Shackles included (D150E-12 excluded)
Remote control included
Radio transmission LPD 869,87 MHz (available)
Capacities (Kg.)
1.000, 3.200, 6.500, 12.000
|
|
It is the force measuring instrument of the mechanical type of the power supply needlessness which can measure tension and compression force easily and correctly.
Based on our long history of technical achievement as a force gauge pioneer with the variety of know-how, IMADA mechanical force gauge is produced under advanced technology and severe quality control, and maintain early high precision for a long period of time.
|
|
TesT develops and validates systems, in line with the constantly growing requirements and aim at the needs of its customers to guarantee a complete and competent solution of the highest level. We engage ourselves to reach a high customer satisfaction in a surrounding field of prevention and continuous improvement. The new model 322 is the High end product of most modern measur-ing technique and offers an unusual price performance ratio.
dynamometers integrate a high-resolution force sensor as well as processor-controlled electronics with most modern software, based on a wide experience and the requirements of our customers.
The main area of application for these devices is research and development, production and quality assurance. Particularly operating forces as well as stability of construction and functional units will be measured.
Examples
Springs, switches, levers, fasteners, precision mechanics, foods, cosmetics, vehicles, medical technology, and many more.
|
|
|
|
|
|
Measuring System PHYSIMETER® 906 MC-B
The measuring system PHYSIMETER® 906 MC-B has been designed for the determination of the mechanical parameters force or torque on the basis of wire strain gauges. The instrument can be supplied with an integrated or an external sensor. For the power supply a block battery of 9 V is required (standard article) or alternatively a plug-in power pack (option). For easy handling the instrument is provided with the functions On/Off, reset and indication of peak value (upper and lower measuring value). In the standard version of the instrument the load introduction takes place at the bottom. Upon request, the load introduction can also be effected on the top of the instrument. The ergonomically designed housing, made of anodised, high-strength aluminium, is provided with threaded bores at the front side so that an unproblematic connection to the ERICHSEN testing machines is guaranteed - as it was also ensured when using the preceding models of the tensile and pressure testing instruments. The instrument is perfectly suitable for mobile as well as for stationary applications.
|
|
|
|
|
|
RON 2150 Dynamometer is a unique combination of the smallest and lightest load cell with a very large display.
The small and light load cell ensures portability and low headroom loss for any application. The large display ensures readability from a considerable distance.
RON 2150 also offers two systems in one: the removable display enables the user either to hold the large indicator in his hand or snap it very easily onto the load cell. By this means, the user's personal safety is ensured as under no circumstances will he have to approach the load in order to read the result: he will either hold the remote indicator in his hand or read the large display from a safe distance.
The separation of load cell and display also increases the system's durability.
The load cell's unique perpendicular hole structure neutralizes external moments and thus improves safety and accuracy.
RON Crane Scale and cable Dynamometer series are used for weighing during lifting, overload prevention, force, load and tension measurement and cable and wire tension monitoring and control.
Cable Dynamometers are often used by electricity and communication companies for cable and wire tension monitoring and control. RON systems low weight ensures their portability and makes them especially suitable for these applications.
A marine version of the RON 2150 Shackle Type is also available for offshore applications.
All Crane Scales and Cable Dynamometers are factory-tested and supplied with a test certificate, including a fully traceable calibration chart.
|
|
|
|
|
|
RON 2000 Shackle Type is the smallest and lightest portable Dynamometer.
RON 2000 portable Dynamometer is a basic, easy-to-operate and very reliable tension load meter. Digital dynamometers are used for weighing, force, tension, load measuring and load control.
RON 2000 digital dynamometer has a miniature load cell which ensures portability and minimum headroom loss for any application.
The load cell's unique perpendicular hole structure neutralizes external moments and thus improves safety and accuracy.
RON 2000's indicator is separated from the load cell and is held by the user. This separation ensures the user's safety since under no circumstances will he have to approach the load in order to read the result. This separation also guarantees the durability of the portable Dynamometer.
RON Crane Scales and portable Dynamometers are used for weighing during lifting, overload prevention, load measuring, load control and load monitoring.
All RON Crane Scales and portable Dynamometers are factory-tested and supplied with a test certificate, including a fully traceable calibration chart.
|
|
|
|
|
|
RON portable digital scales include the Crane Scale, Dynamometer Load Cell and Overload Detector series.
The low headroom RON 1000 Standard Type Overload Detector is designed to be installed on the dead end or can be used between the hoist and its trolley.
RON 1000 Standard Type is a low headroom, electromechanical Overload Detector, used for overload monitoring. It may be configured to trigger any desired electrical alarm supplied by the customer, including stopping the lift when an unsafe overload condition occurs, for overload detection and prevention.
Overload during lifting: Hoist or crane overload is dangerous and can cause accidents. Overload monitoring is important for prevention of crane overload.
The devices are supplied factory-calibrated and ready for installation. Available in a wide variety of capacities, the RON 1000 can be supplied in capacities ranging from 500 lbs (250 kgs) to 20,000 lbs (10,000 kgs). Each unit is initially adjusted to give the user an overload indication at 105% of rated capacity. Additional detection point is optional.
RON portable digital scales: Crane Scale, Dynamometer and Overload Detector series are factory-tested and supplied with a test certificate, including a fully traceable calibration chart.
|
|
| ... products without technical information |
| |
|
Hysteresis Brake Dynamometers (HD series) are versatile and ideal for testing in the low to middle power range (max. 14 kW intermittent duty). Hysteresis Brakes do not require speed to create torque, and therefore can provide a full motor ramp from free-run to locked rotor. Brake cooling is provided by convection (no external source) or by air (compressed air or dedicated blower) depending on the model. Hysteresis Dynamometers have both continuous and intermittent power ratings where the dynamometer is capable of dissipating more power for shorter periods of time. All Hysteresis Dynamometers have accuracy ratings of ±0.25% to ±0.5% full scale, depending on size and system configuration. Also available are special designs for high-speed motor testing.
|
|
|
|
