KZValve Butterfly valve and electric actuator (photo shown with KZCO's EH5 Heavy Duty Actuator)
VALVE FEATURES:
- Valve Body: Epoxy coated cast iron (2-3") Aluminum (4")
- Disk and Stem: 316 SS
- 175 PSI MAX @ 70F (2-3")
- 70 PSI MAX @ 70F (4")
- Manual override capabilities
- EPDM, VITON®, BUNA seats available for varying applications
ACTUATOR FEATURES:
- High quality, durable actuator housing rated: NEMA 6P for waterproof applications and NEMA 7D Ignition Protection applications
- 12/24 VDC and 24 VAC operation available
- Wiring options include on/off, flow control, pot feedback and 4~20mA
- 12/24 VDC and 24 VAC compatible
- RoHS compliant solid state programmable circuitry
- Up to 500 in-lbs torque
- Tough aluminum gear box with metal gears
- Waterproof plug connectors
- Many different functionality variations
- NFPA 1901 compliant for fire industry use
- Private labeling available
- Customization available for your specific application!
Consult our Engineering or Sales staff for application assistance.
|
|
Double off-centre design with removable gasket.
”Wafer” type models with flanges or to mount between flanges.
Valve and butterfly in flake-graphite cast iron or spheroid graphite cast iron.
Cast iron/elastomer, stainless steel/elastomer, metal/metal watertightness.
Face to face spacing meeting most national and international standards and notably: ISO, EN, NF, BS, DIN, ANSI (AWWA)...
DN 100 / DN 2000
Pressure classes: PN 2.5 - PN 10 - PN 16.
On/off control, setting or regulation functions.
Manual, pneumatic, electric reducer controls...
|
|
|
MAXON flow control solutions keep thousands of plants and products moving every day. With a wide breadth of solutions from intelligent mass flow control to economical mechanical control, our flow and ratio control valve products provide dependable, accurate control of air and fuel world wide. We invite you to browse the following product information for your flow control needs.
|
|
OMAL butterfly valves, available in wafer or lug version from DN 40 to DN 400, designed and manufactured to be used in the most difficult and troublesome industrial fields.
OMAL guarantees TOP-QUALITY production, since all its valves are submitted to hydrostatic, pneumatic and working tests before delivery: you'll be sure to choose the right product!
Therefore, the following pages will provide you with a useful list of all our materials and features to help your choice.
However, our technical department is always at your complete disposal for any information you may need.
If you choose an OMAL valve, you will get ease of use, total reliability, minimum losses, reduced dimensions and weights, quick maintenance and easy applications of pneumatic or electric systems.
|
|
|
J+J, a UK ISO9001:2000 quality approved valve actuation specialist company, offer a wide range of butterfly valves fitted with the J+J reversible weatherproof multi-voltage electric actuator. Valves are typically supplied with cast iron body, ductile iron body, stainless steel body and plastic body, with a variety of disc and liner materials. All valve and actuator packages are built and tested in-house.
|
|
KZValve Butterfly valve and electric actuator (photo shown with KZCO's EH2 Medium Torque Actuator)
VALVE FEATURES:
- Valve Body: Epoxy coated cast iron (2-3") Aluminum (4")
- Disk and Stem: 316 SS
- 175 PSI MAX @ 70F (2-3")
- 70 PSI MAX @ 70F (4")
- Manual override capabilities
- EPDM, VITON®, BUNA seats available for varying applications
ACTUATOR FEATURES:
- High quality, durable actuator housing rated: NEMA 6P for waterproof applications and NEMA 7D Ignition Protection applications
- 12/24 VDC and 24 VAC operation available
- Tough aluminum gear box with metal gears
- Actuator housing available with "indicator flag" or with "blank" lid
- Waterproof wire plug connectors
- Private labeling available
Consult our Engineering or Sales staff for application assistance.
|
|
2-Way & 3-Way
Wafer and Lug Style Bodies
For Mixing & Diverting, Hot & Chilled Water, Steam & Special Applications
|
|
Butterfly valve with electric actuator, single phase motor, manual override, visual position indicator and two extra limit switches,
- Flange connection
- DN 50 - 100
- Flow medium: Liquid, viscous and gaseous media
- Pressure range: 0 - 16 bar
|
|
| ... products without technical information |
| |
|
|
|
|
Product description

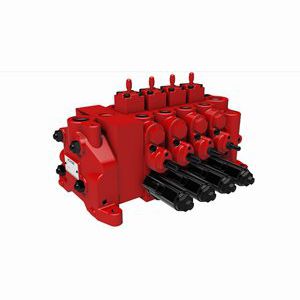

- Eaton's Ultronics ZTS16 control valve is an integrated proportional valve package that delivers flexible machine functionality and advanced control options for many applications in mobile hydraulic machinery.
- The valve features a J1939 or CANOpen CAN interface for communicating application level machine control demands
- Each section contains two independent main spools (so called; twin spool) that are driven by an electronic pilot valve containing embedded on-board electronics and two proportional actuators. For full closed loop control, each main spool has its own LVDT position sensor and port pressure sensor.
- Ultronics ZTS16's open architecture allows users to develop their own application level programmes using Eaton's ControlF(x)™ applications development software and EFX controllers, or by using their own controller and associated software.
Benefits & Customer Values
- Greater efficiency
- Improved power management
- Better control
- Increased flexibility
- Reduced hose requirement
- Reduced inventory
- Software configurability
Specs
- Monoblock design available 1 to 6 sections
- System pressure rating of 300 bar per NPFA T2.6.1 (1 million cycles at 350 bar)
- Work section flow up to 130 l/min
- Ambient temperature: -40°C to 105°C
- J1939 or CANOpen communication input
|
|
|
|
|
|
Series 240 Control Valves are available in nominal sizes ranging from DN 15 to DN 300 (½" to 12") and up to a nominal pressure PN 40 (Class 300).
Control valves in the standard version are suitable for temperature ranges between -10 and 220 °C (15 and 430 °F). An insulating section allows the temperature range to be extended to -200 and 450 °C (-325 and 840 °F).
The plug stem is sealed either by a self-adjusting PTFE V-ring packing or an adjustable packing. To meet stricter emissions control requirements, a stainless steel bellows is used. The Type 3241 Control Valve can be equipped with a heating jacket that may also include the bellows.
Series 250 Control Valves are used when large nominal sizes and/or high pressures are involved in process engineering, power plant or supply engineering.
In addition to globe, three-way and angle valves, four-flanged valve bodies with bottom plug stem guides, and valves with axial multi-stage throttling plugs, customized valve constructions to meet customer specifications can be engineered as well.
The valves are manufactured in nominal sizes from DN 15 to DN 500 (½" to 16") and for nominal pressures between PN 16 and PN 400 (Class 150 to 2500).
The standard versions of these control valves are suitable for temperatures ranges between -10 and 220 °C (15 and 430 °F). This temperature range can, however, be extended by using an adjustable high-temperature packing to a temperature range between %u201310 and 350 °C (15 and 660 °F) and by using a bellows seal or an insulating section to a temperature range between %u2013200 and 500 °C (%u2013325 and 930 °F).
Series 280 Steam-converting Valves are used to reduce both the steam pressure and steam temperature to optimize plant operation and heat efficiency in process plants, for example, in refineries, food and beverage, tobacco or pulp and paper industries.
Steam-converting valves are based on Series 250 Valves fitted with a flow divider St III and an additional spray water connection. They are available in nominal sizes ranging from DN 50 to DN 400 (1" to 16"), with nominal pressures of PN 16 to PN 400 (Class 150 to 2500) and for temperatures up to 500 °C (930 °F).
The Type DUV-C3 Steam-converting Valve from Welland & Tuxhorn is designed for high-pressure ranges and can be engineered with varying inlet and outlet sizes. The inlet nominal sizes range from DN 80 to DN 500 and the outlet nominal sizes
from DN 100 to DN 1600. Large amounts of spray water can be injected thanks to the integrated atomizing steam cooler. The valve can be operated in a wide load range.
|
|

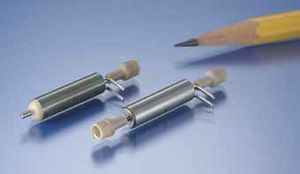

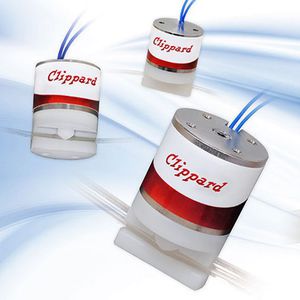

The Clippard's Electronic Valves combined with a serie of manifolds provide a complete system for efficient interface with electric and electronic circuits.
Lilke a mouse, these valves are quiet, quick, eats very little and are cute. Valves accept low voltage, low current signals, convert them into high pressure (100 psi/ 7 bar) pneumatic outputs. Optional low pressure/medium or high flow are available.
Clippard Minimatic electronic valves are precision-built 2- or 3-way control valves, utilizing a unique, patented, valving principle. There are no slidings parts. Complete poppet travel is a mere 0.007"(0.18mm). As a result, low power consuption and exceptionally long life are major benefits of this design.
The valves are very quiet in operation and also very cool. The valves' small size makes them well suited to a wide range of applications.
|
|
Presenting multi-purpose control valves and high precision control valves for steam with a pressure reducing valve as its base. Can be used for a variety of types of control when combined with a controller. Control valves and controllers automatically maintain at the target value the pressure, temperature, etc. to be controlled.
Operating Pressure Range: -12 - 250 psig
Operating Temperature Range: 0 - 428 °F
Automatic Control Valves
The product line-up includes a high precision control valve for steam with a pressure reducing valve as its base, a multi-purpose control valve, and a self-operated temperature control valve that requires no electricity.
Controllers
The product line-up includes a multi-purpose controller, and a specialized MC-COS controller.
|
|
|
Electronically operated valves for refrigeration systems are used in conjunction with electronic controls, typically from the Danfoss range of ADAP-KOOL® controllers. The range consists of electronically operated expansion valves for refrigeration systems with fluorinated refrigerants and ammonia (R717), evaporating pressure valves, and evaporating pressure pilot valves that enable electronic and remote operation of a PM main valve.
|
|
Media: non or slightly aggressive media
Pressure range : 0 to 1,6 bar
Ambient temperature :- 10° up to 50 ° C
Media viscosity : 40 cst max
Mounting : horizontal position, coil up
Opening or closing time : 500 milliseconds maxi
Hardness of the silicone tube : 55 shores
Supplied with a tube of 30 cm length
|
|
Features
* High cycle life, repeatable control
* Sleeve is the only part in contact with the media
* Eliminates need for expensive body materials
* Versatile choice of sleeve trims
* Able to meet exact flow requirements
* External stroke adjustment
* Bi-directional droptight shutoff
Materials of construction
* Ductile Iron Body
* Auma, Rotork, Limitorque or other actuators
* Drilled & tapped to mate with ANSI B16.5 Class 150 flanges
* Available Elastomers
The Series 5200E electrically actuated control valve is a reliable, maintenance-free, cost-effective valve, designed for tough slurry and abrasive applications. There are no seats to grind, no stuffing boxes to repack, and no packing glands to adjust, ever. The rugged, self-cleaning elastomer sleeve isolates all mechanical parts of the valve, so the breakaway torque remains constant.
|
|
Electrical Post-Mix Taps with Flow Control to maintain the fluid flow constant depsite any pressure variations. Ideal for water, soda, soft drinks, fruit juice and wine. Operates with coils of 24V / 50Hz 5W. SK approved.
Electric Pre-Mix Taps for beer or soft drinks dispensing. They work with 24V rectified current with a max absorption of 40W. SK Approved
Electrical Pre-Mix Taps with compensator wich permits the regulation of the fluid flow, suitable for water and soda. SK Approved
|
|
|
|
