MR series: manriding winches
Designed to the standards issued by the classification societies for personnel lifting operations. The winches are dedicated personnel lifting winches offered with full material trace-ability. They have passed the EC testing for these applications, i.e., both the winches and their technical files are in compliance with the requirements of the EC Machinery Directives.
|
|
TR series: traction winches
Traction winches are mainly built for the purpose. Winches are built to order and can be executed with a self braking worm gear or planetary gear, depending on the load required. The drive can be either electric, hydraulic or pneumatic. The winches are mainly used for traversing applications where a compact but heavy duty system is required. EMCÉ has supplied systems up to and including 10,000 kg.
Some applications we have supplied for are; opening and closing of hangar doors, moving railcars along a track, deep sea research and moving trolleys on a cable or at ground. Systems can be supplied with so called endless cable or with separate wire spooling unit.
Prices and drawings are available upon request, please let us have your specifications.
|
|
MR 30 FL manriding winches
Designed to the standards issued by the classifi cation societies and meets UK HSE regulations for personnel lifting operations on offshore installations. The winches are dedicated personnel lifting winches offered with Lloyds Register of Shipping (LRS) Design Appraisal Certifi cate and full material traceability. They have passed the EC testing for these applications, i.e., both the winches and their technical files are in compliance with the requirements of the EC Machinery Directives.
The MR 30 FL have been specially designed for personnel lifting applications in which a safety harness or a boatswain´s chair is used on fi xed installations with a total W.L.L. of 150 kgs. The MR 50 FL and MR 60 FL have been designed for use with assemblies using a platform, basket, carrier, etc. with a total W.L.L. of 500 kg for the MR 50 FL and 1000 kg for the MR 60 FL. |
|
The LM 90 hoist is only designed for lifting equipment. It has a carrying capacity of 90 kg. It has an unlimited lifting height.
The LM 250 hoist is only designed for lifting equipment. It has a carrying capacity of 250 kg. It has an unlimited lifting height.
The LM 300 S hoist is only designed for lifting equipment. It has a carrying capacity of 300 kg. It has an unlimited lifting height. |
|
| The e.lift 800 electric hoist is designed for lifting persons. It is used on suspended platforms. It is available only in the Three-phase model. It has a carrying capacity of 800 kg. |
|
| The e.lift 500 electric hoist is designed for lifting persons. It is used on suspended platforms. It is available in Single-phase and Three-phase models. It has a carrying capacity of 500 kg. |
|
| The e.lift 350 electric hoist is designed for lifting persons. It is used on single pods and suspended platforms. It is available in Single-phase and Three-phase models. It has a carrying capacity of 350 kg. |
|
Dinamic Oil has developed a complete range of products dedicated to the tower crane industry: slewing gearboxes, lifting winches and carrousel translation drives. Dinamic Oil has proposed a solution to each of these crane drives by realizing a dedicated product according to the markets requirements.
|
|
Features:
Motor
Single or dual speed motor (multi-pole solution). We have chosen the cylindrical type of motor in order to reduce any kind of problem in maintenance, avoiding the sliding of the rotor. Our motors come from the market, according to IEC rules.
Brake
Electro-magnetic disk type; asbestos free. No sliding of the shaft; the brake torque is adjusting in a very wide range of values. Low current input and noise.
Spur gear
Three steps epicyclical type.
Frame
A rugged frame made by two side steel machined flanges, connected by four high quality steel rods.
Drum
Single or double rope steel drum with maintenance free central bearing.
Safety limit switch
Worm gear safety limit switches for hook position, with possibility of adjusting for intermediate positions.
Electric control
Contactor control box with "emergency stop".
Variable frequency control is also available. |
|

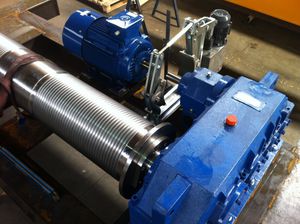

Winches and special winch gear units in customized versions for specific application sectors were designed to solve particular hoisting needs in factories and on self-propelled machinery.
According to client specifications, winches can have a customized configuration, special motor, brakes and accessories to adapt the hoisting system to the specific application, such as tractors, fixed and self-propelled cranes, large platform trucks, and ship launching equipment.
|
|
RANGE ARES

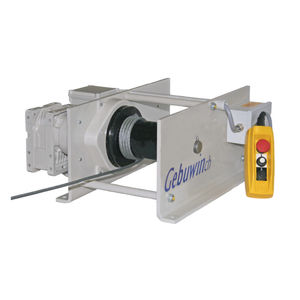

Electric winches of towing and lifting for industrial applications in workshops or on building sites.
- Reducer under casing
- Electric Winches 400V: Polyphase motor IP54
- Electric Winches 230V: Engine single-phase current IP54
- Brake of safety to power failure
- Case of ordering of safety 24 V
- Telegraphic Order 5m with emergency stop |
|
Electric winches of towing and lifting for industrial applications in workshops or on building sites.
- Reducer under casing
- Electric Winches 400V: Polyphase motor IP54
- Electric Winches 230V: Engine single-phase current IP54
- Brake of safety to power failure
- Case of ordering of safety 24 V
- Telegraphic Order 5m with emergency stop |
|
The PULLZALL is not only one new tool, it is a new way of working.
Portable, the PULLZALL enables you to move 450 kg in all the horizontal, vertical or intermediate situations.
A piloting ultraprécis of the end of the fingers allows you a rigorous, flexible and reversible positioning.
Available in 200 V and version without yarn. |
|
