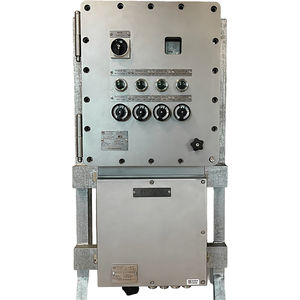

Safety enclosures for explosive environments are meant to
be used in areas with explosion risk 1, 2, 21 and 22 gaz G
and dust D according to 94/9/CE directive.
They ensure emergency stop, load break for electrical
maintenance and switch disconnection next to all low voltage
network.
|
|
|
All of DSE HIBOX products are Water-proof and Dust-free. (IP 66-67, NEMA 4X) HIBOX received UL 5VA. That means HI-BOX products have been perfected to the highest commercial standards through reinforcement of the box's thickness by more than 30% over existing plastic electic enclosures. The enclosures dimension start from 50X65X55 to 600X800X280 mm and DSE have 400 kinds of enclosures-! Refer to the gereral catalogue of HIBOX in Direct-Industry or www.dsehibox.com
|
|

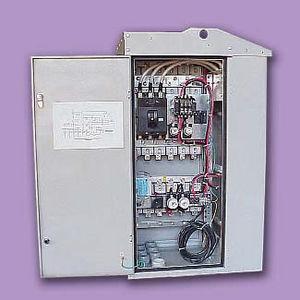

DISTRIBUTION ENCLOSURES
ECOLOGY series of distribution enclosures can be sealed and they are provided with opaque or transparent (UV protected) reversible windows. They are made from halogen free longlasting plastic material and equipped with dust caps for wall mounting screws and 1/4 quick locking unloosable screws.
They have supports for mounting plates fixing, they are prepared for installation of earth and neutral bars and cable entries are adapted to the metric system. On the 26 and 57 modules versions DIN rail can be adjusted on its height.
|
|
ES, the free-standing enclosure with firmly linked side panels.
TS 8, the Top enclosure system, a system platform for individual tasks.
Every enclosure, with all-round accessibility, is a specialist however particular the task in hand.
|
|
Wall mounting enclosures :
The balance between pure design and total pragmatism is never easy to achieve. The unique Eldon Multi-Mount enclosure will make your specifi cation and component requirements easier to come up with. Making your enclosure both practical and aesthetically pleasing at the same time.
Floor standing enclosures :
Nowadays, mounting speed is one of essence and Eldon Multi-Flex enclosures belong to the fastest you'll fi nd on today's markets. With fewer parts than our previous designs, which means that availability of the parts you need is always high.
|
|
Features :
Net-Access Server Cabinets
- Inset frame posts create large and accessible vertical pathways for routing cables and mounting vertical patch panels and Power Outlet Units
- Include vertical blanking panels to block bypass air and direct cold air through servers
- Modular cable management finger sections manage cables for greater routing flexibility
- Innovative, fully integrated, electrically bonded cabinet with a single ground connection to guard against EMI and ESD, and provide a safe current path to ground
- All welded frame construction
- Adjustable rear cage nut mounting rails
- Doors include keyed swing latches
- Side panels include keyed pushbutton latches
- Equipment mounting depths up to 29" (736.6mm)
- Durable black polyester epoxy powder coat finish
- UL Listed 2500 lbs. (1134 kg) load rating
- Cabinet ships assembled, one per pallet
- For the complete grounding solution, see the StructuredGround Kits for Cabinets
|
|
Weidmller offers a wide range of enclosures for the protection of circuitry, components and devices. These products have been developed to suit a wide range of applications and environments.
|
|

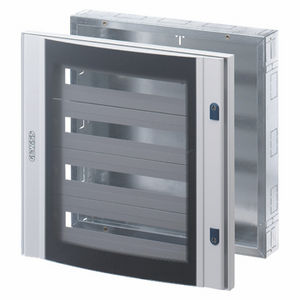

Plastic modular electrical enclosure mini Pragma
Description
Plastic modular electrical enclosure flush mounted or surface mounted
Plastic modular electrical enclosure range, surface mounted or flush mounted, 50 to 63 A
From 1 to 3 rows
From 4 to 36 modules
Translucent tinted or white door
Options
Flush mounted : 5 colors (white, ivory, mist grey, pistachio, garnet)
With or without terminal blocks
Lighting indicator function
Lock
|
|
These boxes comply with the norm NFC 15-100 .
They provide optimal protection against electric contacts: differential devices, isolating plastrons and casing.
|
|
|
|
|
|
CHARACTERISTICS
Switche disconnectors :
IM from 40 to 500 A with right lateral handle and
visible cut-off.
Handle :
Lateral, isolated, red, lockable with 3 padlocks in
open position, can not be unfixed from the outside
of enclosure.
Connexions :
Up/Down or Down/Down connection with pre-cabling
of uper terminals using connecting bars starting from
160 A.
Double door interlock :
impossible to open the door when switch is ON and
impossible to shut the switch when door is open.
Visible cut-off :
through transparent polycarbonate lid.
Locking :
using isolating screws for locking of the lid, equipped
with hinges. (other lock on request).
Enclosure :
box with 3 mm thick polyester fibre-glass reinforced,
Colour RAL 7035
door made in auto-extinguishible transparent
polycarbonate, with no halegen, implemented with
internal hinges, 180 opening on left hand side,
overall protection :
IP 55 with air vent.
IP 65 on request.
auto-extinguishible material according to IEC 695
2-1 standards ; fire-proof according to UL94HB.
temperature resistant : - 35 + 120C.
IK10 shock resistant : 20 joules.
4 wall fixations.
Earth connexion :
using 2 earth connections inside the box.
|
|
|
|
|
|
The CEFEM steel SAFEBLOC switch Disconnector is a cut-off and lock device. It complies with standards and regulations to ensure the safety of operators in industry, where the risk is permanent.
The SAFEBLOC enclosure includes a position indicator (ON / OFF or I / O) for a better guarantee of safety.
The cut-off system is clearly visible to the operator and is maintained whatever the circumstances.
These boxes can be installed on machines or close to each engine.
The security features are multiple:
The switch contacts are visible when the switch is open, the mechanical indicator allows to view at one glance the position of the switch, double lock prohibits to open the door when switch is ON and the closure of the switch when the door is open, the handle is lockable by 3 padlocks on ON position.
Further functions can be equipped according to your specifications: push buttons, lock, cable glands, instrumentation, etc
Application:
In all heavy process industries: cement, mines, quarries, Steel, Paper, Sugar, Glass industry
|
|
|
|
|
|

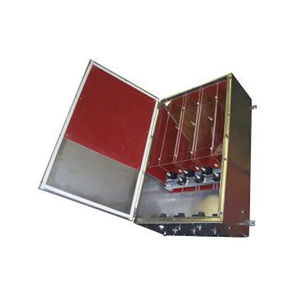

The CEFEM dust SAFEBLOC ATEX is a cut-off and lock device intended to be used in areas with risk of explosion: zone 21 and 22, for dust "D", according to the EU directive 94/9/EC.
It complies with standards and regulations to ensure the safety of operators involved in the emergency break, the break for mechanical maintenance and the safety break beside any low-voltage circuit terminal.
They are composed of an IM switch disconnector, with a visible cut off, controlled by a right side handle, lockable by three padlocks on OFF position.
A position indicator (ON / OFF or I / O) allows you to view at one glance the position of the switch.
The cut-off system is clearly visible to the operator through a glass window triplex.
These 2mm thick boxes steel are very robust.
A double lock prohibits the opening of the door when the switch is ON and the closure of the switch when the door is open.
Further functions can be equipped according to your specifications: push buttons, lock, cable glands, instrumentation, etc
Application:
All industries dust ATEX: zone 21 or 22
Cement, Mining, Quarrying, Steel, Paper, and Sugar.
|
|
The comprehensive range of boxes for potting electronic assemblies. With special cost advantages for series-type production.
Potted assemblies are protected from shock as well as temperature, dampness and chemical influences. The versions made of Duroplast are not highly resistant to fracture.
|
|
All of DSE HIBOX products are Water-proof and Dust-free. (IP 66-67, NEMA 4X) HIBOX received UL 5VA. That means HI-BOX products have been perfected to the highest commercial standards through reinforcement of the box's thickness by more than 30% over existing plastic electic enclosures.
DSE Electronic Box has been developed to protect electrical and electronic components in wet, dusty, and hazardous environments.
|
|
|
An extensive range of enclosures and accessories that let you install any voice and data application in any area, be it industrial, services or tertiary sector.
|
|
Each model includes two aluminum end panel and all hardware
PCB can be slide into internal slots pre-extruded in the enclosure body
The depth of enclosure body is variable upon customerfs request
Surface of enclosure is painted in black(35A series)or clear anodized(35C series)
The 35C series enclosure includes two plastic bezel kit(UL 94-HB)
Custom special colors available upon requirement
|
|
The two part Electronic Enclosure in a shapely version made of shock toughened Polystyrene is especially suitable for the packing of small control systems and tabletop units. An excellent stability is reached through groove and clip sealing.
Open side parts of the lower enclosure allow a swift mounting of the components. In the standard specification, it is possible that the lid of the lower page is hidden-screwed, optionally with a lid fastener of the lid upper page. Specification with air slots (Protection class IP 20) or with integrated Schuko plug is deliverable immediately.
Temperature resistant: - 20C to + 60C
Standard colours: Lower part dark grey similar to RAL 7012. Upper part light grey similar to RAL 7035. Special painting or with See-through lid available on request.
|
|
|
|
|
|
Standard cases
There is a very great selection of standard cases at our disposal for carrying out your projects in-house, as well as a very large variety of processing technologies.
The advantages for you as our customer are obvious make use of them!
* Manufacturer-independent consulting based upon your specifications
* Profound knowledge of the market and many years of experience
* Extremely large number of perfected cases, as well from own development and fabrication, as from world-wide acquisition.
There is often a price benefit resulting thereof, because of the selection of cases which are already close to the desired product in there basic conception. Moreover, our customers appreciate the wide variety of design resulting from this, and the optical difference from widespread case types of the market leaders
* For modifications in large quantities or ones which cannot be realized mechanically, or only with great difficulty, the exchangeable tools designed in close cooperation with the device manufacturers offer a cost-effective solution
* Problem-free implementation and processing of customer-specified foreign products
* As a matter of course, you can also make use of our processing service for customer-provided cases
* Price benefits because of world-wide delivery contracts as well as purchasing of large quantities
* Development and fabrication of cases and enclosures up to complex complete solutions
|
|

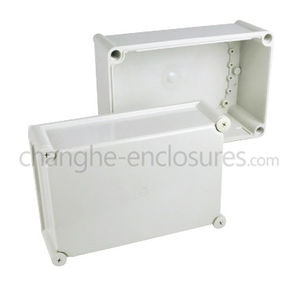

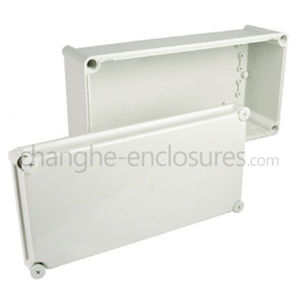

SOLID range is an excellent choice to house electronic and electrical components. It is also an ideal alternative to polyester enclosures. It is available with screw and hinge covers in both polycarbonate and ABS.
Dimensions range from 188*188*130 mm to 558*378*180 mm.
PC: IP 66/67; IK 08; NEMA Type 1, 3, 3S, 4, 4X, 6, 6P and 12; UL-94 5V; UL 508
ABS: IP 66/67; IK 08; NEMA Type 1, 4, 4X, 6, 12 and 13; UL 94 HB
|
|
We package your electronics! The Weidmller range of products for housing your electronics comprises numerous different open and closed types for mounting in electrical cabinets or for installation directly in the field.
Our modern and innovative electronics housings are successful because of the synergy between design, connection systems and functionality. These success factors form the focus for the ongoing developments and expansion of the range of electronics housings to meet your future needs. CAD data for PCBs can be provided for all housings, and users can choose between screw or tension clamp connections.
|
|
Series D standard case
- plastic case constructed from
impact-resistant polystyrene, 3mm
- connected by snap locks; no screws
required
- easy assembly
Specifications
Application:
case for boards or small modules
Material:
polystyrene, 3mm
|
|
Functionality and safety for the built-in electronics.
Variability and the best possible adaptation to individual electronics are the key features offered by ROSE electronic enclosures. The three product lines provide the best possible protection in all applications.
Multitronic - PCB enclosures in many different designs
Profitronic - Profile enclosures for sophisticated electronics that can be used both indoors and outdoors
Wavetronic - Desktop enclosures for lab and instrumentation technology, variable in height
NoVoTronic - Aluminium profile enclosure system in 3 sizes. For data collection, PC, measurement and control technology.
|
|

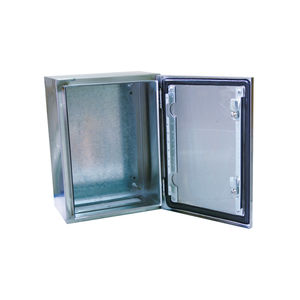

Water-tight wall mounted enclosures IP 66 protection
Description
In steel ACM
Epoxy-polyester textured finish (RAL7032).
Automatic locking systems.
Reversible door.
Top or bottom cable gland plate.
In stainless steel ACM.X
Made in stainless steel (type AISI304).
Brushed stainless steel finish.
Enclosure fully symmetrical.
Double bar locking system.
In polyester ACP
Made from glass reinforced polyester.
High resistance to UV.
Seamless Monobloc construction.
Top and bottom built-in canopy.
Locking system outside protected zone.
|
|
ES, the free-standing enclosure with firmly linked side panels.
TS 8, the Top enclosure system, a system platform for individual tasks.
Every enclosure, with all-round accessibility, is a specialist however particular the task in hand.
|
|
|
A wide range made up of monobloc enclosures for wall or floor fitting, made in sheet steel painted with polyester resin or manufactured in stainless steel. Combinable modular enclosure systems, ideal for building up large frames and control desks.
|
|
Self-extinguishing insulated boxes with double insulation. The bases and opaque lids are in PVC and the transparent lids in polycarbonate. Polished light grey surfaces to RAL 7035.
- Sealing gasket in all models.
- Lid fixing by lodking screws or hinges.
|
|
|
The range of moulded endosures is made up of a wide selection of products such as modular boxes, wall fixed cabinets adapted to special applications for buildings, floor fixed for industrial facilities, electrical distribution, public lighting, etc.
|
|
IP67-IP55 ENCLOSURES FOR SOCKETS AND AUTOMATICS SWITCHES
PRYMA Enclosures for sockets and automatic switches are provided plain or equipped with sockets and wiring, in any combination and without minimum order quantities required.
They are sealable, UV protected on windows and also completed with fastening and turning hinges with a locking device to assure their watertightness.
They are made from halogen free long-lasting plastic material. DIN rail can be fixed to the frame, and also, to the base without the need of screws. Holders are included on the enclosure to fix mounting plates and they are ready for earth and neutral bar installation. Cable entries are adapted to the metric system and sockets wiring is carried out under electrical engineering preceptives.
|
|
Turret to passing for distribution electric power complementary and services (water, I telephone compressed air, connections of miscellaneous kind) adapts for installations in areas mercata them, historical center for irregular manifestations, inside of industries, workshops etc
Carrabile Chiusino 25.000kg
Optional: Carrabile Chiusino from 40.000kg
chiusino riempibile carrabile from 25.000 or 40.000Kg.
Max power distribution: the erogabile maximum power 40 KW trifase
|
|
PILOMAT@ ENERGY LONDON B6040
Loading class: 4000 kg.
Crown dimension: 600x430
Lock release: Versione cifrata con blocco automatico
Cover plate: Ghisa perlitica
Category Retractable Bollard - Retractable Bollards
|
|
|
|
