SIMCO offers a variety of charging bars and electrodes, depending on the specific applications and conditions. These bars are connected to a DC high-voltage generator. A strong, ion-saturated electrical field around the single polarity high voltage points forces the material to a reference earth. The material is charged by the ions. Being attracted by different polarities, the surfaces temporarily cling together. There are various methods of temporarily charging materials electrostatically, using a SIMCO Chargemaster system.
|
|
The Meech Model 993R is a high performance Generator Bar for use with the Meech range of 30kV and 50kV high voltage DC static generators. Resistively coupled emitter pins deliver smooth, controlled pinning whilst spark free operation avoids tripping out on intermittent applications.
Features
Resistively coupled emitter pins Power is delivered in a smooth, controlled manner. Spark free operation. Eliminates incidences of flash over often experienced with bars directly coupled to the high voltage supply. Greatly improved operator safety.
Removable emitter pin option Optimum performance can be maintained. Life of the bar is substantially lengthened.
|
|
|
|
|
|

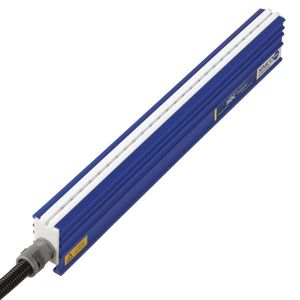

KDA 75 04 DC Charging Bar
H&O charging bars are used in applications in which the materials should be sticked to a place or each other. Many production steps require sticking of components or materials to each other. This sticking shouldn?t leave marks and damage surfaces of the products when the materials are seperated. High resistant materials such as paper and plastic can be bonded to conductive surfaces without using glue.
Electrostatic charging which is provided by ionization, is a charger system consists of a charging generator and a charging applier. Charging bars are designed to execute a specific charge. Their needles are resistively connected to high voltage so don?t cause sparks and provide a secure operation.
n case of a positive and negative polarity, the voltage of power supply should be adjusted. For static charge applications, charging bar is installed to a distance of 10-20mms. Connection channels placed in the back of charging bars provides an easy and safe installation with the plastic connection apparatus that has dimensions of M8x60. For proper operation, each static charged material should be neutralized with the most appropriate ionization system before they are bonded.
|
|
|
StaticBond Charging System as a process tool provides the means of bonding materials together in many applications that require a temporary bond. Static charge is induced onto a product to keep the product intact as it travel along a conveyor or for manual and automated In-Mold Labeling/Decorating lines on molding machines. Applicators are in the form of a Spot Charger or a Charging Bar in lengths that are specific to the application.
|
|
|
The Meech Model 942 Flexi Nozzle is a small, lightweight in-line ionizing air nozzle with the discharge outlet extended by flexible knuckle trunking. The 942 Flexi Nozzle is designed for use with low pressure compressed air lines and for applications requiring the removal of electrostatically attracted dust and/or static neutralization. It is particularly suited to applications on sheet feeder and delivery systems. The 942 Flexi Nozzle is connected to a suitable high voltage power supply (the Meech Model 905). The addition of flexible knuckle trunking enables the system to deliver ionized air with accuracy into "difficult to reach" places, where conventional systems would be ineffective or impossible to install.
|
|
|
|
|
|
261F - Flexi Nozzle
The Meech Model 261 Flexi Nozzle is a small, lightweight ioniser with the discharge outlet extended by flexible knuckle trunking. The 261 Flexi Nozzle is designed for use with Meech Pulsed DC Controllers and is suitable for installation into machinery and equipment in both industrial and electronics environments. It is particularly suited to high speed applications such as sheet delivery systems. The addition of flexible knuckle trunking enables the system to deliver ionized air with accuracy into “difficult to reach” places, where conventional systems would be ineffective or impossible to install.
Technical Characteristics
Dimensions - body 30mm diameter x 66mm long
Dimensions - trunking (standard) 118mm long
Air fitting 6mm diameter push fit
Max air pressure 7 bar (100) psi
Typical pressure 1.5-3.0 bar (20-40 psi)
Emitters Machined Titanium
Input voltage ±8kV DC nominal
Ion balance Typically ±10V at 20Hz at set up
Decay Time (1,000V to 100V) Typically < 0.5 seconds at 150mm and 2 bar
Ozone < 0.01 ppm
|
|
