CC-S American Grain
Stackable design saves freight and storage costs
The Bucket With a Beam for No Bowing or Backlegging
"Iceberg" Edge for Gentler Handling and Longer Life
Premium Virgin White Poly for Maximum Bucket Strength
|
|
4B BRAIME is the largest manufacturer of elevator buckets in the world.
We are the exclusive manufacturer of the GB Bottomless and the "STARCO" Super Low Profile elevator buckets - "STARCO" is the original low profile elevator bucket on the market.
With our extensive range of buckets, we can serve all agricultural or industrial applications.
|
|
elevator buckets: pressed steel, stainless steel, polyetylene, polyamide and polyurethane. 8 cm to 63 cm.
We have althought elevator belt, elevator bolts and junctions belt
The Plastic "JET" elevator buckets is the last born of the high performance buckets' range. It is molded by pressure injection, made of Polyethylene, Polyamide or Polyurethane and is abrasion resistant. The Plastic "JET" elevator buckets represents the perfect synthesis of modern engineerings regarding plastic injection and the elevation of a lot of dusty products.
All the biggest European elevator constructors have chosen the Plastic "JET" elevator buckets as the Reference in the elevation field.
|
|
SOLIGOM® Elevator rubber buckets are moulded and hot vulcanised in high capacity presses, in our workshops. Our rigorous production standards ensure the excellent quality of our SOLIGOM® rubber buckets.
Various types of rubber are used in the manufacturing process, including : natural rubber (black) and white rubber (food quality).
The main products conveyed in SOLIGOM® rubber buckets: abrasive products, corrosive products, granules, powders.
ADVANTAGES
- Abrasion resistant
- Corrosion resistant
- Quiet and supple
- Non-stick
- Anti-static
- Light but robust
- Unbreakable (flexible)
- Reduced maintenance costs
- Excellent Value for Money
|
|
Optimum possible capacity for a given elevator case
Buckets are closely spaced & products is elevated in an almost continuous column
Series of bottomless buckets is followed by bucket with bottom
Self-cleaning - ideal for sticky material
|
|
elevator buckets: pressed steel, stainless steel. 8 cm to 63 cm.
We have althought elevator belt, elevator bolts and junctions belt
The steel "JET" elevator buckets is the last born of the very high performance buckets' range. It is made of pressed steel of very high resistance, without any welding. The steel "JET" elevator buckets represents the perfect synthesis of modern injection and elevation engineerings for most of dusty products.
The biggest European constructors have chosen the steel "JET" elevator buckets as the Reference in the elevation field.
|
|
Easy unload – Smooth and sliding inner walls.
Very light, minimum weight – Manufactured in Polyamide and Polyethylene.
Non-toxic and physiologically neutral.
Deform at crashing. Break sooner than the belt in case of accidental jamming.
Recessed holes for better bolts fitting.
|
|
Tazze per elevatore tipo SPS (super Starco) nuovo profilo per ottimizzare lo scarico del prodotto e aumentare nettamente la portata dell'elevatore.
Supporta elevatissime velocità.
Possono essere fornite:
in ferro
in acciaio INOX 304
in Polietilene alta densità (HDP) ottimo sostituto del ferro
in Nylon 6 ottimo sostituto dell'acciaio INOX 304 e con eccellente resistenza all'abrasione.
in Poliuretano per particolari esigenze
Gamma in continua evoluzione, attualmente sono presenti 19 stampi differenti (dalla larghezza 80 mm alla 520 mm)
la Tazza SPS è la più venduta in Europa ed è stata scelta dalla maggioranza dei costruttori diventando così lo standard europeo.
Ricordatevi "SPS" è la sigla che distingue l'originale dalle imitazioni.
|
|
Patented Bucket Elevators and Conveyors
The systems that make use of buckets by Cusinato are the result of years of design development activity; result that has been achieved through tests and specific research carried out on prototypes and proven through numberless installations using a wide range of granular products.
Cusinato bucket conveyors are available in a wide range of dimensions and types so as to find a solution to every problem for vertical and horizontal conveyance.
Each individual machine, as well as the entire handling system for the more complex cases can offer the maximum reliability in the long run with a very low need for maintenance, while giving full consideration to the product being handled.
Cusinato bucket conveyors are ideal for handling products that are brittle or delicate; the buckets are provided with patented devices (exclusive Cusinato rights) to prevent losses of product and are made with materials that are compatible with foodstuffs.
|
|
Our range includes:
- Euro Bolts
- Ref 70
- Hawk Fang Bolts
- Easifit
- Large Oval Washers,...
|
|
|
Find all bolts necessary to use with elevator bucket : screw, curved washers, flat washers, nuts, large oval washers underlt the head of the TF bolt, space washer.
|
|

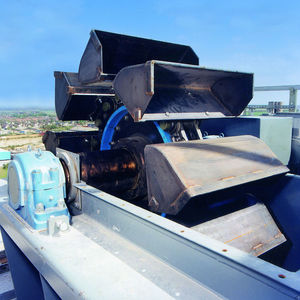

System 65
The bucket mounting by means of double link attachment permits ultimate bucket support during scooping up and emptying. The variable spacing between buckets allows adapting of the system to the conveying requirements. Furthermore, technical aspects like high conveying capacity, high conveying speed and elevation distance as well as quiet action of the system are characteristicals. The use of high wear resistant components results in long service life of the entire chain system.
|
|
|
|
|
|
BEUMER is one of the leading suppliers of bucket elevators and has done pioneering work in the field of high-capacity bucket elevator technology.
The development of high-quality steel cables and the corresponding belt clamps and bucket mountings make sure that today high-capacity belt bucket elevators for conveying heights of 200 m and material flows of 2,000 m³/h and more can be realized.
BEUMER high-capacity chain bucket elevators are equipped with hardened, double-stranded round link chains with good wear resistance.
BEUMER high-capacity central chain bucket elevators are equipped with a stamped, single- or double-stranded chain, which are extremely wear-resistant due to extra-deep hardening of the wear surfaces, guaranteeing superior service life.
Both chain and belt bucket elevators have proven reliability in thousands of installations under the most difficult and even extreme operating conditions. For particular operational requirements, special bucket elevator designs are available.
|
|
InterSystems Bucket Elevators are built for extended life and gentle material handling.
Our bucket elevators also include:
Pillow block bearings
Bearing jack bolts for shaft alignment
"No tool" access hinged doors
Long, contoured head
Gravity take-up and self-cleaning boot
|
|
The Ryson Bucket Elevators are designed for heavy duty operations and long life. They can be delivered in painted carbon steel, stainless steel or washdown versions. Elevators with multiple outlets have selective bucket tipping capabilities. This is accomplished by an air actuated tipping ramp. The last tipping ramp is always in a fixed position to assure that all buckets are emptied. The chain is a 2" roller chain with hollow pin shaft and 1 1/8" diameter rollers. The rolling surface is made of polyurethane assuring smooth and quiet operation. The buckets are made of a food grade reinforced polycarbonate, molded in one piece and a can handle temperatures from -5 to 215 degrees Fahrenheit.
Anti-static and stainless steel buckets are optional. The bucket elevators allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices.
|
|
Bucket Elevators
All of our bucket elevators are constructed for heavy-duty, foundry grade service. Every unit is engineered to fit each application. Standard casing sizes are also available. The tail pulley is easily accessible from either side of the elevator. Split hoods provide complete access to the head pulley and shaft. Each unit includes dust collection ports located as collection requirements and space limitations allow.
Vulcan Engineering Co. can supply a heavy-duty bucket elevator for your specific needs.
|
|
|
In more than 100 years RONCUZZI® has gained and consolidated a vast experience in the area of bulk solids handling. In this period RONCUZZI® has designed and supplied numerous plants and equipment of different types and capacities and for a variety of materials. Today the Company's unique know-how represents the foundation of a comprehensive Bucket Elevator range that is able to meet each and every user's requirements in terms of problem solution and reliability in time.
|
|
VARLIK bucket elevators (conveyors) are very good for heavy conditions. Bucket conveyors (conveyors) are able to deliver and start-up (in Turkey or worldwide) very shortly at your plant.
Bucket elevators are very ordinary but very important machines which is continuously running in your lines. If you use VARLIK elevators, it will be a forgotten machine that it was improved year by year by VARLIK and it is assembled by 20 years VARLIK experts. We are proud of proving these with our references.
Production range:
Bucket elevators, belt type
Bucket elevators, chain type
|
|
|
|
|
|
Bucket elevators are the solution for the transportation of bulk goods where vertical transport is required. Bucket elevators combine horizontal and vertical conveying in one installation. The product is fed into the buckets of the elevator. The buckets ensure that during vertical transport no damage, missing or change of product compositions is possible.
Drive section of bucket elevator shaving outlet diverterd in -Y- piece, loading different silos.
Bucket elevator for the transport of bird seeds from big bag unloading stations to sieve installation. Type 600 - 60 m3/Hr
Apollo has over 40 years of experience in bucket elevators. The Apollo bucket elevator combines horizontal and vertical transport in one installation.
This together with the possibilities of several inlets and outlets, makes our installation an efficient part of your production process.
The main features for a bucket elevator can be summarised as follows:
No damage or change of product
Modular design
One drive
Overlapping buckets
Easy to install
Low maintenance
Additional options
|
|
|
|
|
|
Mechanical Conveyors - Sanitary Bucket Elevator
All front panels can be quickly opened ...and the belt is easily removed for thorough and total cleaning. For even faster product changes, keep a spare belt/bucket assembly handy.
For food processing, chemical and other processes requiring sanitation, the SC Series elevators are offered in stainless, as well as the standard carbon steel. A heavy support column and a base plate make this a rigid, self-supporting elevator. Capacities range up to 1,000 ft3/h, with discharge heights designed to meet your specifications.
Chemicals/Powders
Amorphous Silica, Stucco, Microfine (Quartz & Feldspar), Micronite, Aluminum Oxide
Edible Beans
Baby Lima Beans, Large Lima Beans, Black Beans , Navy Beans, Red Kidney Beans, Chick Peas, Pinto Beans ,
Whole Green Peas, Yellow Split Peas, Lentils
Food
Popcorn, Peanuts, White Rice, White Corn Meal, Brown Rice, Oat Flour, Ground Coffee, Roasted Coffee,
Onion Flakes, Sugar, Powdered Milk, Hot Coca Mix
Nuts
Peanuts in a Shell, Shelled Peanuts, Almonds, Pistachio, Macadamia, Walnuts
Seed
Corn, Grass Seed, Soy Beans, Poppy Seed, Cotton Seed, Alfalfa, Med. Red Clover
Spices
Paprika, Oregano, Coriander, Sweet Clover, Dill Seed Dill Weed
|
|
Cup elevator
For the handling of hot or cold pellets without breakage
INDUSTRIAL materials of crushing, mixes, handling, storage, proportioning, sifting and bagging
|
|
| ... products without technical information |
| |
Easy to fit modular system of 50mm segments
5 versions for belts up to 1600kN/m without thickness limitation
Max temperature 80ºC for nyloc nuts
|
|
|
|
