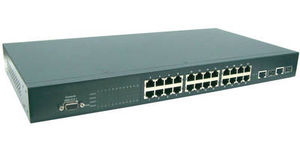

DragonLine 24 port Gigabit Switch (PoE/Managed/2 SFP)
Features:
- 24 10/100 plus 2 MINI GBIC /RJ-45 combo switch with 24 PoE injector and build in 200W AC power
- Confirms to IEEE802.3 10BASE-T, 802.3u 100BASE-TX/FX, 802.3ab 1000BASE-T, 802.3z Gigabit fiber, 802.3af Power over Ethernet
- High back-plane bandwidth 8.8Gbps
- Rapid spanning tree IEEE802.1w
- IGMP snooping and IGMP Query mode for Multi-media application
- Port mirror and bandwidth control
- Supports GVRP function
- End point insert mode remote power feeding
- Provides extra DC 48V input with redundant function and management power status through RS-232 port
- Management by Web/SNMP/Telnet/Console
- System event log support
- Port Based VLAN /802 .1Q Tag VLAN
- IEEE802.3x Flow control
- Flow control for full duplex
- Back pressure for half duplex
- IEEE802.3ad Port trunk with LACP
- Spanning tree protocol IEEE 802.1d
- IEEE 802.1p class of service
- IEEE 802.1x user authentication
- TACACS+ (option)
- Broadcast storm filter
- DHCP client
- On line extra power supply testing through RS-232 port
- Support command line interface management
- Support SNTP
|
|
Standard Switch

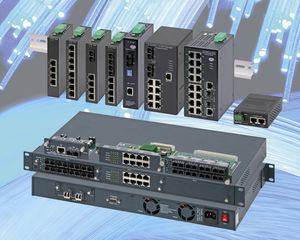

DragonLine is an independent portfolio that rounds off our product range as a provider of system solutions. The portfolio consists of managed and unmanaged switches for Fast-Ethernet and Gigabit-Ethernet in industrial areas or for SOHO - applications, optionally with PoE (Power over Ethernet). The systems are available for wall fastening, DIN rail mounting or rack mounting. Moreover, Device and COM server for RS232, RS422 and RS485 interfaces are available.
- Ethernet Switches
- Industrial Ethernet Switches
- Industrial Device-Server
|
|
JetCon 2502 is an Ethernet/POTS to VDSL2 extender and is compliant with ITU-T G.933.2 standard. It allows carriers to deliver Ethernet data up to 100Mbps in both upstream and downstream over existing twisted copper. The Ethernet/POTS converter features Discrete Multi-Tone modulator/ de-modulator and VDSL Analog Front End (AFE) technology; it is an ideal solution to carry POTS signal and Ethernet Data stream to 3000 feet to extend local LAN and voice on the same line.
Main features of JetCon 2502 are:
* IEEE 802.3u 100Base-TX Fast Ethernet Extender
* IEEE 802.3x flow control & Back-pressure
* ITU-T G.933.2 VDSL2 standard
* 2 x RJ-11 connectors for POTS/ISDN and VDSL
* One RJ-45 10/100Mbps Fast Ethernet Port
* Built-in POTS/ISDN Splitter
* Extends Voice and Ethernet up to 1KM
* Transparent 1792 bytes packet size
* Broadcast Packet filtering
* Power input by DC jack & terminal block
* -40~70°C for Hazardous environmental applications
|
|
|
|
|
|
DESCRIPTION
This type of Ethernet converter / Gateway is capable to link any serial (RS-232 or RS485) devices to your computer network via Ethernet for access control or remote control and monitoring purposes.
The families of Networking products cover GSM controller, wireless Ethernet converter (also called wireless Ethernet adapter, wireless Ethernet bridge, wireless Ethernet), Ethernet converter, RS-485 to RS-232 converter, and USB converter.
FEATURES
Serial to Ethernet communication
DIN Rail/Panel Mount
COM1: RS232/RS485, RJ45 for Ethernet connectivity
Application: Connects IO modules, controllers, HMI with Ethernet Network
Function: Transparent data link or Gateway to convert Modbus RTU to Modbus TCP messages
Support Multiple sockets enables up to 4 Masters to communicate with slaves connected to PC-E converter
Web server for Configuration
SPECIFICATIONS
Power Supply: 90mA @ 10VDC / 40mA @ 26VDC
Ethernet: 10/100 Mbits, Connector RJ45
Serial: RS232, 3 Wire, TX, RX & GND
Power Supply: 90mA @ 10VDC / 40mA @ 26VDC
Ethernet: 10/100 Mbits, Connector RJ45
Serial: RS232, 3 Wire, TX, RX & GND
RS485, 2 Wire Multi drop twisted pair
Baud Rate 2400, 4800, 9600, 19200, 38400, 57600, 115200
Communication Settings:
Data Bits: 5, 6, 7, 8
Parity None, Even, Odd
Stop Bits 1, 2.
Operating Temperature: -10°C to + 50°C
Storage Temperature: -40°C to 85°C
Connectors: Power and Communication: 8 way screw connector
Protection class: IP20
Humidity: Up to 95% non-condensing
|
|
|
Ethernet Direct offers Zebra Series ZigBee Solutions to cater the WPAN applications. Zebra Series ZUZ-110 and ZUZ-111 are a pair of converters that work as host and slave. ZigBee is a specification based on the IEEE 802.15.4 standard for wireless personal area networks. It operates in the ISM radio bands and focues on inexpensive, self-organizing, mesh network that can be used for industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation, home automation etc. ZUZ-110 and ZUZ-111 support RS-232/485 and Ethernet. With ZUZ converters, transmission frequency ranges between 2.405GHz and 2.480GHz and provides 16 channels for users.
|
|
The JetCon 3401G, the industrial Gigabit Ethernet media converter, is equipped with a rugged aluminum alloy case with IP-31 grade ingress protection against
damages of solid objects or dust. With the excellent characteristics of heat dissipation, JetCon 3401G is capable to perform better than ordinary Gigabit Ethernet media converters which are enclosure by steel metal with various of heat dissipation holes.
Unlike those with a single power input, the real time redundant power backup on JetCon 3401G leads to the functionality of a real Industrial Gigabit Ethernet Media Converter with the non-stop transmission.
*Converts 10/100/1000TX to Gigabit Fiber
*Flexible SFP Fiber transceiver design
*Auto Fault Detection and Alarm
*Fault Alert for port and power
*Two way Link loss forwarding
*Power redundancy with wide range input
*IP-31 grade protection with wide range operating temperature
*1.5KV Hi-Pot testing passed
|
|
CM-011-ST (CM-ST100L)
100FX(ST, Multi Mode) to 10/100TX, LLF, LFP
CM-011-SC (CM-SC100L)
100FX(SC, Multi Mode) to 10/100TX, LLF, LFP (Agilent)
CM-011-SC60 (CM-SC100L-SC60)
100FX(SC, Single Mode, 60km) to 10/100TX, LLF, LFP
CM-011-SC30 (CM-SC100L-SC30)
100FX(SC, Single Mode, 30km) to 10/100TX, LLF, LFP
CM-A1000L-GB
LLF + LFP, 10/100/1000 Base-Tx to Mini-GBIC Media Converter
|
|
|
IMC-1021FX are industrial media converters provide media conversion between 10/100BaseT(X) and 100BaseFx. IMC-1021FX series are rigid IP-30 housing design and supporting an operating temperature of -10 to 60?C, and an extended operating temperature (T models) of -40 to 70?C. Therefore, the IMC-1021FX are reliable media converters and can satisfy most demand of operating environment.
|
|
|
|
|
|
|
Our scope of services regarding electronic systems and communication components for fiber optic technology ranges from RS232, RS422 and RS485 to TTY fiber optic converters. Apart from that, our d-light systems offer solutions for the connection of Profibus, Profibus redundant and Modbus-Plus. Our series e-light and DragonLine consist of both managed and unmanaged Industrial Ethernet switches, partly with PoE (Power over Ethernet) functionality. With DragonLine we cover numerous applications concerning Ethernet and Gigabit-Ethernet. The systems of our io-light series transmit switch, control and analogue signals via fiber optics. Furthermore, we offer optical amplifiers and CAN fiber optic converters. Among that, we also offer compact splice boxes and hybrid splice boxes. POF, HCS and multimode or singlemode fiber optics are unsusceptible to electrical and magnetic interferences. Other performance features are the potential separation of transmitter and receiver and ranges of up to 100 km between two fiber optic systems. Apart from SC and ST as optical connection types, E2000 is also available.
|
|
DragonLine 4 Slot Modular Chassis Switch (Managed/Ring)
Features:
- 4 slots for 8 ports 10/100TX, 8 port 100FX and Gigabit uplink module
- Port Based VLAN /802 .1Q VLAN
- Confirms to IEEE802.3u 10BASE-T, 802.3u 100BASE-TX/FX, 802.3ab 1000BASE-T, 802.3z Gigabit fiber
- IEEE802.3x Flow control
- High back-plane bandwidth 8.8Gbps
- I- EEE802.3ad Port trunk with LACP
- Stack management via one IP address, easy management by Web GUI
- Broadcast storm filter
- IGMP support for Multi Media application
- IEEE 802.1p class of service
- Port mirror / Port security
- DHCP client
- Port bandwidth control
- IEEE 802.1d Spanning tree protocol
- Supports GVRP function
- Web/ SNMP / Telnet / CLI management
- Option Module for slot:
- 2 x Gigabit SX module
- Gigabit copper+ Gigabit SX module
- 2 x Gigabit copper module
- 8 ports 10/100TX module
- 8 ports 100FX module
- IEEE 802.1x user authentication
|
|
The series e-light² EL100U2 are 8 port unmanaged Industrial Ethernet layer 2 switches with auto negotiation and auto MDI/MDIX.
The EL-100U2 series contains unmanaged 7/8 port switches for 10/100MBit/s optionally with up to eight RJ45-Ethernet-ports and up to three optical ports which work with POF, HCS, and multimode or singlemode fiber optics. Additional features are auto negotiation, MDX/MDIX and redundant power supply.
The ruggedness to electrical and magnetic interferences, the potential separation of transmitter and receiver as well as ranges up to 40km between two fiber optic systems are important performance features of the transmission with POF, HCS and multimode or singlemode fiber optics. LEDs and potential free contacts of a differential relay signalize defective states.
Apart from ST and SC as optical connection types, E2000 is also available. All systems feature communication with two fibers or a single fiber by BIDI technology with SC connection.
|
|
e-light2M is a 8 port switch that features ring function based on the Pathfinder Ring (P-Ring) with a recovery time of less than 300ms.
e-light2M is available with up to 4 flexibly configurable FX-ports and up to 6TX-ports. The Fast Ethernet switches with their industrial design are useable in a wide temperature range of -30°C to +75°C and are suitable for both DIN rail mounting and wall fastening.
The e-light2M management highlights are amongst others: Web Management GUI, Port Mirroring, DHCP Client, IGMP, SNTP, SMTP, port and tagged based VLAN, SNMP in connection with Web Management and RMON, quality of service as well as an alarm relay output for system events. e-light2M is suitable for POF, HCS, multimode and singlemode and allows ranges of up to 100km.
|
|
RocketLinx MC5001 and MC7001 are full-featured industrial grade serial and Ethernet fiber media converters. They are designed to meet the needs for EMI immunity and extended fiber transmission within the harsh environments typical of traffic, power, rail, and other industrial applications.
The RocketLinx family includes models supporting Single-mode and Multi-mode ports for long distance transmission. These products offer excellent immunity to electromagnetic interference, extended operating temperature ranges, and are compatible with a wide range of DC input voltages. Products are housed in rigid aluminum housings that are IP30 (MC5001) and IP31 (MC7001) rated for installation in hazardous applications.
All media converter models feature terminal block wiring connectors, and provide convenient DIP switch configuration of serial port and communication modes. All MC5001 models support RS-232, RS-422, and RS-485 serial communication.
|
|
RuggedMC™ RMC
Ethernet Media Converter (Copper to Fiber)
Universal Power Supply Options :
- 24VDC, 48VDC or HI (88-300VDC / 85 - 264VAC) options
for worldwide operability
- Integrated high-reliability power supply eliminates the need
for external power transformer
- Screw down terminal blocks ensure reliable maintenancefree
connections
- All power supplies CSA/UL 60950 approved for
+85°C (+185°F) operation
- Meets NEMA TS 2 (1998) Environmental Requirements
for traffic control equipment.
Designed for Harsh Environments
- Exceeds IEC 61850-3 and IEEE 1613 Standards for
communication equipment in electric power substations.
- Operates over a temperature range of -40°C to +85°C
without the use of fans for improved reliability
- 21 AWG galvanized steel enclosure suitable for DIN or
panel mounting provide secure mechanical reliability
|
|
Ethernet Media Converters
Increase Ethernet distance and protect against electrical interference.
New! Gigabit Options!
Features of EIR-X "Rugged" series
Multi-mode or single mode models
10/100 Base and 1000Base (Gigabit) models
Auto negotiation of data rate and duplex modes
MDI/MDI-X (auto-cross feature)
LED's for Power, Link/Activity, Data Rate, Duplex/Collision
Dip Switch configuration for
(1) Link-fault-pass-through (enabled or disabled)
(2) Data rates (auto or forced)
(3) Duplex modes (auto or forced)
Applications
SCADA
Traffic
Water/Waste Water
Point-of-sale
Warehousing
Industrial Automation
Building Automation
|
|
|
|
|
|
COMETH Range
Instant & direct serial connection over Ethernet TCP/IP network
Available in dongle, din rail & printed circuit format
Ultra small & compact size, COMETH-EMBD "System on a Chip" : 20x63 mm, RJ45 included
RS232, RS422, RS485, TTL interfaces depending to models, up to 250 Kb/s or 350 Kb/s (COMETH-FIELD) sustained data rate
Direct connection to any DTE serial device (e.g. PC computer) without adaptation cable (COMETH dongle only)
Support for TCP Client/Server, DHCP Client, TELNET RFC2217 extension, Telnet Server, COM port re-director (VIP), multipoint or point to point virtual link over UDP modes and MODBUS/TCP Client/Server, MODBUS/RTU & MODBUS/ASCII protocols
Scanning I/O for all PLC's running MODBUS/RTU & MODBUS/ASCII
Virtual COM port redirection software for Windows 2000, NT & XP (VIP)
Easy administration through the serial link or Ethernet (TELNET)
Multiple configuration tool for deployment in volume
Remote firmware download for easy upgrade operations
External power supply or remote-power supply depending to models
15 kV ESD protection (except COMETH-EMBD)
Metallic case (except COMETH-EMBD), CE industrial standards
Ethernet / RS 1500 Veff isolation (except COMETH-EMBD)
This new range of Serial over Ethernet TCP/IP servers is intended to connect to any serial equipments.
The high level of integration and its built-in protection make the COMETH range extremely reliable and the world's smallest module.
COMETH's technical characteristics make it a universal product at a very attractive price.
|
|
|
|
|
|
New! VESR Ethernet to Serial Servers
Solve most any Serial to Ethernet conversion challenge with the VESR Ethernet to Serial Server:
Connect RS-232, RS-422, or RS-485 Serial Devices to your LAN or WAN
Direct IP - IP applications communicate directly with Serial Devices
Virtual COM Port - PC's communicate with Serial Devices as if they were connected to a local COM port
Paired Mode or Serial Tunneling - Serial devices exchange data using your Ethernet network
Take control of your serial devices with VLINX ™ VESR Industrial Ethernet Serial Servers. If it has a Serial Port, it can be monitored and controlled from anywhere on your Ethernet LAN or WAN. Keep it at maximum productivity without leaving your office. Even troubleshoot it from outside your LAN via the Internet. The easy to use Vlinx™ Manager software puts access to your whole shop on your desk. Configure devices, upgrade firmware and monitor activity. Configuration changes can also be made using a web browser or TELNET.
Features
Slim, Industrial Enclosure
Complete Fiber Options
Web Server, Configuration Software Low Latency
High Throughput
Heartbeat Connection
Benefits
Save DIN rail space while maintaining industrial ratings
Connect to all fiber networks in your plant without converting to copper connections
Program through web browser or local port. Same user interface; no training required
Fast reliable communications
Detects communication failures and automatically reconnects to keep the system online
|
|
|
|
|
|
Introduction
The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters' reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature from 0 to 60˚C, and an extended operating temperature from -40 to 75˚C. All IMC-101 series converters are subjected to a 100% burn-in test.
Features
• 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
• Link Fault Pass-Through (LFP)
• Power failure, port break alarm by relay output
• Redundant power inputs
• -40 to 75°C operating temperature range (T models)
• Designed for hazardous locations (Class 1 Div. 2/Zone 2)
|
|

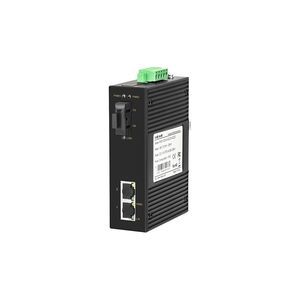

KOM300
Industrial Ethernet to Fiber Media Converter
KOM300 is an industrial fiber optic convertor which can work in harsh electromagnetic environment within a wide range of temperature.
- Operating temperature: -40 to 75°C(-40 to 167°F)
- 2×10/100Base-T/TX, RJ45 socket
- 1-core single mode fiber
- Broadcasting storm control
- MAC Address Table Size: 1K, buffer cache: 1M
- IP30 protection class
- DIN-Rail mounting or rack-mounting
- FCC/CE/UL/ROHS
|
|
Media converters for translation between copper and fibre optic media
Weidmüller Industrial Ethernet media converters provide a solution for industrial applications that require a highly reliable, robust data exchange between copper and glass fibre media. Media converters are cost-effective devices and give users the option of integrating fibre optics into their networks. The Weidmüller media converters are real-time-compatible and remain transparent in the network.
|
|
Description
The PocketPAD Multidrop Ethernet is an innovative low cost serial to Ethernet converter supporting multi-drop Ethernet. The embedded Ethernet switch allows one to daisy-chain the Ethernet cabling direct from one device to another.
Mounting options include a stand-alone desktop mount or a DIN-rail mount.
Features
Device network connectivity via UDP/IP, TCP/IP.
Device management via Telnet, DHCP/TFTP, Web Browser, SNMP (MIB II), Built-in Serial configuration interface, Windows configuration Utility.
Flash memory for convenient software updates.
Low cost and Compact size.
Lightweight.
DIN Rail mounting kit available.
One RS232 serial interface.
|
|
The PocketPAD Java is a serial device server supporting an embedded Java Virtual Machine (JVM). This innovation is ideal for the user who wants to run custom Java applications directly on the device. The PocketPAD Java has four RS232 Serial ports and one Ethernet port which is 10/100 BaseT auto-sensing.
Mounting options include a stand-alone desktop mount or a DIN-rail mount.
Device network connectivity via UDP/IP, TCP/IP.
Device management via Telnet, DHCP/TFTP, Web Browser, SNMP (MIB II), Built-in Serial configuration interface, Windows configuration Utility.
Flash memory for convenient software updates.
Low cost and Compact size.
Lightweight.
DIN Rail mounting kit available.
Two RS232 serial interfaces.
Java Virtual Machine.
|
|
|
The PocketPAD1 is a low cost single port serial to Ethernet converter. At the entry level, this serial device server was designed to be easy to use, as well as have a low latency for excellent performance in all applications. The PocketPAD 1 has one RS-232 port, and one Ethernet port which is 10/100 Auto-sensing, or manually configurable. A RS-232/422/485 version is also available. This product is well suited to retail, and commercial IT applications.
|
|
Description
The PocketPAD FX is a low cost single port serial to Fiber Ethernet converter. This serial device server is designed to connect your serial device to a Fiber Ethernet network. The light-weight PocketPAD can be used as a stand-alone desktop or mounted on a DIN-rail.
This product range includes the following hardware configuration:
- One RS232 serial to 100Base-FX
Features
Device network connectivity via UDP/IP, TCP/IP.
Device management via Telnet, DHCP/TFTP, Web Browser, SNMP (MIB II), Built-in Serial configuration interface, Windows configuration Utility.
Flash memory for convenient software updates.
Low cost and Compact size.
Lightweight.
Multiple Network connections allowed to the same Serial data stream.
DIN Rail mounting kit available.
|
|
|
The EM1500 Serial-Ethernet Bridge is a device that converts multi-point serial communications to a TCP/IP network. The EM1500 connects to and network enables as many as 4 RS-232 serial devices simultaneously, while also acting as master on a multi-drop RS-485 network. In addition, the EM1500 provides an SPDT relay, 2 digital open collector outputs and 3 digital inputs suitable for interfacing to mechanical switches or logic level circuits.
|
|
UNIGATE CL
DIN-rail module in a special compact design. It combines the characteristics of the series UNIGATE RS and SC. From serial interface to the desired Fieldbus- or Ethernet-version. Generally the interfaces RS232, RS485 and RS422 are on board. The communication between the serial side and the bus can take place either through a device configuration and selection of a marketable protocol, such as Modbus ASCII, Modbus RTU (master or Slave), 3964 (R) or alternatively the device is "controlled" via a Script. This Script is generated by means of the free PC-tool Protocol Developer either by the customer himself or by Deutschmann Automation as service.
Through the Script language, that was developed by Deutschmann Automation you have the highest possible flexibility without changing any thing at your product's firmware.
|
|
|
|
|
|
The new versions of NETLink PRO and the S7/S5 OPC Server, as well as Softing’s new S5-PCLink, have expanded the suite of Softing products for convenient, powerful and economical access to data in SIMATIC S7 and S5 controllers. NETLink PRO, which was recently recognized as one of the top developments of 2006, is a robust S7 adapter available in Ethernet and USB versions. In hundreds of installations worldwide, it has proven itself to be an economical alternative to the communications processors from Siemens and other manufacturers. The new Version 1.3 is up to 20% faster than its predecessor, and it supports up to 12 MPI/PROFIBUS connections at once. With a single NETLink PRO, you can easily access up to twelve S7 controllers using Siemens STEP7, WinCC, ProTool or the Softing S7/S5 OPC server. The Ethernet version, known as NETLink PRO/ETH, now also supports the RFC 1006 protocol (ISO-on-TCP).
Alongside the adapters for S7 systems, Softing's new S5-PCLink enables economical access to S5 controllers via Ethernet, STEP5 or the Softing S7/S5 OPC server.
STEP®, WinCC®, ProTool® and SIMATIC® are registered trademarks of Siemens AG.
|
|
| ... products without technical information |
| |
|
|
