Car-/Truck-Single systems
Single (double) systems are basicly supplied with the following parts:
- ventilator,
- wall bracket
- motorprotection switch
- exhaust hose (2 hoses)
- exhaust nozzle (2 nozzles)
- exhaust hose support (2 exhaust hose supports)
Description:
Ventilator: 1,000 m3/h, Motor: 0.55 kW · 3 x 400 V · 50 Hz
Car - Single system with exhaust hose, Ø 75 mm, length 5.0 m, exhaust nozzle Ø 75 mm or
exhaust hose, Ø 100 mm, length 5.0 m, exhaust nozzle Ø 100 mm or
exhaust hose, Ø 75 mm, length 7.5 m, exhaust nozzle Ø 75 mm or
exhaust hose, Ø 100 mm, length 7.5 m, exhaust nozzle Ø 100 mm
Ventilator: 2,000 m3/h, Motor: 0.75 kW · 3 x 400 V · 50 Hz
Truck - Single system with exhaust hose, Ø 150 mm, length 5.0 m, exhaust nozzle Ø 150 mm or exhaust hose, Ø 150 mm, length 7.5 m, exhaust nozzle Ø 150 mm
Description
Ventilator: 2,000 m3/h, Motor: 0.75 kW · 3 x 400 V · 50 Hz
Car - Double system with 2 exhaust hoses, Ø 75 mm, length 5.0 m or 7.5 m, 2 exhaust nozzles Ø 75 mm or
2 exhaust hoses, Ø 100 mm, length 5.0 m or 7.5 m, 2 exhaust nozzles Ø 100 mm or
2 exhaust hoses, Ø 150 mm, length 5.0 m or 7.5 m, 2 exhaust nozzles Ø 150 mm
|
|
|
|
|
|
Use
The "ELE" portable fan has been studied to solve the problem of gas exhaust extraction from vehicles during the motor test operations in closed room without ant extraction systems fixed on the wall or on the ceiling.

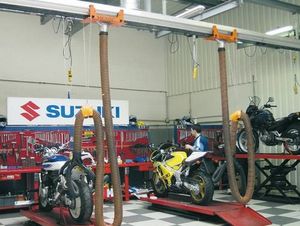

The range includes versions and accessories studied for a wide and easy utilisation in workshop for motorcycles, cars, vans and heavy means and it's enough to connect electrically the portable cleaner placing the expulsion piping outward to guarantee an environment without any bad emissions.
The reduced weight and dimensions will help to put the portable fan outside the working places.
Technical features
The system allows the gases extraction by placing near to the exhaust pipe the suitable intake fixed manually at the right height on a pole thanks to a sliding mechanical block device.
The range includes also positioning device and accessories to be utilized on double exhaust pipes or in particular position.
The gas extraction is made by a suitable aspiration group that guarantees the fumes extraction through a hosing heat resistant up to 125° C supplied with the system. The control panel and the thermal protection group drive an electrical motor 230 V - single phase (ELE facile on request) with 6 m anti-flame cable and standard single phase socket.
|
|
|

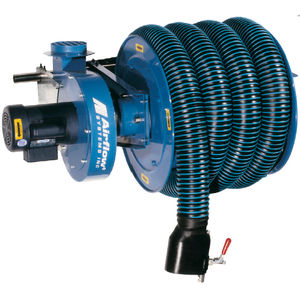

The SER is designed to retract the hose with the assistant of a spring operated retraction device. We recommend this reel for general service shop applications when you can easily reach the hose.
|
|

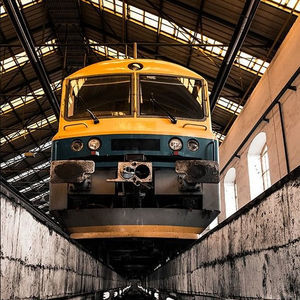

Vehicle Work Area Exhaust Removal Solutions
The Airflow Systems line of vehicle exhaust removal products are designed to bring clean air to vehicle service facilities. If not controlled, vehicle exhaust can contribute to worker illness, increase facility maintenance expense, and harm the sensitive electronics of diagnostic and servicing equipment. Vehicle exhaust removal systems from Airflow Systems, Inc.® are a versatile, easy-to-use technology that provides for the collection and removal of potentially harmful vehicle exhaust. From exhaust hose reels to a hose saddle, exhaust removal systems from Airflow will quickly contribute to improved service bay cleanliness and total facility productivity.
|
|
Technical specifications
No floor space required.
Complete suppression of exhaust gas in the premises.
Operator protection (decree from April 1, 1964 n°206 art 19).
Energy saving thanks to catchment at the source compared to a general ventilation system.
Simple installation.
|
|
|
|
|
|
A system for the filtration of air in the workplace capable of eliminating oil mist and smoke caused by a variety of metal machining applications.
This solution has a very broad range of possible applications: machining centers, lathes, grinders, millings, screwings…
Thanks to the specific characteristics of the material used, the Newton line assures an extremely high filtration efficiency according to the regulating norms.
The opacimetric tests and lab analysis guarantee reliability and efficiency for the 2 versions available:
95% for the version in which the air is directly conveyed externally to the plant
99.97% for the version in which the air is recycled within the plant.
The Newton line is the ideal answer for:
For the Equipment of Oversize machine tools
5000 m3/h each unit.
Centralized Systems
Modularity is one of the main advantages of the NEWTON line, becoming the most important element for high throughput oil mist filtration systems. By combining several units together it is possible to reach considerably high air flows.
Losma is therefore able to offer tailor made solutions, ideal for centralized systems.
|
|
The BA bench for extracting and prefiltering welding fumes and grinding dust comprises:
- Internal mechanical prefiltering section comprising steel filters.
- Air-tight dust collector drawers.
- Forward-blade single-intake centrifugal fan installed in depression on the side of the bench. Standard version 400V 3P 50Hz 4-poles (1,400 RPM).
|
|
|
|
|
|
The smart solution without ductwork
Diluter systems are the solution, when source extraction and hoods are not an option when large pieces of metal are fabricated, various welding processes take place at continuously changing locations and ductwork is difficult to install. The Diluter system has been designed especially for light to medium welding processes.
Flexible solution
Installing the Diluter system is easy as you do not need any ductwork. It does not only save ductwork (thus labour) costs, it is also a very flexible solution for facilities with many welding processes, changing locations constantly. The Diluter system suits almost any workshop.
Minor investment maximum result
The Diluter system consists of three main components: the filter unit, a fan and the Diluter itself. The Diluter is an air circulation unit with six multidirectional outlet nozzles. The unit re-circulates the cleaned air into the workshop by means of the outlet nozzles. The nozzles can be rotated to optimise extraction.
The airflows from the nozzles can be controlled individually making the system unique. Positioning the nozzles inside the welding fume layer gives the best result (usually between four and six metres). The main benefit is the relatively small investment for controlling welding fumes in your plant.
|
|
|
|
|
|
AER Borne Environmental FV & FH Series Filter Media Collection systems were originally developed as a source capture system to control light mist with heavy amounts of dust generated in a cast iron machining operation. Shortly afterward the design was altered slightly to allow them to be used as general, ambient mist and dust collection systems. The immense flexibility of the system led to a variety of additional filter and blower modules creating a system that could be easily adapted to vertical or horizontal mounting configurations with filter stages and blower packages that could be easily customized to suit the specific filtration and airflow requirements of the application at hand. Additionally, should contaminants change due to process changes, filter modules can be easily added and/or existing ones altered to adapt to the changing conditions. A full line of accessories and options are available to simplify system installation.
Applications:
Machining, turning, grinding, boring, milling, forming, casting, cutting, mixing, molding, pouring, bonding, washing, welding soldering and a variety of other manufacturing and process applications. Designed for flexibility the F Series line of Filter Media collectors can be set up to control an immense variety of contaminants such as mist, dust, fume, smoke and gas/vapor as individual or more complex combined forms. The most adaptable system we offer, systems feature modular designed filter stages that are easily customizable and are available with belt drive or, direct drive, backward inclined fan packages. Systems can be configured for source capture or general ambient air cleaning.
|
|
Use
Reel for the unwinding of the squash-resistant flexible hose in different diameters depending on the vehicle type, supplied with mechanical movement only for fixed or centralized working places or sliding on the extruded duct mod. EC for the positioning near to the vehicle.
The system is designed for the localized extraction from exhaust pipe with suitable rubber or stainless steel AISI 304 intakes resistant to the temperature coming out of the motors.
Technical characteristics
The main components of the ATN series of winders are:
• galvanized steel reel fitted with a special guide to ensure that the hose is correctly wound onto the reel;
• epoxy-painted steel retainer disks fitted to either side of the reel;
• drive system: mechanical TGA hose with various diameters for different requirements;
• EV metal sheet fan (for ATNV models) with various power ratings depending on the required workload.
|
|
Reversit is an exclusive and innovative system of suction and filtration of dusts as a result of professional applications. Designed and realized with the most modern technologies available, it appear to be the only product in his kind for the special structural configuration that allows it to reach very high efficiency of filtration and to mantain them unchanged in time, observing the most strict environmental protection rules.
The modular structure that make Reversit different, starting from three basis structures, in addition to garantee reduced overall dimensions allows a full personalisation of the units depending on the pollutant and on the system demands.
All the versions are planned to be created and certified in accordance with Atex directives.
|
|
|
|
|
|
High-level control of welding fumes
Push-pull systems are the solution when source extraction and hoods are not an option, such as working areas with crane transportation, plants where large pieces of metal are fabricated (and arms are impractical) or workshops where various welding processes take place at continuously changing locations. The push-pull system has been designed especially for heavy industry.
Control your background concentration
Welding fumes rise due to heat. At a certain level – due to the cooling process - the same temperature level will be reached and a fume layer arises. The push-pull system moves this layer in a controlled way at a particular height (usually between four and six metres) where the air is being filtered and re-circulated. This way the smaller particles cannot cool down and return to working level. Which means: less fine dust on your work floor.
Ductwork, the main aspect
The main aspect of the push-pull system is the ductwork. Ductwork can be installed in all kinds of settings, U-shaped or paralleled. To determine the most effective system for your surroundings, you need to consider all aspects; the welding process, the height at which the welding fume layer develops, overall volume and the general construction of your workshop.
BENEFITS: optimum control, prevents accumulation of welding fumes, less fine dust at your work floor, heated air stays within the workshop, thus energy saving, suits almost every heavy industrial working environment.
|
|
|
|
|
|
Smoke and Dust Collector for CNC Laser and Plasma Cutters
The GSP (Gold Series Package) unit is completely assembled and ready to run. The fan, cleaning system, filters and controls are factory assembled.
* 7.5 HP side mount fan rated for 2,500 CFM at 10" w.c.
* Four(4) HemiPleat® HE fire-retardant cartridges with 325 sq. ft. of media each
* Automatic, reverse pulse cleaning system for long cartridge life, prewired to Photohelic® controls.
* Modular construction allows component orientations to be changed
* Spark trap inlet to protect cartridges
* Easy to remove dust drawers
* Easy open access door to cartridges
* Tool-less cam-lock cartridge removal
* View port in sound enclosure to check fan rotation
* Sprinkler Kit
Specifications
* NEMA 4 rating on electrical enclosures
* Cleaning system requires 10 CFM clean, dry compressed air at 90 PSI
* Rugged 10 & 7 ga. construction
* Housing rated for ±25" w.c.
* Weight of collector approximately 2,800 lbs
* Media area = 1,300 sq. ft.
* Efficiency = 99.99% on 0.5 micron
* Silencer designed for 75 dBA maximum .
|
|
|
Filter systems especially made for the laser industry. Suction systems for laser jobs with i.e.metal, wood, plexiglas and gum (cutting, welding, marking etc.)
|
|
Portable, Powerful Contaminant Control
Airborne contaminants produced during manufacturing and processing applications are not always effectively collected with ambient dust collector systems. The Airflow Systems line of portable dust collectors deliver up to 1600 CFM of source collection power anywhere it's needed on the shop floor. These portable dust collectors offer multiple filter options, including: aluminum mesh pre-filters, high-pressure polyester bag filters, and cartridge filters for collection of contaminants from mist and fumes to dust and smoke.
|
|
AirClean Systems AC600 Series Ductless Workstations
Our most economical workstation for operator and environment protection. Safely remove toxic vapors, gases, fumes and particulate.
Ideal for:
General chemistry involving small volumes of common chemicals
Tissue staining and processing; e.g. histopathology, cytology
Gluing operations
Solvent cleaning of electronic parts
Soldering applications
School demonstration workstations
Forensic applications - containment of fingerprint powders and chemicals such as ninhydrin and cyanoacrylate
Animal necropsy
Standard Features:
AirSafe™ automatic safety controller
Integral base with deep spill lip
No ducting required
Minimal installation - plugs directly into a standard 110V or 220V electrical outlet Extremely quiet operation < 49dB
All thermoplastic construction with application specific sash, base and enclosure material
Available in “low-profile” or tall version 32” or 48” widths with nominal 24” depth
UL, CSA and CE listed
|
|
Micro Air manufactures a complete line of portable collectors. from the M2150 media collector, for light duty or small volume applications to the MC1500 cartridge collector for heavy duty production.
Cartridge units utilize self-cleaning, high efficiency cartridge filters, that reduce filter replacement costs, as the filter elements are continually cleaned by compressed air. All Micro Air cartridge collectors utilize Micro Air's exclusive Roto-Pulse cleaning system. Because this cleaning system cleans the entire surface of the cartridge, it has proven to be far more effective, than the traditional reverse-jet system, thus extending filter life. Cartridge collectors can also be equipped with HEPA filters or Charcoal Modules.
|
|
| ... products without technical information |
| |
Power, Performance & Precision
Airflow Systems offers a full line of extraction arms for virtually any industrial source collection application. From the power of the heavy-duty E-Z Arm® High Flow Extractor to the collection performance of the E-Z Arm® II High Flow Extractor and the precision of the E-Z Arm® 2.5" Extractor Arm, each extraction arm unit is designed to meet demanding application-specific requirements. E-Z Arm® and E-Z Arm® II High Flow Extractor Arms are also available in stainless steel for process-critical applications where wash downs and corrosive environments are common.
|
|
|
|
|
|
System of Extraction and
decantation of Abrasive Muds
SEBA
Eductor continues abrasive deposit for
installations of cutting jet of water:
It is using a particular drain that the abrasive deposit is continuously aspired, in a simultaneous and reliable way, at various places of the basin of cutting and guided towards a container of decantation with one or two Big Bags. The water which runs out by Big Bags is filtered and repompée towards the places of aspiration of the basin of cutting by means of a system of washing to counter-current to guarantee a cycle of aspiration. The fine sands deposited in the tank Re-are also pumped in the basin of cutting. Doors simplify the withdrawal of Big Bags filled.
Advantages:
Better profitability thanks to a reliable process and with a reduction of the expenses of evacuation of the deposit.
Process of aspiration and washing with completely automatic counter-current.
High rate of decantation thanks to the use of second Big Bag.
Return of water filtered to the basin of cutting.
Possible process of decantation until a distance of 5 m of the basin of cutting.
Extension simplified for static basins of cutting until 2x3 m2
Volume of evacuation decreased thanks to the deposit drying oven.
Handling facilitated for an effective transport of Big-Bags
|
|

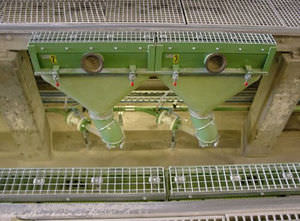

Plasma, laser and flame cutting table out of modular elements with separate extraction for each element and a large-volume slag container per element. The modular design of the KEMPER table enables us to build nearly every required size of extraction table in short time and at low costs.
Material support, gratings and controls of the tables are available in different specifications.
KEMPER can also supply suitable extraction systems for the extraction tables. For detailled information or any questions please do not hesitate to contact us.
|
|
Plasma, laser and flame cutting table out of modular elements with separate extraction for each element and a large-volume slag container per element. The modular design of the KEMPER table enables us to build nearly every required size of extraction table in short time and at low costs.
Material support, gratings and controls of the tables are available in different specifications.
KEMPER can also supply suitable extraction systems for the extraction tables. For detailled information or any questions please do not hesitate to contact us.
|
|
|
|
