The Safety Net Fan is available as a Fall Arrest, Fall Protection or Street Protection Fan.
- Fall Arrest Fan: The Fall Arrest Safety Net Fans allows for falls of up to 6 metres.
- Protection Fan: Designed as a catch net for falling objects and debris.
- Street Protection Fan: To provide pedestrians protection from falling objects.
|
|
Steel Mesh Barrier S System
Based around a square concept, the S System is designed for simple assembly and can be adapted to suite your requirements.
Steel Mesh Barrier C System
The C System is based on circular tubes that are compatible with scaffolding tubes.
|
|
Product Description:
Manufactured from premium grade high tenacity nylon fiber treated with a proprietary Marine-Tech coating to improve fiber-to-fiber abrasion resistance.
Features:
Long wearing
Supple, easy to handle
Excellent abrasion resistance
Applications:
Vertical Lifeline
Fall Protection
Colors Available:
White
Black
Lengths Available:
1200'
600'
|
|
|
|
|
|
The VersiRail system restricts access to fall hazards and provides an aesthetic collective protection solution for worker safety at height. It is quick and easy to install and can be used on virtually any flat roof surface up to a 4° pitch.
Aesthetics and installation flexibility are crucial factors in VersiRail's design. The system is available in three finishes: untreated, polished or powder coated to a specific RAL colour and in four different flexible solutions; straight upright, curved upright, inclined upright and folding (freestanding only). The combination of finish and style options ensure that the VersiRail system will full intergrate into any building design. Similarly, the wide range of available components enables the system layout to be configured to ideally suit the collective protection need.
Constructed from aluminium, the system is lightweight and easy to transport. Installation is quick and easy with VersiRail available as a freestanding or fixed system.
VersiRail system is a non-penetrative barrier system for guarding users against falls from height.
Design and installation has been indepenently tested and conforms to EN 13374.
Applicable for use on flat roofs up to a maximum pitch of 4°.
Counterbalances can be positioned on the inside or outside of the VersiRail.
Easy to assemble on site - uses EZ-FIX components.
Can be configured to provide a guarded walkway across a roof as well a roof edge guard.
Choice of corner units provide uninterrupted protection.
End sections can be fixed directly to a wall where appropriate.
|
|
|
|
|
|
Harnesses designed for every type of work
Harnesses are the direct interface between the worker and the protection system. It should provide the worker with a maximum amount of safety without hindering their movement.
Petzl has several types of harness for different work situations. Accessories allow to adapt harnesses for specific needs.
work positioning and fall arrest harnesses,
work positioning sit harnesses,
chest harnesses,
fall arrest harnesses,
special rescue harnesses,
accessories.
The Petzl difference
1- 2- DoubleBack and FAST buckles: quick to put on and adjust
All Petzl harnesses have adjustable shoulder straps, waist belts and leg loops. All adjustment buckles use the DoubleBack self-locking system. With this system, the webbing does not need to be rethreaded to secure the buckles - they can be adjusted with a single motion.
Certain harnesses are equipped with the FAST automatic buckles on the leg loops. Once adjusted, these buckles easily and quickly open and close - the harness can be put on without undoing all the buckles.
3- Lightweight and comfortable
Petzl harnesses are particularly lightweight - now wearing a harness is no longer a constraint. Work positioning harnesses are made with perforated foam for breathability.
The foam-padded shoulder straps offer improved comfort and curve around the neck to reduce friction points. The harness is also easier to put on.
Thermo-molded waist belt support at lumbar region for excellent comfort when suspended.
4- 5- Simplicity
Our large, contoured attachment points are easy to clip.
Three gear loops : one on each side and one at the rear.
Thin, rigid gear loops facilitate attaching carabiners.
Waist belt equipped with numerous slots for tool carriers (CARITOOL).
The rear buckle connects TOP chest harness to SIT harness. Weight carried on the waist belt is transferred to the shoulder straps. A restraint lanyard can be clipped to the buckle.
|
|
Restraint and work positioning lanyards
Restraint and work positioning lanyards are used with a work positioning harness.
They are designed to limit movement or for hands free work while in position.
There are adjustable and nonadjustable lanyards.
|
|

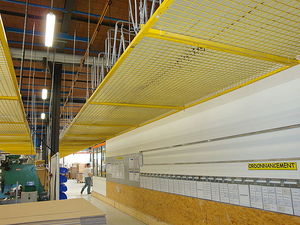

Personnel Man Safety Netting
Personnel Man Safety Netting is made from high tensity polypropylene. A squared mesh complete with 30Kn border rope and 2m tie cords fitted at every 2m.
This netting has a UV treatment and polypropylene does not absorb water, it also has a high resistance to alkaline and acid.
Mesh diameter 5mm 4.75mm
Mesh square 100mm 100mm
|
|
Product Description:
KMIII static rope is a balanced construction consisting of a continuous filament polyester cover braided over a unidirectional nylon core. KMIII is designed to meet the rigorous requirements associated with rescue and rappelling operations. KMIII is dual certified (CE & NFPA).
Features:
5/16" - UL Classified to NFPA 1983:2006 for Escape Rope.
3/8" & 7/16" - UL Classified to NFPA 1983:2006 for Light Use
1/2" & 5/8" - UL Classified to NFPA 1983:2006 for General Use
Applications:
Vertical Lifeline
Rappelling
Caving
Canyoneering
Work Positioning
High Lines
Fall Protection
Climbing
SRT
Aborist
Climbing Gym (top roping)
Ropes Courses
|
|
Harness BASIC 2
Very simple harness provided with 2 anchorings positioned respectively in the back on the level of the scapulas and on the sternum.
Conform to the standard of THEM 361.
|
|
A life line for the frames lattice.
For the roofs whose framework is in IPN, IPE, firm angles and others metal, SOMAIN SAFETY designed a single life line: SECURIFIL® préfa.
This life line is an example representative of the potential of technical innovation of our research department.
A reliable life line installed on a particularly light structure. SECURIFIL® préfa is adaptable whatever the width or the thickness of the beams.
By its design, SECURIFIL® préfa requests the supports little. It is the only life line which, in the event of fall, transmits a vertical effort on the frame.
Sealing
Flexible joint for round tube.
It is about a sheath whose base rigidified by a metal crown marries the shape of the cover of the roof. Stuck, or screwed according to the nature of the support
|
|
|

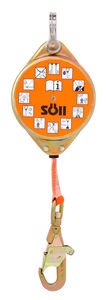

Anti-fall unit with galvanised steel rope with automatic self-rewinding movement and braking system with multiple discs. The internal parts are completely made of stainless steel, designed to support all weather conditions. The device guarantees high sensitivity and automatic calibration. It is provided with safety spring catch for connection to the safety harness (e.g. our model DPC 080); the use of the safety harness is compulsory.
|
|
|
|
|
|
stopfor AP with M10, M11 or M41
Function
The stopfor® A is a component in a fall arrest system. It consists of a stranded rope, the sliding rope grab with automatic locking attached to the rope and a lanyard connecting the rope grab to the harness. The stopfor® A has two tripping systems : the conventional system which operates by the swivelling of the operating lever, and the new "antipanic" system.
The stopfor® AP version has an additional locking function.
Description and Operating Principle
The stopfor® A allows the user maximum mobility while providing total safety for work on a vertical plane. In the event of a fall, two separate tripping systems engage the jaw on the rope and stop the fall smoothly. With the conventional tripping system, the operating lever is free and swivels by the action of the force applied by the user via the lanyard.
With the new "antipanic" system, if the lever is held open by the user when he falls, the roller detects the increase in speed and causes the jaw to close. The stopfor® AP has a function which locks the grab on the rope. This allows the user to create an anchor point on the rope and work held by the rope.
The stopfor® A has a hinge for inserting the rope in the device, which is held closed by a captive screw and locknut. A safety device prevents the unit from closing if the stopfor® A is installed upside down on the rope, with the directional arrow pointing downwards.
Characteristics
Double safety system for opening and closing (press on locknut and on serrated button).
Anti-panic device.
Upside down mounting prevention system.
Locking function for working held by rope.
Directional arrow.
Cannot be dismantled.
|
|
|
|
|
|
To stop a fall As Soon As Possible
The use of a mobile fall arrester is the least restricting solution among fall arrest systems : the mobile fall arrester moves with the worker without manual intervention, while not being noticed.
It can be used as part of a belay system for movement on a structure or as a back-up on the safety rope for rope access work.
The mobile fall arrester locks in case of a fall, slide or uncontrolled descent. It will work on vertical or angled ropes even if the user grabs the device during a fall.
The Petzl difference
1- An innovative solution : the locking wheel
The locking wheel rotates on the rope regardless of whether it is vertical or angled. The ASAP therefore follows the worker's movements. If the device is shock loaded (a fall) or experiences excessive speed (a slide or uncontrolled descent), the wheel locks on the rope to stop a fall.
2- Quick and easy installation
The opening catch disengages the locking wheel so the ASAP can be installed quickly and easily at any point on the rope.
Distancing the worker from the safety rope
The ASAP may be used with the included OK TRIACT carabiner by itself, or with an energy absorbing lanyard.
ASAP'SORBER lanyards absorb the energy generated from a fall and allow the worker to be farther away from the safety rope.
They are available in two lengths, for the best compromise between the distance from the rope and decreasing the length of a fall.
|
|
The Alsipercha is a "zero" factor fall arrest system is ideal to be used on perimeters. It provides total safety when placing:
- decking panels
- edge protection
- slab edges
- stop-ends and
Generally all situations that may arise during the formworking process, where there is a risk of a fall from height.
It is easy to assemble and use. No external assembly accessories are required.
|
|
Latchways ManSafe systems provide the total solution for all horizontal safety at height industrial applications. The system's versatility and ease of use makes it ideal for protecting workers as they go about day-today activities such as maintenance, cleaning, access and inspection.
Systems can be designed for up to five simultaneous users.
Fixes to virtually all types of structure and roofing system.
Follows the contours of the building by going around bends and up and down inclines.
Can be extended to include vertical sections.
The unique Latchways Transfastener allows workers to travel the full length of the system without having to detach and re-attach.
Normally incorporates the unique Latchways Constant Force Post for assured fall arrest protection and simplified installation.
Where the Constant Force post is not applicable, in-line shock absorbers or a Constant Force energy absorber can be incorporated for equal safety assurance.
Meets all appropriate international standards.
|
|
The life line of reference
Indeformable, SECURIFIL® aluminum immediately remains operational after the fall of a user. It consequently makes it possible to carry help so necessary.
SECURIFIL® aluminum is guaranteed 10 years. This guarantee is renewable 10 years after a simple inspection of our services. It is installed on all the types of zones of intervention: terrace, roof, frontage etc
Realized out of stainless steel and aluminum
It protects the cable by absorbing the efforts during a fall. Fixed at a part of end SECURIFIL® aluminum.
|
|
