high-pass electronic filter / active / engine / EMI
high-pass electronic filter
DIL M12-XMSM

The Motor filters DIL M12-XMSM is a suitable resolution for the clampdown of interference with three-phase motors. The device diminishes the voltage peaks and high frequency components caused by strident voltage rises. ...

high-pass electronic filter / passive / EMI / AC
high-pass electronic filter
FN 761X

Current: 10 A - 250 A
Voltage: 250, 300 V

The Y2 Class capacitors have a capacitance of 10 to 1000 nF and are EN/IEC 60939 compliant. They have a pulse test capacity of 5kV and rated voltage of ≤ 300 V. The leakage current is 1.89 to 188mA and rated current is 10-250A. They ...

low-pass electronic filter / passive / EMI / three-phase
low-pass electronic filter
FN 766X

Current: 10 A - 200 A
Voltage: 130, 650 V

The FN 766X model manufactured by Schaffner, is a feedthrough filter, that features a class Y4 capacitor consisting of a 2.5 kV pulse test capability. It also highlights a compliance to EN/IEC 60939 standards. In ...

band-pass electronic filter / passive / quartz / feed-through
band-pass electronic filter
3 - 150 MHz | FTF 4

Frequency: 3 MHz - 150 MHz

· High selectivity · Linear phase · Fundamental mode or overtone 3 and 5 · Frequency Range: 3 to 150 MHz · Relative Bandwidth: from 0.001 up to 1 % · Insertion loss: 2 to 8 dB depending on frequency, ...

band-pass electronic filter / passive / quartz / feed-through
band-pass electronic filter
0.050 - 60 000 MHz | ZY2000

Frequency: 50 Hz - 60000000 Hz

The ZY2000, which is manufactured by Greenray, is a clock oscillator that conforms with the MIL-PRF-55310 standard. It has a TTL-type output signal, and it has an utmost load capacity of up to 10 TTL. The unit has a frequency range from ...

band-pass electronic filter / passive / single-phase / compact
band-pass electronic filter
FTC、DTC series

Current: 1 A - 250 A
Voltage: 80 V - 600 V

... environments Applications Input of electronic instruments system,suppress the electromagnetic interference on wide band, such as in applications of communication, entry of space on electronic.

band-pass electronic filter / passive / EMI / power
band-pass electronic filter
FTC DTC series

Current: 10 A - 400 A
Voltage: 80 V - 600 V

Features: ●This series are the feed through type AC/DC filter with high performance. ●Special feed through installation method; high insertion loss in wide freqnency band; suppress ...

band-pass electronic filter / active / power line / differential-mode
band-pass electronic filter

TDK offers a wide range of different line filters: common-mode chokes for power lines, differential-mode chokes and sine-wave chokes. Whereas the common-mode chokes are used to reduce the asymmetrical interference level ...

band-pass electronic filter / passive / RC / feed-through
band-pass electronic filter
K005 series

K005 | X1 Spark suppression capacitors - Class X1 K005 | X2 Spark suppression capacitors - Class X2

high-pass electronic filter / passive / ceramic / power line
high-pass electronic filter

... provide you product information on EMI suppression filters, including ferrite beads, filters with integrated capacitors (EMIFIL®), common mode choke coils, and block-type (high damping of large currents) ...

band-pass electronic filter / low-pass / passive / feed-through
band-pass electronic filter
MAX74xx, MAX2xx series

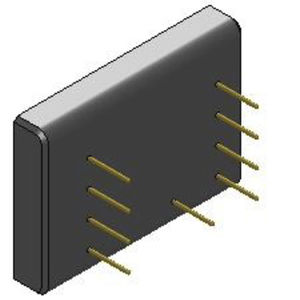

A reliable product from Maxim which represents a wide range of anti-aliasing and post-DAC filters. This can be used in an easy and stable manner. Device that improves system performance for frequencies up to 300 kHz. ...

low-pass electronic filter / active / EMI / DC
low-pass electronic filter
A-103 series

Current: 1 A - 20 A
Voltage: 28 V

... system has MIL-STD-461 compliance requirements, many of the DC-DC converters on the market will not be compliant. The EMI filters listed below have been designed to meet this requirement. In addition, custom voltages/current ...

low-pass electronic filter / active / EMI / high-voltage
low-pass electronic filter
250 V, 0.5 - 6 A | RSAL series

Current: 0.5 A - 6 A
Voltage: 250 V

0.5A to 6A, 250VAC EMI Filter Features - High Voltage Pulse Attenuation - Lug or Wire Terminations - Low Earth Leakage Current Option - Conforms to UL, CSA and - EN Safety Agency Certifi cations

low-pass electronic filter / active / EMI / single-phase
low-pass electronic filter
0.5 - 6 A, 250 V | RSEL series

Current: 0.5 A - 6 A
Voltage: 250 V

0.5Ato 6A, 250VAC EMI Filters Features ♦ Low Cost (Than RSAL Series) ♦ Lug orWire Terminations ♦ Low Earth Leakage Current Option ♦ Conforms to UL, CSA and EN Safety Agency Certifications

low-pass electronic filter / active / surface acoustic wave / feed-through
low-pass electronic filter
F series

Frequency: 40.7 MHz - 869 MHz

5 to 1 temperature display and operate the device at +85? for 16 hours. After that, let go of the filter in the room conditions for a day before measurement. It will meet the specifications in the 2.2. 5-2 minimal temperature ...

low-pass electronic filter / active / surface acoustic wave / feed-through
low-pass electronic filter
BF series

Frequency: 70 MHz - 168 MHz

Shoulder Electronics presents BF series Surface acoustic wave (SAW) filter. For solder heat resistance, the equipment terminals should be dipped into the solder bath for 10±1 sec. The temperature should ...

low-pass electronic filter / active / EMI / power
low-pass electronic filter

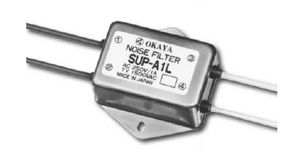

250VAC | SUP series

Voltage: 250 V
Frequency: 60 Hz

Large normal mode attenuation light and compact size leak current lower than 10 µA ( 250 Vac, 60Hz)

low-pass electronic filter / passive / surface acoustic wave / feed-through
low-pass electronic filter
315 MHz | RF3417

Frequency: 315 MHz

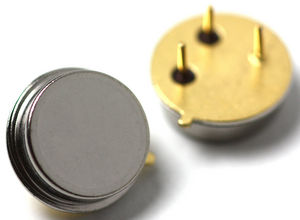

... RF3417 is a low-loss, compact, and economical surface-acoustic-wave (SAW) filter designed to provide front-end selectivity in 315.0 MHz receivers. Receiver designs using this filter include superhet with ...

low-pass electronic filter / passive / surface acoustic wave / feed-through
low-pass electronic filter
318 MHz | RF1238

Frequency: 318 MHz

deal Front-End Filter for 318.0 MHz Wireless Receivers • Low-Loss, Coupled-Resonator Quartz Design • Simple External Impedance Matching • Rugged TO39 Hermetic Package • Complies with Directive 2002/95/EC (RoHS)

high-pass electronic filter / active / EMI / signal
high-pass electronic filter

Current: 30 A

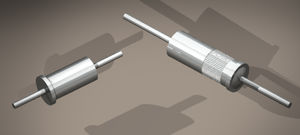

Bolt-In Feed-Through Filter line is designed to be panel installed. Resin or hermetical glass sealing enables the products to meet wide range of environmental requirements. The family range supports both ...

low-pass electronic filter / active / power line / EMI
low-pass electronic filter

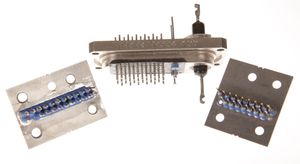

Filter Array, an array of C or Pi Feed-Through filters which are assembled on metal plate, is low-cost efficient solution for EMI/RFI problems. The Filter Array provides ...

low-pass electronic filter / passive / EMC / DC
low-pass electronic filter
MLFT series

... developed a new family of high capacitance filters designed for various DC motor applications in high volume automotive, medical, industrial and telecommunications markets. The Motor Line Feed-Through ...

See the other products
API Technologies - Spectrum Control
low-pass electronic filter / passive / EMI / DC
low-pass electronic filter

Voltage: 750 V
Frequency: 0 GHz - 10 GHz

Solder-in filters are ideal for use in critical areas where space does not allow use of mounting tools or hardware. The solder-in feature also allows installation in unison with other board mounted components. Primarily ...

See the other products
API Technologies - Spectrum Control
band-pass electronic filter / active / RFI / single-phase
band-pass electronic filter
ACT-1376 PIR

ACT Meters International Ltd provides a wide variety of alarm troubleshooting systems for intruder and fire alarms. The products address issues such as false alarms and system breakdowns resulting out of EMI, RFI and nearby lightning. ...

band-pass electronic filter / passive / EMC / feed-through
band-pass electronic filter
2 x 1 nF, 5 A | 33821003D

Current: 5 A

The Pi-filter (33821003D) is made in compliance to F.C. type 138.62003 specifications. It is equipped with a 4 mm Au-plated connectorpin. A working voltage of 100 Vdc is also incorporated. The filter ...

See the other products
Ferroperm
band-pass electronic filter / passive / EMC / feed-through
band-pass electronic filter
2 x 1 nF, 5 A | 33821004S

Current: 5 A

... Ferroperm 33821004S is a solder mount Pi-filter constructed with Ø0.63mm x 28 .7mm Au-plated connector pin. This unit exhibits a working voltage of 100V DC with test voltage of 250V DC. It also has a maximum feed-through ...

See the other products
Ferroperm
band-pass electronic filter / passive / surface acoustic wave / feed-through
band-pass electronic filter
140 MHz | 2xxxxxB series

Frequency: 140 MHz

The 2xxxxxB series, which is manufactured by ITF, is a saw or cutting filter that has a typical 1 dB bandwidth of 0.1 MHz. The unit has a frequency response of up to 140 MHz. It is a single ended operation with high attenuation, ...

band-pass electronic filter / passive / surface acoustic wave / feed-through
band-pass electronic filter
46.1 - 380 MHz

Frequency: 46.1 MHz - 380 MHz

This ITF filter features a single ended operation with typical 1dB bandwidth of 0.35MHz with high attenuation and dual in line package. This model of saw filters are also available in various types. They ...

low-pass electronic filter / passive / single-phase / RC
low-pass electronic filter
max. 400 V | UNI series

Voltage: 400 V

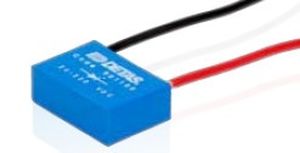

... purpose filter with single phase input is proposed in a very compact size. It can be mounted as desired or attacked directly on the device through biadhesive. The RC + Varistor is a particularly interesting model because ...
