Winding and Unwinding many Materials, NITTOKU`s original Wire Feeding and Wire Reeling Machines!
Displayed Machine: SVT-02
Wire feeding machine :
The Feeding machine feeds a wire at competent tension depending on the material.
New type of wire feeding mechanism has tension parameter feedback function! This has made SVT-02 series suitable for the material that has the character of strong tension and easy stretching.
Ex. Belt cord, Litz wire, Electric wire etc…
Wire reeling machine :
The Wire reeling machine provides layer winding by the new software for layer winding.
Materials :
+ Metal Group : Gold, Silver, Copper, Platinum, Tungsten, Stainless, Aluminum, Steel wire, Welding wire, Solder wire, Copper foil, Aluminum foil, etc.
+ Resin Group : Fishing line, Belt core, Air tube, Electric line, Resin fiber etc.
+ Others : Glass fiber, Fiber yarn, Carbon fibre, Paper, Cloth, Film, Wrap film, Adhesive tape, Nonwovon fabric, Elastic film, Metalic thin film, Hard film, etc.
Form :
+ Round wire, Rectangle wire, Ribbon wire, Twisted wires, Clad wire, Sheet, Film etc. |
|
Pre- and post processing equipment such as prefeeding machines (dereeler and puller-type), wire marking / inkjet printing, fully synchronized cable coilers and wire stackers. Full integration with Schleuniger automatic cutting machines and automatic cut & strip machines.
In a production line, tension-free feeding of a cable or wire is important for optimum processing results. Schleuniger offers a vast range of prefeeding machines for various spool (reel) weights and dimensions. |
|
| IPTE s range of component feeder systems are meeting the requirements for components that are delivered via stick packing, and in reels containing radial or axial parts. Our feeder range covers the majority of the available odd-form or "exotic" components. |
|
CWF-10B COLD WIRE FEEDERS:
Our most popular model, available with either a two or four roll drive system. The unit is designed for mechanized applications and is supplied complete with a wire guide positioner and control.
CWF-20C PRECISION COLD WIRE FEEDER:
Has all the features of the CWF-10B but utilizes a high accuracy drive motor and control with closed loop feedback to maintain the wire feed speed to within ±0.1% of the rated speed. Four drive rolls and a clear wire spool cover are standard features.
HWP-50D HOT WIRE FEEDER:
The hot wire system is used where high deposition combined with high quality are needed. Used with the GTAW (TIG) or Plasma process, the wire is preheated before it enters the weld pool. The system can be used for the surfacing or the joining of heavy materials in most ferrous alloys, including exotic materials. |
|

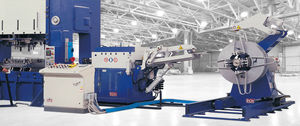

Cattaneo s.r.l. will expose in the International Fair Euro Blech 2008 at Hannover in date October 21-25, Hall 27 Stand B20. It will exhibite a new Compact Coil Line DSF-8-800, with Decoiler 5 Tons and Straightener/Feeder 800x8 mm.
It projected to obtain the maximum flexibility and the best performances four our Swedish Customer, in the motor vehicles sector.
The Compact Coil Line is engineered according with the most modern technologies; it will utilise a latest generation control system Siemens. |
|
K210-2 NA-3S Automatic Wire Feeder
Improve productivity with the NA-3 automatic wire feeder. This system has been specially designed to deposit more weld metal at faster travel speeds which eliminates bottlenecks and cuts costs.
Used for heavy duty fabrication and assembly line production, the NA-3 units feature solid state controls for precise control of welding procedures - even to the most exacting requirements. Trust Lincoln automatic welding systems for worry-free operation! |
|
| ... products without technical information |
| |
Jetline cold wire feeders are primarily used for gas
tungsten arc welding (TIG) and plasma arc welding
(PAW).
They can also be used in other applications
where a controlled feed of wire is required such as
a brazing operation. |
|
Abrasive Mini Hopper System
The abrasive hose from the Mini Hopper to the cutting head is very short so you have a very constant abrasive flow which causes about 20% faster cutting with higher cutting quality.
Abrasiv medium container with 200Kg abrasive is up to 10 Meter away from the Mini Hopper. Under the Abrasiv medium container is the small fully autonomous Pressure Hopper which takes the abrasive to the Mini Hopper near the cutting head.
You can refill the Abrasiv medium container at any time because the Abrasiv medium container is not under pressure like on compare able systems!
What counts!
* 20% faster cutting
* high cutting quality
* few components
* no pressure in Abrasiv medium container
* autonomous refill
* small wear
|
|

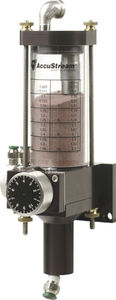

| A very important factor for cutting edge quality is the accuracy and stability of the abrasive flow rate. The Accustream Regulator II is designed to ensure peak cutting performance. The regulators II's compact abrasive metering system delivers the precise amount of abrasive needed to the cutting head at maximum speed. The system is positioned close to the waterjet cutting head which decreases the distance the abrasive travels and guarantees a smooth cut, while curtailing the abrasive that is wasted on inefficient cutting. |
|
In order to optimise the cutting speed and quality Resato offers an electronic abrasive feeder system, mounted on the portal of the cutting table close to the cutting head. This system guarantees a reliable and continuously adjustable abrasive flow rate to the cutting head.
The abrasive flow can be controlled from the CNC control panel and can be adjusted during the cutting process. The system offers possibilities to directly and automatically set the abrasive flow rate supplied to the cutting head from the Resato Powercam cutting software. The flow rate is adjustable from 100 to 1000 grams per minute.
The system also offers the possibility to automatically switch from a low abrasive rate to a high rate. This can be important for materials like glass, for which a low pressure must pierce the glass at a low abrasive flow rate. The flow rate can then be increased at the start of the cutting movement. |
|
Abrasive feeding system
SAEB ERAKAT models ABRALINE
A reliable and functional solution:
The industrial applications require more and more a control of the costs and an optimum reliability. With SAEB ERAKAT, you can supply the machine of cutting permanently and thus avoid all stops of production related to the recharging of sand.
A technology with any test:
SAEB ERAKAT is the perfect system to feed the system of Abrasif cutting uninterrupted. It allows an autonomy of 400 kg and the supply pressure in air perhaps regulated thanks to the valve of regulation of air pressure.
It also supervises the presence of sand in the hopper and the pot under pressure and emits signals of warnings visual (indicator) and messages intended for the operator.
Safety:
SAEB ERAKAT automatically stops the machine of cutting in the event of lack of abrasive (if connection is carried out) or warns the operator with a twinkling light signal. This makes it possible to avoid with the operator carrying out cycles of cutting without abrasive.
Simple installation:
SAEB ERAKAT Abraline model is a complete and autonomous system which can be connected to any machine of abrasive cutting. Its simple connection (catch 220V) and its box of piloting allows an easy use.
A strong point: Facility of use:
The use of the machines of abrasive cutting requires the control of many parameter and a regular maintenance.
With SAEB ERAKAT the user does not have any operation of maintenance, nor of parameter to be carried out. It is enough for him to reload every 400 kg of abrasive, enabling him thus to concentrate on its machine and the production. |
|
| ... products without technical information |
| |
| Ranging from simple quench fluid tanks to highly complex buffer fluid set-ups, our systems generally have a modular structure and are tailored to individual requirements. Depending on their design, these systems cool or lubricate, circulate, apply pressure, protect against icing and ensure that mechanical seals work reliably, last longer and do not allow any leakages to escape into the environment. |
|
|
|
