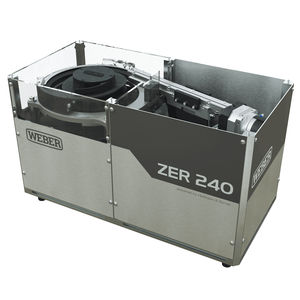

The tank and the blade are out of stainless steel.
The depth and the beat of the blade adapt automatically to the level of filling, in order not to brew the components unnecessarily. Good resistance to clogging.
Ideal for the coated components, painted, or of which surface treatment polluting east.
High rates. (For example 5000 parts/hour for a screw M4x30.) Capacity ZSE 151: 1,5l.
Possibility of adding a hopper great capacity.

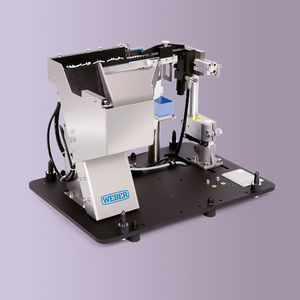

Mechanical selector Weber.
System in advance on rail without silentblocs. Balanced linear rail: few transmitted vibrations, low noise level.

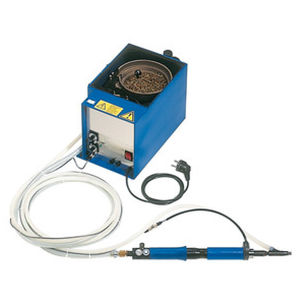

The system makes it possible to distribute components without head. Management integrated for distribution alone, or distribution and unit of screwing (of installation). |
|
| The LAYING can be carried out with or without efforts of installation and thus allows the automatic installation of the rivets, the axes, the pins and the pawns with a control of effort so necessary. One can notice that its design is close to that of the screw drivers. |
|
Cattaneo s.r.l. will expose in the International Fair Euro Blech 2008 at Hannover in date October 21-25, Hall 27 Stand B20. It will exhibite a new Compact Coil Line DSF-8-800, with Decoiler 5 Tons and Straightener/Feeder 800x8 mm.
It projected to obtain the maximum flexibility and the best performances four our Swedish Customer, in the motor vehicles sector.
The Compact Coil Line is engineered according with the most modern technologies; it will utilise a latest generation control system Siemens. |
|
CWF-10B COLD WIRE FEEDERS:
Our most popular model, available with either a two or four roll drive system. The unit is designed for mechanized applications and is supplied complete with a wire guide positioner and control.
CWF-20C PRECISION COLD WIRE FEEDER:
Has all the features of the CWF-10B but utilizes a high accuracy drive motor and control with closed loop feedback to maintain the wire feed speed to within ±0.1% of the rated speed. Four drive rolls and a clear wire spool cover are standard features.
HWP-50D HOT WIRE FEEDER:
The hot wire system is used where high deposition combined with high quality are needed. Used with the GTAW (TIG) or Plasma process, the wire is preheated before it enters the weld pool. The system can be used for the surfacing or the joining of heavy materials in most ferrous alloys, including exotic materials. |
|
RECORD
This bar feeder has been designed on all Swiss type machines. The front chuck, as well as the bar storage, are automatically controlled by simply digiting the relevant diameter on the PLC.
The upper guides, which do not need to be replaced, can be regulated manually, while the lower guides feature a quick change system allowing for reduced change over times.
Remnants are extracted by means of a self-centring ejector.
The maximum extractable remnant length is 500mm.
The bar feeder is equipped with a mechanical system for Swiss machine synchronisation. |
|
-Feeders: The feeder works by taking up the sheet metal supplied by the decoiler or straightener and regulating the exact quantity that should be furnished to the press at all times. By using CNC technology (numeric computer control) the process can be parametrized so that it is possible to program maximum speed, acceleration / deceleration and with the position in either millimetres or inches. To see figure
-Feeder/levelling machine: This machine is an evolution of the above and today most feeders incorporate the levelling function. As its name indicates, its purpose is to level out the sheet metal that, due to the slightly convex morphology, it adopts on the coil. Therefore, it is necessary to flatten the sheet metal so that it is absolutely level on reaching the press. Otherwise, the quality of finish produced by the feeder-levelling machine would not be obtained. |
|
► Power supply by vibrating bowls
► Loading crane
► Digitize system insertion for pieces
► Loading and unloading conveyor
► Manual devices to put down pieces between wheels (secured)
► Device for admission of bars |
|
CDSF7-PR is a special edition of the CDSF6. To prevent the excessive spring effect of the coil, usual for the compact lines, we add a pinch-roll to pull the coil from the braking decoiler. This system is appreciated in Germany.
- The CDSF7-PR is a compact line consisting of:
- single motorised decoiler: work at variable speed with a loop control to guarantee a soft movement
- straightener/feeder: with 2 rolls pinch-roll Ř 180 mm
- Straightener station with rolls at big distance, adapted for medium width strip - 9 rolls Ř 90 mm, to guarantee the necessary planarity.
- The line requires 8 meters of space.
- The CDSF7-PR is the best solution in case you don't need high speed (max 90 spm) but you have few space. The line have a competive price. |
|
Application:
The Minster Straightener, equipped with the Production Management Control (PMC) System, is the core of the stock preparation system. In its basic form, this multi-function machine provides precise straightening of the stock, and accurate control of the storage loop. When equipped with the optional hold-down arm and peeler table, the Minster Straightener facilitates safe and efficient threading of the coil. When installed along with a complete Minster coil line, it controls and supplies hydraulic power to the thread table, reel and coil car. It also communicates via its PMC with the press and feed PMC, providing complete coil line control and diagnostics.
|
|
| ... products without technical information |
| |
| Hot melt adhesive feeders automatically transfers hot melt adhesive from a bulk container to the adhesive supply unit increasing productivity and reducing equipment down time by keeping the adhesive supply unit full. |
|
Cold glue feed units are designed to supply applications guns, by a pneumatic piston pump with ratio 4:1 or a diaphragm pump .
The pump is fitted on a plastic cover and it is easy to transfer on a bucket with water to flush the system.
The feed unit is provided with a stainless steel filter, that cut the pulsation of the pump.
A stainless steel pneumatic pressure regulator controlled by an I/P transducer keep automatically constant the glue quantity at every speed. |
|
| ITW Dynatec's APEX High Speed Slot Die Applicator is an air-operated hot melt adhesive applicator assembly with an optional filter manifold. The applicator is used with intermittent pressure and constant pressure hot melt adhesive supply units (ASUs). APEX models are offered in six different module configurations. |
|
TEC 6100/BMK
This bench mount kit converts your TEC 6100 to a statically
mounted foot-operated glue station. It allows operator to
have both hands free for gluing applications, improving
productivity by up to 100%.
TEC 4000/TK
Used in conjunction with the bench mount kit, the TEC 4000/TK enables a measured amount of adhesive to be applied with each operation of the
foot pedal. This improves quality, guarantees consistent
bonding, and reduces the amount of adhesive used. |
|
The Heavy-Duty Adhesive Dispensing for Plexus Adhesives!
Designed for Maximum Performance, and Minimum Downtime
With decades of research and hands-on experience,
Plexus designed FusionMate™Dispensers for the most
demanding adhesive dispensing applications.
FusionMate Dispensers are specifically optimized
for Plexus methacrylate adhesives. Their heavyduty
design ensures years of consistent, reliable,
trouble-free service. Since most components can
be purchased off-the-shelf from industrial supply
houses, any maintenance or repairs can be performed
faster, more easily, and less expensively
than on competitive machines. |
|
The cramming unit provides positive and continuous feeding of poor flowing dry blends
The 3-phase AC drive of the crammer feeder allows for metered, packed or starved feed
Different feeder systems permit the optimum configuration of the selected extruder for the materials to be processed
|
|
|
|
