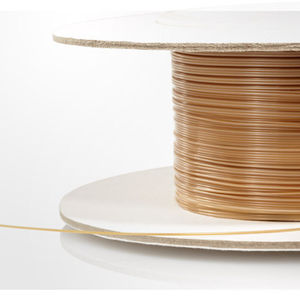

When looking for a high quality fiber with superior transmission and a numerical aperture (N.A.) of 0.22 for efficient light coupling, the Superguide™ SFS is the fiber of choice. The Superguide™ fiber is drawn from preforms manufactured by the Plasma Outside Deposition (POD) process. Rods of extremely pure synthetic fused silica are coated with fluorine doped silica layers to obtain preforms with step-like refractive index profiles. Plasma torches prepare the reaction compounds from SiCl4, O2, and a fluorine containing gas. Strong thermal gradients combined with the temperature plasma lead to chemical deposition conditions, which allow very high fluorine concentrations to be incorporated in the fused silica network. Refractive index differences of 0.27 corresponding to numerical apertures in excess of 0.28 have been realized with undoped core rods.
|
|
|
Silica optical fibers, despite their high strength, require coatings to protect and maintain their strength during installation and operation when high temperatures, abrasion, bending, and other stresses can cause fiber fatigue. OFS offers both single-mode and multimode optical fibers with protective coating layers applied directly to the glass during the fiber draw process.
|
|
When looking for a high quality fiber with superior transmission and a numerical aperture (N.A.) of 0.22 for efficient light coupling, the Anhydroguide™ AFS is the fiber of choice. The Anhydroguide™ fiber is drawn from
preforms manufactured by the Plasma Outside Deposition (POD) process. Rods of extremely pure synthetic fused silica are coated with fluorine doped silica layers to obtain preforms with step-like refractive index profiles. Plasma
torches prepare the reaction compounds from SiCl4, O2, and a fluorine containing gas. Strong thermal gradients combined with the temperature plasma lead to chemical deposition conditions, which allow very high fluorine
concentrations to be incorporated in the fused silica network. Refractive index differences of 0.27 corresponding to numerical apertures in excess of 0.28 have been realized with undoped core rods.
|
|
With numerical aperature (N.A.) of 0.39 and a hard polymer cladding that allows a high core-to-clad ratio, the Anhydroguide™ APCH is the low cost fiber of choice. The pure fused silica (SiO2) used in the core of Anhydroguide™ fiber is made by reacting silicon tetrachloride (SiCl4) with oxygen (O2) using a plasma arc rather than an oxy-hydrogen flame. This ensures that the residual hydroxyl concentration (OH) will be low in the core material resulting in superior infrared transmission as compared with flame prepared silica that is used in the
companion product, Superguide™, which has superior ultraviolet (UV) transmission.
|
|
When looking for a silica core and silica clad fiber with a hard polymer coating that allows a high core-to-clad ratio
and a numerical aperture (N.A.) of 0.22 for efficient light coupling, the Anhydroguide™ AFSH is the fiber of choice.
The Anhydroguide™ fiber is drawn from preforms manufactured by the Plasma Outside Deposition (POD) process.
Rods of extremely pure synthetic fused silica are coated with fluorine doped silica layers to obtain preforms with
step-like refractive index profiles. Plasma torches prepare the reaction compounds from SiCI4, O2, and fluorine
containing gas. Strong thermal gradients combined with the temperature plasma lead to chemical deposition
conditions, which allow very high fluorine concentrations to be incorporated in the fused silica network. Refractive
index differences of 0.27 corresponding to numerical apertures in excess of 0.28 have been realized with undoped
core rods.
|
|
|
|
|
|
Long life, deep UV transmission is made possible with Fiberguide¡¯s solarization resistant optical fibers, wherein the fiber core and clad are hydrogen doped at very high temperatures as the fiber exits the draw furnace and then hermetically sealed with an aluminum buffer/jacket during the fiber draw process. This break-through, patented in-line process allow the use of fiber with a wide variety of UV laser sources, making Solarguide¢â 193 the fiber best suited for deep UV (¡Â 300nm) applications. Irradiation of standard silica fibers with UV photons below 260nm generates defects in the standard silica
structure, so-called ¡°solarization¡±. The solarization is the reason for the significant decrease in standard fiber transmission in UV wavelengths over time making fiber eventually useless in that application. When present in the silica core, hydrogen combines with the defects generated and neutralizes them, preventing the UV photons from being absorbed and thereby lost. Although the effect of hydrogen in lowering the fiber solarization rates in silica is widely known, Solarguide¢â 193 is the only fiber in the industry that has its own
hydrogen supply which has been sealed in with a hermetic shroud (aluminum buffer) around the fiber, thereby making it available for keeping the fiber solarization resistant for significantly longer periods.
|
|
SILICA/HARD POLYMER CLAD Optical Fiber
JTFSH
- High -OH Core
- Hard Cladding
- High NA
Characteristics:
Step Index
Numerical Aperture: 0.37 ± 0.02
Full Acceptance Cone: 43.4 degrees
High -OH Silica Core, Hard Polymer Clad
High -OH Core for Vis-NIR Transmission
Operating Temperature: -65ºC to +125ºC
Proof Tested from 100kpsi to 150kpsi
Optional Acrylate, Nylon, or Hytrel® Buffer
Custom NA's Available
|
|
New Tighter Tolerances!Step Index
Characteristics
Numerical Aperture: 0.22 ± 0.02
Full Acceptance Cone: 25.4 degrees
UV-Vis-NIR Transmission, 180nm to 1,150nm
Superior Radiation Resistant
High Laser Damage Threshold
Sterilizable*
Bio-compatible Materials – USP Class VI*
High -OH Silica Core, Doped Silica Clad
Polyimide Buffer Standard; Silicone, Acrylate,
Fluoropolymer, Aluminum & dual buffers also available
Polyimide Concentricity ± 3µm
Sizes for Bundling
Tighter Tolerances Available
Temperature: Operating –65ºC to +300ºC
Intermittent, up to 400ºC
Proof Tested to 100kpsi
|
|
JTFLH - Tefzel® Buffer
Characteristics
-Step Index
-Numerical Aperture: 0.37 ± 0.02
-Full Acceptance Cone: 43.4 degrees
-Low -OH Silica Core, Hard Polymer Clad
-Low -OH Core for Vis-NIR Transmission
-Operating Temperature: 65ºC to +125ºC
-Proof Tested from 100kpsi to 150kpsi
-Optional Acrylate, Nylon, or Hytrel® Buffer
-Custom NA's Available
|
|
Ultra Low OH
Characteristics:
Step Index
Numerical Aperture: 0.22 ± 0.02
Full Acceptance Cone: 25.4 degrees
Vis-NIR Transmission, 380nm to 2,400nm
Radiation Resistant
High Laser Damage Threshold
Sterilizable*
Bio-compatible Materials – USP Class VI*
Low -OH Silica Core, Doped Silica Clad
Polyimide Buffer Standard; Silicone, Acrylate,
Fluoropolymer, Aluminum & dual buffers also available
Polyimide Concentricity ± 3µm
Sizes for Bundling
Tighter Tolerances Available
Temperature: Operating –65ºC to +350ºC
Intermittent, up to 400ºC
Proof Tested to 100kpsi
|
|
SILICA/TEFLON AF CLAD Optical Fiber
- FSU: High-OH
- FLU: Low-OH
- Ultra High NA'
Characteristics:
- Step Index
- Numerical Aperture: 0.66
- Full Acceptance Cone: 82.6 degrees
- UV-Vis-NIR Transmission
- Optional FEP/ETFE Jacketing Available
- Custom Sizes and Assemblies
- FSU: High -OH Silica Core, Teflon® AF Clad
- FLU: Low -OH Silica Core, Teflon® AF Clad
- Operating Temperature: –10ºC to +160ºC
- Sterilizable*
- Proof Tested at 100kpsi
- Silicone or Acrylate Buffer Recommended
|
|
SILICA SILICA Optical Fiber
- FPB: Broad Spectrum Optical Fiber
- Solarization Resitstant
Characteristics:
- New Lower Loss Broad Spectrum Fiber, 275-2100nm
- Excellent Focal Ratio Degradation Characteristics
- Step Index
- Numerical Aperture: 0.22 ± 0.02
- Silica Core, Doped Silica Clad
- Cost Effective
- Polyimide Concentricity ± 3µm
- Tight Tolerance
- Operating Temperature: 65ºC to +300ºC
- Proof Tested to 100kpsi
- Custom Sizes, Buffers, Jackets, Assemblies Available
|
|
Differents types of connectors:
LX.5
LC
MU
LSH
SC
SC Duplex
FCPC
LSA (DIN)
ST-LEAN
ST-HQ
FSMA
MT-RJ
ODC
FiberGate
SC-RJ IP67
E-2000
|
|
Rare earth doped gain fibers for converting pump light into laser and amplifier signals.
Available in single clad, double clad, and triple clad variants, these fibers have the high brightness, narrow linewidth, and extreme power stability to satisfy the most demanding applications.
|
|
|
Perfect for single and multi-channel C- and L-band amplifiers and ASE sources and small form factor devices.
|
|
|
Industry leading tolerances on key spectroscopic parameters ensure lot-to-lot reproducibility.
|
|
|
The HUBER+SUHNER standard cable range includes a wide assortment for telecom, premises wiring and industry applications
|
|
For internal and external applications with polymer fibres (POF).
details:
• Robust and cost-effective alternative to standard glass fibres
• SI-fibre with 980 µm PMMA-core
• For short distance transmission up to 100 m
• Operating wave length 660 nm
• Easy mechanical crimp technology
|
|
Nufern designs and manufactures a broad range of specialty optical fiber. From photosensitive fibers to rad-hard fibers to high-power double clad fibers, you can trust Nufern to produce optical fiber to the world's highest standards for quality, reliability, and repeatability.
If you don't find what you need among our standard fiber offerings, we'll be happy to discuss creating a custom fiber.
|
|
The optical fiber optics has lot of
advantages in disturbe areas:
- insensitivity to the electric disturbances,
- increase in transmitted information
flow,
this is why, fiber optics division has
developed the optical connector 8038,
based on the 838 series connector,
approved by ABB (Asea Brown Boveri)
according to the German standard
BN 411 012 and the IEC 77 and 571
standards.
|
|
Single Connector for Polymer Fibres (POF)
advantages:
• No special tools necessary
• Quick, cost-effective assembly
• No crimping, no glueing
• Fixed connection due to metallic type
• Suitable for 1 mm polymer fibre 2.2 mm jacket
|
|
A rugged yet flexible beam delivery system with patented features for industry-leading reliability and performance
* A standard feature on all new JK™ Series lasers, both pulsed and continuous-wave
* Complete field-retrofittable upgrade packages available for all prior generation JK700 Series lasers
* Plug-In Pre-Aligned (PIPA) coupling eliminates manual fiber alignment, reducing fiber change time requirements from hours to minutes
* Patented termination design helps eliminate back reflection problems when welding highly reflective materials
* Integral fiber monitoring system
* Optional BendLock for robotic applications
* Standard fiber-optic lengths are 5, 10, 15, 30 and 50m
|
|
|
Designed for efficient single mode operation around 1060 nm when cladding pumped at 808 nm.
|
|
Sensors with fibre optics are used for optoelectronic sensing applications where mounting space is limited or where high operating temperatures do not permit the use of conventional sensors. Due to their small design and optical properties they do not only detect the presence of objects but also quality-related details, e.g. thread pitches of screws.
Transmitter and receiver of the fibre optic sensors are integrated into one housing. The fibre optic is connected to the switching amplifier using a special adapter, and so there is almost no loss. Fibre optics can be used as through-beam sensors or diffuse reflection sensors.

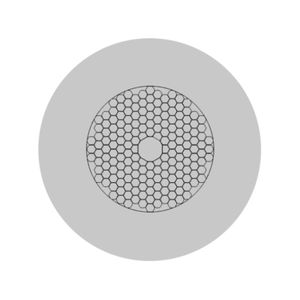

Fibre optics consist of flexible glass fibre bundles protected against external influence by a sheath.
|
|

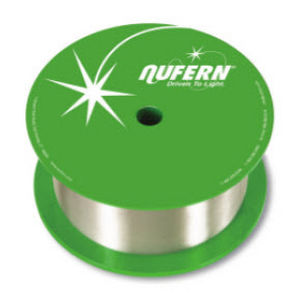

Nufern designs and manufactures a broad range of specialty optical fiber. From photosensitive fibers to rad-hard fibers to high-power double clad fibers, you can trust Nufern to produce optical fiber to the world's highest standards for quality, reliability, and repeatability.
If you don't find what you need among our standard fiber offerings, we'll be happy to discuss creating a custom fiber.
|
|
|

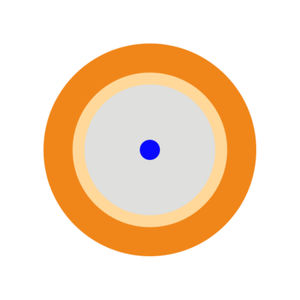

Eye-safe fibers for use around the 2 µm wavelength.
|
|
|

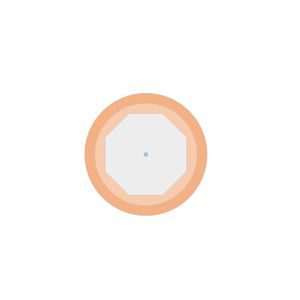

Highly efficient fibers for 1 µm lasers & amplifiers.
|
|
|
|
|
|
Fiberguide has been supporting the Original Equipment Manufacturer (OEM) in taking their concepts and ideas to
market since 1977. Our staff of engineers, technical sales professionals and experienced production team unites
in developing that product specific to your individual application. We design and engineer assemblies using not
only our own pure silica core/silica clad, silica core/plastic clad fibers, but borosilicate glass fiber, ESKA™ plastic
optical fiber, fluoride fiber, chalcogenide fiber, erbium-doped fiber and polarization maintaining fiber as well.
Available with numerical apertures (N.A.’s) from 0.12 (full acceptance angle 14°) to 0.66 (full acceptance angle
82°), with the widest range of custom and standard endfittings/connectors and outer jackets to tailor a product
to your technical and economic requisites.
The definition of a fiber optic assembly is “A length of fiber optic cable that has been terminated with a connector,
pigtail or other component.” This could be a single fiber cable terminated with industry standard connectors
on both ends and jacketed in flexible sheathing, to a multi-fiber design consisting of multiple inputs and/or
outputs, each with different cross-section areas and geometries, each requiring a custom machined endfitting
and a heavy duty outer jacket to protect the assembly from being crushed.
|
|
OFS has been leading the industry in
supplying erbium-doped fiber (EDF) products for more than 15 years.
Our broadest range of erbium-doped products in the marketplace serves all your needs, while offering industry-standard and versatile designs in large production volumes.
Custom splice data for the fibers and devices used in your application is available upon request, and OFS offers its own OASiX Optical Ampflifier Simulation System Software to design and predict EDFA performance using the measured characteristics of the specific lots of fiber you purchase.
|
|
|
|
