General Description
316 stainless steel for the offshore, food, pharmaceutical and allied industries. A combination unit for filtration and pressure regulation of compressed air for use in these industries.
- 316 Stainless steel throughout. Large flow paths minimise pressure drop. Integral mounting holes.
- Tagging facility built in.
- Filter Unit
Operating Fluids:
- Gases
Filtered lubricated or non-lubricated air, inert gas, sweet (natural) gases. Sour gas option available
- Liquids
Low pressure hydraulic, mineral oil or water.
|
|
The Kavair series of Air Line Equipment incorporates a wide range of standard products such as filters, regulators, lubricators and modular combination units. These products are complemented by ancillary equipment including soft start valves, external autodrain units and condensate valves.
Type F Series Standard Filter
G1/4 G3/8 G1/2
800 - 3500 l/min @ 6 bar
These conventional filters can be used individually or in conjunction with combination air preparation units (FRLs).
Type R Series Regulator
G1/4 G3/8 G1/2
600 - 4000 l/min @ 6 bar
These conventional pressure regulators can be used individually or in conjunction with combination air preparation units (FRLs).
|
|
Filter/Regulator Products

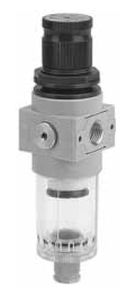

B08
Features
• Space-Saving Integral Filter / Regulator Design
• Unique Flush-mounted Pressure Gauge Available
• Balanced Valve Design
• Modern Design and Appearance
• Light Weight
• High Flow Capacities
• Quick-Disconnect Bowl / Bowl Guard
B12
Features
• Space Saving Package Offers Both Filter and
Regulator Features for Optimal Performance
• Excellent Water Removal Efficiency
• Rolling Diaphragm for Extended Life
• Removable Non-rising Knob for Tamper Resistance
• Quick Response, and Accurate Pressure Regulation
Regardless of Changing Flow or Inlet Pressure
• 5 Micron Standard
|
|
|
A range extended for the air conditioning: AS2 - AS3 - AS5 complete Unit FRL, governor automatically-controlled, filters, membrane drier, pressurization progressive, gate valve. Flow from 150 to 10.500 possible Nl/min. Many accessories for all applications
|
|
|
|
|
|
|
Especially suited for use with Airpot actuators and Airpel cylinders where low friction/low hysteresis, sensitive response, long life, clean operation, and extreme temperature are critical requirements. Offered in both compact and standard configurations for moderate and high flow, Airpot FFR systems are available with standard or precision regulators for precise control and sensitivity. Airpot FFR systems are composed of lightweight aluminum/resin hybrid material built into a compact and modular 40mm x 40mm envelope per component (compact series). Standard and Precision series (with increased low pressure sensitivity) regulators are available; all with hand adjustability and single push lock operation. The precision series offers a pressure range of 0.005 to 0.4 MPa and sensitivity within 0.1% of the full scale. Port connections are available with NPT or G metric threads. Each system is equipped with dual filtration modules that remove particles, dust, oil, moisture and mist down to 0.01 micron. This two stage filtration system is comprised of a 5 micron dust and moisture filter augmented by a 0.01 micron coalescing filter. The long life media transitions from a coarse outer surface to a fine interior structure to reduce clogging prolong life and prevent rust formation. All filters boast a standard corrosion resistant filter bowl guard, one quarter turn filter element removal and a unique O ring slip prevention design. FFR gauges offer highly visible color zone indicators, field adjustable limit marks, flat face design with a non- protruding (standard series, compact and high flow types) gauge embedded in the module made to JIS3 grade with either MPa or PSI readings.
|
|

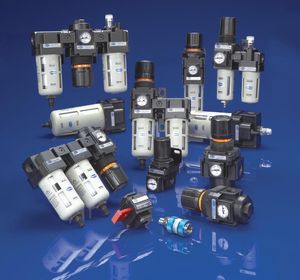

The FRL range is a complete line of components for the treatment of the compressed-air.
FILTER: Thread from 1/8 to 1". Filtration Grade from 5µm to 50µm. Maximum Pressure 15 bar.
REGULATOR: Thread from 1/8 to 1". Regulation Range from 0-2 to 0-12 bar. Max. Pressure 15 bar.
FILTER REGULATOR: Thread from 1/8 to 1''. Regulation Range from 0-2 to 0-12 bar. Filtration Grade from 5µm to 50µm. Max. Presssure 15 bar.
Condensate Exhaust System: Semi automatic - Manual or Automatic to vacuum-operated.
QUICK EXHAUST REGULATOR: Thread 1/8-1/4. Regulation Range from 0-2 to 0-12 bar. Max. Pressure 15 bar.
LUBRICATOR: Thread from 1/8 to 1''. Max. Pressure 15 bar. Oil Loading System: Manual or Automatic to vaccum-operated.
SHOT OFF VALVE: Thread from 1/8 to 1''. Max Pressure 15 bar. Drive System Manual, Pneumatic, Electropneumatic.
SOFT START VALVE: Thread from 1/8 to 1''. Max. Inlet Pressure 3-10 bar. Drive Sytem Electropneumatic.
FR-L, V-FR-L, F-R-L, V-R-L, F-L are available.
|
|
C3
of plastic, modular design
5 and 20 µm, G1/4 - G1
outlet 0 - 8 bar, max. 8500 l/min
|
|
Assembled Combinations
Sizes Available: Miniature Series 1/8", 1/4" NPT and Compact Series 1/4", 3/8", 1/2" NPT
An assortment of filter, regulator, and lubricator combinations available.
|
|
|
|
|
|
Filters, Regulators, and Lubricators (FRLs)
27 Modular Series Assemblies and Accessories
Filter, Regulator, Lubricator, trio (pictured)
- traditional trio design
- gauge packaged uninstalled for installation on either side
- bowl guard supplied standard
- filter, regulator, and lubricator options available
27 Series combo units offer pre-assembled units for fast installations. The integral filter/regulator offers space saving design. Duo and trio assemblies utilize the modular clamping system to ease installation.
Other Filters, Regulators, and Lubricator Products offered by Coilhose Pneumatics:
Economy Regulators
Pre-Set In-Line Pressure Regulators
Adjustable In-Line Pressure Regulators
In-Line Series F, R, Ls
Miniature Series F (also in Coalescing), R, Ls
Miniature Pro Line F, R, L, Assemblies and Accessories
25 Series F, R, L, A and A
26 Series F (also in C), R, L, A and A
27 Series Modular Series F(also in C), R, L, A and A
Heavy Duty Series F (also in C), R, L, A and Accessories
General Purpose Series F (also in C), R, L, A and A
Dessiccant Air Dryers
Mechanical Condensate Drains
Solid State Automatic Drain
Pressure Gauges
Vacuum and Hydraulic Gauges
|
|
The enhanced ARO-Flo products come in four series, varying in port size and maximum standard cubic feet per minute (scfm) for optimal fit to the application and tools used:
-Miniature 1000 Series with 1/8” and 1/4” ports, and a maximum flow of 27 Liters/sec.
-All-new Compact 1500 Series with 1/4” and 3/8” ports, and a maximum flow of 109 scfm.
-Standard 2000 Series with 3/8”, 1/2”, and 3/4” ports, and a maximum flow of 104 Liters/sec.
-Heavy-Duty 3000 Series with 3/4” and 1” ports, and a maximum flow of 180 Liters/sec.
Key advantages of the upgraded ARO-Flo products are optimal performance and improved safety.
Safety
• Tested to ISO standards
• Locking Bowls
Performance
• Top tier flow performance
• Industry’s largest integral gauge
• 5 micron standard filter
Modularity
• Fully modular units and accessories
• Easy installation and maintenance
|
|
airfit comfort (G3/8 - G1/2 - G3/4)
Operating comfort at the highest level. Down to the smallest detail.
That was the main challenge for HOERBIGER-ORIGA in the development of a new G1/2 series. The result is called airfit comfort - and it lives up to its name.
Advantages:
optimum price/performance ratio
high operating reliability
fast bowl change with bayonet fitting
direct wall-mounting possible
connects to G3/4 air lines using special adapter
corrosion resistant through high quality surface treatment of the zinc die-cast housing
modular design for easy interlock between components
comprehensive range of accessories
all environmentally relevant materials are identified
|
|
MD4
Modular Filters, Regulators, Lubricators with space saving design allowing for use in smaller spaces while providing high flow capacity.
MD4 series have modular clamps that can be disconnected from the front instead of the bottom, making filter element replacement and general maintenance much easier. There is also an option for an adsorber that is designed to remove vapors from the air line that cannot be removed by a coalescing filter. It allows for air to be free of oil and hydrocarbons.
|
|
Max. primary pressure: Metal bowl 18 Bar/255 PSI
Temperature: 0-60 oC
Water separation capacity: min 90 %
Effective bowl volume: Filter 45 cc
Lubricator 120 cc
Material: Housing: Zinc
Metal bowl: Zinc
Filterelement: Plastic
Top cover: Glassreinforced polyamid
Diaghragm: Chloroprenerubber with nylon reinforcement
Other parts: Brass, nitrile rubber
|
|
Max. primary pressure: Transparant bowl 12 Bar/170 PSI
Metal bowl 18 Bar/255 PSI
Temperature: 0-60° C
Water separation capacity: min 90 %
Effective bowl volume: Filter: 20 cc
Lubricator: 45 cc
Material: Housing: Zinc
Transparent bowl: Polycarbonate
Metal bowl: Zinc
Filterelement: Plastic
Top cover: Glassreinforced Polyamid
Diaghragm: Chloroprenerubber with nylon reinforcement
Other parts: Brass, nitrile rubbe
|
|
|
Norgren carries a complete range of air preparation products to fit any application. The most recent addition is the Excelon Pro, a no tools required, light weight FRL. Visit www.norgren.com/excelonpro for more information. All accessories are also available.
|
|
A range extended for the air conditioning:
Complete unit FRL, governor automatically-controlled, filters, membrane drier, pressurization progressive, gate valve. Flow from 150 to 10.500 possible Nl/min.
Many accessories for all applications
|
|
Type FRCLM Series Combined Filter-Regulator-Lubricator Modular Unit (Assembled)
500 - 2800 l/min @ 7 bar
These fully assembled units comprise a conventional combined filter- regulator and lubricator (FRL) in modular configuration.
FEATURES
- Manual filter drain fitted as standard
- Auto drain option
- Push-to-lock non rising regulator control knob
- Constant lubricator oil flow & very low pick-up pressure
- Rugged metal bowl guards
TECHNICAL SPECIFICATIONS
- Medium: Compressed air
- Temperature Range: -10ºC to 60ºC
- Pressure range
- Standard: Input 0.5 to 10 bar
- Output 0.5 to 10 bar
- Options: 0.2 to 2 bar
0.2 to 4 bar
0.5 to 7 bar
- Filtration
- Standard: 40 µm
- Options: 5, 25, 50, 100 µm
- Max Input Pressure: 10 bar
- Gauge Ports: G1/8 (Two)
|
|
|
|
|
|

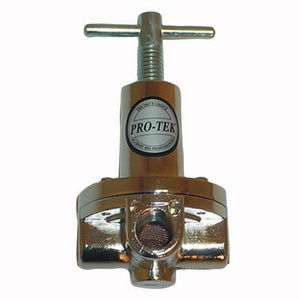

FRL's - 50 Series
High flow capacity FRL line - Filters, Regulators and Lubricators.
Features:
High Flow
High Pressure
T Handle Adjustment Regulator
Pilot Regulators to 2-1/2 NPT
Rugged Design
Metal Bowls with Sight Glass
1/4 to 1-1/2 NPT Size Range
Assemblies Available
FRL's - FlexiBlok FRL 14/22/32/42 Series
The Numatics 14, 22, 32, and 42 Series FlexiBlok¨ line is a series of high performance air preparation products. Introduced in 1997, the FlexiBlok¨ line is made from sturdy but light weight aluminum; perfect for applications such as robotic arms which cannot afford extra weight and less expensive to ship than zinc. The block head design with integrated mounting holes eliminates costly mounting plates and adapters, making the product easier to use and install. Private labeling is easy thanks to the special templates which snap securely in the front and back of the heads. These templates can be customized with names and/or logos; perfect for OEM applications.
The 14,22,32 series conforms to ISO 1179-1 and 228-1 requirements.
The 42 series will soon also conform to these requirements.
|
|
THREE-UNIT CLOSE NIPPLED COMBINATION
14A Miniature Series
FEATURES:
Unique Deflector Plate Ensuring Maximum Water & Dirt Separation
Solid Control Piston with Lip Seal for Extended Life
Non-Rising Adjusting Knob
Proportional Oil Delivery Over a Wide Range of Air Flows
Generates Oil Particles of 5 Micron or Smaller Downstream to Lubricate Systems Having Complex Piping Arrangements
|
|
|
|
|
|
FRL's - Delta 901 Series Premium Filters
The Numatics Delta Series%u2122 offers premium filtration for applications which require high flows. The standard aluminum end caps on every element, premium manual drain, seals made of Viton®, and available 3 micron internal pleated prefilter sets the Delta Series%u2122 apart from other competitors.
Features:
Inner core - Prevents element from collapsing in backflow conditions
Optional internal pleated prefilter - 3.0 micron media protects the fine borosilicate fibers from large particles, extending the life of the coalescing media
Inner media wrap - Allows crossflow of gas which initiates the coalescing process
Media - Three coalescing media choices for best performance. Proprietary glass fiber blend combines low differential pressures and high efficiencies with maximum holding capacity (3 micron particulate and adsorbing grade also available)
Outer media wrap - Allows crossflow of gas and improves performance
Metal retainers - Supports the media both inside and outside during pressure spikes or high differential pressures
Drain layer - Large pore fibers allow the large coalesced liquids to drain to the bottom of the bowl
End caps - Aluminum end caps provide sturdiness and durability. The design of the bottom caps make inserting a new filter element easy.
|
|
|
|
|
|
The DRESSER®ROOTS® Style 351 Pipeline Strainer is designed to protect precision devices, such as regulation and metering equipment installed downstream of the strainer, from entrained system debris such as plastic shavings, fine particles of dirt, stones, gravel, rust, pipe scale and weld slag.
Check out these Style 351 product features:
- Low pressure drop is achieved through a large element area and venturi port design.
- The elements are interchangeable and consist of corrosion resistant stainless steel in 20 and 100 mesh configurations and back-up disc for long service life.
- The streamlined flow path is sealed with an elastomeric ring in the body bore which provides positive debris removal and prevents debris from traveling downstream.
- The debris bow! has sufficient volume to provide extended service intervals and is tapped for cleaning or valve attachment for blowdown.
- Available in threaded, flanged or weld end configurations.
- Ideally suited for natural gas and compressed air applications.
- May be installed in vertical or horizontal position.
|
|
Description:
The Model FD-1500 Filter Dryer filters and de-hydrates supply gas for Flexflo™ Pilots. The FD-1500 Filter-Dryer provides superior filtration and dehydration with 110 square inches of 10 micron filtering media and 2.0 pounds of silica gel. The FD-1500 incorporates an easy-to-replace "spin on" cartridge made up of a high quality, high capacity nylon and fiberglass filter element reinforced with stainless steel mesh. All FD-1500's are fully Hydrotest to 2.5 times the working pressure to ensure the integrity of the pressure vessel. Final Filter Element.
|
|
B3000
filter regulator, stainless steel throughout
5 and 50 µm, G1/8 - G1
outlet 0 - 3 / 50 bar, max. 6000 l/min
|
|
Features
* High Flow Capacity
* Standard 5-micron filter
* No "yellow Metals" internal construction
* Epoxy coated finish
* Non-bleed design
* Integral Relief Valve
* Standard Gauge Port
* Filter Dripwell Drain Plug
* Standard Tapped Exhaust
* Soft Relief Seat
|
|
