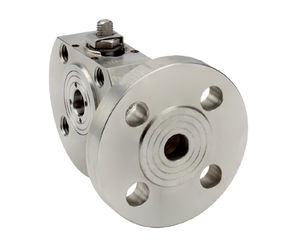

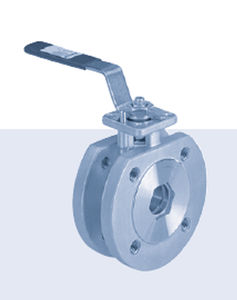

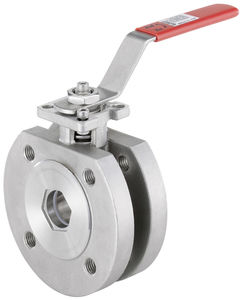

Wafer Ball valve
ND (nominal diameter): 10-200
other diameters or pressures under request
NP (nominal pressure): 6-100
MAIN TECHNICALS SPECIFICATIONS
Execution : A105, AISI 316
Can have risen with any types of actuators
Connection of actuators following one ISO 5211
Anti-statique
Management of the fluid in both senses
Technology: Forged
Principle: Wafer/sandwich
|
|
Series 540 - DN13 to DN25 SAE Series 550 - DN13 to DN50 SAE
Body, ball, stem : steel
Fields ol application:
hydraulics, ship building, engineering (Seats and seals adapted to application)
|
|

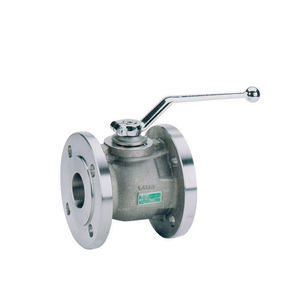

The ANTARES split body ball valve, with full bore, is used as an ON-OFF valve for: chemical products, food, installations for gas, water, air distribution. Suitable for vacuum, steam up to +195° C with PTFE+CARBOGRAPHITE. Thanks to its firm standardizations it is among the most used valves in all industrial plants.
|
|

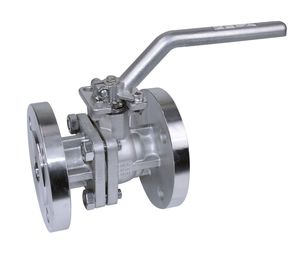

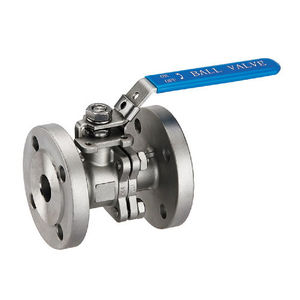

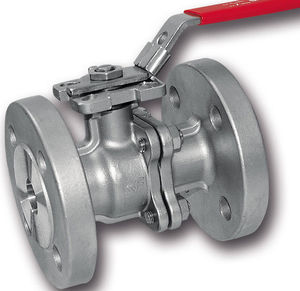

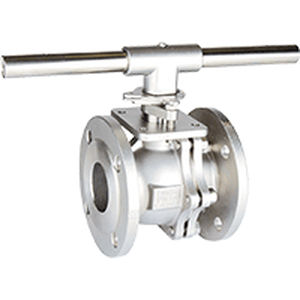

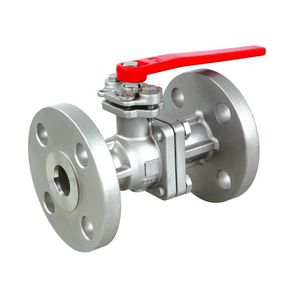

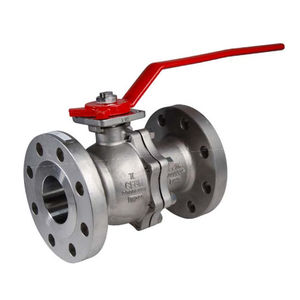

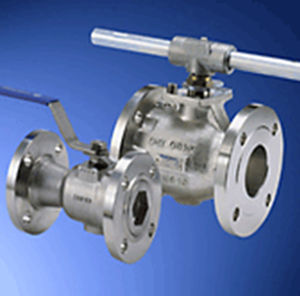

2-PC FLANGED END BALL VALVE
SS316/304/WCB BODY,
PRESSURE PN16/40, ANSI 150/300, JIS 10/20K
WITH NORMAL OR DIRECT MOUNTING PAD ISO5211
|
|
| ... products without technical information |
| |

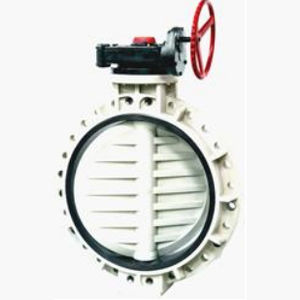

Butterfly valves, WAFER or with FLANGES.
Body materials: Grey casting or ductile cast iron
Butterfly: SG cast iron (standard), Steel or Stainless steel.
EPDM packing (standard) (others on request)
Maximum service pressure: 10 or 16 Bar. Two-way tightness.
Connection standards: PN.6/10/16, ASA 150#, according to Nominal Diameter.
Controls: manual lever, reducer, pneumatic single or double effect, electric.
From DN.300 to DN.1200
|
|
Flanged Butterfly Valves
It's the ideal replacement option!
NIBCO's Flanged Butterfly Valves dimensionally replace the:
- Gate Valve
- Ball Valve
- Plug Valve
- Spooled Butterfly Valve
200 PSI Flanged End Butterfly Valves
Polyamide Coated Cast Iron Body • Extended Neck • Cold Form Stem Drive •
Elastomer Encapsulated Disc • Flanged Ends • ANSI B16.10 Face-to-face dimensions
Patent Pending
Sizes 2" through 12"
|
|
| ... products without technical information |
| |

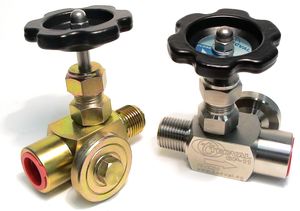

Needle valve with complete or brought back siege
ND (nominal diameter): 80-1000
other diameters or pressures under request
NP (nominal pressure): 10-64
MAIN TECHNICALS SPECIFICATIONS
Rising, rotating stalk.
Right model or set square
Technology: Molded
Principle: Classique
|
|
| ... products without technical information |
| |
Forged gate valves
ND (nominal diameter): 10-50
NP (nominal pressure): 130-420
MAIN TECHNICALS SPECIFICATIONS
Execution : Class 800 in 2500
Technology: Forged
Principle: Sièges obliques
|
|
* Heavy duty construction
*Large inlet and outlet in relation to the rotor volume
* Outboard bearings
* Packing gland type seals
* Versions in accordance with ATEX 94/9/EC
Application: Discharge airlock valves for dust collector filters and cyclones.
Designed for a wide range of products, systems and operating conditions, they are also used as discharger and metering valves below silos and hoppers.
|
|
Bush & Wilton's IF "U" Rotary Airlocks are very cost-effective valves designed for use under gravity, pressure and vacuum conditions.They are suitable for metering a wide range of dry solids, granular, pelleted and powdered type materials from the outlets of silos, hoppers, cyclones, mixers, weighers, etc.
- HEAVY DUTY BODY
- END COVERS WITH SEALED FOR LIFE BEARINGS MOUNTED OUTBOARD
- GLANDS STUFFING BOX TYPE WITH PURGE FACILITY OPTIONS
- ROTORS ADJUSTABLE BLADED OPEN TYPE FABRICATED (CLOSED TIP OPTIONS)
- VARIED OPTIONS OF TIPS TO SUIT PRODUCT NEEDS
- BODY VENTS
- ABRASIVE DUTY TYPES (TUNGSTEN CARBIDE TYPE WITH ABRASIVE RESISTANT ADJUSTABLE TIPS)
- COMPLETE DRIVE OPTIONS
|
|
Features:
- Anti shearing device (patented) for gentle product handling
- Integrated leakage air vent for improved filling efficiency
- Heavy duty housing and bearing support for minimized rotor tolerance
- Closed end rotor
Applications
- For use with granular products and pellets
- For gravity discharge and metering
- For feeding pneumatic conveying systems
- Suitable for differential pressure up to 15 psi (1bar)
|
|
Drop-thru DIN PN10 - 1bar
* Minimum gas leakage
* Heavy duty construction
* Sheared angle inlet
* Large inlet and outlet without hindrance
* Flanges in accordance with
DIN PN10 or ANSI 150
* Versions in accordance with ATEX 94/9/EC
Application: Volumetric feeders for powders in pneumatic conveying systems or discharger and metering valves below silos and hoppers.
|
|
|
MSRT (tapered bore rotary valves) are designed for use under gravity, pressure and vacuum conditions. They are suitable for metering a wide range of dry solids, granular, pelleted and powdered type materials from the outlets of silos, hopper, cyclones, mixers, weighers etc.
|
|
SERCO PORTABLE MACHINING UNITS
The SERCO units are positioned and locked by means of a column/arm system clamped on the outer part of the surface to be machined (allowing internal machining). Machine set up is fast and easy. After a first visual positioning, we can get within a few minutes, using a simple specific device, a parallelism and concentricity within a 1/100 of mm precision. A powerful air motor drives the tool rotation (hydraulic motors on request) and radial automatic feed (with a selection of two speeds).
Maintenance
Flanges
Safety valves
Sealing valves
High pressure valves
Portable Equipment
Portable machining equipment
Portable boring and surfacing machines
Portable surfacing machines
Portable grinding machines
Portable lapping machines
For further information please contact :
PROTEM SAS
ZI LES BOSSES
F-26800 ETOILE SUR RHONE
FRANCE
Tel +33 4 75574141
email : n.reicher@protem.fr
|
|
The V-Lap F6 is standard equipped with a range of grinding and centre plates for grinding and lapping any type and size of ‘flat’ seat up to 6” / DN150 mm. The centre plate keeps the grinding plate in position, but also gives an eccentric rotation ensuring constant and complete coverage and absolute flatness.
Abrasives
The V-Lap F6 is completed with a large consumer quantity of polyester based, self-adhesive Aluminum Oxide round foil tips in grains rough, middle and fine. The foil tips can be used dry and on all common seat materials.
Drive machine
The V-Lap F6 is standard equipped with a battery drive machine and is delivered with 2 battery’s. The low weight and good balance of the machine increases the grinding performance and makes it easier to attain high quality flat ‘results’.
The complete set is packed in a robust, but light weight carrying case.
|
|
3 Axis 800 / 2000 / 4000
The machine is equipped with: one control panel, with an auto diagnostic display system, for the rotation and the feed of the arm and the milling cutter.
|
|
|
|
