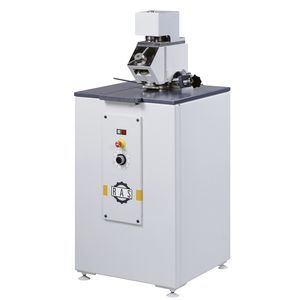

The RAS 21.20 flanging machine turns up 90 degree flanges on radius cheeks so that the parts are ready for Pittsburgh or Snaplock joints. Quick, Safe, Cost efficient.
The operation speed is variable between 0 and 9.4 m/min. In addition the machine can be operated with 230V from a standard wall outlet. The large flanging rolls produce uniform and non-wavy results even on small radii.
The optional automatic material guiding system helps create consistent flange heights. The rolls in the top attachment pierce and offset the buttons for the CAM Standing Seam in a single pass. The machine comes with an extended material support area in front and behind the forming station. Accuracy and high quality as usual from RAS.
|
|
Cold Flanging Machine
Type: KBoL 4022-500
•max. Ø of round: 5000 mm
•max. sheet thickness: 22 mm
•max. knuckle radius: 500 mm
•with electronic gap control
|
|

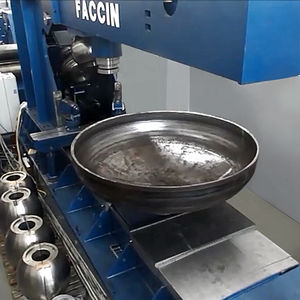

FACCIN is the ideal partner when investing in a modern dished end fabrication line. Over 30 years experience and a long line of satisfied customers is your guarantee for the quality of the product.
Our many installations are also a source of new innovation for dedicated custom built solutions.
FACCIN circular shears are suitable for cutting the disks before the dishing operations. Loading and unloading can be automated to reduce cutting cycle times;
FACCIN automatic flanging machines range from 6mm (1/4") to 45mm (1 3/4") cold forming and heavier when using the hot forming process.
FACCIN hydraulic presses, model PPM, range up to 1,650 tons and are versatile enough to be used for dishing, straightening and swaging operations.
FACCIN automatic manipulators and global plate handling systems complete the FACCIN range for the total automation of the whole manufacturing process.
|
|

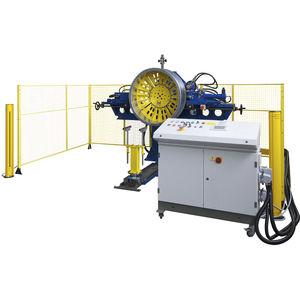

Flanging machine model Rotor 3
This machine is especially designed to realize the outer frame of the axial fans, fiter frames, pipes for ventilation and powder conveyance, etc. This machine can automatically flange and punch ferrules
Flanging machine model 2/3000
This machine is especially designed to flange pipes and jonts. This machine can automatically flange outwards and then turn the flanged band on sheet pipes up to 3 meters long.
|
|
