Analog Input Flow Indicator - Series FIV
Flow Rate and Totalization
Sight Flow Indicator - Series SF2
1/4 to 1" Connection Size, SPDT or Pulse Output, Window Style
Sight Flow Indicator/Transmitter - Series SFI-800
1/2 or 3/4" Connection Size, Optional Output Sensor Package
Sight Flow Indicator/Transmitter - Series SFI-100T
1/2 or 3/4" Connection Size, Optional Output Sensor Package
|
|
Visoflow WR1-...GM/GK
Mechanical Flow Indicator for liquids, with a rotor for quantitative flow indication in a special tube-shaped glass housing. A signal-red rotor provides a directly flow-proportional indication of the momentary flow-rate. Rugged design in brass or stainless steel.
cleaning mechanism of the internal surface of the glass
visibility of rotor 360°
floating bearing for liquids
grease-free ball bearing for gaseous media
|
|

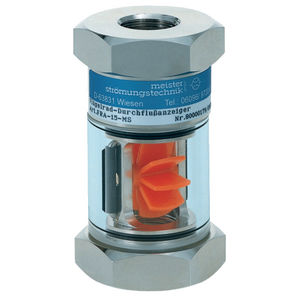

Rotor Flow Indicator w. Self-cleaning mech. DAA
Flow Indicator with Rotor DAH

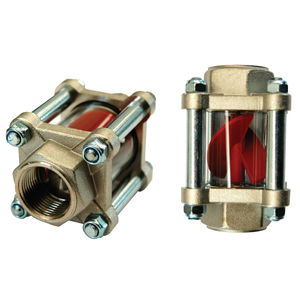

Rotating Vane Flow Indicator DAF
Rotating Vane Flow Indicator DIH
Rotating Vane Flow Indicator DIG
Rotating Vane Flow Indicator DKF
Flow Indicator with Rotor DAR
Flow Indicator with Flap DAK
Flow Indicator with Flap and Scale DAZ
Flow Indicator with/without Ball DAB
Flow Indicator with Ball DKB
|
|
|
Pointers of passage who come used for the visual control of the flow of liquids in the pipages, realized or in the flangiata version that in the threaded version, to single and double crystal, realized in grey cast iron, brass, carbon steel, stainless steel until to series PN 25.
|
|
|
With more than a quarter of a million units in operation, in applications around the world, Cameron is the undeniable leader in the design and manufacture of totalizers and flow analyzers. The NuFlo MC Family of Flow Analyzers delivers a broad range of functionality and capability from the straightforward MC-II Totalizer, which provides rate and flow, to the MC-III EXP Flow Analyzer, which utilizes Modbus® communications to download extensive archival logs in less than a minute. The MC Family of Flow Analyzers is ideal for use with Cameron's comprehensive line of turbine meters and performs equally well with all turbine brands on the market today.
|
|
- Propeller, glass tube type
- Liquids application
- 360° visibility
- PPL thread with brass insert
- 1/4" to 2" female thread process connections
- Pmax = 10 bar
- Tmax = 100°C
|
|
Rotor Flow Indicator w. Self-cleaning mech. DAAFlow Indicator with Rotor DAH
Flow Indicator with Rotor DAHRotating Vane
Rotating Vane Flow Indicator DAFRotating Vane
Rotating Vane Flow Indicator DIHRotating Vane
Rotating Vane Flow Indicator DIGRotating Vane
Rotating Vane Flow Indicator DKF
Flow Indicator with Rotor DAR
Flow Indicator with Flap DAK
Flow Indicator with Flap and Scale DAZ
Flow Indicator with/without Ball DAB
Flow Indicator with Ball DKB
Flow Indicator with Drip Tube DAT
|
|
General description:
This durable, rugged in-line polystyrene device provides immediate visual indication of liquid or gas flow from 95ml/sec. down to 5ml/sec. (or down to 3ml/sec. in fluid with air bubbles removed). Cannot be used with corrosive fluids or over 64ºC (150ºF). Dimensions are 90 x 16 x 55mm (31/2 x 3/4 x 21/8"). Serrated tubulations accept 10 to 14mm (3/8 to 9/16") ID tubing. Per each
Clear polystyrene outer case reveals bright red indicator paddle wheel
- Paddle wheel spins freely with flow
|
|
Optimum solutions for individual requirements
Endress+Hauser flow measurement systems offer optimum solutions to
match your individual requirements for applications in
- gases,
- vapors,
- conductive or non-conductive liquids,
- mass flow measurement
- volumetric flow measurement.
You have the choice of the following measurement principles:
- electromagnetic,
- Coriolis mass measurement,
- thermal mass measurement,
- vortex meter,
- ultrasonics
- differential pressure.
|
|
The contactless measurement and the lack of moving parts, allow a precise determination of the mass flow without any wear to the systems components. This outstanding advantage is applicable on various mechanical conveying systems like:
belt conveyors
screw conveyors
troughed chain conveyors
steel plate conveyors
bucket conveyors
free fall in chutes or pipes
This makes a radiometric bulk flow measuring system particularly interesting for various applications.
|
|
|
Use the Smart Flow Meter for metering, monitoring or totalization of bulk material flows, or as a feeder in high rate applications.
|
|
The RFIK mechanical hydraulic tester provides the ideal solution for servicing and commissioning
hydraulic circuits on agricultural and other mobile machinery.
The kit comprises of a direct acting flow indicator with built in thermometer, a loading valve and a pressure gauge all built into a strong steel case with a removable lid.
The unit is self contained and requires no electrical power. The dials are clear and easy to read.
Installation is extremely simple and the test kit can be connected into either the pressure or return lines. The loading valve and pressure gauge allow a progressive build up of system pressure in complete safety.
The test kit provides the service engineer with quick, accurate and simple performance testing of pumps, motors, valves, cylinders and complete hydraulic
circuits.
Note: This unit is not designed for permanent installation.
|
|
|
|
|
|
Aalborg®'s multi-parameter PWE Enhanced Digital Paddle Wheel Flow Meters offer cost-effective solutions to medium flow liquid applications. Password-protected access to process parameters eliminates user-tampering or resetting. Flow rates can be displayed in 23 different volumetric or mass flow engineering units. In addition, flow meter parameters and functions can now be programmed locally via optional key pad and LCD or remotely via RS-232/RS-485 interface.
Simple in design with only one moving part, these units are easy to install & operate. Sapphire jewel bearings facilitate virtually friction-free impeller wheel rotations resulting in linear medium flow metering. PWE supports various functions including two independently programmable flow totalizers, self-diagnostic alarm, flow pulse output, and analog 0-5Vdc or 4-20 mA output flow & temperature signals.
Models constructed of Polypropylene or chemically-resistant PVDF can be mounted either horizontally or vertically. Designed for measuring highly accurate temperature readings, PWE Digital Paddle Wheel Meters are ideally suited to many flow system applications. Durable materials of construction ensure long operational life.
Enhanced Features
- Free communication software with temperature and flow data logging capability.
- Flow metering accuracy (inc. linearity) ±1% FS.
- Temperature accuracy (inc. linearity) ±0.5 ºC.
- Two sets of user-programmable optically-isolated outputs.
- Available with/without local key pad & 2x16 character LCD readout with adjustable back light which provide flow rate, total volume reading, diagnostic events indication, and protected access.
- Optional platinum RTD.
|
|
The C-LEVER® II by REMBE® sets the benchmarks in the field of industrial flow metering.
Its unique technique achieves an excellent accuracy of ± 0,25 % of the volumetric range for nearly all flowing bulk and solids.
The accuracy of the C-LEVER® II is almost independent from product, its density, form, friction and elasticity. Severe changes of flow and/or pulsations caused by rotary valves or screw feeders do not influence the accuracy.
Compared to conventional measuring systems - based on volume, speed or weight - the REMBE® system measures the product flow inline.
The C-LEVER® II is made without any mechanical moved parts (actuators, pivot bearings, belts). As a resulting from this no post calibration is required. All electronical components are mounted outside of the product flow.
|
|
|
|
|
|
Fuel flow meter DFM is a simple and easy-to-use fuel flow meter with electronic counter designed for measuring fuel consumption and engine operating time of vehicles, tractors, any mobile or fixed installations with diesel engines.
All readings are shown on the electronic display of the meter. Switching of indications is made by special contactless key.
There exist two modifications of fuel flow meter DFM: MT - monitoring of fuel consumption and engine operating time, T - monitoring of fuel consumption.
Fuel flow meter DFM is protected from overstatement of readings and intervention. Even if you try to blow the meter by air the fact of intervention will be registered.
Fuel flow meter DFM contains the following counters (* this counter is accessible only in MT version):
- Total fuel consumption counter, l
- Instant fuel consumption, l/h
- Total engine operating time counter, h *
- Engine operating time in “idling” mode counter, h *
- Engine operating time in “optimal” mode counter, h *
- Engine operating time in “overload” mode counter, h *
Advantages of fuel flow meter DFM:
- Monitoring of fuel consumption and engine operating time (MT version)
- Moderate price
- Strong metal molded case
- Built-in fuel filter
- Electronic correction of measurement inaccuracy in all flow range
- Ease of mounting and service
- Protection from overstatement of readings and intervention
- Measurement inaccuracy is no more than 1%
- Flow range (DFM-5 - 2...80 l/h, DFM-7 - 5...200 l/h)
- Temperature range -45...+60 ºС
- Separate account on engine behaviors
- Reliable electronic display
- Certificate of conformity (CE)
|
|
Open Channel Flowmeter FMC-4000/FCA
Flowmeter to mounting on waste-water open channels or boxes
This low cost mounting system allows to measure, totalizer, average and peak flow at small open channel and to transmit all data by Modbus communication, and optionally also Radio or GSM. Also optionally can be powered by means our stand-alone ABF device with solar cell, allowing to mount in isolated areas.
|
|
Continuously monitor, display, totalize and data log flow through any flume or weir. The OCF 4.0 includes a non-contacting ultrasonic sensor that mounts just 8" (203.2 mm) above the flowing water. It is accurate (±0.25%) and reliable. There is no obstruction to flow and no fouling. Use the built-in Keypad/menu system to select your flume or weir from the Menu and to choose measurement units (gallons, liters etc.)
- Non-Contacting Ultrasonic Sensor
- Accurate and Verifiable
- Built-in 50,000 point Data Logger
- Windows Software
- USB and RS232 Outputs
- 4-20mA/0-5V Output
- 16-digit Totalizer
- 3 Programmable Control Relays
- Password Protected
- Simple 3-key Calibration
|
|
Open Channel Flow Measurement Isco 4200
No single measurement technology is suitable for all open channel flow monitoring applications. Only Isco offers you a choice of ultrasonic, submerged probe, bubbler, and area velocity flow meters. Whether you need a permanent meter for a flume or weir, short term measurement with no primary device, or flow and pump performance monitoring at a lift station, Isco has the solution. And our application experts are available for a free, no obligation consultation to help you choose the best technology for your monitoring sites.
|
|
Metal Magmeter Flow Sensor (Signet 2552)
Plastic Magmeter Flow Sensor (Signet 2551)
Flow Wet-Tap Valve (Signet 3519)
Metal Paddlewheel Flow Sensors (Signet 525, 2517, 2540)
Plastic Paddlewheel Flow Sensors (Signet 515, 2536, 2537)
Ultrasonic Flow Sensor
Vortex Flow Sensors (Signet 7000/7001)
In-Line Rotor/Flow-Through Sensors (Signet 2000, 2100, 2507)
|
|
The EasyFlow is for professionals who occasionally do flow gauging and who don't need to record several measuring sites. It permits to realise in several minutes a flow gauging according to the tracer dilution method. The device records the salt cloud and gives the result in liters per second at the end of the operation.
Very ergonomic and waterproof, it is equipped with a conductivity probe with 10 meters cable. It is delivered in a small bag with shoulder strap.
SALINITY
Measuring range: 0 - 3200 mg/l
Sensitivity: 1 mg/l
Precision: < 1%
Salt quantity (min - max): 1g - 100 kg
TEMPERATURE
Measuring range: 0 - 40 °C
Precision: +/- 0,2 °C
FLOW
Precision (Optimum mix): < 5 %
Measuring display range: 0,1 l/s - 99'900 l/s
VARIOUS
Supply: 3 alkaline batteries 1,5 V type AA, AM3, LR6
Autonomy: ~ 100 hours under normal conditions
|
|
|
Equipped with the newest microwave technology, our solid flow meter MF 3000 is designed for flow measurement in metallic pipes from a few kg/h to many t/h. The system is suitable for on-line measurements of powders, dust, pellets, and granular from 1 nm up to 2 cm in pneumatic or free fall condition. Installation is simple and cost effective via a welded base, through which the sensor is screwed flush with the inside of the pipe.
|
|
The Working Principle
Bulk material supplied from above passes a constant-
speed impeller wheel driven by a three-phase current
motor, diverting the material radially. The tangential
Coriolis force acting on the wheel blades causes drive
torque changes in proportion to the flow rate sensed by
a load cell. Based on torque and speed, the Congrav®
microcomputer computes the current flow rate, which is
both displayed and issued as a signal for recording or
control of a variable-speed upstream feeder (e.g.
screw feeder, rotary valve).
The Advantages
Ingredient characteristics
or height of fall do not
affect accuracy
Models
CDW 150: max. rate 40 m³/hr
CDW 250: max. rate 100 m³/hr
CDW 350: max. rate 160 m³/hr
|
|
|
There are two methods for the safe installation of flowmeters in hazardous areas. Either the electronics must be housed in heavy flame-proof enclosure with expensive armoured cable connections (Eexd/Flameproof) or the electronics can be intrinsically safe (IS). The preferable approach is that the flowmeter is intrinsically safe and is not capable of igniting volatile gases. A normal low-cost, non-armoured cable is used to connect the flow-meter to the safe environment where isolator barrier devices are installed. These devices limit the energy passing to the IS transmitter electronics.
|
|
Flow Indicators are designed for continuous monitoring or intermittent use commissioning and servicing hydraulic systems up to 420 bar, 6000 psi.
The large clear 63mm (2 1/2") diameter dial ensures that quick checks can be made to determine pump performance and setting of flow control valves. They can be used on mobile and industrial hydraulic circuits. Also lubrication and coolant systems using oil.
These direct acting flow indicators can be installed in hazardous areas or on applications where no power is available. The flow indicator design ensures good reliability and minimises the effects of contamination.
|
|
Featuring 5 digits of rate and 8 digits of total, the
HIT-2A is a DC, AC, loop or battery powered indicator
capable of accepting magnetic pickup, DC pulse or switch
closure inputs. The unit can be ordered with an optional
loop powered 4-20mA output. The HIT-2A uses the 4-
20mA loop to provide power when this output is used.
|
|
TD 32500 – multi purpose and robust instrument
TD 32500 is a digital flow and volume measurement instrument, which is fitted directly to a SIKA flow sensor, making up a perfect team for any application. Various turbine and gear wheel sensors are available as flow sensors.
The programmable measuring instrument is used for displaying of flow or summing up of total volume. The display can optionally be equipped with an additional measuring input for the resistance thermometer Pt 100, two fast-switching alarm outputs, a frequency divider
output or an analogue output.
TD 32500 consists of a robust stainless steel casing, which can be turned by 180°, thus providing an optimum readability of the display.
The display can be switched between flow, total flow (resettable), fix-volume (non-resettable), and optionally temperature. In addition, a bargraph 0...100% can be displayed for flow, volume, and temperature.
|
|
|
The current family of Scanner EFM Flow Computers represents more than 70 years of measurement expertise culminating in the on-going development of electronic measurement technology. As stand alone units NUFLO flow computers and automation products can collect, display, process and store data for historical and real-time measurement and reporting. As part of an engineered automation system, customers can pick and choose from a variety of options to create solutions tailored to specific requirements. For this reason, NUFLO engineered systems are becoming a standard for major oil and gas production, transmission and distribution companies.
|
|
|
Blancett offers advanced microprocessor-based flow monitors in many mounting options. Units are battery-powered (one "D"-cell 1.5 VDC) or loop-poweed (10-30 VDC). Explosion-proof enclosure also available.
|
|
Flowview 100i
The solution for controlling of stock and consumption. Flexible programming of the Micro-PLC possible. All typical functions of a PLC available. Flexible programming of the visualization and information about connected devices is based on the IEC61131-3 conform programming software. Connecting of different MIB flowmeters via RS-485 interface or the I/Os.
It is also possible to connect foreign devices on the I/Os. Data transmission via Ethernet or GSM is available optionally. The Flowview 100i is a compact All-in-One controlsystem with integrated touchscreen, I/O-Module, networking option and MicroSD card slot.
Due to it´s specially designed high-resolution resistive touchscreen the Flowview is suitable for outdoor and indoor applications. (if mounted in a panel, protection class IP 67)
The Flowview is programmable by the programming software "Cscape". It is possible to control a range of different processes from small to large applications.
|
|
|
|
|
|
Mobile Measurement kit FM-1-B FLUID-CHECK in suitcase for :
- Flow rate sensors
- Leakage sensors
- Temperature sensors
- Pressure sensors
Examples for :
Fixed displacement pumps Pumping capacity
Variable capacity pumps Percentage of leak oil
Oil coolers Flow characteristics
Water coolers
Differential cylinders Leak oil
Synchronous cylinders Sealing damages
Plunger cylinders Moving speed
Oil motors Leak oil
Pressure accumulators Bladder control
Charging behaviour
Nitrogen charge
Technical Data :
- With multi-purpose display with one separate analogue input, with
4 – 20 mA and scaling facility
- Suitable for display of input channel A or input channel B as well as the sum A+B, the differential A-B or the ratio A:B
- Display range +/- 4 1/2 decades at 15 mm size
- Power supply 115 / 230 VAC or 18 – 30 VDC
- Setup of zero and full scale by means of two front keys and
menu support
- Selectable linearisation functions
Included :
- Power cord 230V AC
- Connecting cable with plug
M12 connector for kit and sensors
- Suitcase made of plastic (black/blue)
Outer dimension 340 x 275 x 84 mm
- Technical documentation and operating instructions
|
|
|
|
